Cylinder Head Assembly

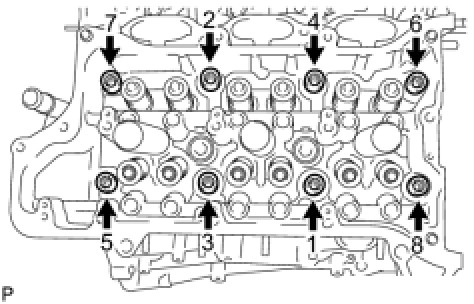

Cylinder head bolts

Right:

Left:

Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 90°
Step 3 90°

Inspect bolts

Standard outside diameter 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum outside diameter 10.70 mm (0.4213 in.)

If the diameter is less than the minimum, replace the cylinder head bolt

Camshaft cap








Bolt A 28 Nm (286 kgf-cm, 21 ft-lbf)
Bolt B 16 Nm (163 kgf-cm, 12 ft-lbf)
