LIN Communication System

NETWORKING: LIN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

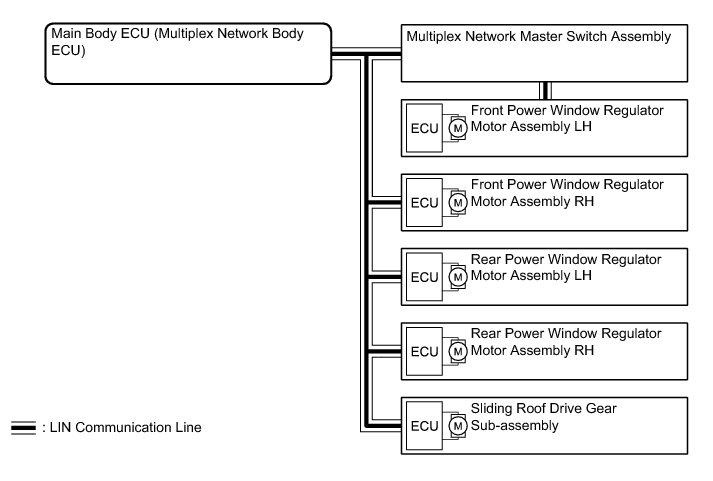

1. DOOR BUS LINES

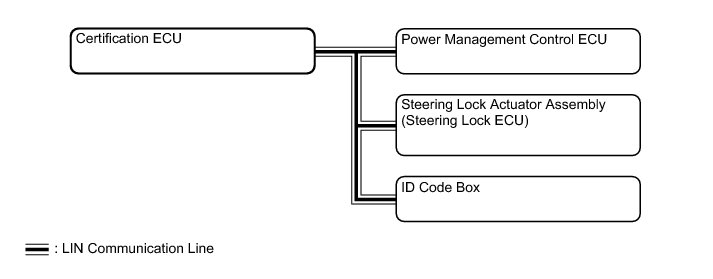

2. CERTIFICATION ECU LINES

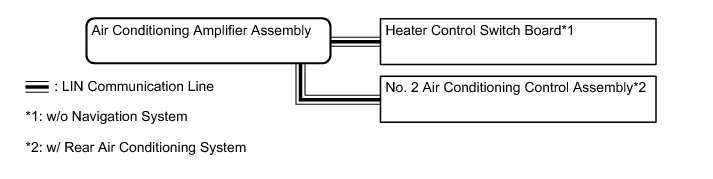

3. AIR CONDITIONING BUS LINES





4. WINDSHIELD WIPER BUS LINES





5. LIGHTING BUS LINES (w/ Adaptive Front-lighting System)





6. MULTI-TERRAIN MONITOR BUS LINES









SYSTEM DESCRIPTION

1. LIN COMMUNICATION SYSTEM DESCRIPTION

The LIN communication system is used for communication between the components in the tables below. If communication cannot be performed through LIN communication because of a break in the communication lines or some other reason, the master control ECU of the relevant system stores DTCs. Refer to the table below about the communication bus lines and connected components.

HINT
* Each component has a fail-safe function which activates to maintain the minimum performance of the system and protect the system.
* In the following table, "o" indicates that the function applies, and "-" indicates that it does not.

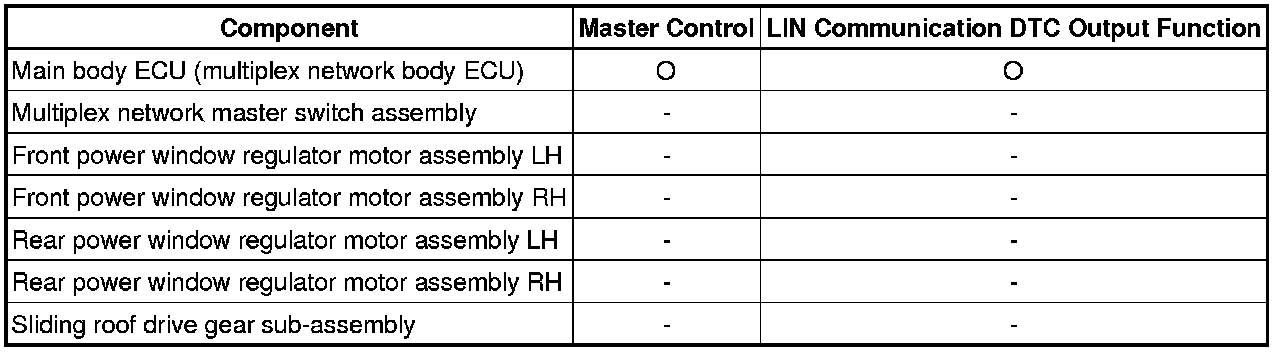

Door Bus Lines

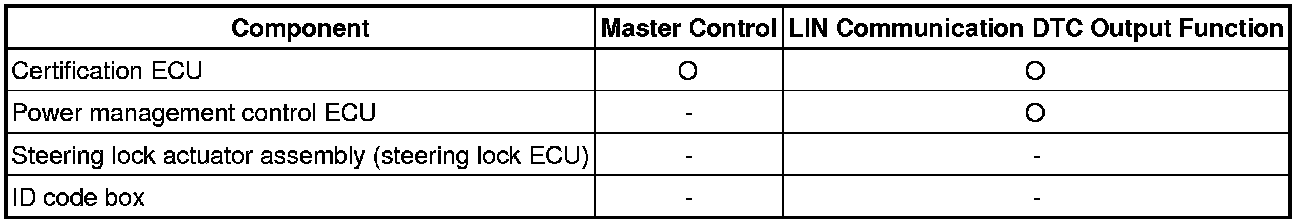

Certification Bus Lines

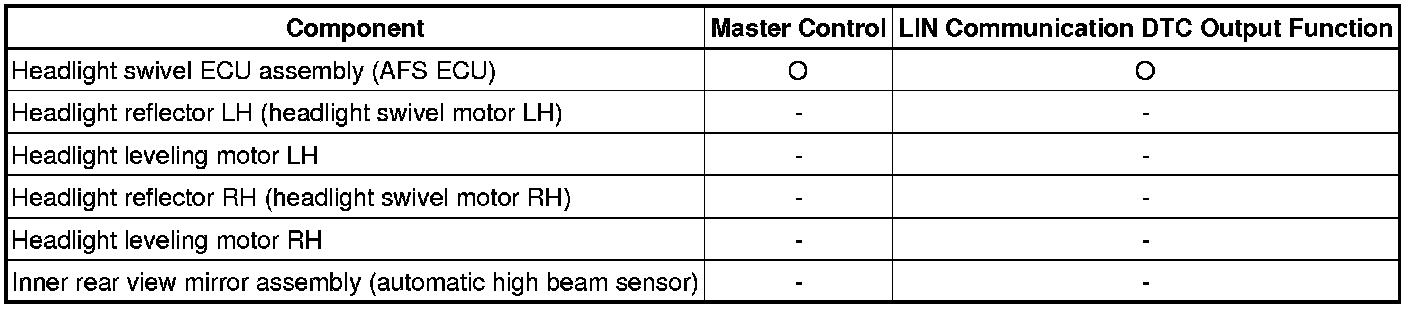

Lighting Bus Lines (w/ Adaptive Front-lighting System)

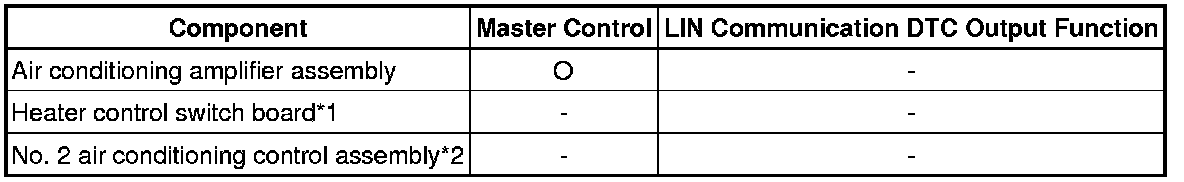

Air Conditioning Bus Lines





*1: w/o Navigation System

*2: w/ Rear Air Conditioning System

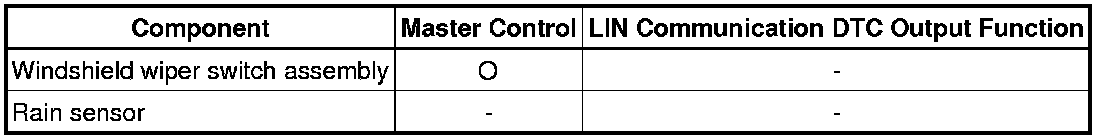

Windshield Wiper Bus Lines

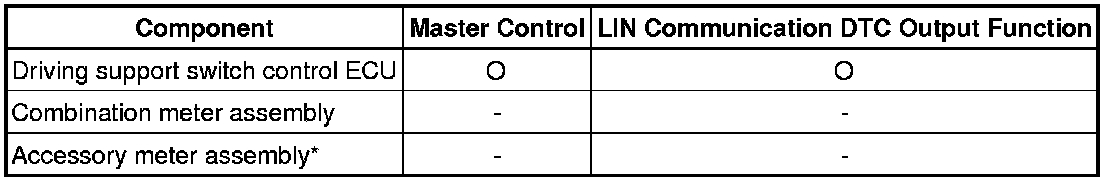

Multi-terrain Monitor Bus Lines





*: w/o Navigation System
