Navigation Function Selector Switch: Testing and Inspection





NAVIGATION / MULTI INFO DISPLAY: MULTI-DISPLAY SWITCH: INSPECTION

1. INSPECT TELLTALE LIGHT ASSEMBLY (MULTI-DISPLAY SWITCH)

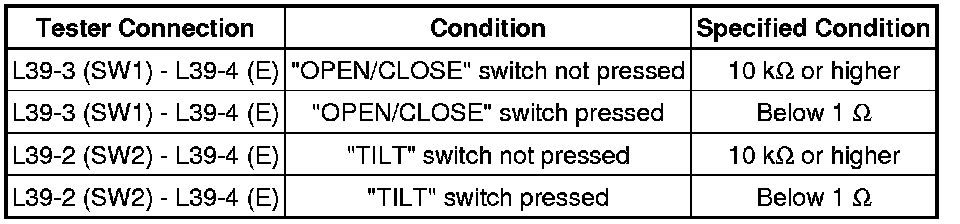

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





(b) Check the illumination





(1) Connect a positive (+) lead to terminal ILL+ and a negative (-) lead to terminal ILL- of the telltale light assembly connector.

(2) Check that the multi-display switch illumination comes on.

OK:

Multi-display switch illumination comes on.
