Service Data




Wheel Alignment Specifications

Measurement Points:
A: Ground clearance of front No. 1 lower suspension arm bushing set bolt center

B: Ground clearance of rear No. 2 suspension arm set bolt center

C: Ground clearance of front wheel center

D: Ground clearance of rear wheel center

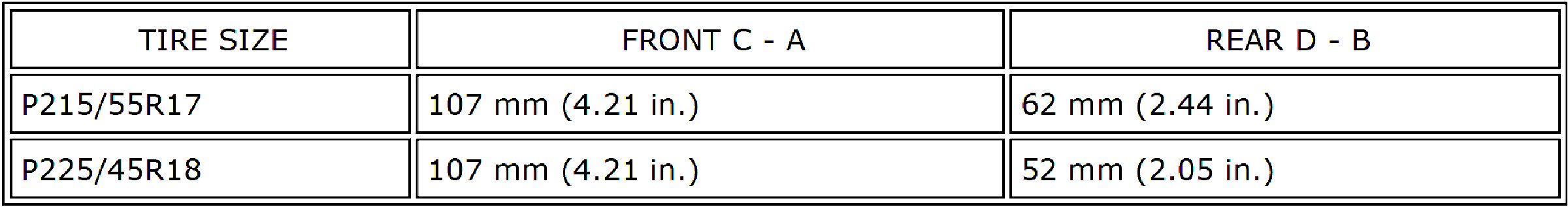

Vehicle Height (Unloaded Vehicle):

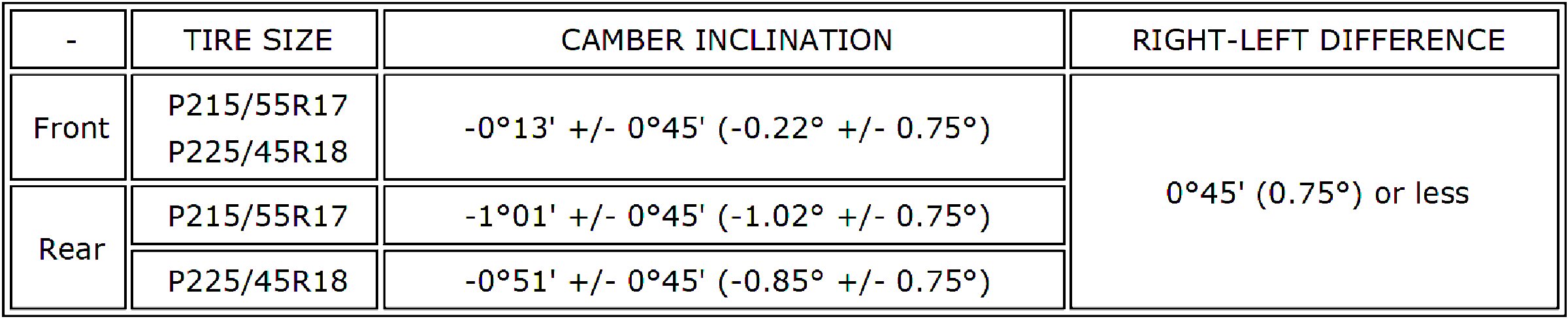

Camber (Unloaded Vehicle):

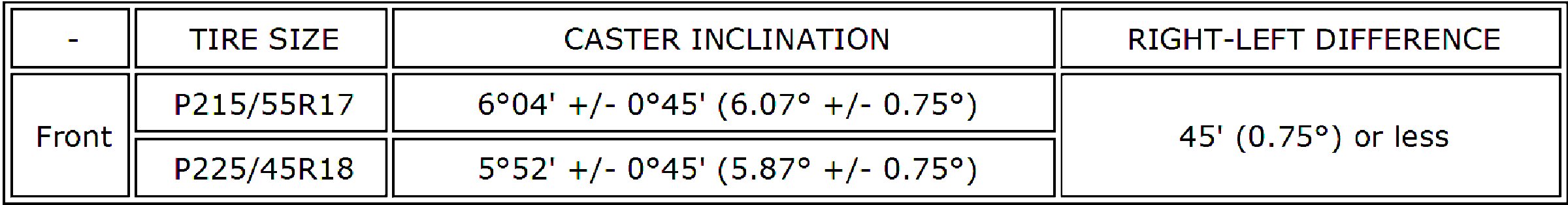

Caster (Unloaded Vehicle):

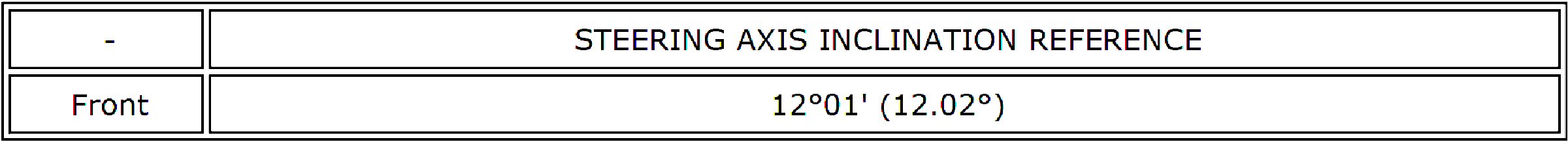

Steering Axis Inclination (Unloaded Vehicle):

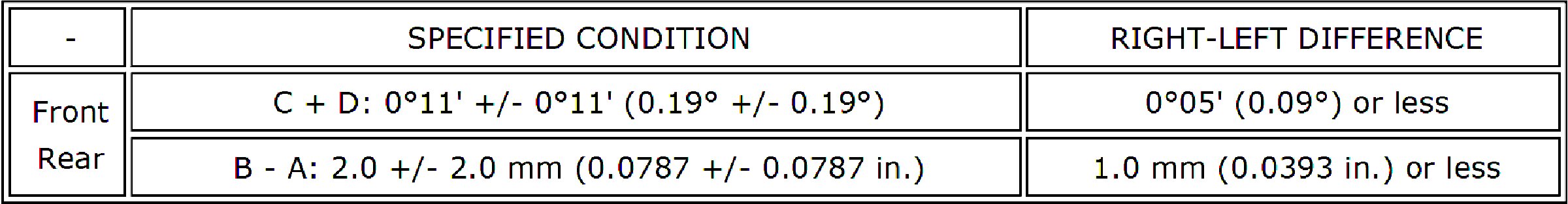

Toe-in (Unloaded Vehicle):

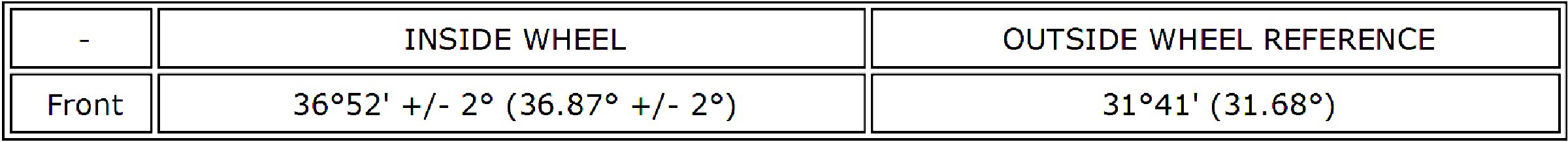

Wheel Turning Angle (Unloaded Vehicle):
