Installation





AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

1. INSTALL STEERING PAD SWITCH ASSEMBLY

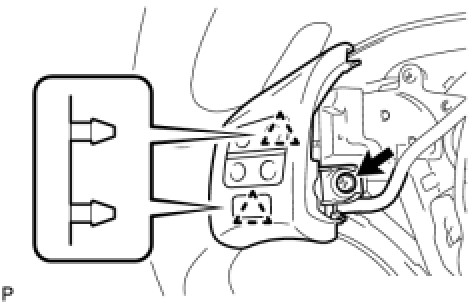

(a) Engage the 2 claws and install the steering pad switch.





(b) Install the screw.

(c) Engage the 2 claws and install the steering pad switch.





(d) Install the screw.

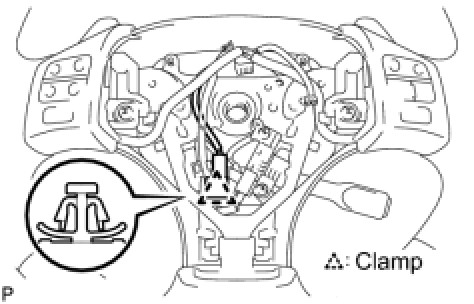

(e) Connect the connector to the spiral cable.

(f) Connect the cruise connector and install the connector clamp.





2. INSTALL STEERING PAD Installation

3. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

4. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. INSPECT SRS WARNING LIGHT
