Brake Rotor/Disc: Specifications
Front Brake (for Floating Type Caliper)

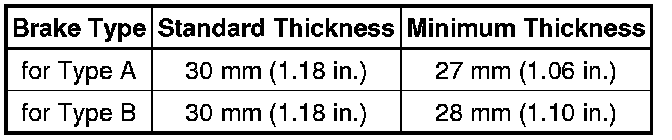

Disc Thickness:
Maximum disc runout
0.05 mm (0.00197 in.)
Front Brake (for Opposed Type Caliper)
Disc Thickness:
Maximum disc runout
0.05 mm (0.00197 in.)
Rear Brakes
Minimum thickness
16.5 mm (0.650 in.)
Maximum disc runout
0.05 mm (0.00197 in.)
