Alignment: Specifications







WHEEL ALIGNMENT SPECIFICATIONS





Measuring points:
A: Ground clearance of front wheel center.

B: Ground clearance of front center position of front suspension lower arm assembly front bushing installation bolt head.

C: Ground clearance of front wheel center.

D: Ground clearance of rear center position of rear No. 2 suspension arm assembly bushing installation bolt threads.

FRONT

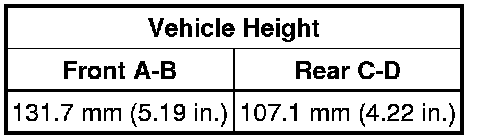

Vehicle Height





Wheel Turning Angle

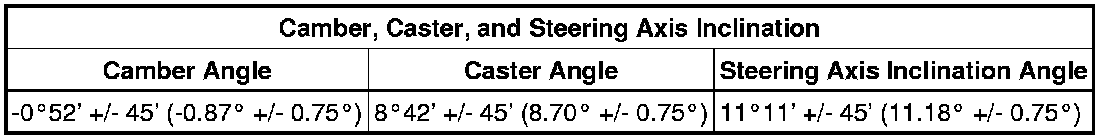

Camber, Caster and Steering Axis Inclination





Toe-in (Total)


REAR





Toe-in (Total)





Camber Angle
