Removal





DOOR LOCK: DOOR CONTROL RECEIVER: REMOVAL

1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal

2. REMOVE DECK TRIM SIDE BOARD LH (w/o Spare Tire) Removal

3. REMOVE BATTERY SERVICE HOLE COVER LH Removal

4. REMOVE ROPE HOOK Removal

5. REMOVE ROPE HOOK ASSEMBLY Removal

6. REMOVE DECK TRIM SIDE BOARD LH (w/o Spare Tire) Removal

7. REMOVE DECK TRIM SIDE BOARD RH Removal

8. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Removal

9. REMOVE NO. 1 COOLER COVER (w/ Rear Cooler) Removal

10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal

11. REMOVE DECK BOARD ASSEMBLY (w/o Spare Tire)

12. REMOVE TOOL BOX (w/o Spare Tire) Removal

13. REMOVE REAR FLOOR FINISH PLATE Removal

14. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Removal

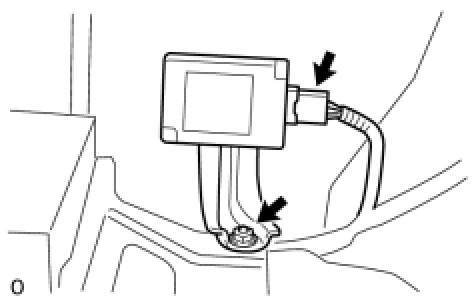

15. REMOVE DOOR CONTROL RECEIVER





(a) Disconnect the connector.

(b) Remove the nut and receiver.
