Removal

2UR-FSE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal

3. REMOVE NO. 1 AIR CLEANER INLET Removal

4. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH Removal

5. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH Removal

6. REMOVE NO. 1 ENGINE UNDER COVER Removal

7. DRAIN ENGINE COOLANT Service and Repair

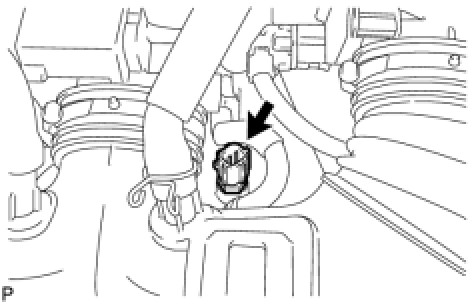

8. REMOVE ENGINE COOLANT TEMPERATURE SENSOR





(a) Disconnect the sensor connector.

(b) Remove the sensor.

(c) Remove the gasket from the sensor.
