Alignment

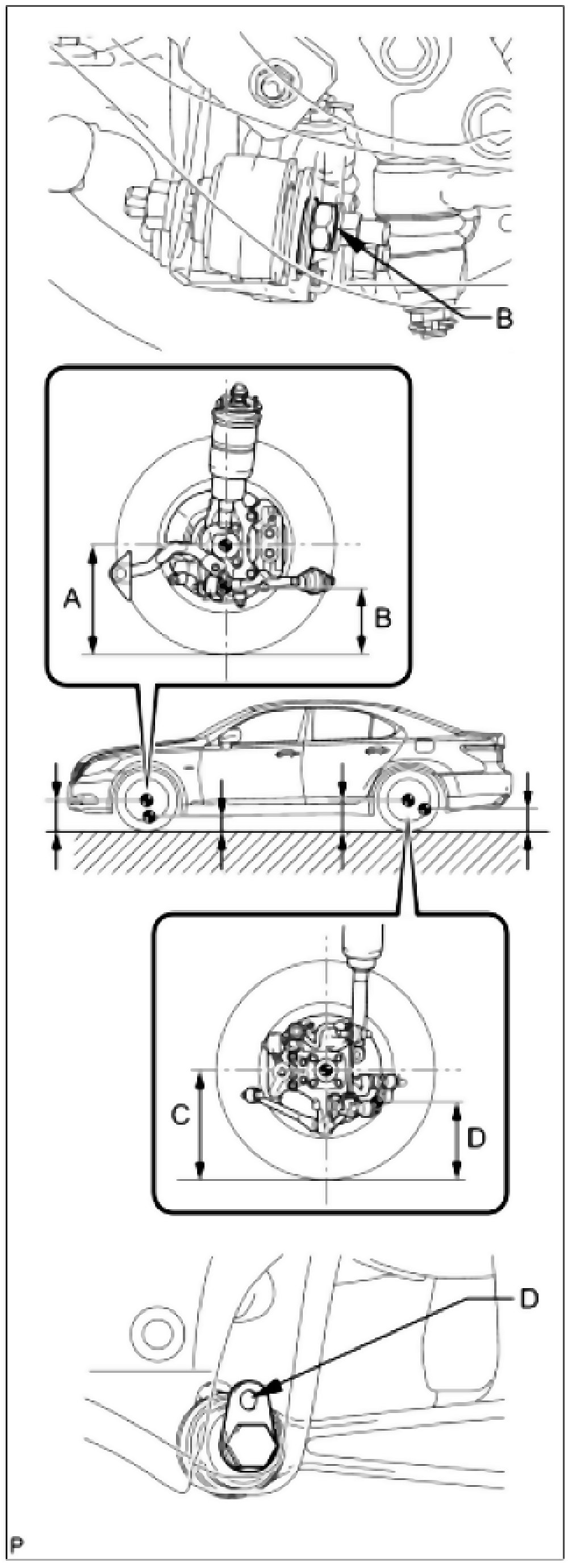

Wheel Alignment SpecificationsMeasuring Points A
Ground clearance of front wheel center
B
Ground clearance of head center of bolt used to install the front No. 1 suspension lower arm to the front suspension member
C
Ground clearance of rear wheel center
D
Ground clearance of pit center of the attachment rear suspension arm
Front:
Rear:
