Installation





NAVIGATION / MULTI INFO DISPLAY: DISPLAY AND NAVIGATION ASSEMBLY (w/ Navigation System): INSTALLATION

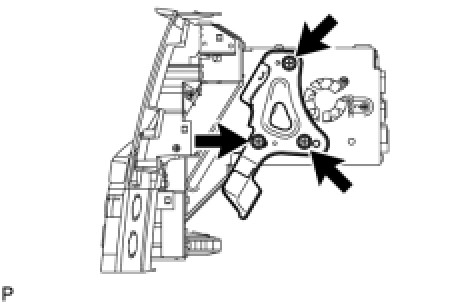

1. INSTALL NO. 2 RADIO RECEIVER BRACKET

(a) Install the bracket with the 3 bolts.

Torque : 3.0 Nm (30 kgf-cm, 26 in-lbf)

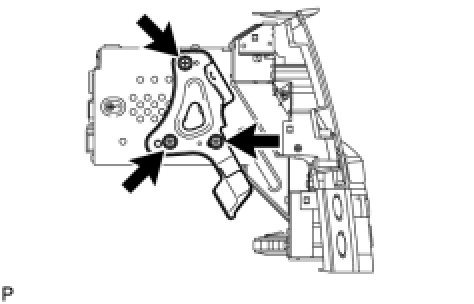

2. INSTALL NO. 1 RADIO RECEIVER BRACKET

(a) Install the bracket with the 3 bolts.

Torque : 3.0 Nm (30 kgf-cm, 26 in-lbf)





3. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY

(a) Connect the connectors.

(b) Insert the display and attach the 2 claws and 4 clips on its backside.





NOTICE:
When inserting the display, do not press the knobs on it.

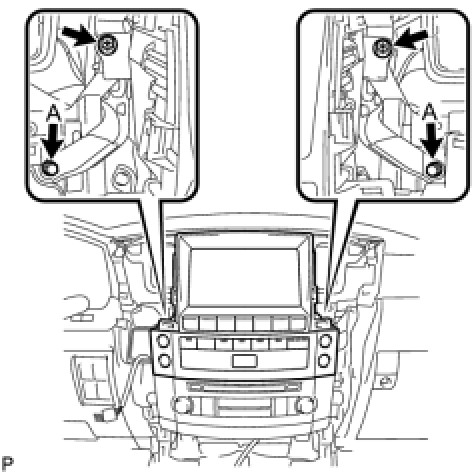

(c) Install the display with the 2 screws and 2 bolts.

for bolts labeled A - Torque : 12 Nm (122 kgf-cm, 8 ft-lbf)





4. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. INSTALL ENGINE ROOM SIDE COVER LH Installation
