Removal
DOOR LOCK: DOOR CONTROL SWITCH: REMOVAL 1.
REMOVE FRONT UPPER ARMREST BASE PANEL RH
(a)

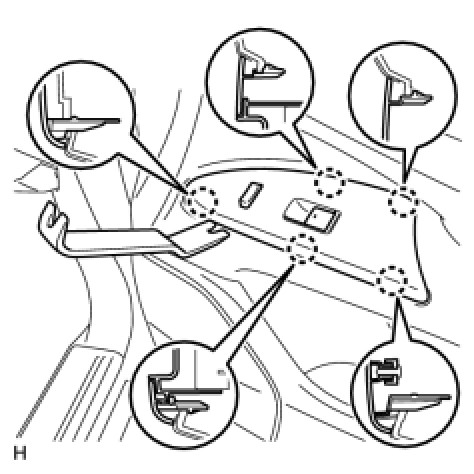

Using a moulding remover, detach the 5 claws and remove the front upper armrest base panel RH.
(b)
Disconnect the 2 connectors.
2.
REMOVE DOOR CONTROL SWITCH ASSEMBLY
(a)
Detach the 2 claws and remove the door control switch.
