Problem Symptoms Table
SEAT: CLIMATE CONTROL SEAT SYSTEM: PROBLEM SYMPTOMS TABLE
HINT
* Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Inspect the fuses and relays related to the system before inspecting the suspected areas below.
* Problem symptoms may occur if the functions of the electric power control system malfunction. Follow the "How to Proceed with Troubleshooting" procedures.
* The electrical equipment operation may be limited by the load control of the electric power control system. Follow the "How to Proceed with Troubleshooting" procedures.

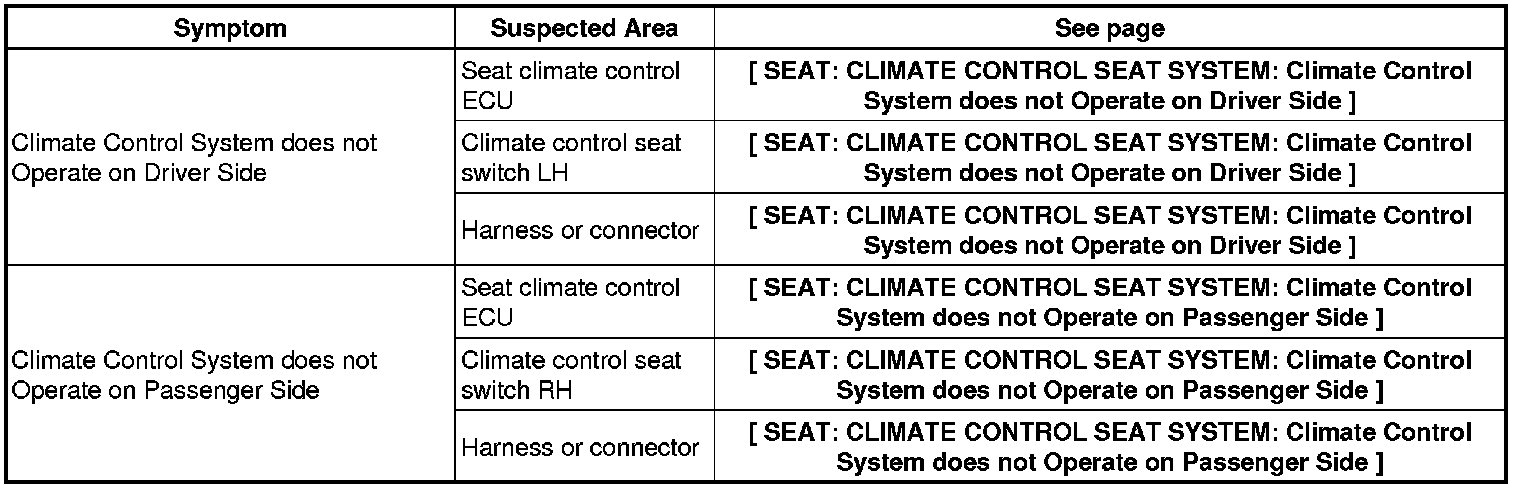

Climate Control Seat System
