Removal

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: STEERING ANGLE SENSOR: REMOVAL

1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

(a) Disable the Autoaway/Return function by changing the customize parameter Repair Instruction - Customize Parameters.

NOTICE:
Record the current customize parameter setting (whether the Autoaway/Return function is enabled or disabled) in order to restore the current setting after finishing the operation.

HINT
Performing the above operation causes the Autoaway/Return function to be disabled when the engine switch is turned off.

(b) Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column.

(c) Turn the engine switch off and disconnect the cable from the negative (-) battery terminal.

3. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal

4. REMOVE LOWER NO. 3 STEERING WHEEL COVER Removal

5. REMOVE STEERING PAD Removal

6. REMOVE STEERING WHEEL ASSEMBLY Removal

7. REMOVE LOWER STEERING COLUMN COVER Removal

8. REMOVE UPPER STEERING COLUMN COVER Removal

9. REMOVE SPIRAL CABLE SUB-ASSEMBLY Removal

10. REMOVE STEERING ANGLE SENSOR

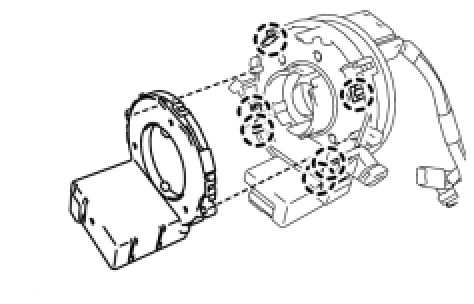

(a) Detach the 6 claws and remove the steering angle sensor.
