Installation

HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSTALLATION

1. INSTALL ROOM TEMPERATURE SENSOR





(a) Install the sensor and connect the hose.

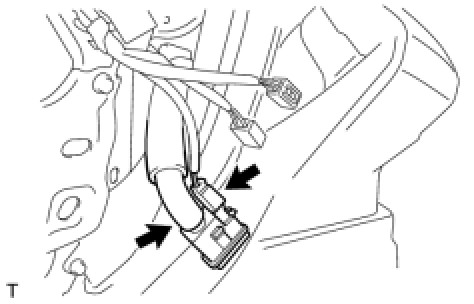

(b) Connect the connector.

2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL NO. 1 SWITCH HOLE BASE Installation

5. INSTALL INSTRUMENT SIDE PANEL LH Installation

6. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Installation

7. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSTALL ENGINE ROOM SIDE COVER LH Installation

10. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Check Mode Procedure.
