Installation





3UR-FE ENGINE MECHANICAL: DRIVE BELT: INSTALLATION

1. INSTALL FAN & GENERATOR V BELT

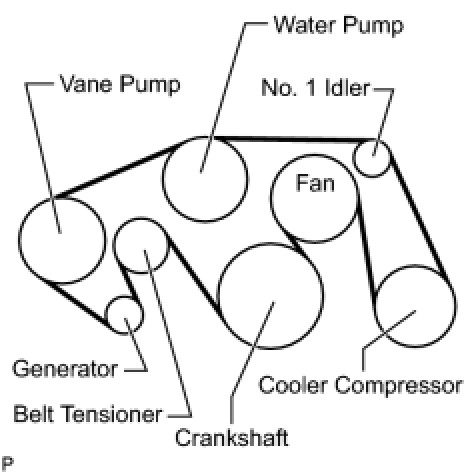

(a) Set the V belt onto every part.





(b) While turning the belt tensioner counterclockwise, remove the bar.

NOTICE:
Make sure that the V belt is properly set to each pulley.





After installing the belt, check that it fits properly in the ribbed grooves.

HINT
Make sure to check by hand that the belt has not slipped out of the grooves on the bottom of the pulley.

2. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Installation

3. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation

4. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation

5. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

6. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

7. INSTALL ENGINE ROOM SIDE COVER LH Installation

8. INSTALL ENGINE ROOM SIDE COVER RH Installation
