Parking Assist Control Module: Locations

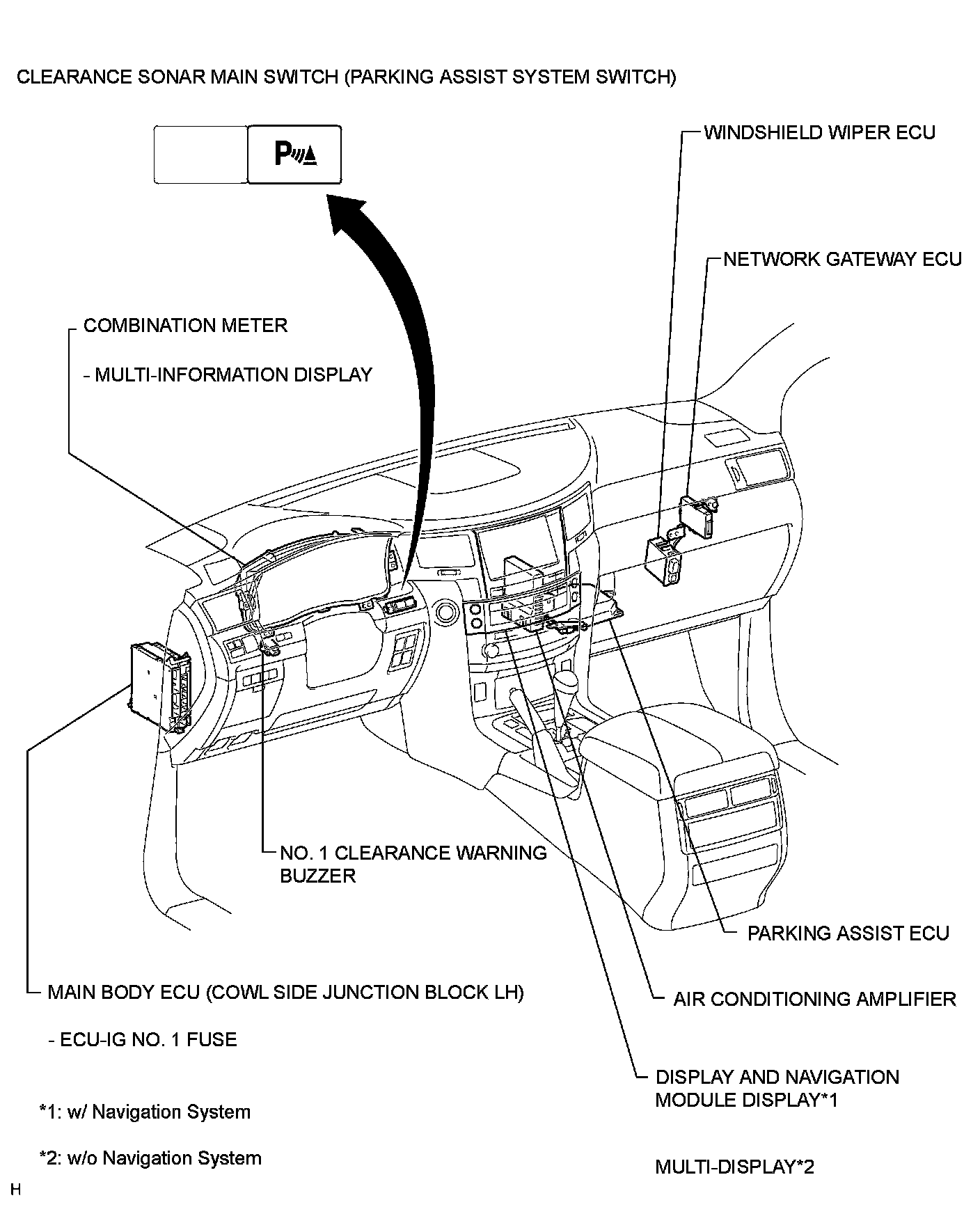

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: PARTS LOCATION

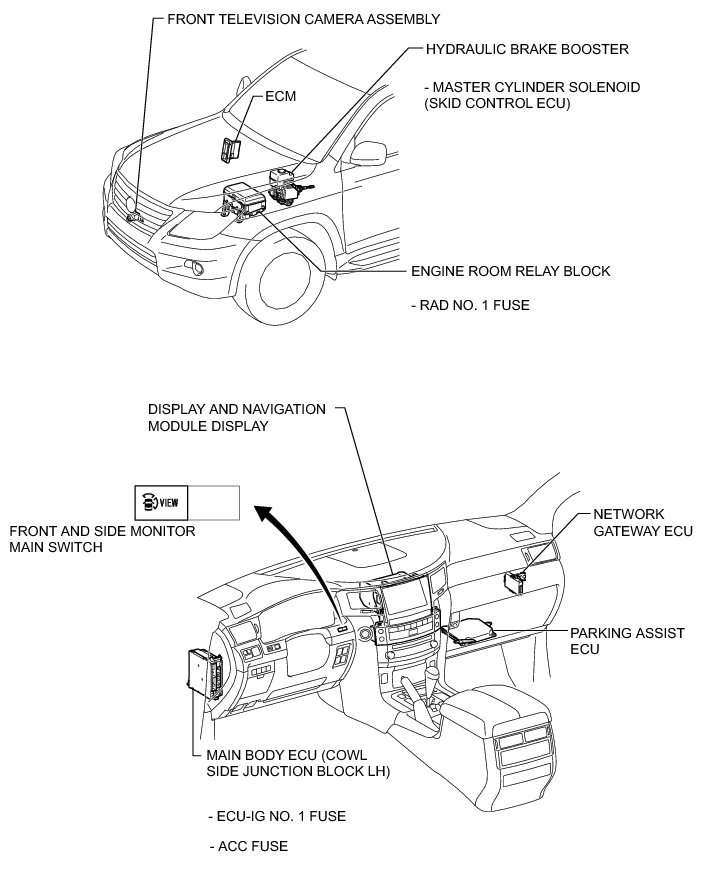

PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: PARTS LOCATION

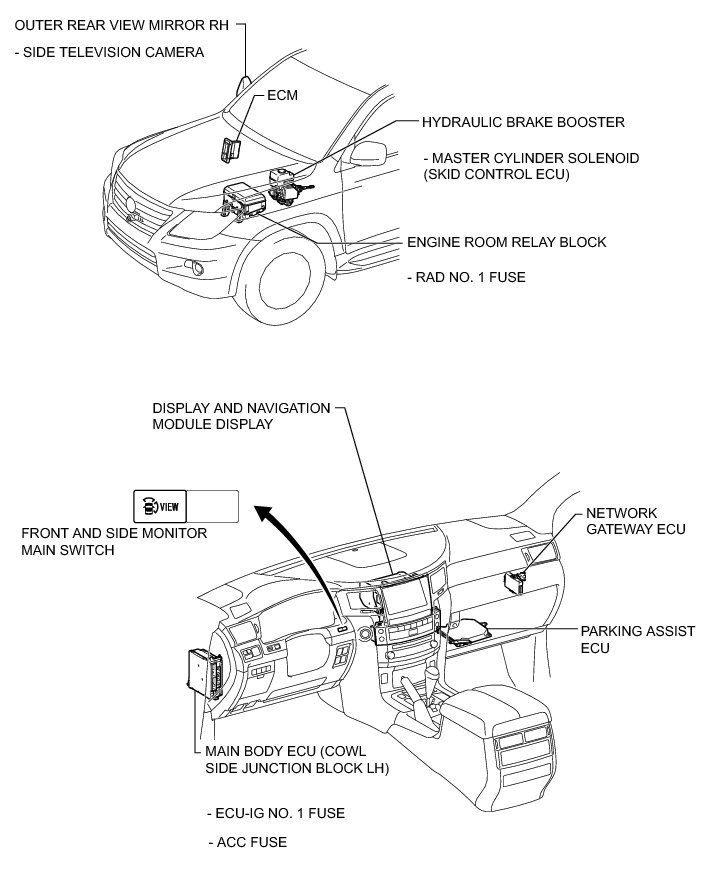

PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM: PARTS LOCATION

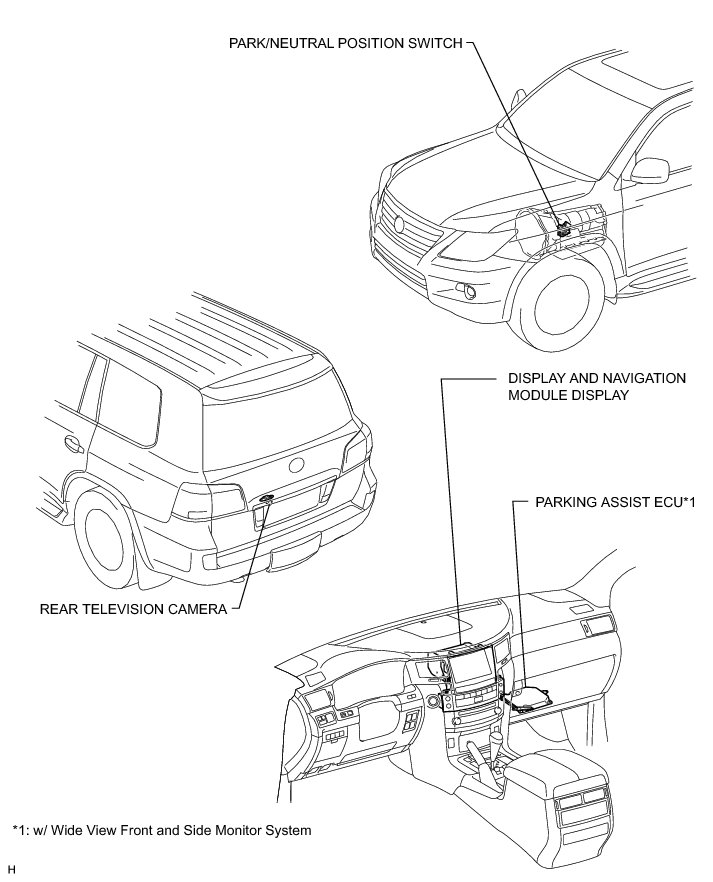

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: PARTS LOCATION
