Crankshaft Main Bearing

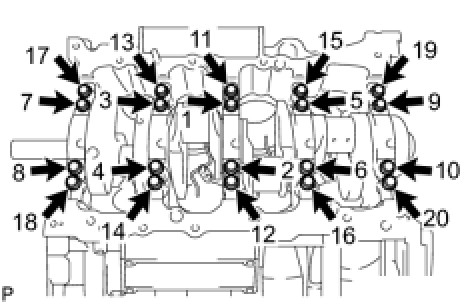

Crankshaft main bearing cap
Step 1
Inside position
61 Nm (622 kgf-cm, 45 ft-lbf)

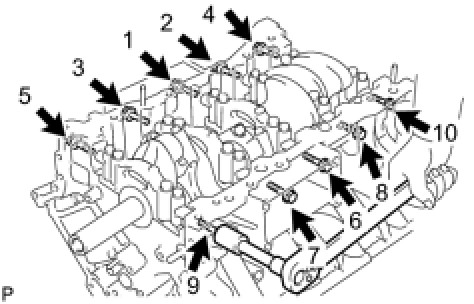

Outside position
27 Nm (275 kgf-cm, 20 ft-lbf)
Step 2
90°
Torque
45 Nm (459 kgf-cm, 33 ft-lbf)
Standard Oil Clearance
Maximum Oil Clearance
Main bearing

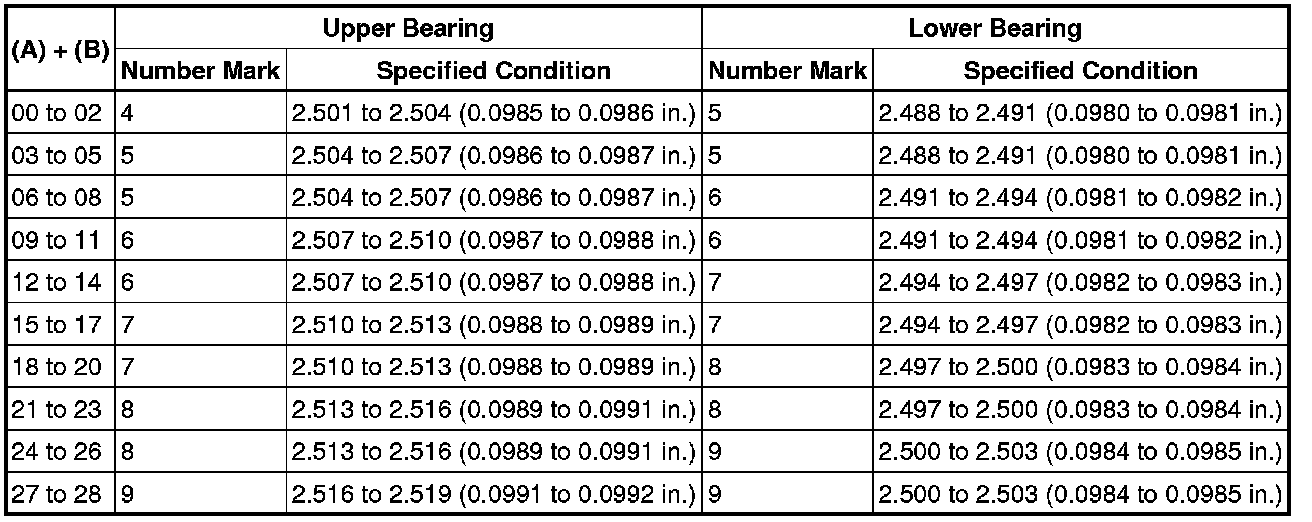

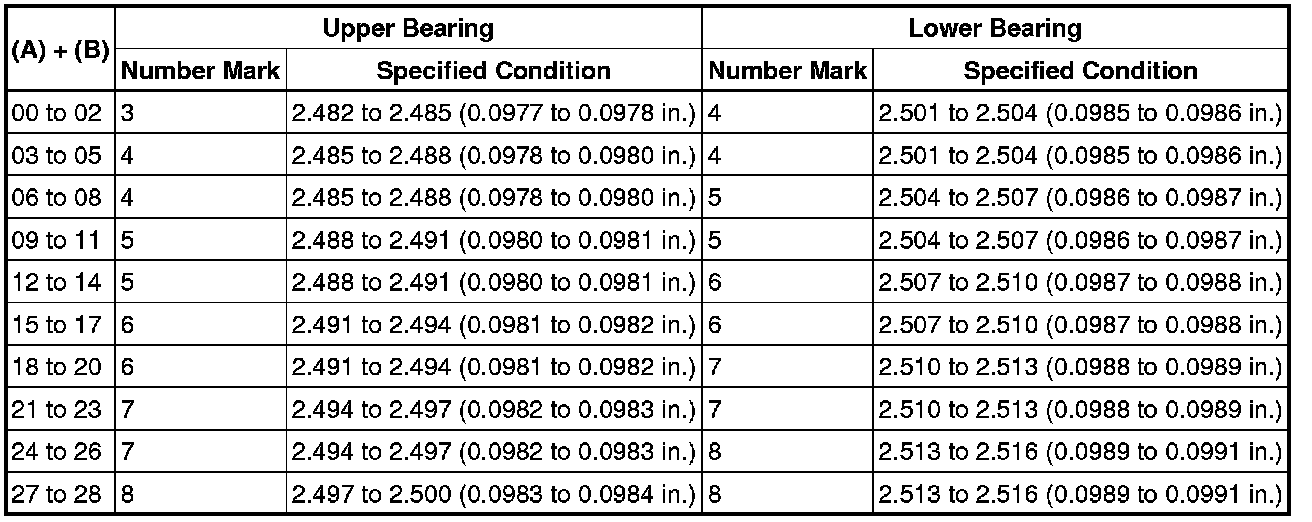

Standard Bearing Center Wall Thickness

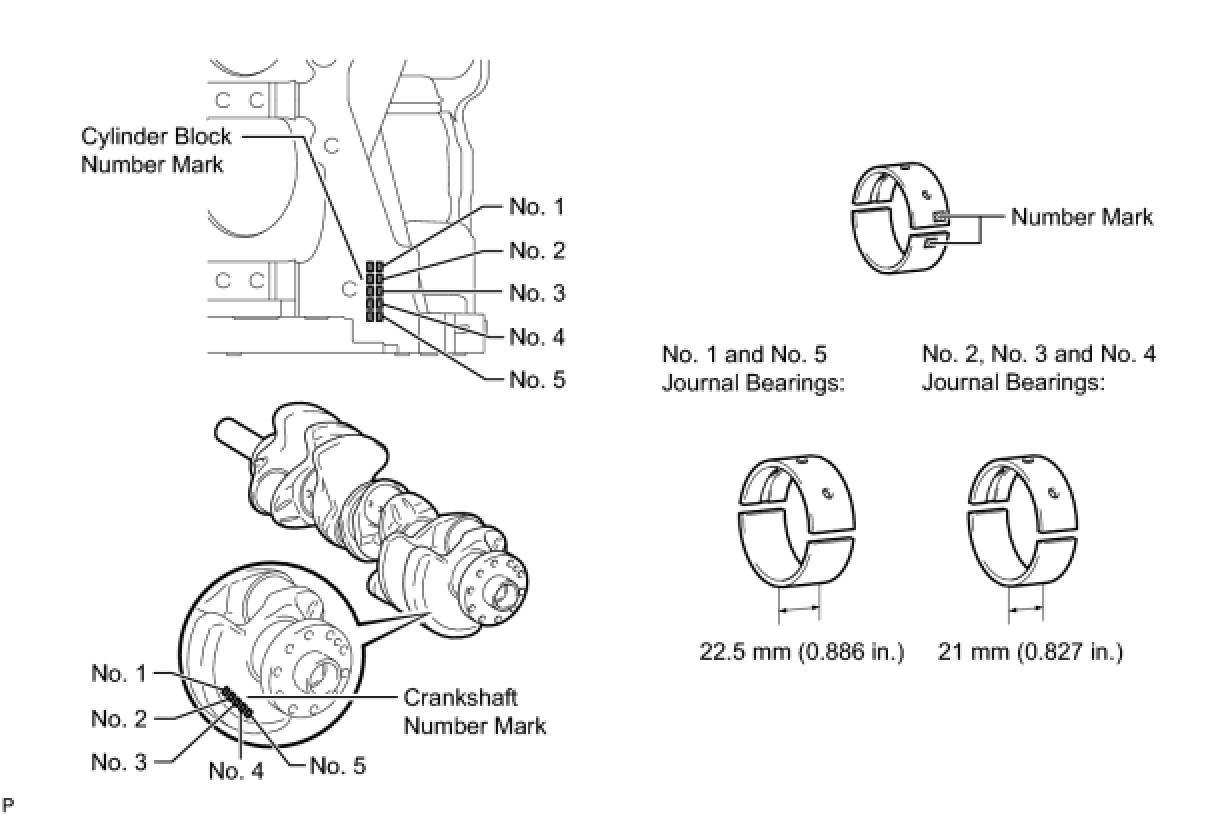

No. 1 and No. 5 Journals
Other Journals
