Cylinder Head Assembly

Cylinder head (RH)





Cylinder head (LH)

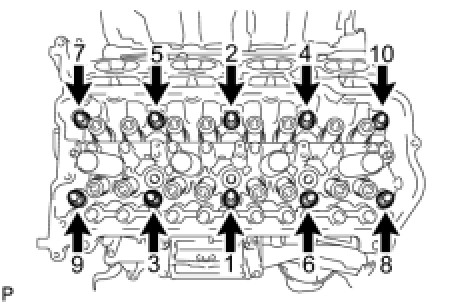

Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 90°
Step 3 90°








Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

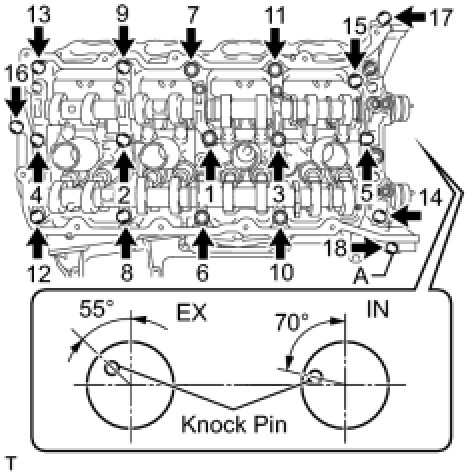

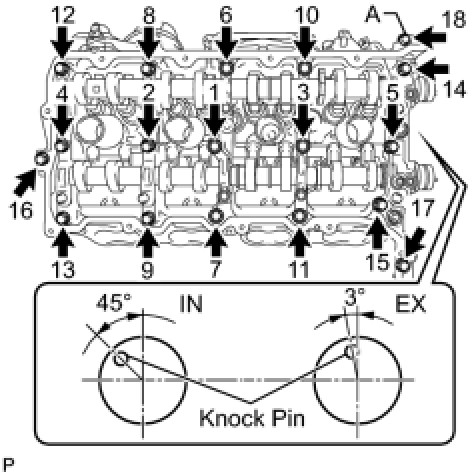

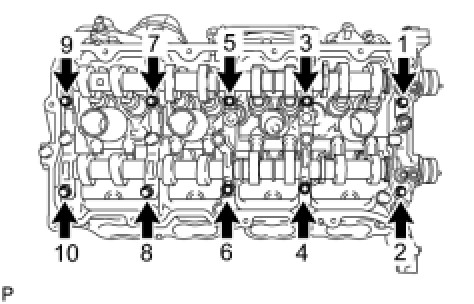

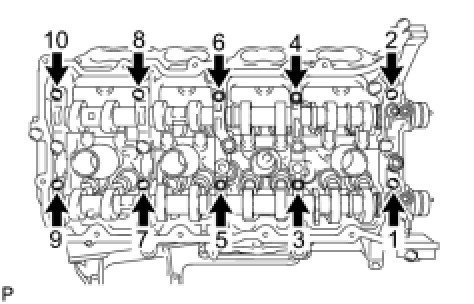

Camshaft caps








For bolt A 10 Nm (102 kgf-cm, 7 ft-lbf)
Except bolt A 30 Nm (306 kgf-cm, 22 ft-lbf)

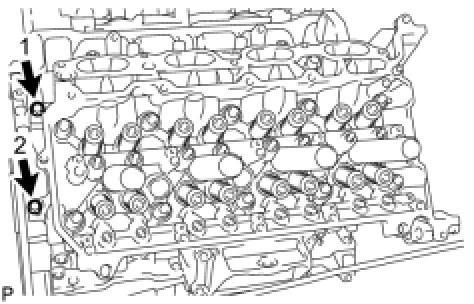

Torque 16 Nm (163 kgf-cm, 12 ft-lbf)


Cylinder Head Warpage

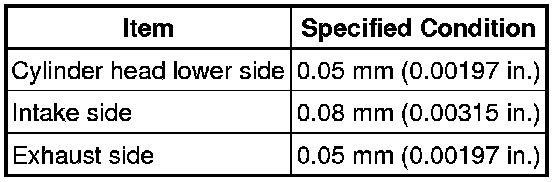

Standard Warpage:





Maximum warpage:

0.10 mm (0.00394 in.)

If the warpage is more than the maximum, replace the cylinder head.

Cylinder Head Bolt Reuse

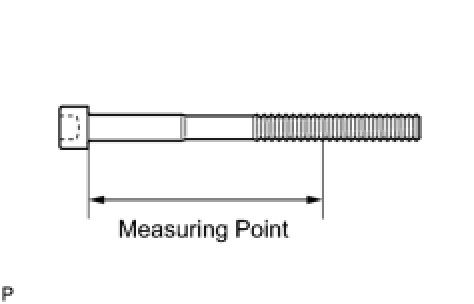

Using a vernier caliper, measure the diameter of the elongated thread at the measuring point.

Measuring point:

94 mm (3.70 in.) for intake side bolt

89 mm (3.50 in.) for exhaust side bolt

Standard diameter:

10.85 to 11.00 mm (0.427 to 0.433 in.)

Minimum diameter:

10.6 mm (0.417 in.)

If the diameter is less than the minimum, replace the cylinder head bolt.

HINT
If a visual check reveals no excessively thin areas, check the center of the bolt (see illustration) and find the area that has the smallest diameter.
