Installation

WIPER / WASHER: RAIN SENSOR: INSTALLATION

1. INSTALL RAIN SENSOR TAPE

HINT
Rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated.

(a) Clean the rain sensor sensing portion with a piece of cloth, etc.

(b) Peel off the smaller release sheet, and then attach the rain sensor tape on the rain sensor sensing portion as shown in the illustration.

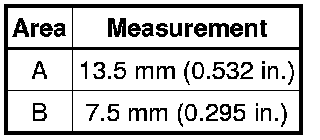

Standard Clearance





Text in Illustration





NOTICE:
Use your fingers to push out any air bubbles from under the tape.

2. INSTALL RAIN SENSOR

(a) Clean the windshield glass with a piece of cloth, etc.

NOTICE:
* Make sure that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue.
* If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.

(b) When installing a new rain sensor or replacing the rain sensor tape:

(1) Peel off the release sheet.

HINT
Do not touch the silicon coated surfaces.

(c) Engage the 2 guides, and carefully install the rain sensor to the glass surface, preventing air bubbles from forming between the contact surfaces.





Text in Illustration





HINT
Do not touch the silicon coated or glass surfaces.

(d) Push in the stopper.

(e) Connect the connector.





3. INSTALL RAIN SENSOR COVER

(a) Engage the 2 claws to install the rain sensor cover.
