Connecting Rod, Engine
Connecting Rod1st
25 Nm (255 kgf-cm, 18 ft lb)
2nd
90°
Thrust clearance
Standard
0.15 to 0.40 mm (0.00591 to 0.0157 in)
Maximum
0.50 mm (0.0197 in)
Oil clearence
Standard
0.045 to 0.067 mm (0.00177 to 0.00264 in)
Maximum
0.070 mm (0.00276 in)
Out-of Alignment
Maximum
0.05 mm (0.00197 in) per 100 mm (3.94 in)
Twist
Maximum
0.15 mm (0.00591 in) per 100 mm (3.94 in)

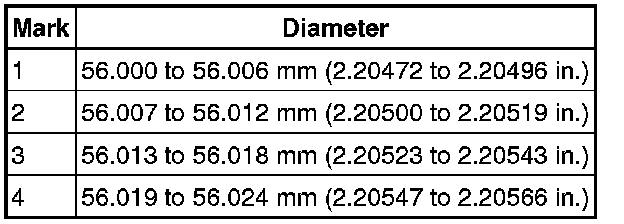

Connecting rod diameter
