Part 3

2ZR-FXE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST (Continued)

11. Catalyst

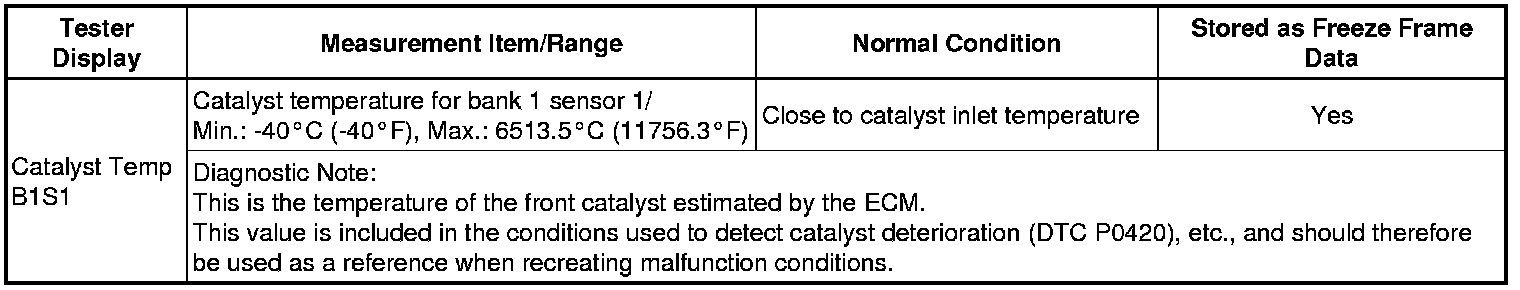

Catalyst Temp B1S1

Catalyst Temp B1S2

12. Various Vehicle Conditions 3

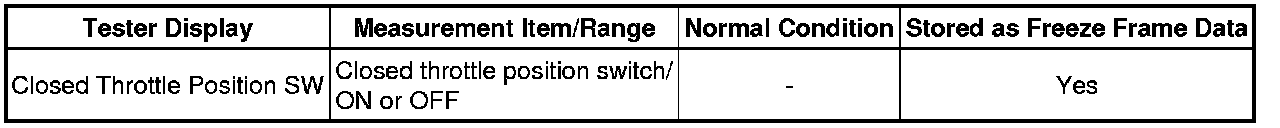

Closed Throttle Position SW

Fuel Cut Condition

13. Check Mode

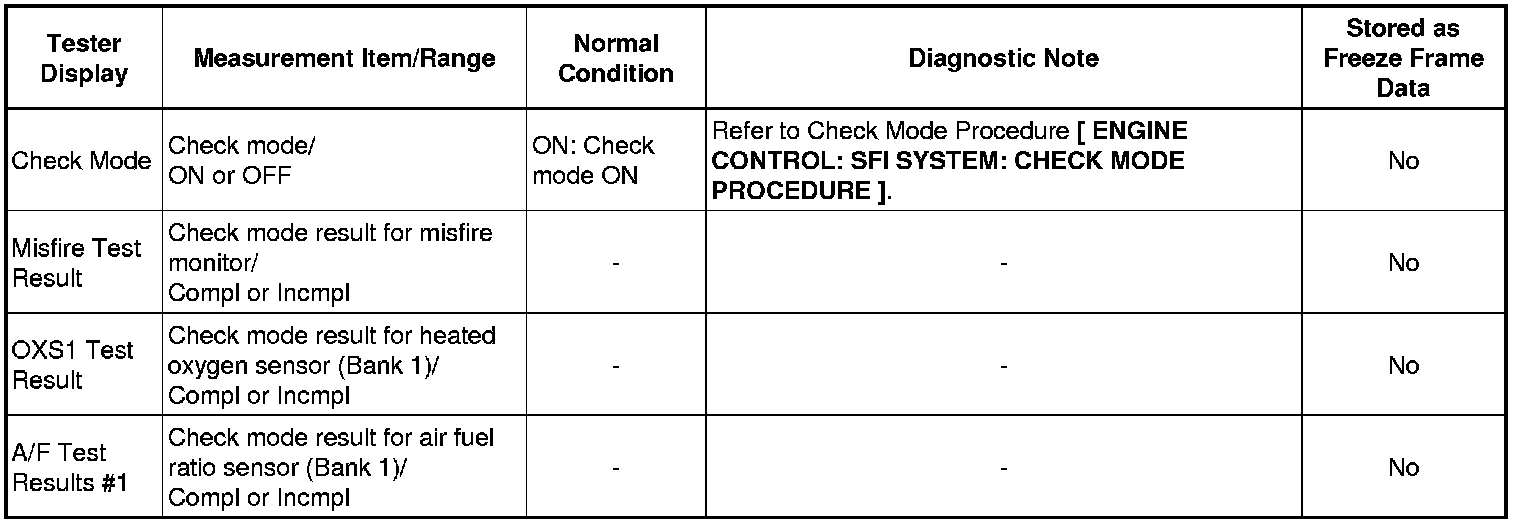

Check Mode

14. Test Result

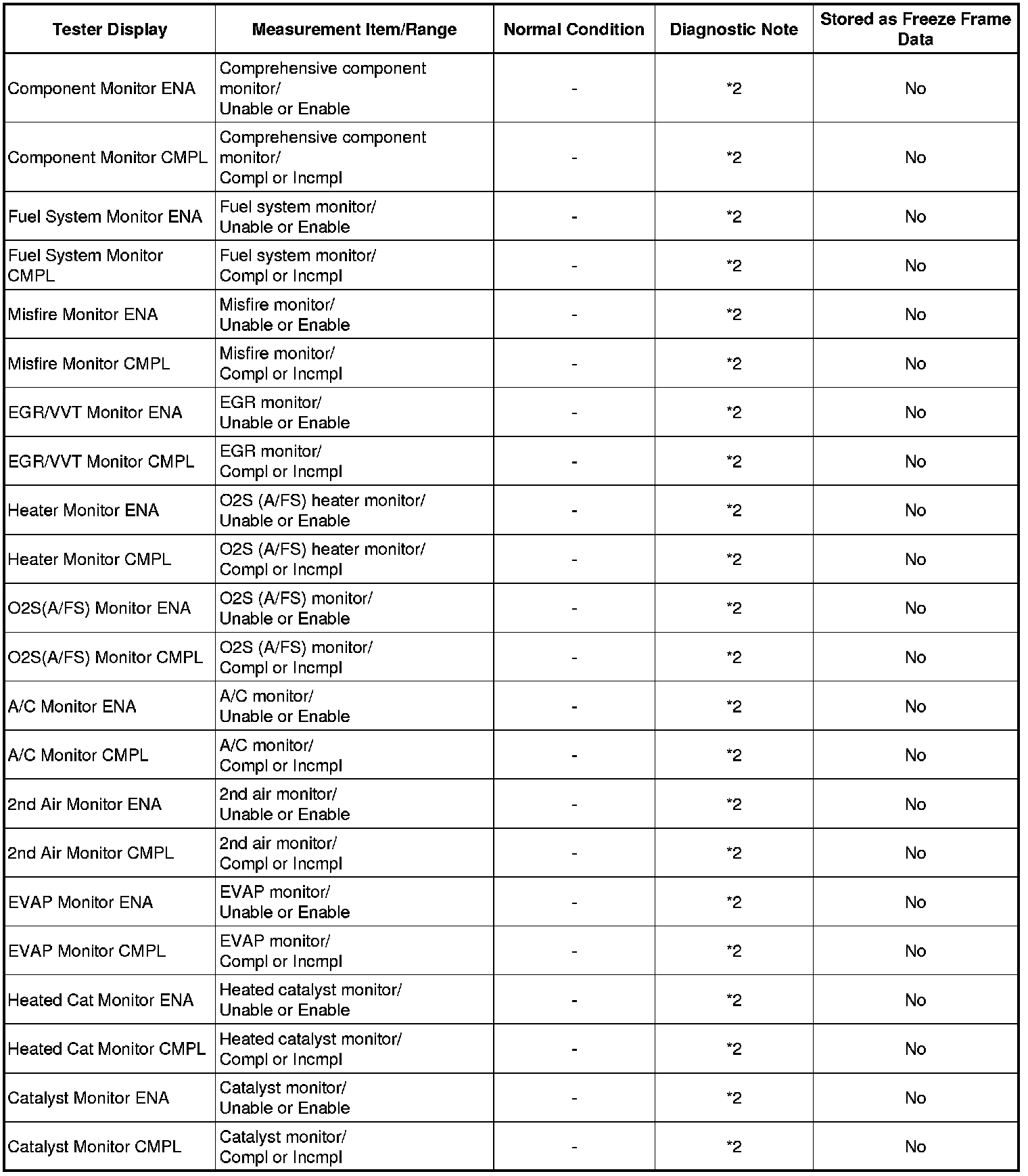

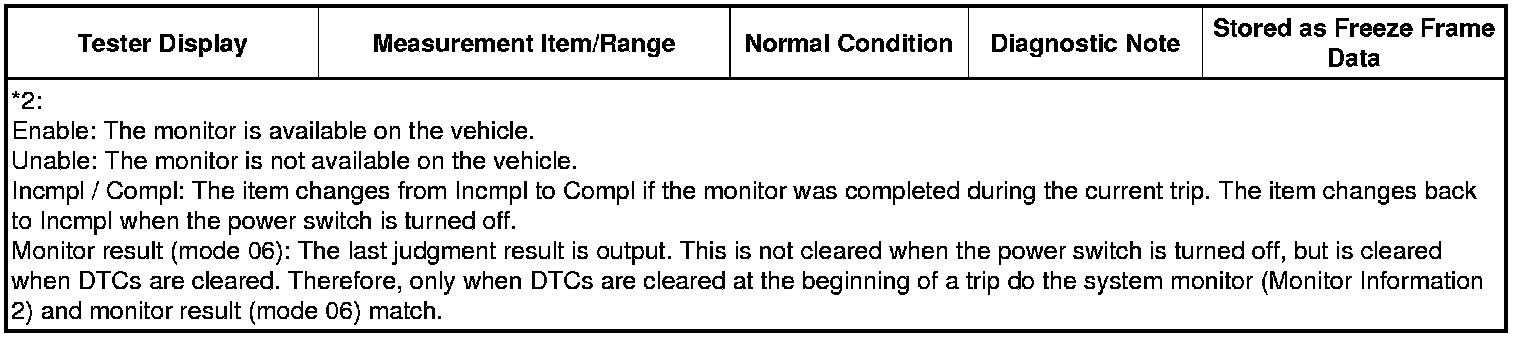

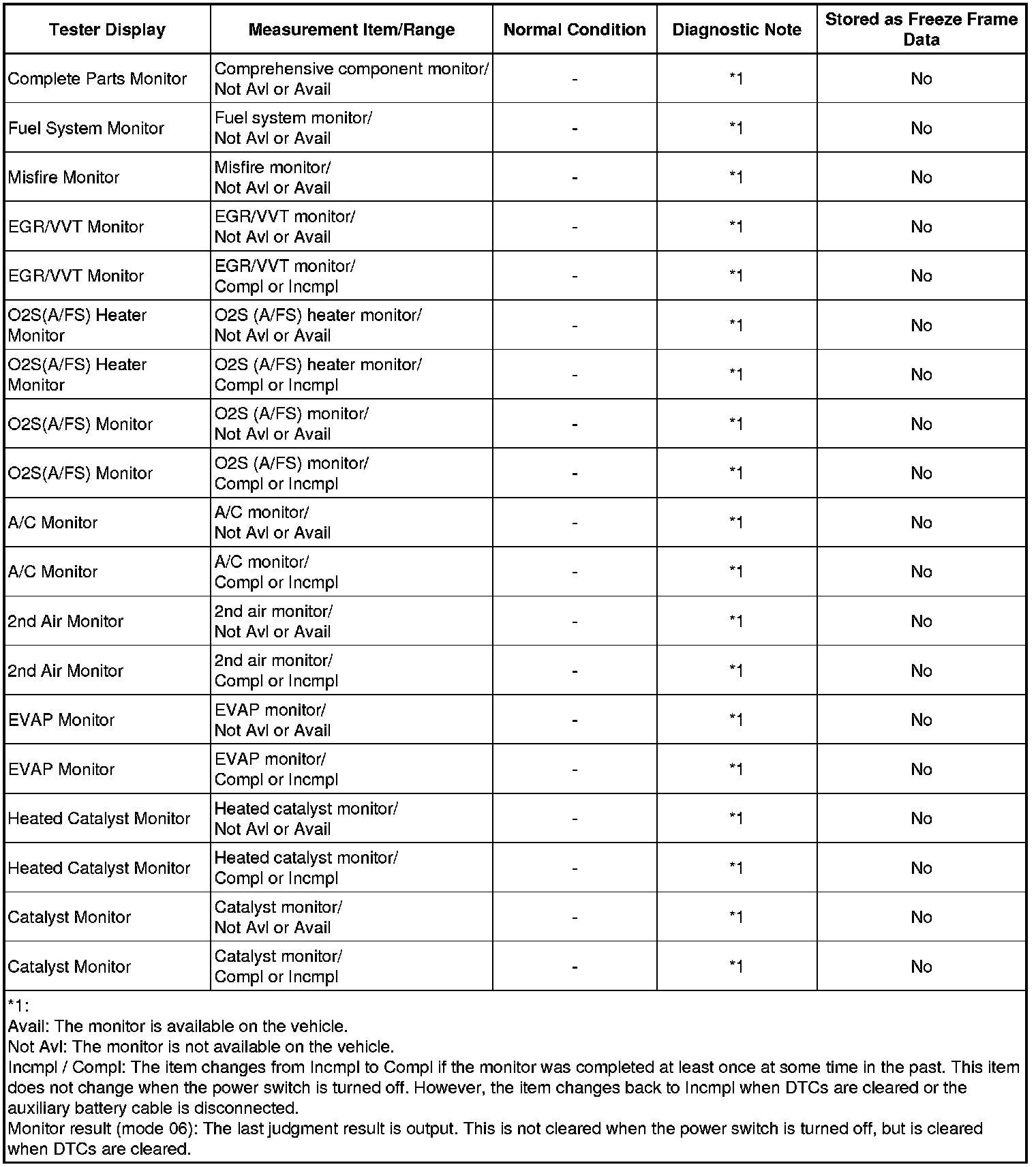

Monitor Information 1

Monitor Information 2

15. Various Vehicle Conditions 4

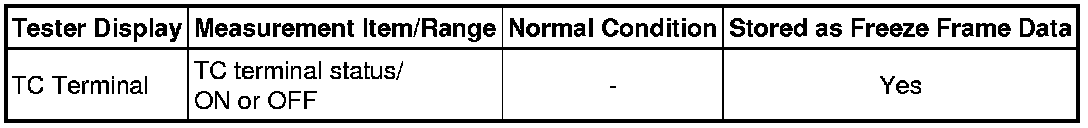

TC Terminal

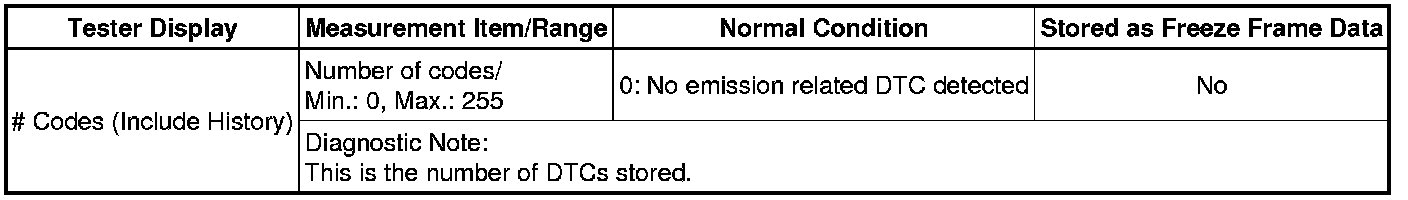

# Codes (Include History)

MIL

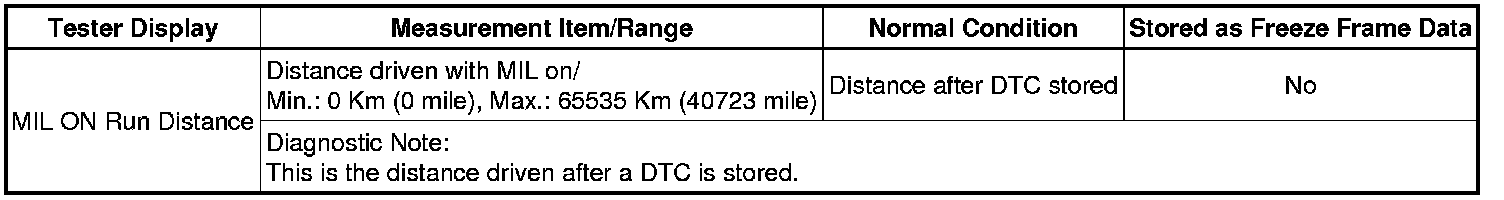

MIL ON Run Distance

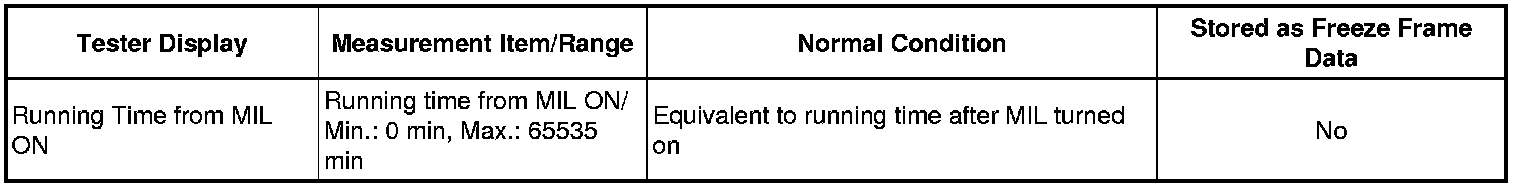

Running Time from MIL ON

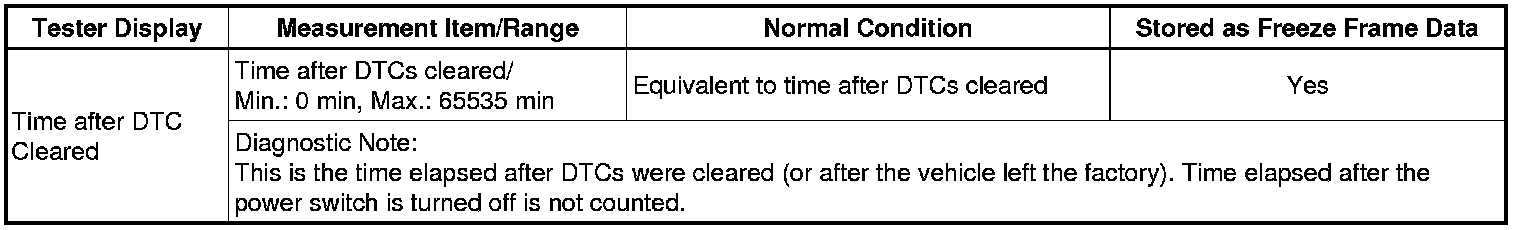

Time after DTC Cleared

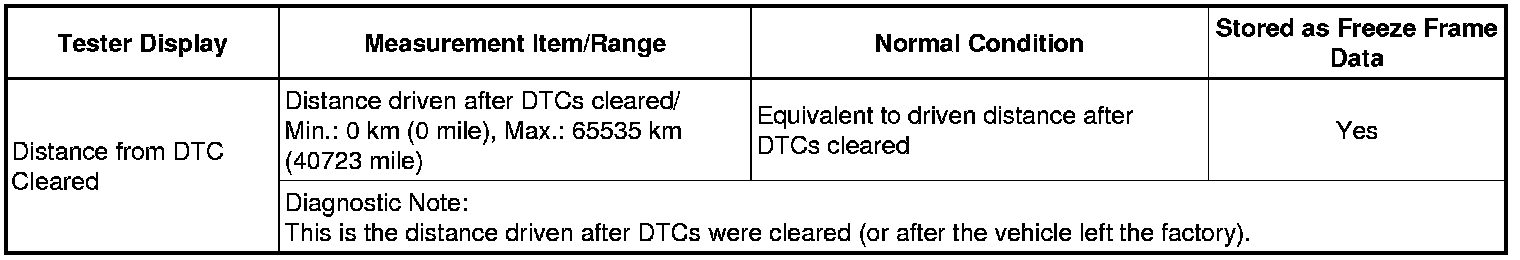

Distance from DTC Cleared

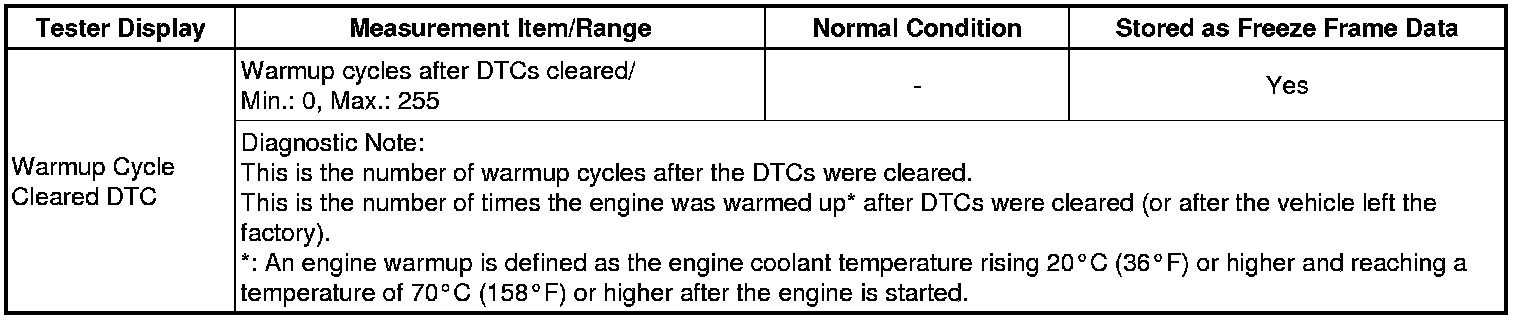

Warmup Cycle Cleared DTC

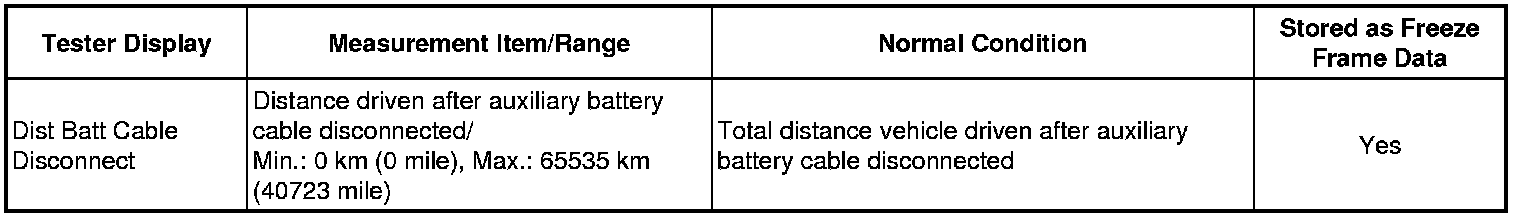

Dist Batt Cable Disconnect

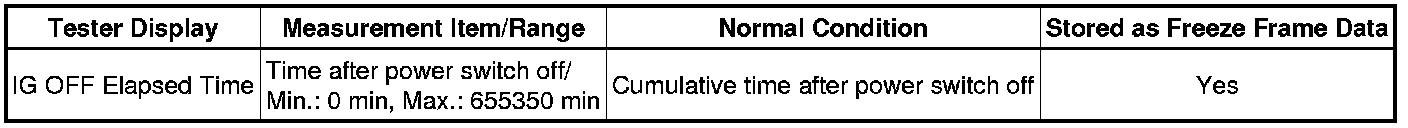

IG OFF Elapsed Time

OBD Requirements

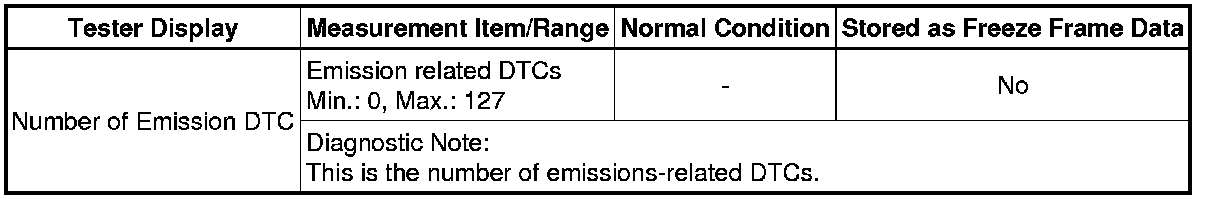

Number of Emission DTC

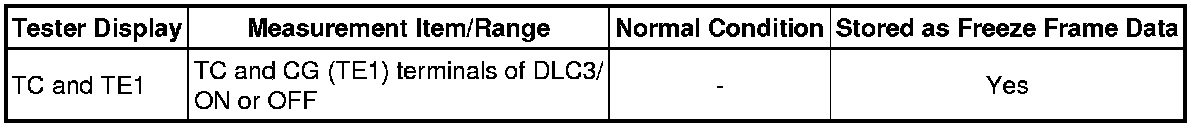

TC and TE1
