AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

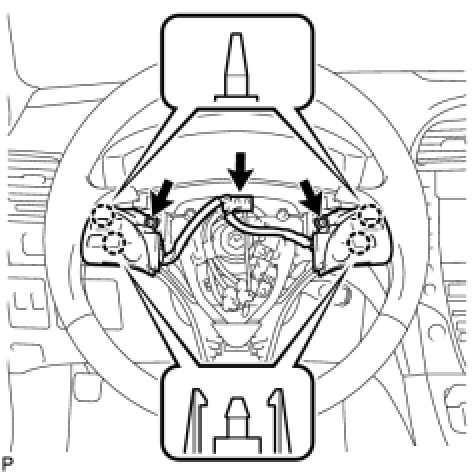

1. INSTALL STEERING PAD SWITCH ASSEMBLY

(a) Engage the 4 claws.





(b) Install the steering pad switch assembly with the 2 screws.

Torque : 2.4 Nm (25 kgf-cm, 21 in-lbf)

(c) Connect the connector to the spiral cable.

2. INSTALL STEERING PAD Installation

3. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

4. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. PERFORM INITIALIZATION

NOTICE:
Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.

7. INSPECT SRS WARNING LIGHT

Diagnosis System
