Disassembly

INTERIOR PANELS / TRIM: FRONT CONSOLE BOX: DISASSEMBLY

1. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY





(a) Remove the 6 screws and console compartment door.

2. REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/o Rear Air Conditioning System)





(a) Detach the 4 claws and remove the console box register.

3. REMOVE REAR CONSOLE BOX HOLDER CUP

(a) Remove the 2 screws.

(b) Detach the 4 claws and remove the rear console box holder cup and rear upper console panel.

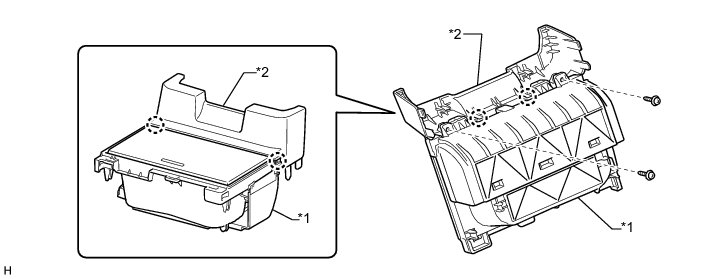

Text in Illustration





4. REMOVE SHIFTING HOLE COVER SUB-ASSEMBLY





(a) Detach the 7 claws and 2 guides and remove the shifting hole cover.

5. REMOVE COMBINATION SWITCH ASSEMBLY Removal

6. REMOVE SHIFT POSITION INDICATOR Disassembly

7. REMOVE REFRESHING SEAT SWITCH Removal

8. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY





(a) Slide the cup holder and remove the 2 screws.





(b) Disconnect the connector and detach the 3 clamps.

(c) Remove the 4 screws.





(d) Tilt the instrument panel cup holder as shown in the illustration and pull it out in the direction of the arrow to remove it.
