Power Mirror Switch: Testing and Inspection

MIRROR (EXT): OUTER MIRROR SWITCH: INSPECTION

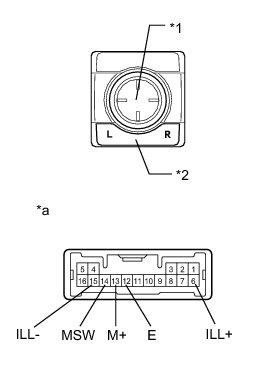

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Retract Mirror)





(a) Inspect the outer mirror switch.

(1) Select "L" on the mirror select switch.

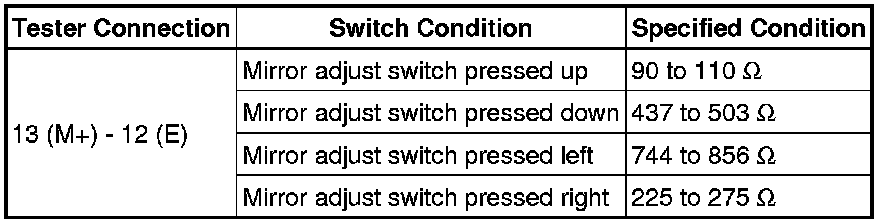

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.

(3) Select "R" on the mirror select switch.

(4) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.

(b) Inspect the switch illumination.

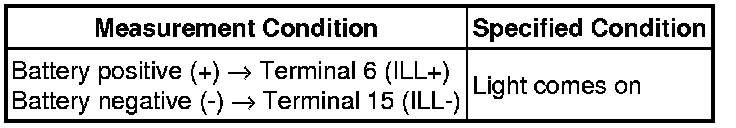

Apply battery voltage between the terminals of the light and check the operation of the light.

OK:





If the result is not as specified, replace the outer mirror switch assembly.

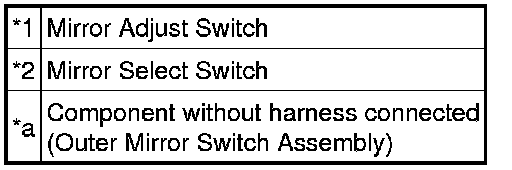

Text in Illustration

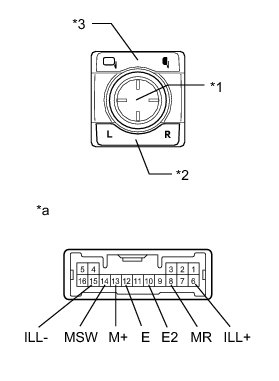

2. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/ Retract Mirror)





(a) Inspect the outer mirror switch.

(1) Select "L" on the mirror select switch.

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.

(3) Select "R" on the mirror select switch.

(4) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.

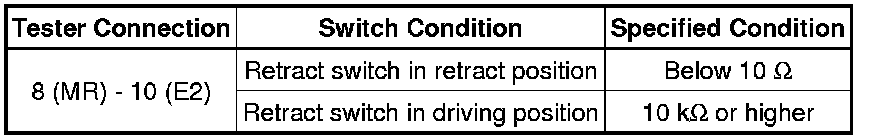

(b) Inspect the retract switch.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.

(c) Inspect the switch illumination.

Apply battery voltage between the terminals of the light and check the operation of the light.

OK:





If the result is not as specified, replace the outer mirror switch assembly.

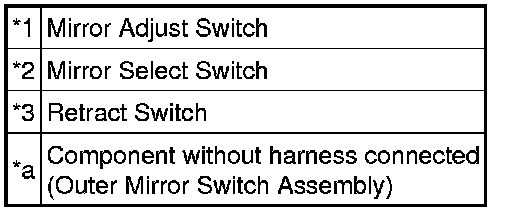

Text in Illustration
