System Description

SEAT: FRONT POWER SEAT CONTROL SYSTEM: SYSTEM DESCRIPTION

1. FRONT POWER SEAT CONTROL SYSTEM DESCRIPTION

* The driver seat is equipped with slide, reclining, lifter, front vertical and lumbar support adjustment functions.

* The passenger seat is equipped with slide, reclining, lifter, front vertical and lumbar support adjustment functions.

2. FUNCTION OF MAIN COMPONENT

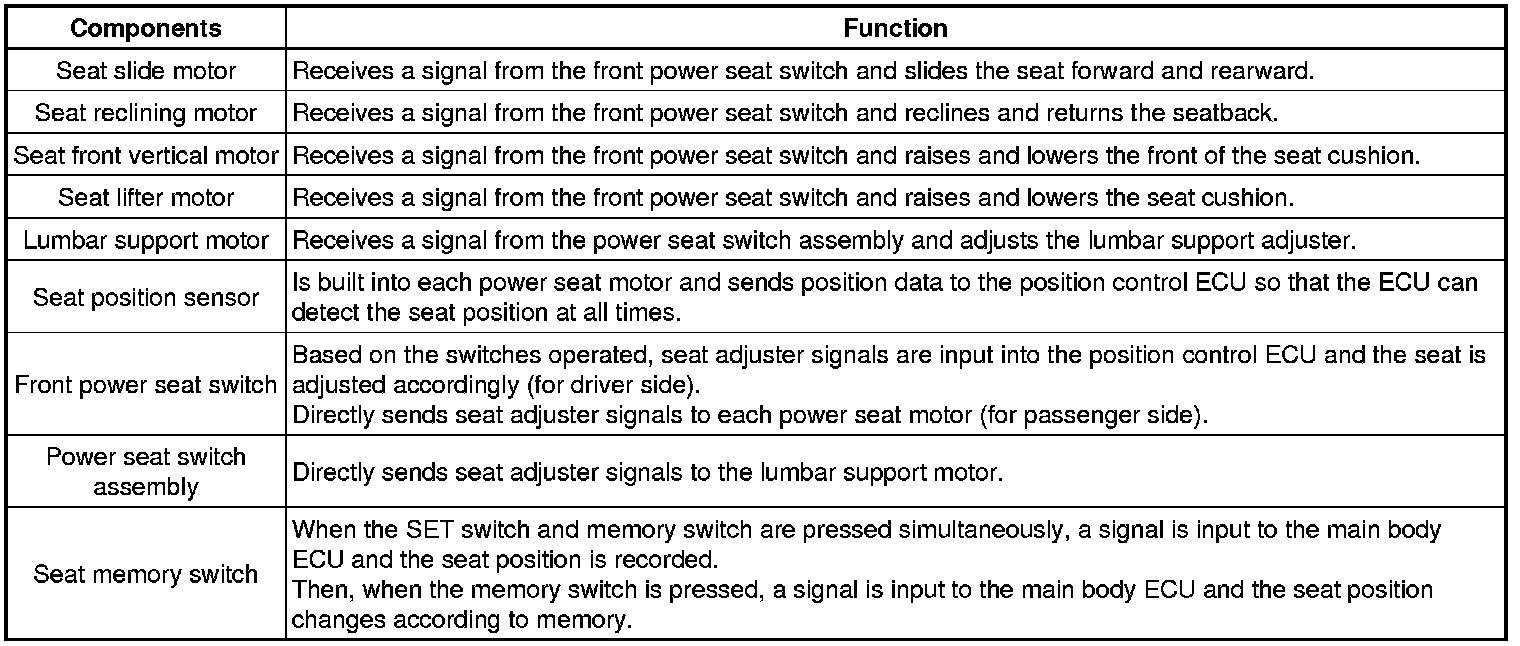

The following functions are available.





3. SYSTEM OPERATION

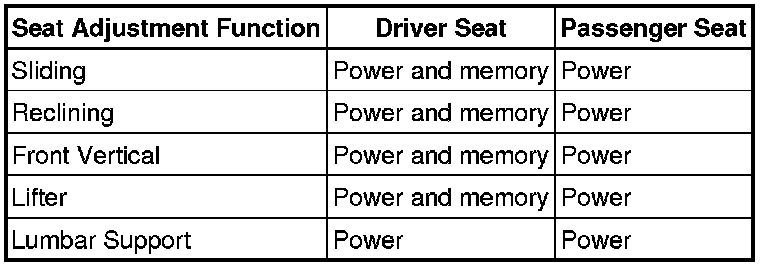

The front power seat functions which can be adjusted with power seat motors and/or memorized are shown in the chart below.





For the memory function, the memory switch operation signal is first sent from the main body ECU to the position control ECU via the CAN communication line. Then, either the seat position is recorded in memory or a previously recorded seat position is recalled.
