Removal

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: FRONT SPEED SENSOR: REMOVAL

HINT
* The procedure listed below is for the LH side.
* Other than areas where instructions are provided, use the same procedures for the RH and LH sides.

1. REMOVE FRONT WHEEL

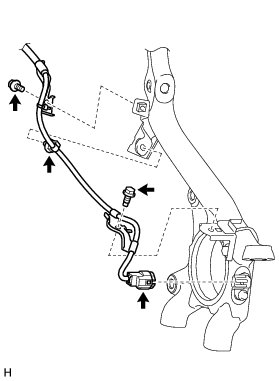

2. REMOVE FRONT SKID CONTROL SENSOR WIRE

(a) Disconnect the connector from the front speed sensor.





(b) Remove the 2 bolts and 2 harness clamps.

(c) Detach the clip.

(d) Remove the 2 bolts and 2 harness clamps.

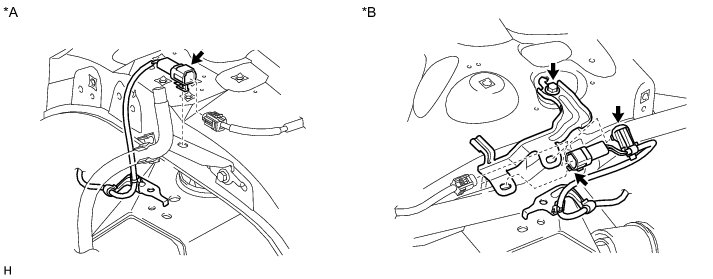

(e) Disconnect the connector as follows.





Text in Illustration





(1) for LH:

1 Disconnect the connector.

2 Detach the connector.

(2) for RH:

1 Disconnect the connector.

2 Detach the connector from the skid control sensor clamp.

3 Detach the clip.

4 Remove the bolt and skid control sensor clamp.

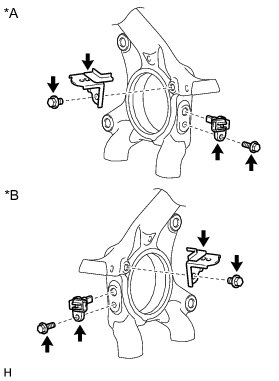

3. REMOVE SKID CONTROL SENSOR CLAMP

(a) Remove the bolt and skid control sensor clamp from the knuckle.





Text in Illustration





4. REMOVE FRONT SPEED SENSOR

(a) Remove the bolt and speed sensor from the knuckle.

NOTICE:
Pull out the sensor while trying as much as possible not to rotate it.
