Condenser Fan: Testing and Inspection
HEATING / AIR CONDITIONING: CONDENSER FAN: INSPECTION 1.
INSPECT SHROUD BLOWER ASSEMBLY
(a)

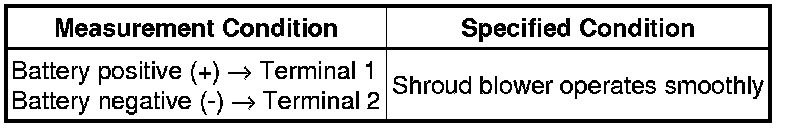

Apply battery voltage and check the operation of the shroud blower as shown in the table.
OK: If the result is not as specified, replace the shroud blower assembly.
