System Diagram

NETWORKING: CAN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

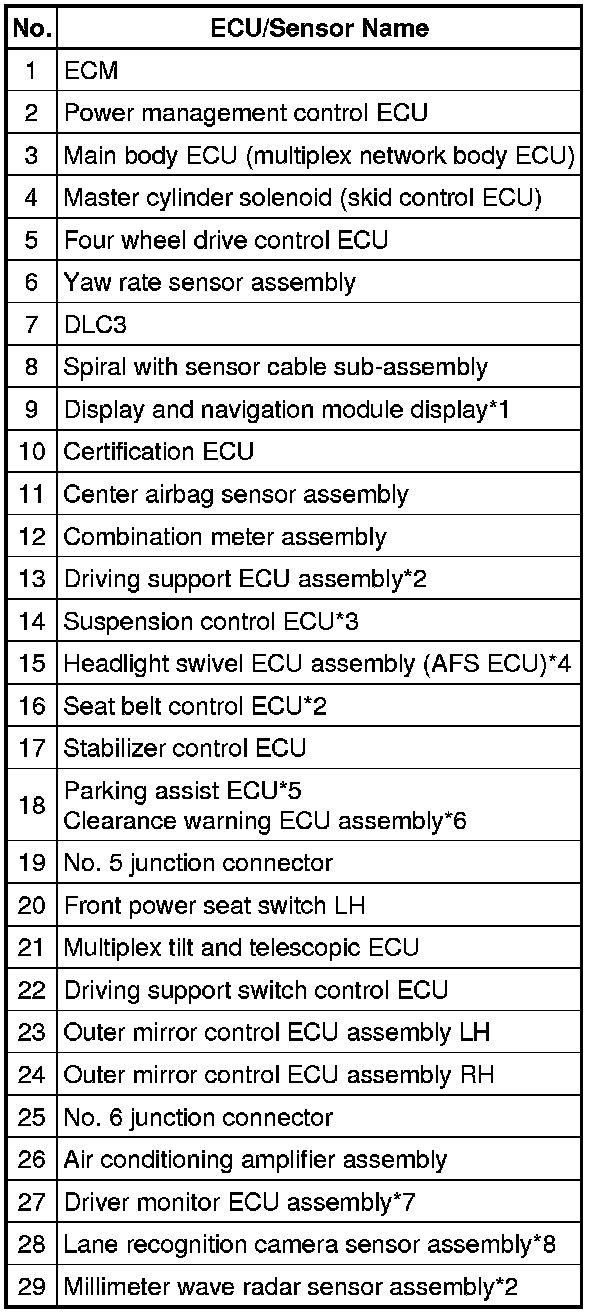

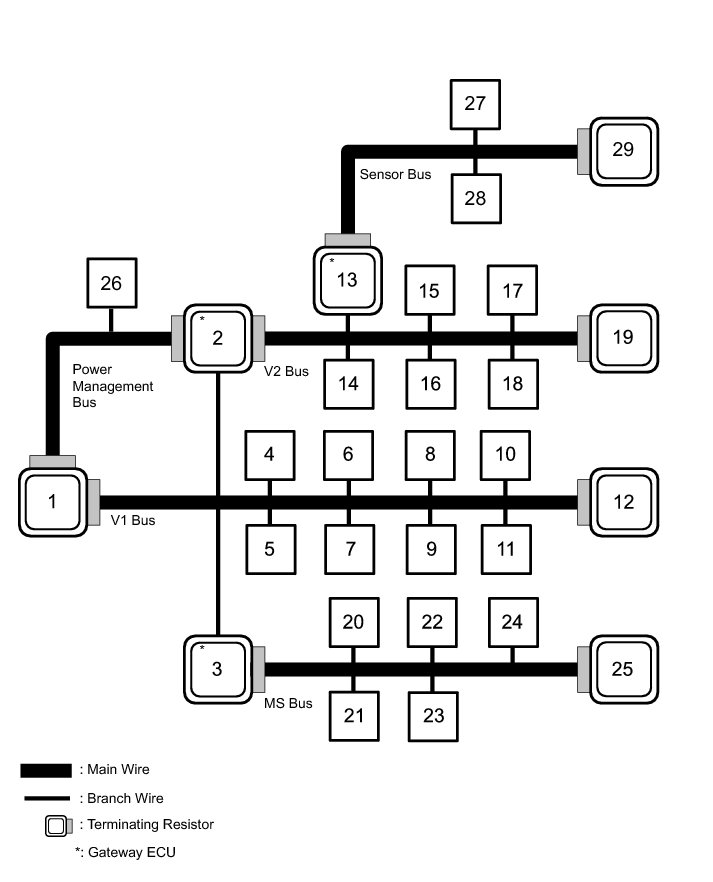

1. SYSTEM DIAGRAM









* *1: w/ Navigation System

* *2: w/ Pre-collision System

* *3: w/ Air Suspension System

* *4: w/ Adaptive Front-lighting System

* *5: w/ Intuitive Parking Assist System (w/ Side Monitor System)

* *6: w/ Intuitive Parking Assist System (w/o Side Monitor System)

* *7: w/ Driver Monitor Camera

* *8: w/ Lane Departure Alert System

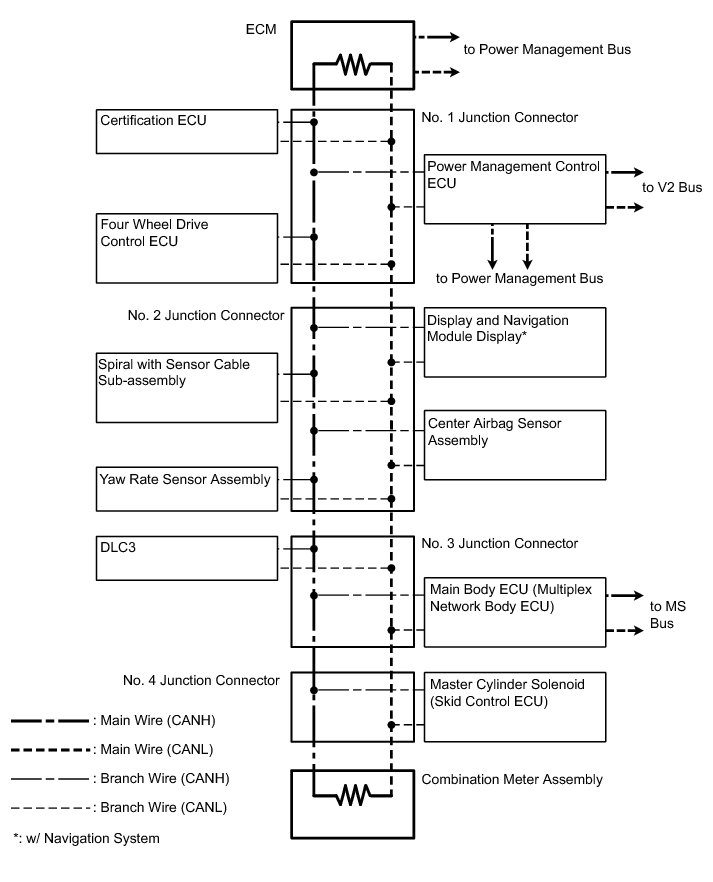

2. V1 BUS

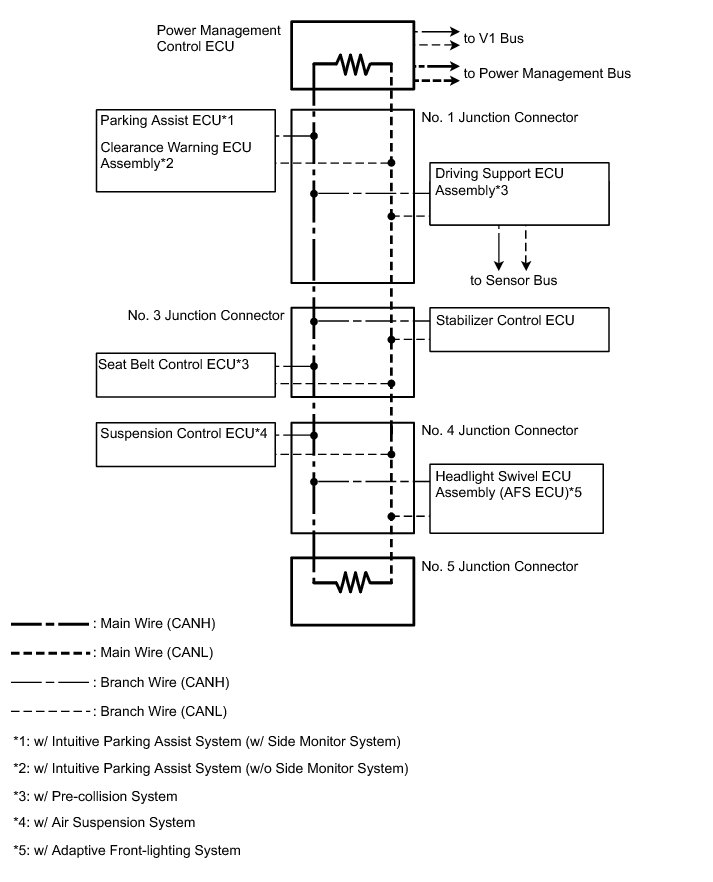

3. V2 BUS

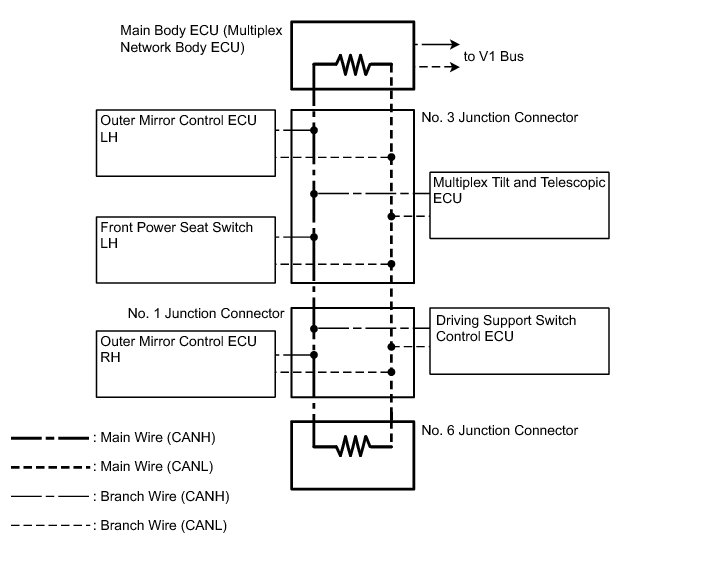

4. MS BUS

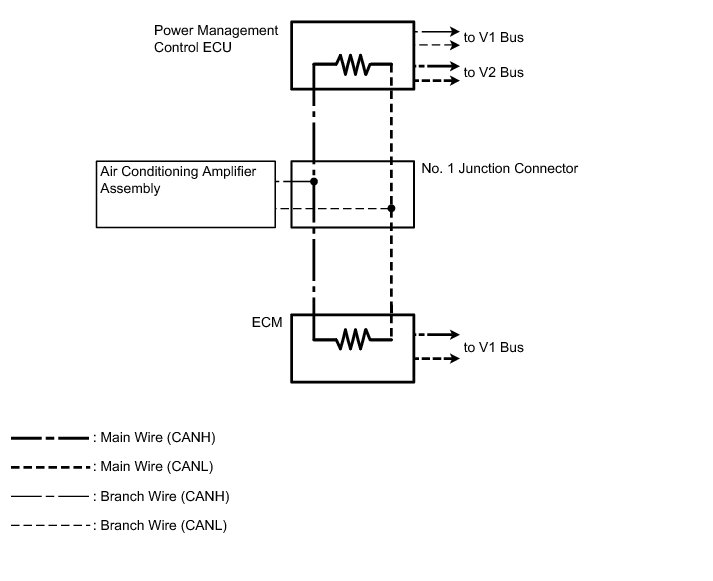

5. POWER MANAGEMENT BUS

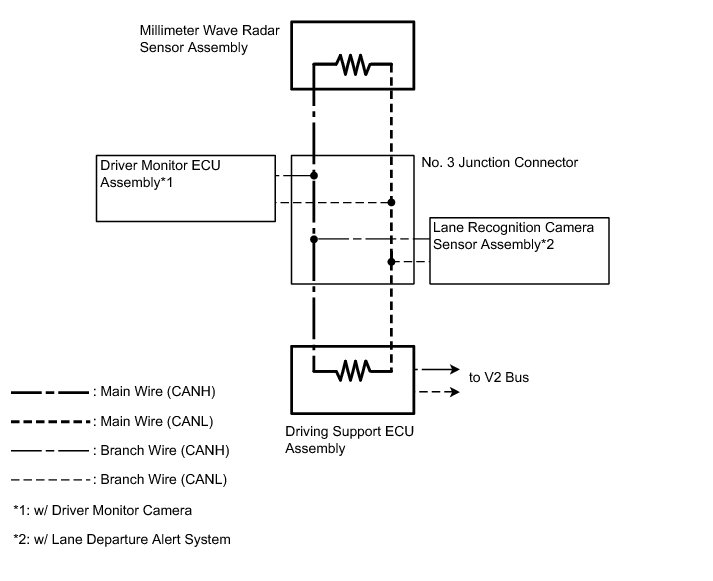

6. SENSOR BUS (w/ Pre-collision System)
