Part 2
NETWORKING: CAN COMMUNICATION SYSTEM: DIAGNOSIS SYSTEM - Continued

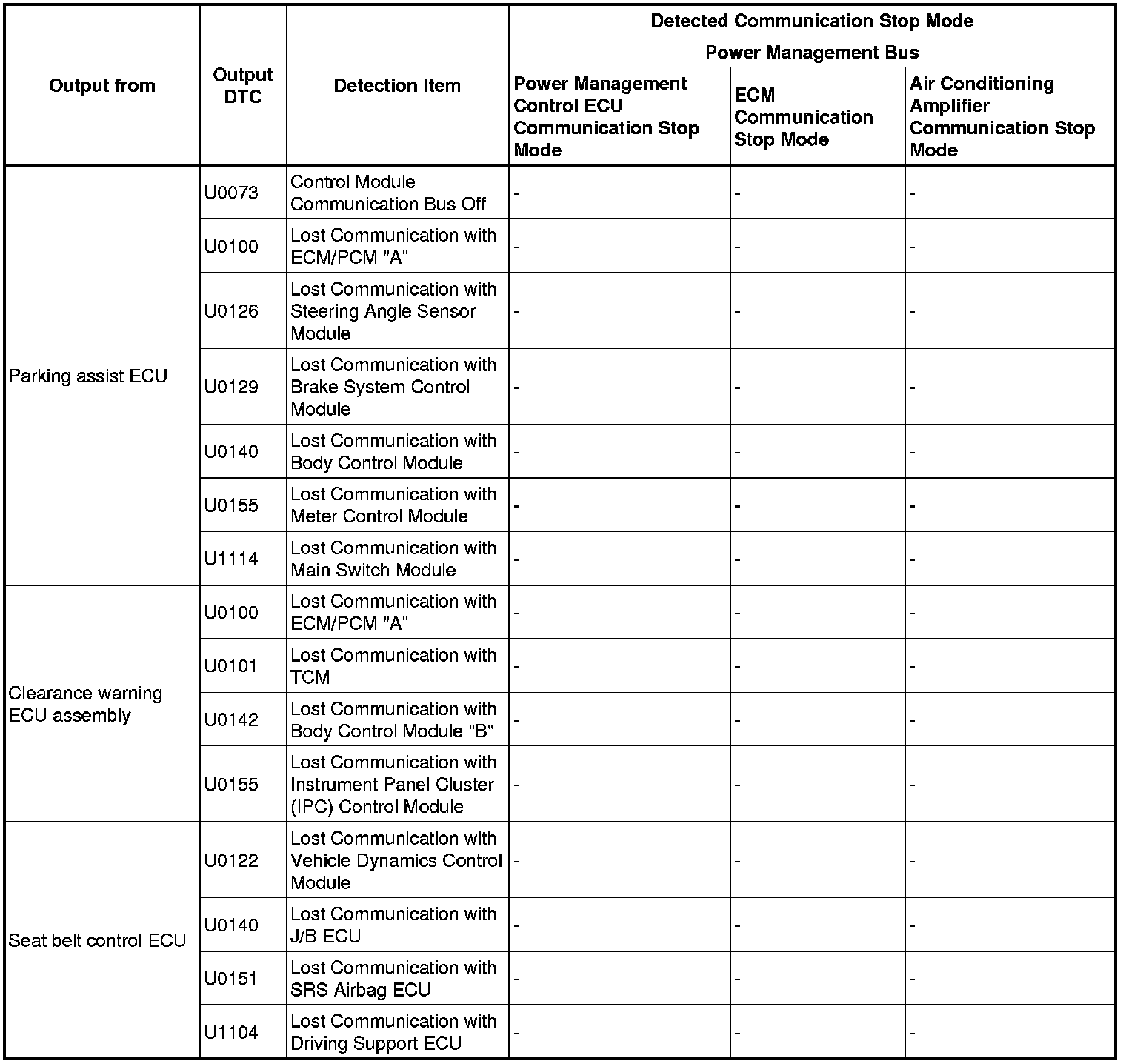

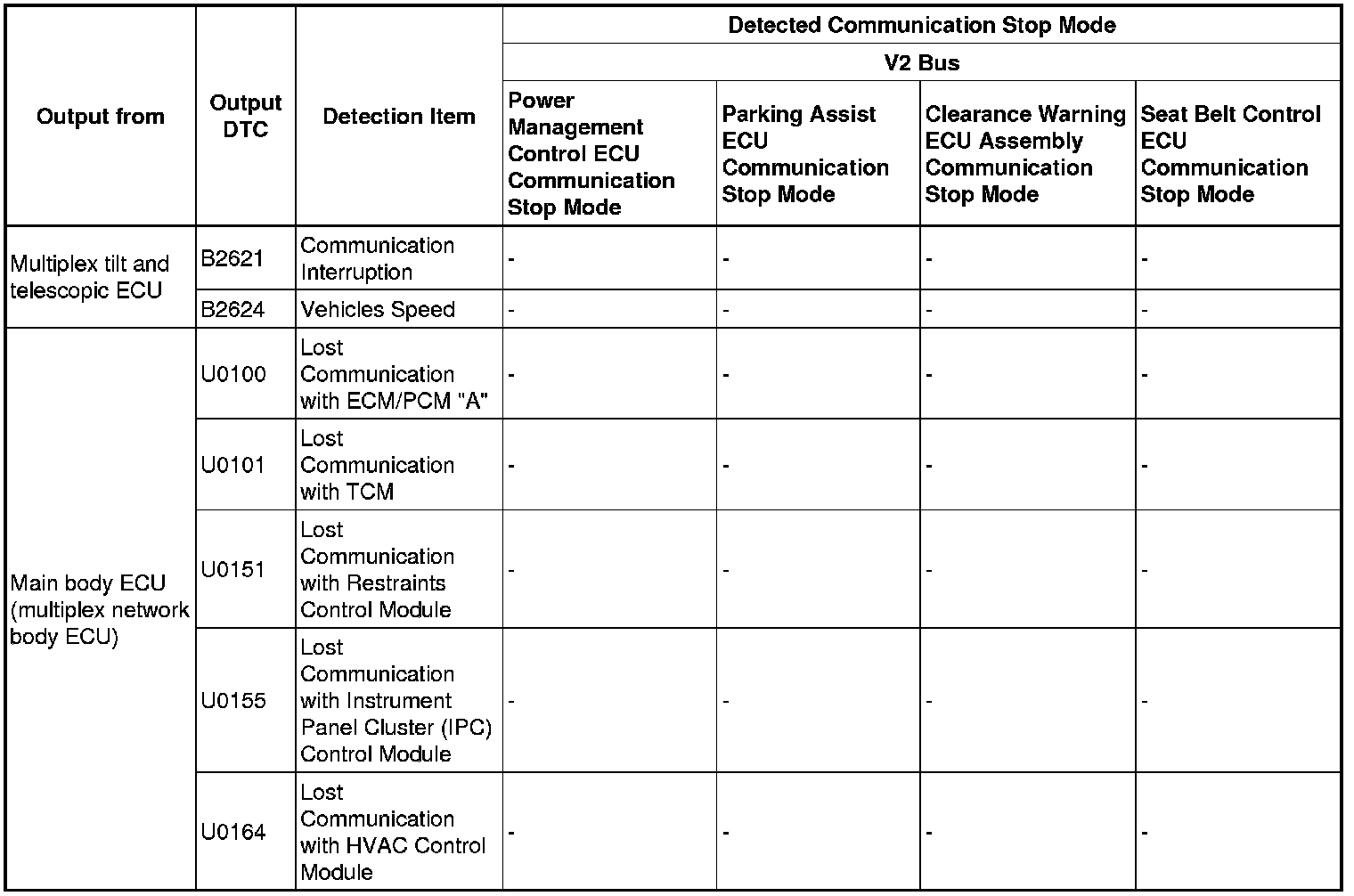

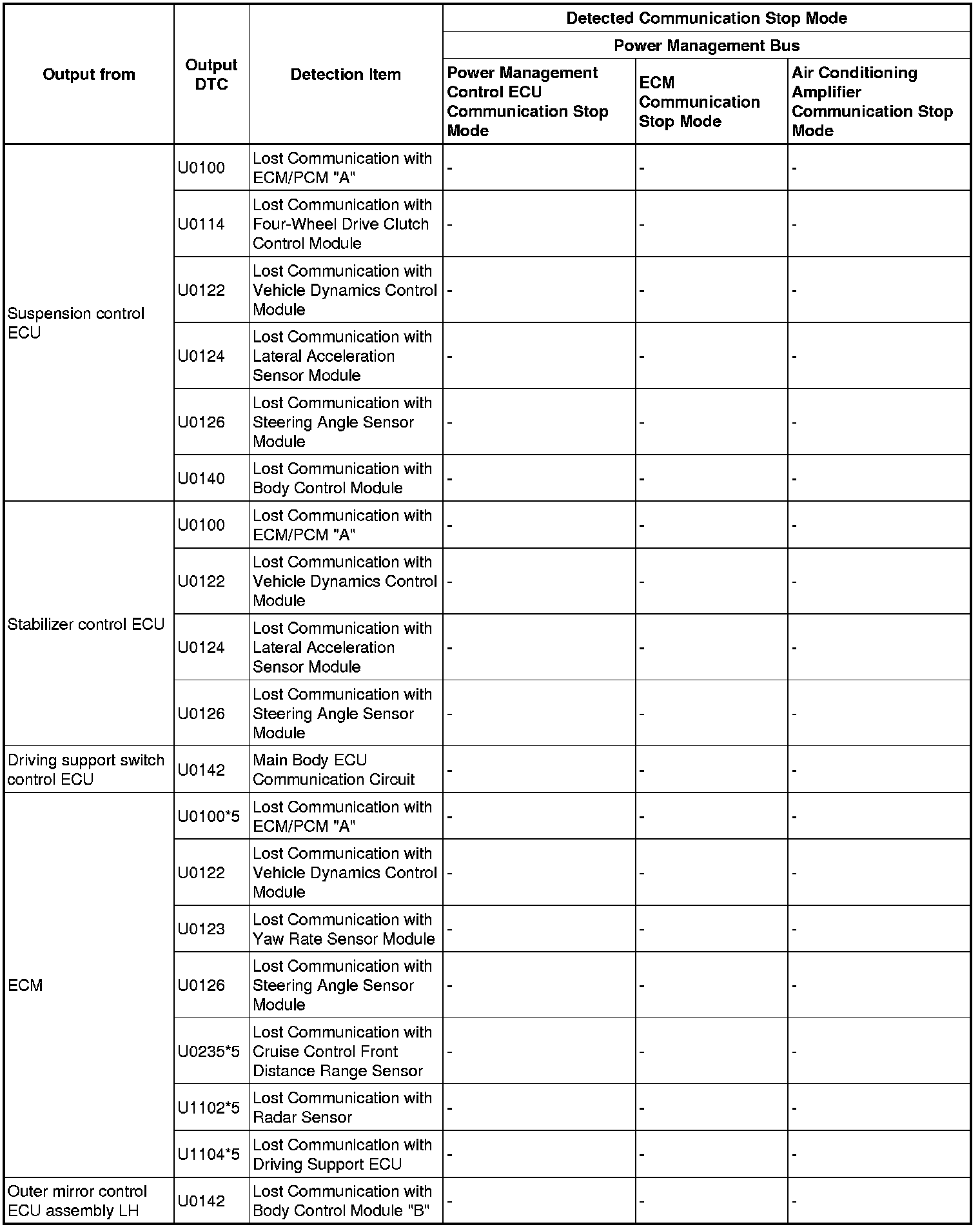

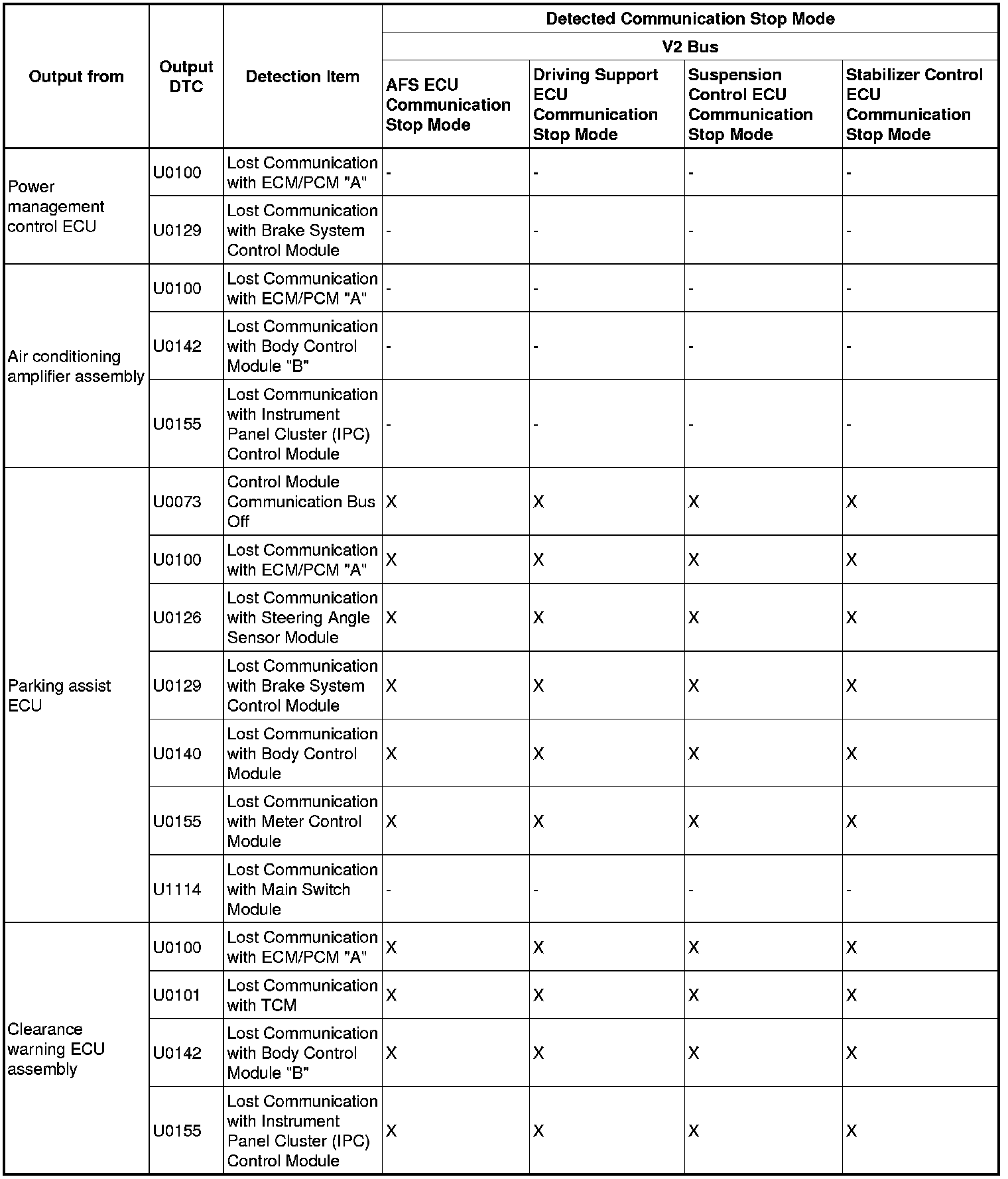

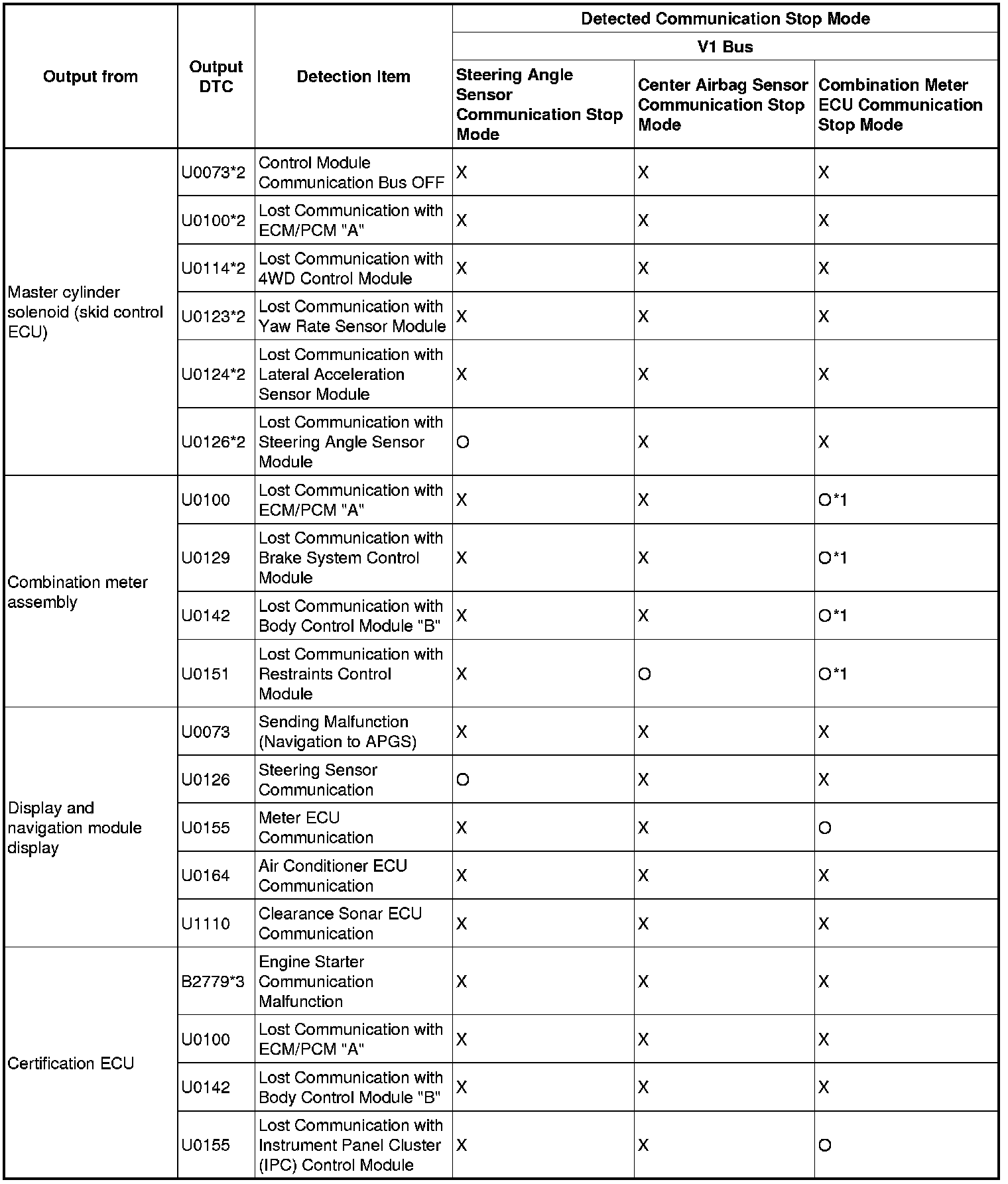

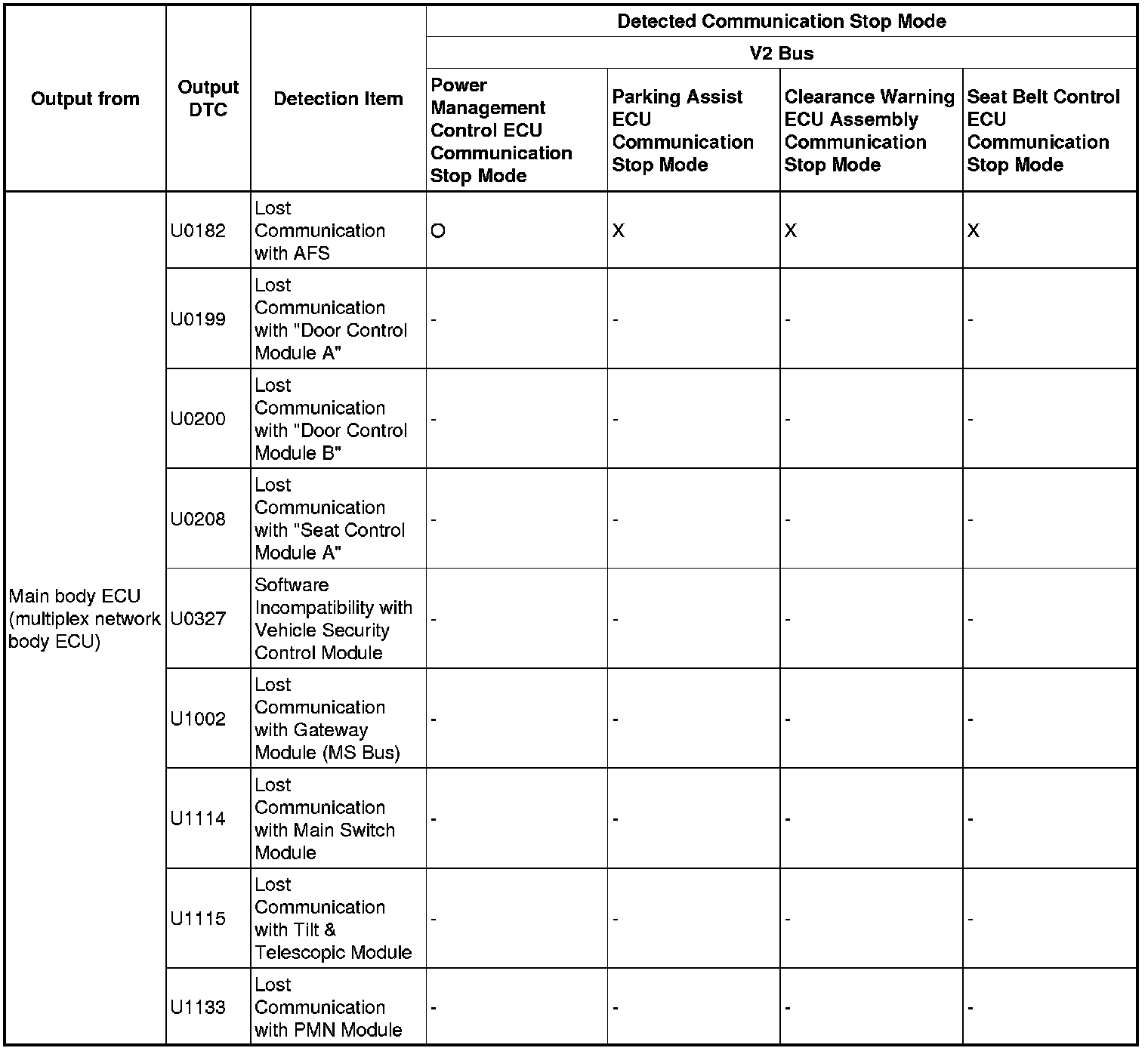

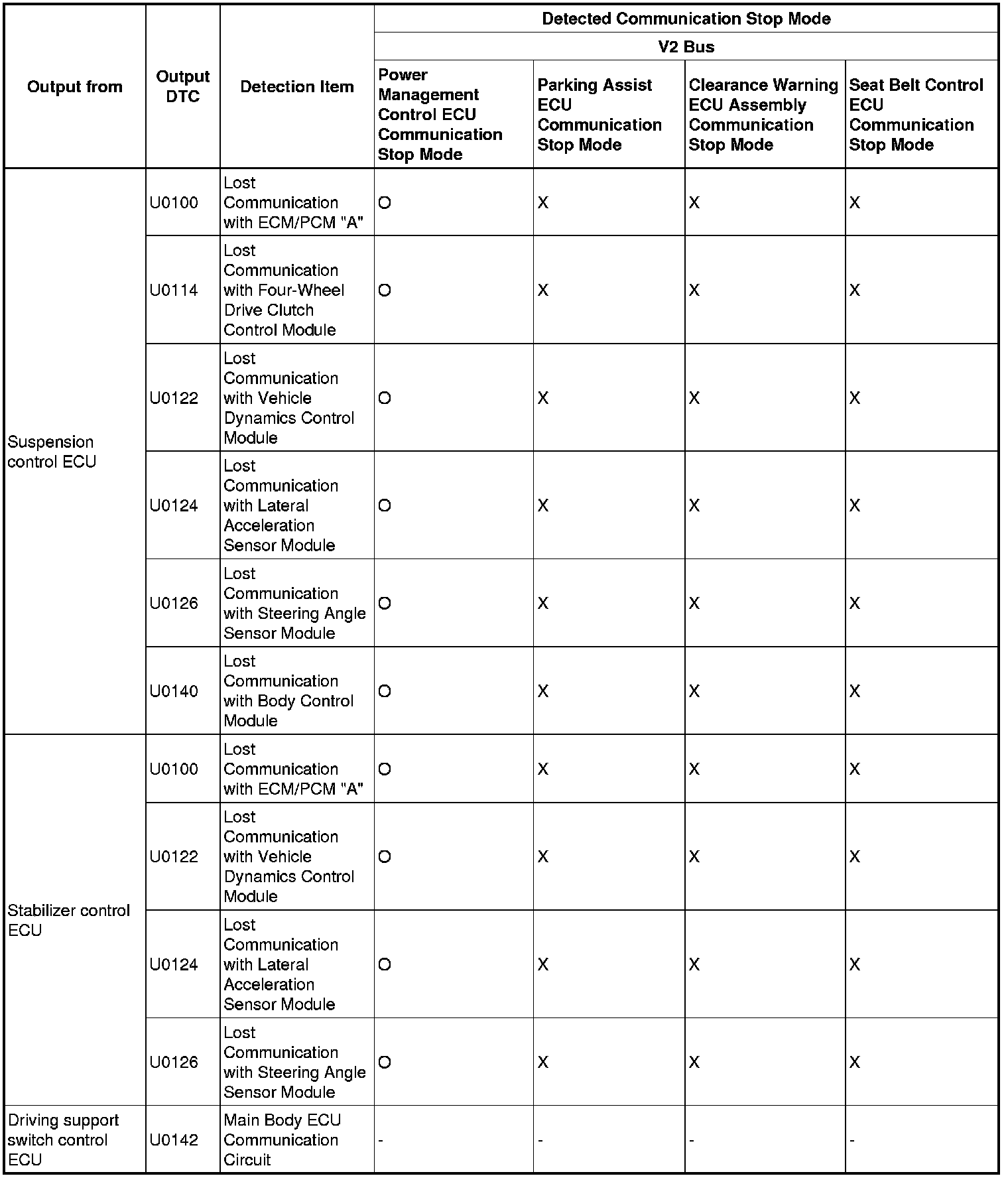

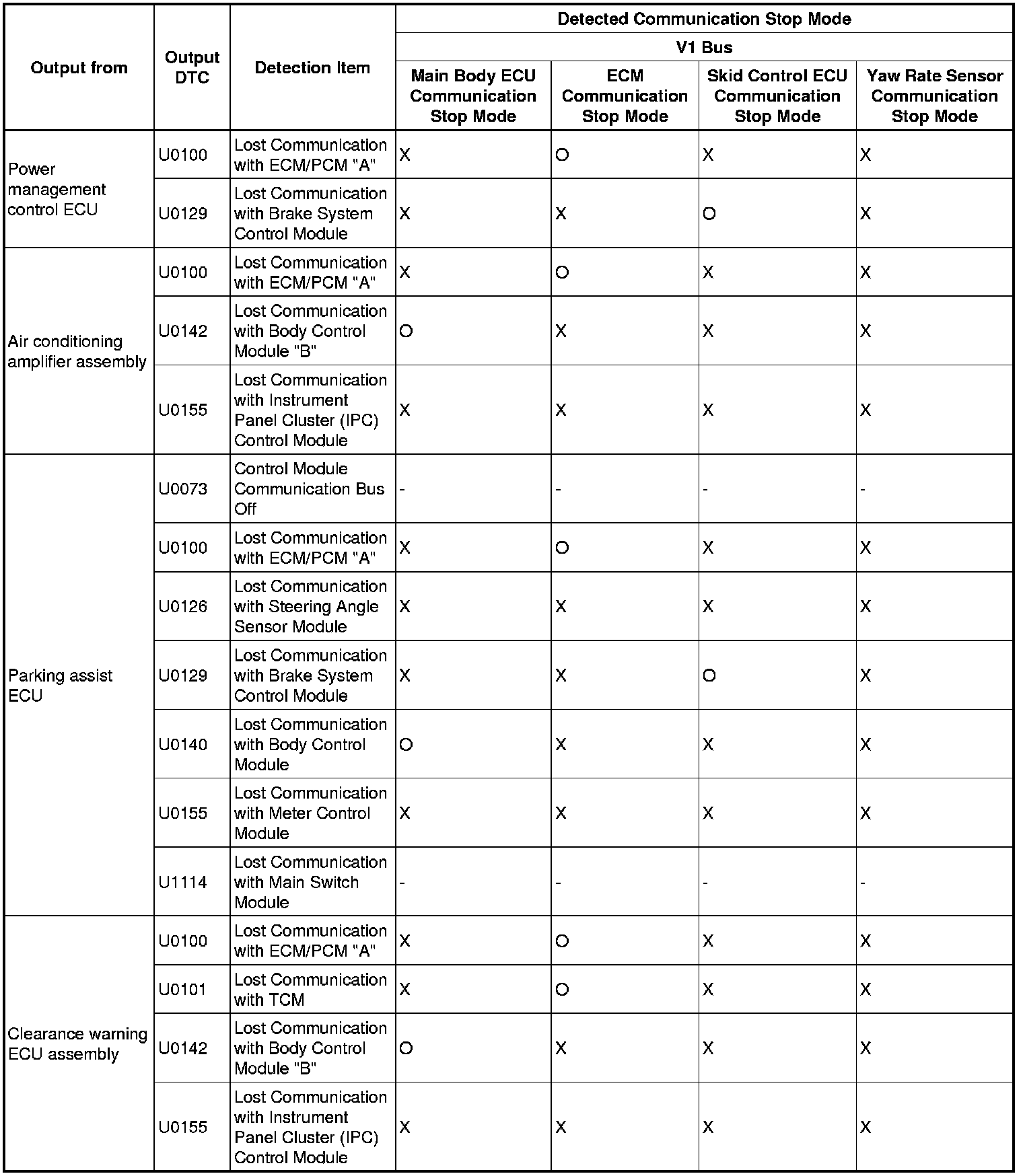

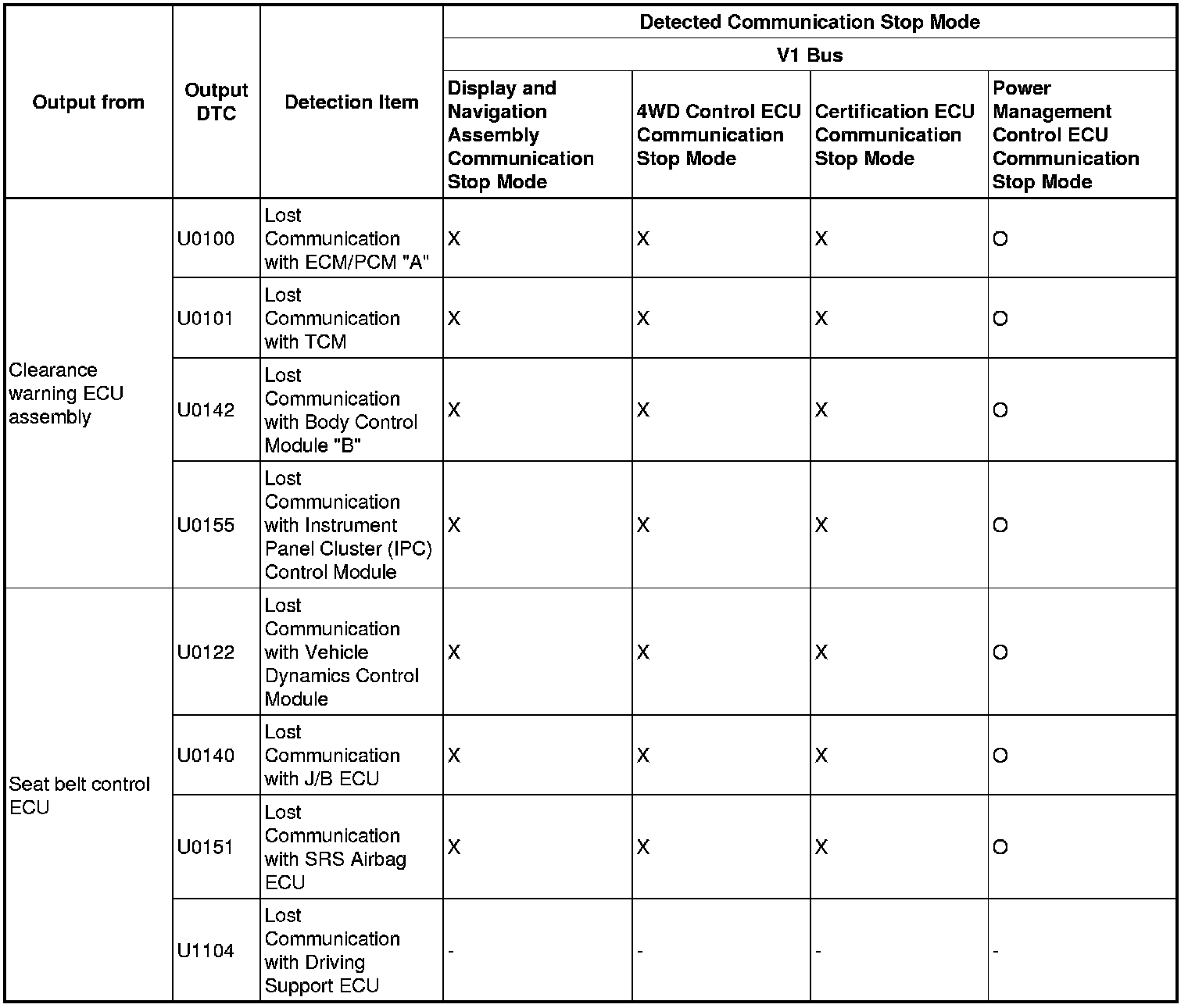

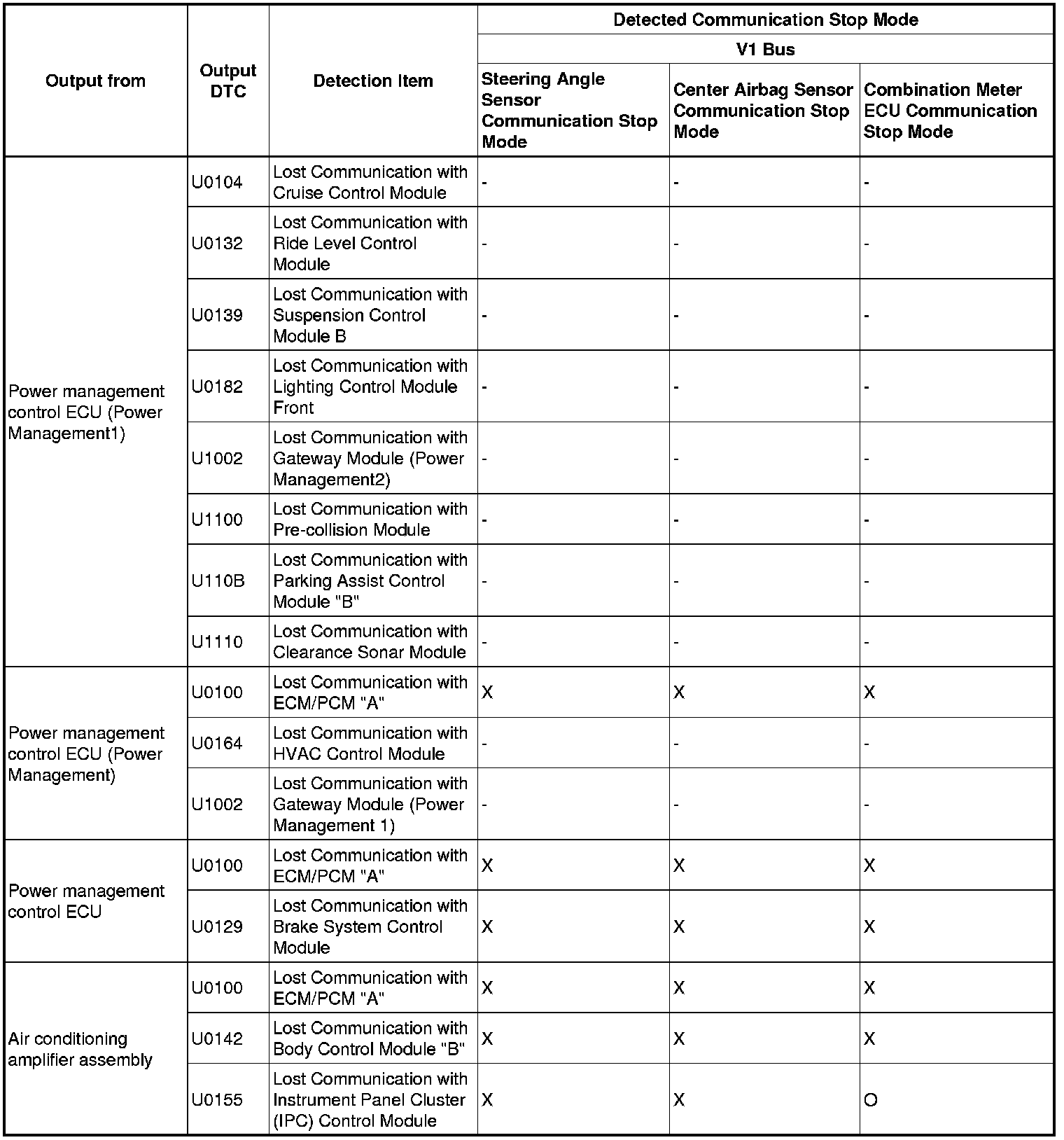

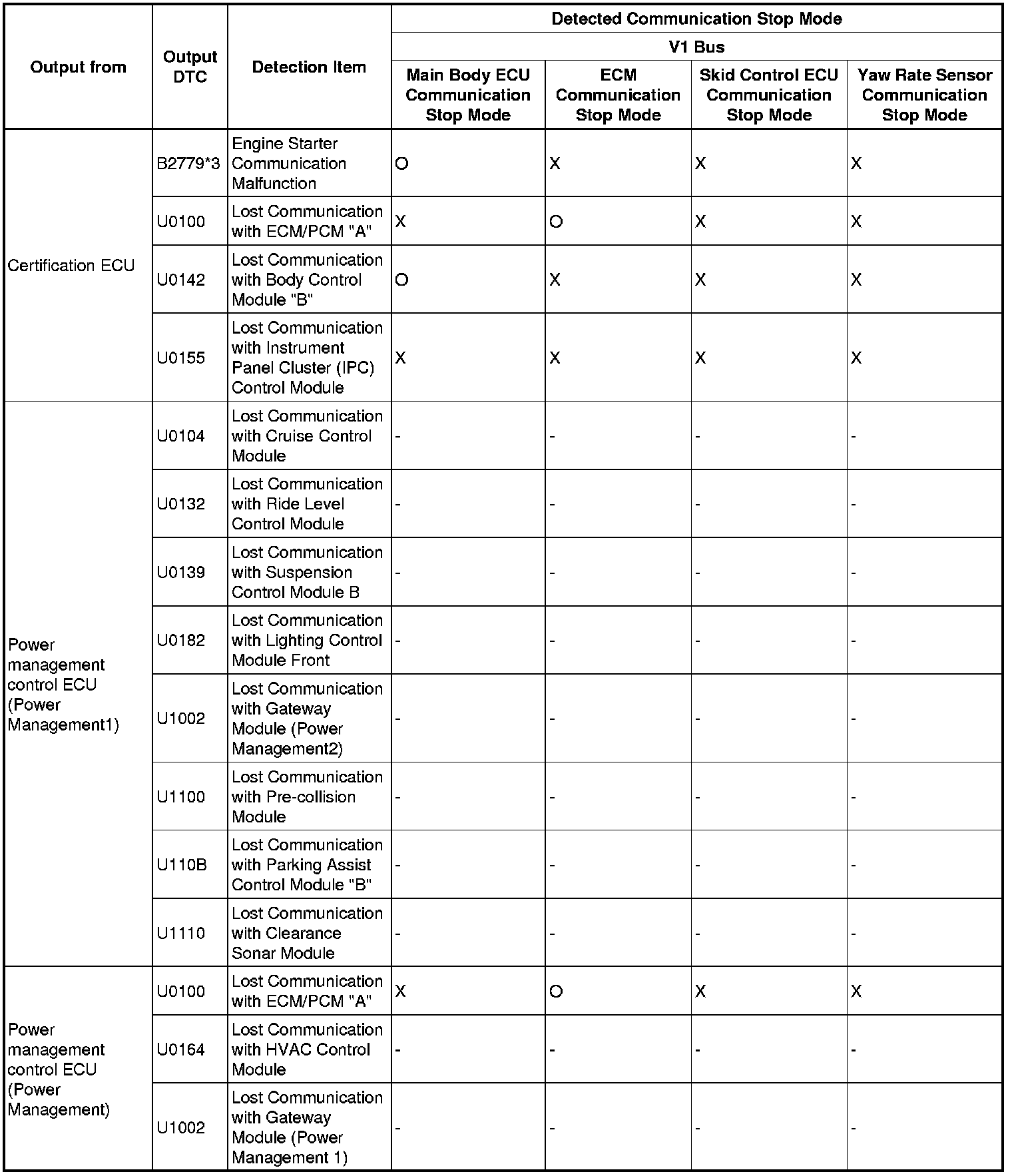

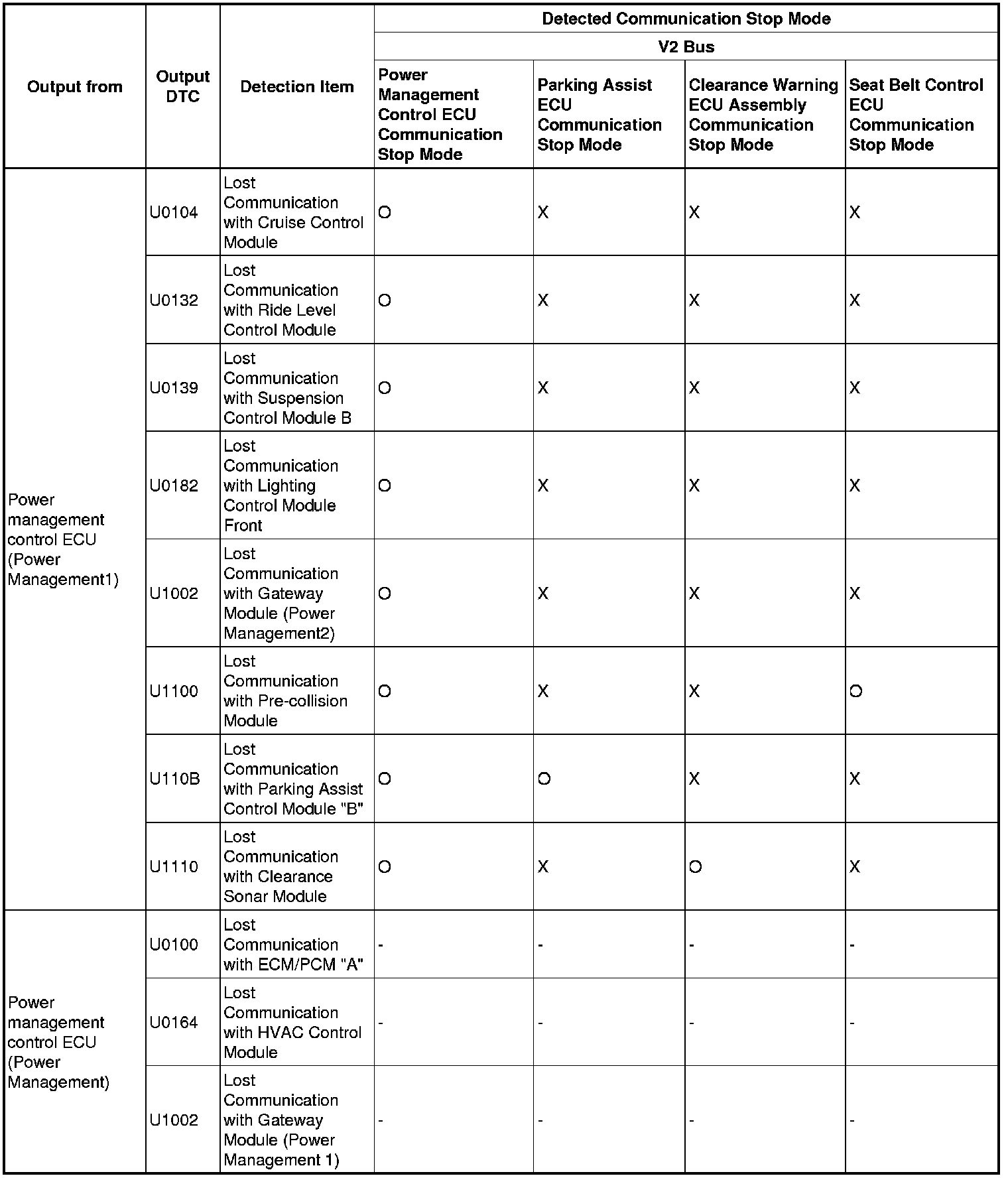

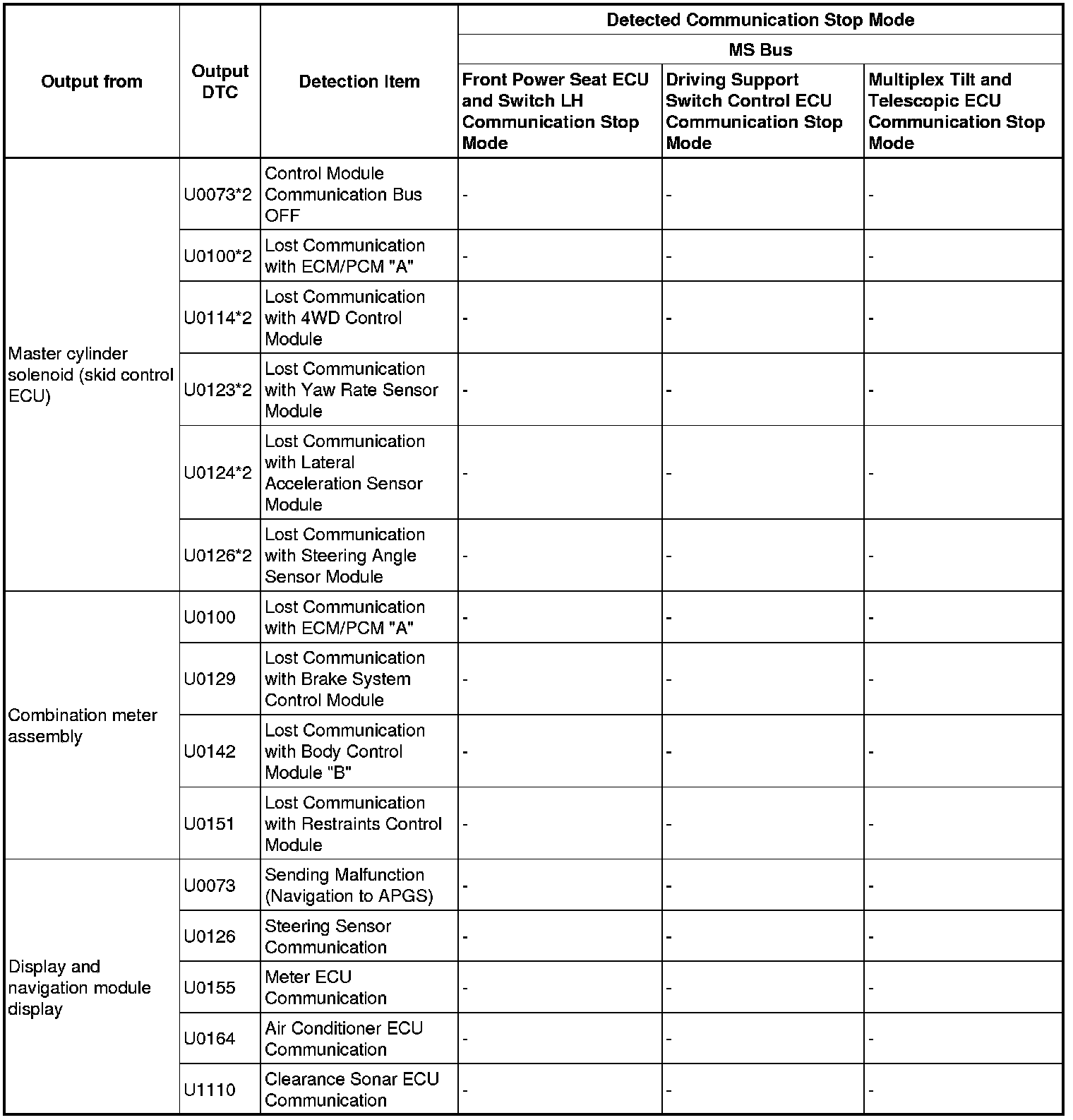

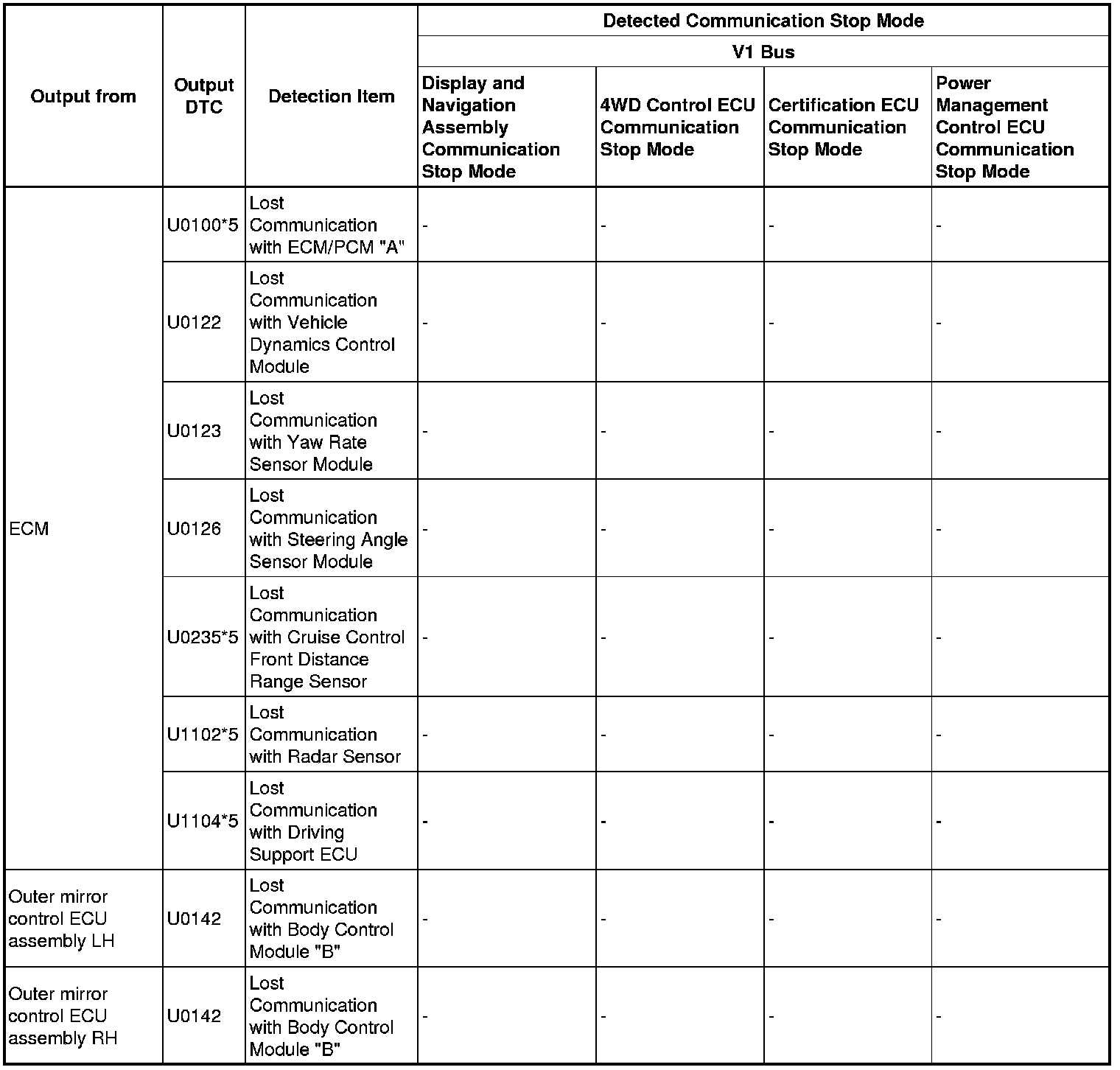

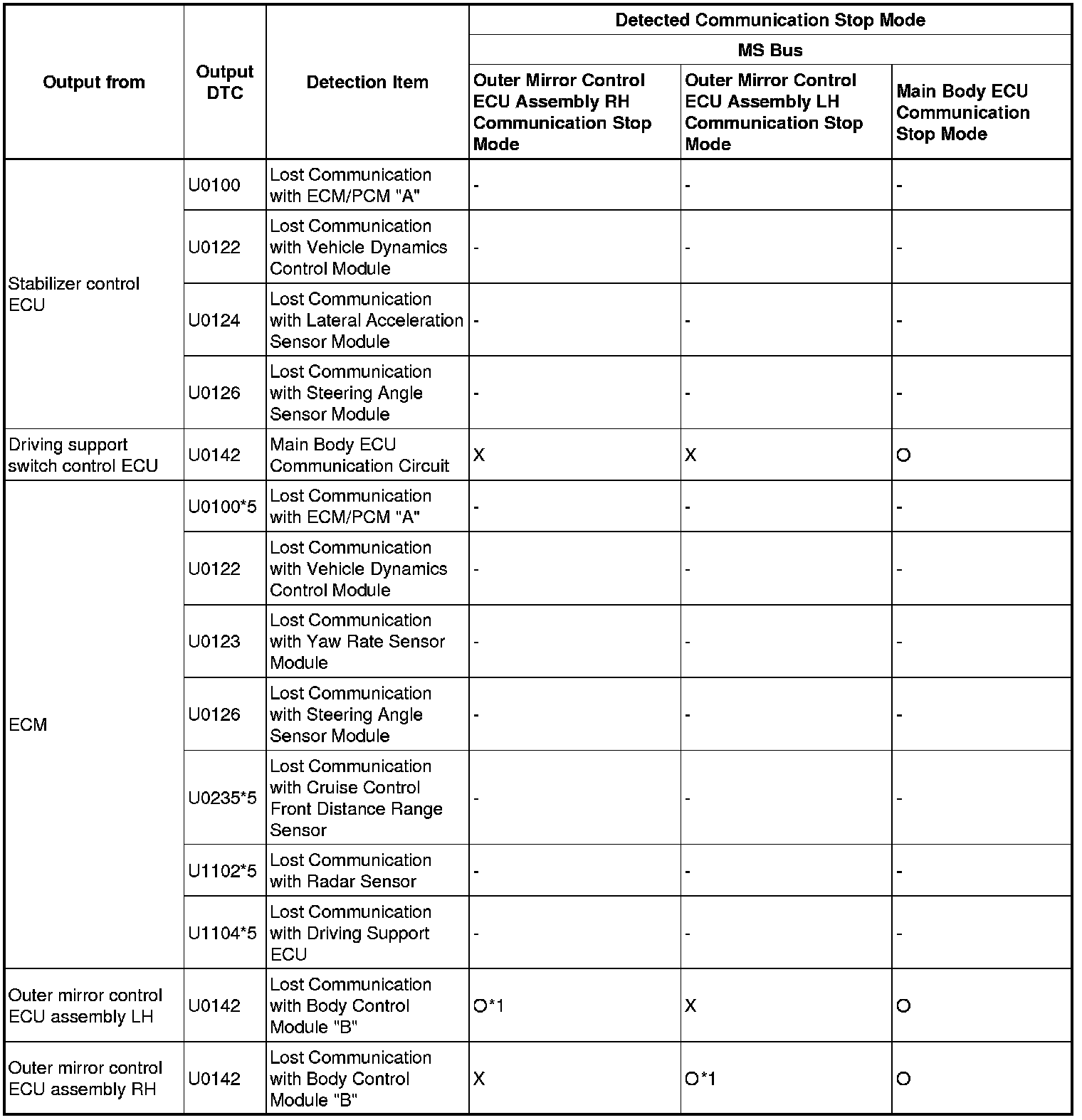

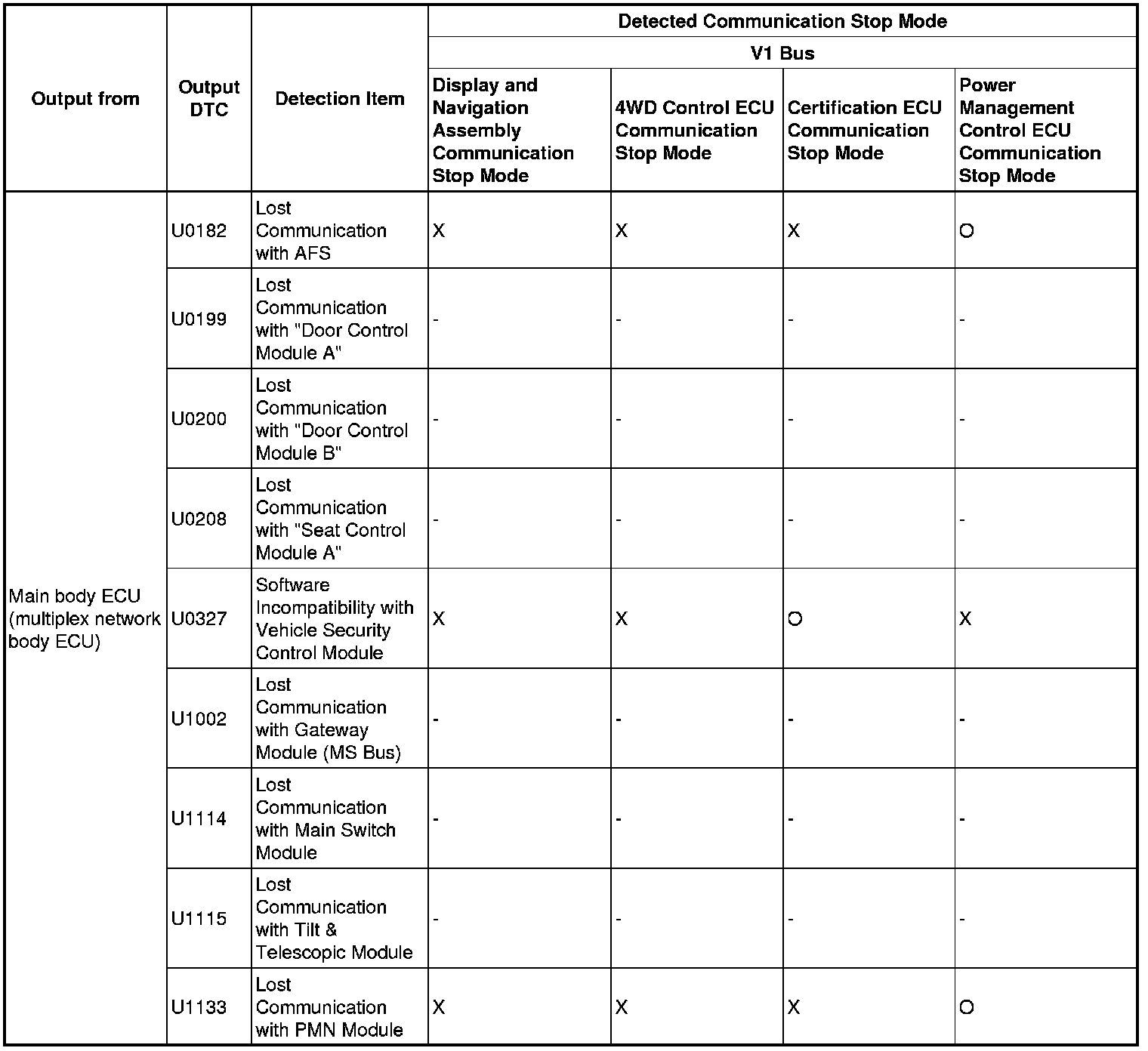

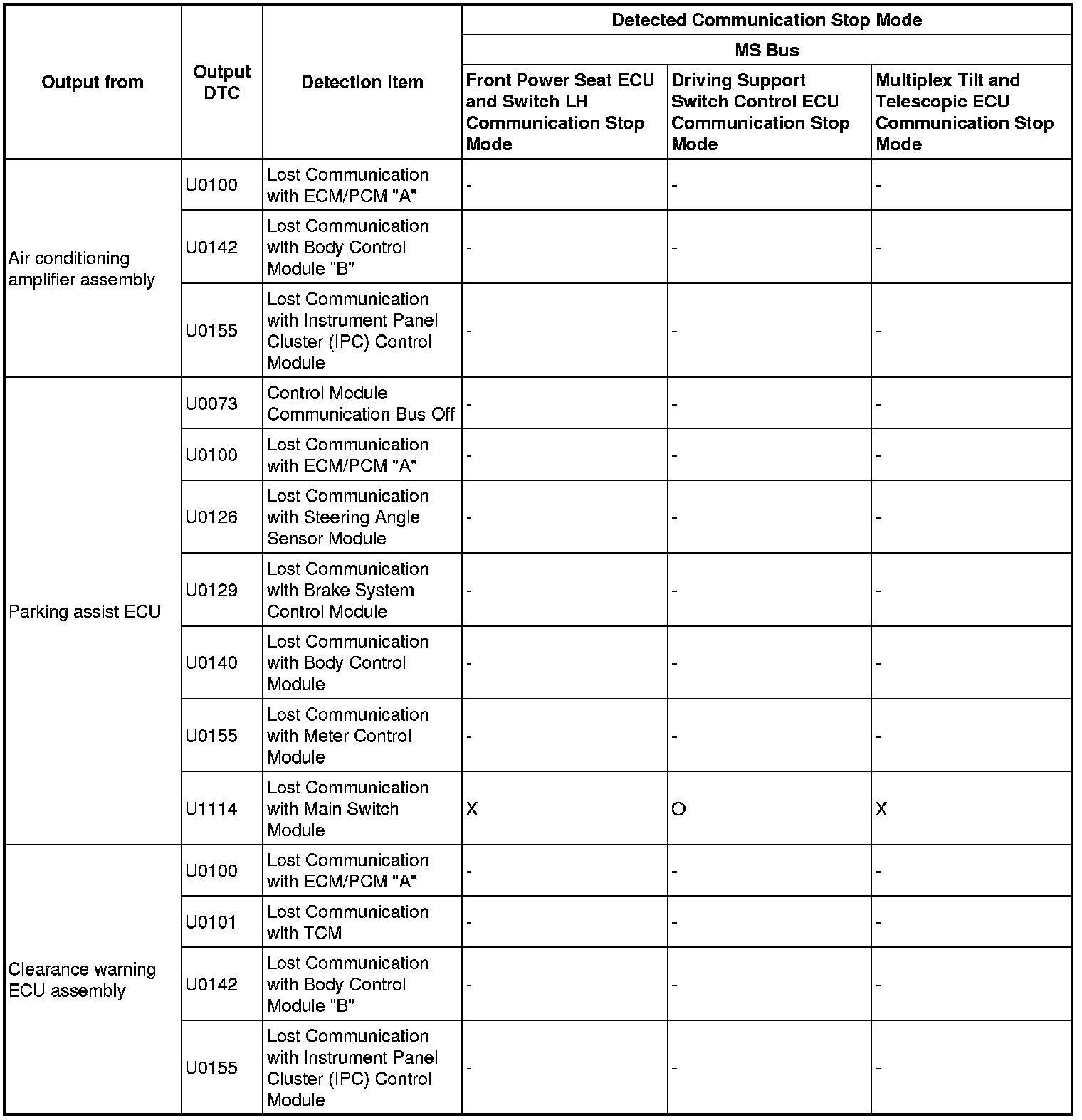

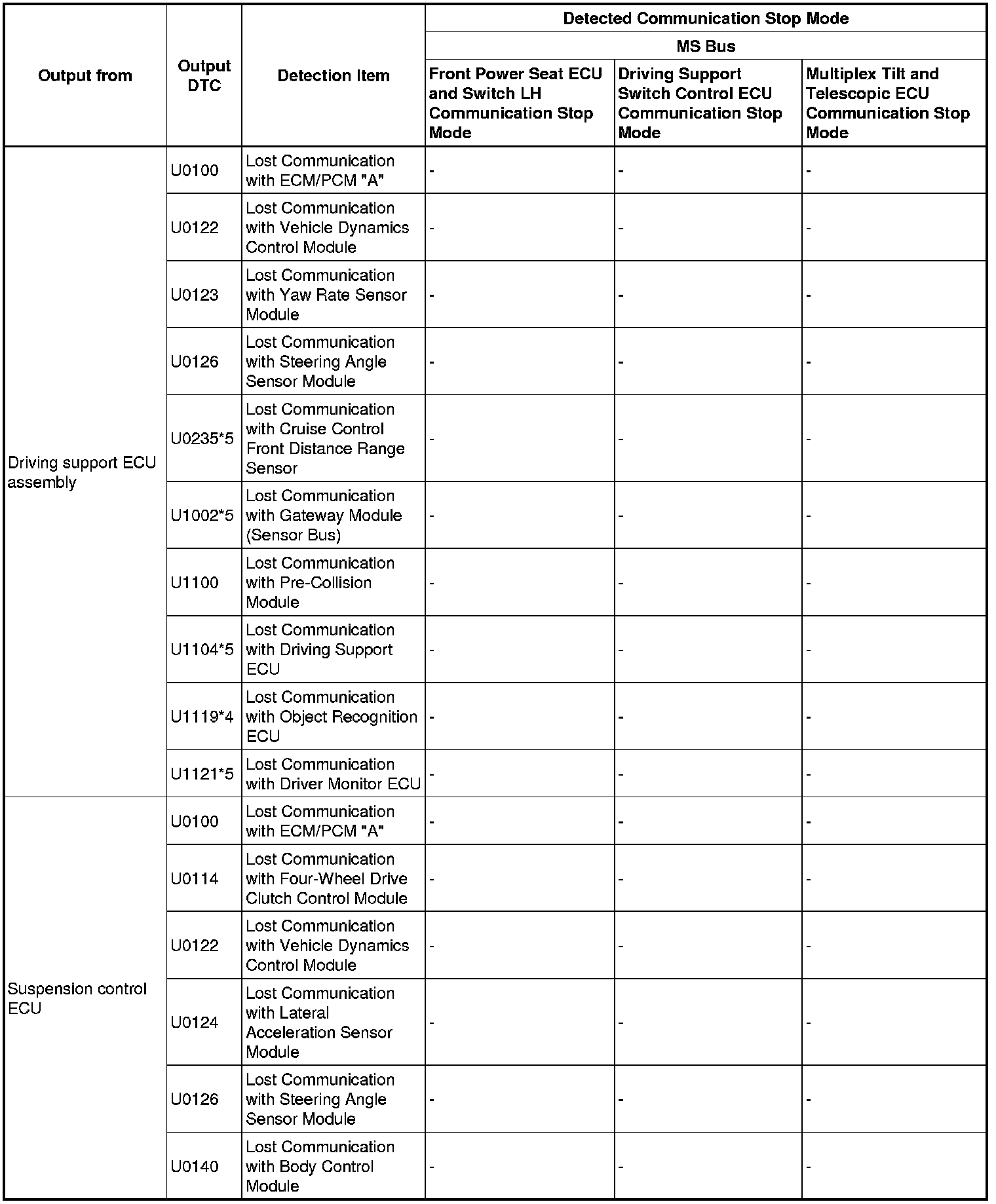

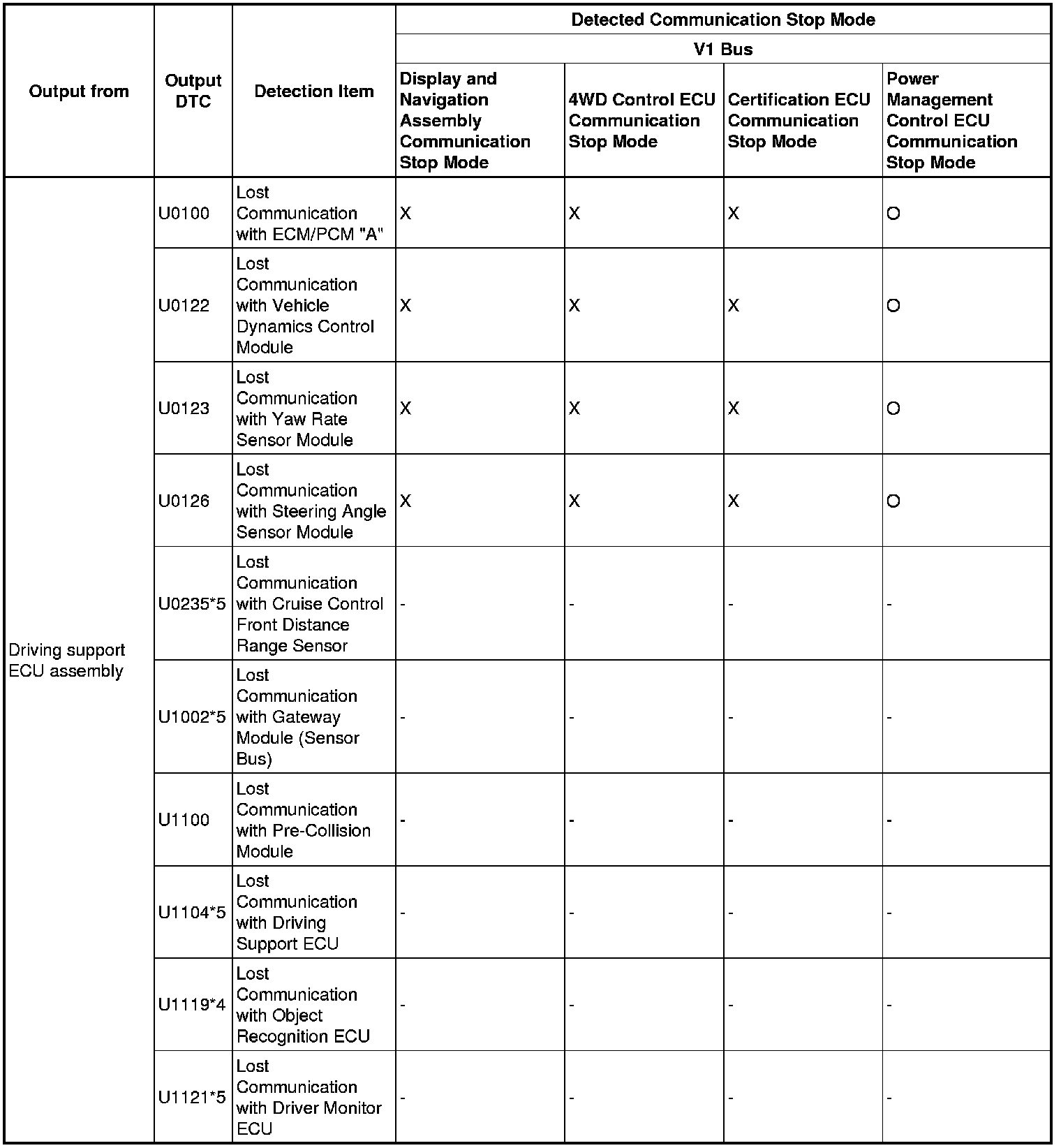

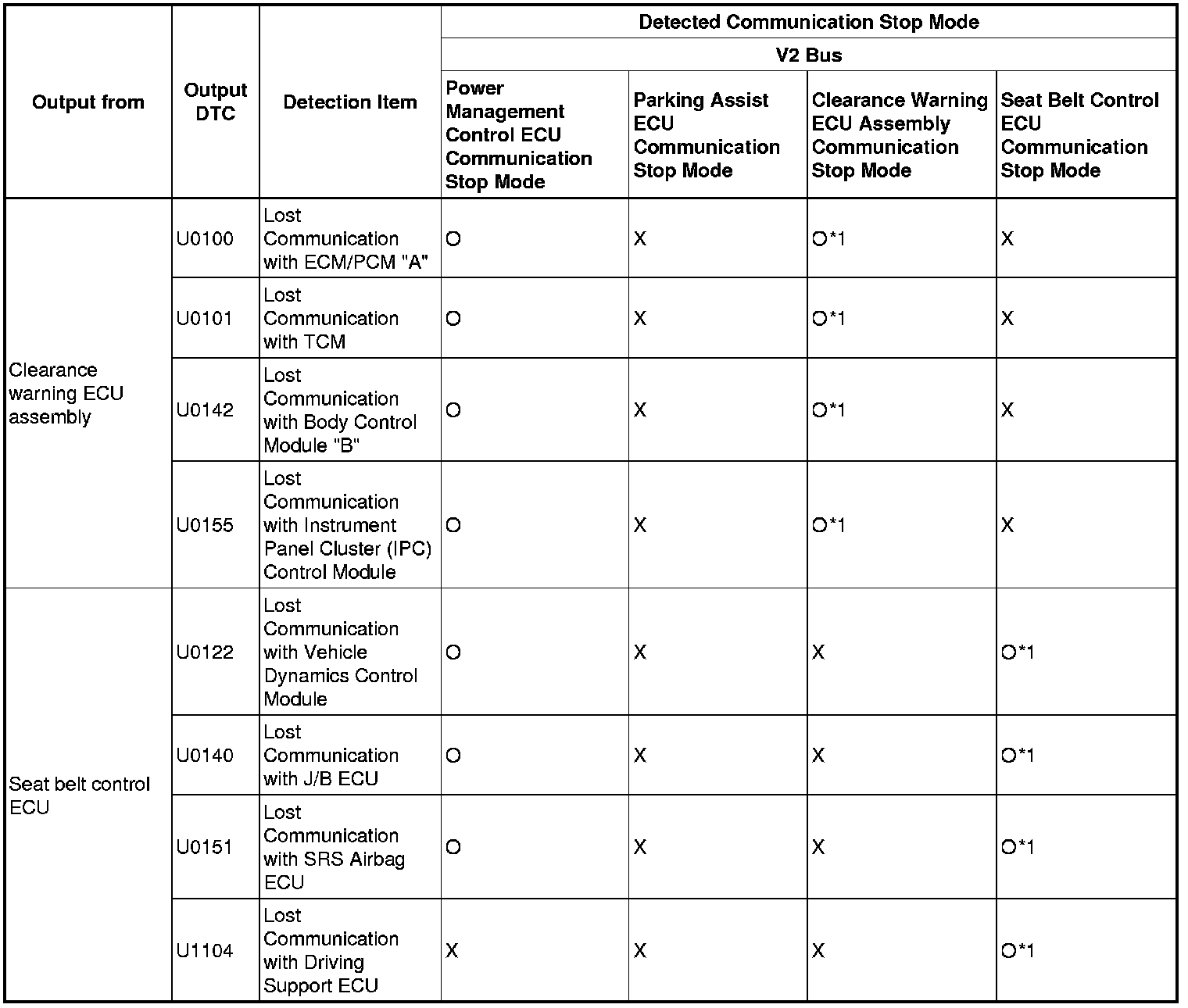

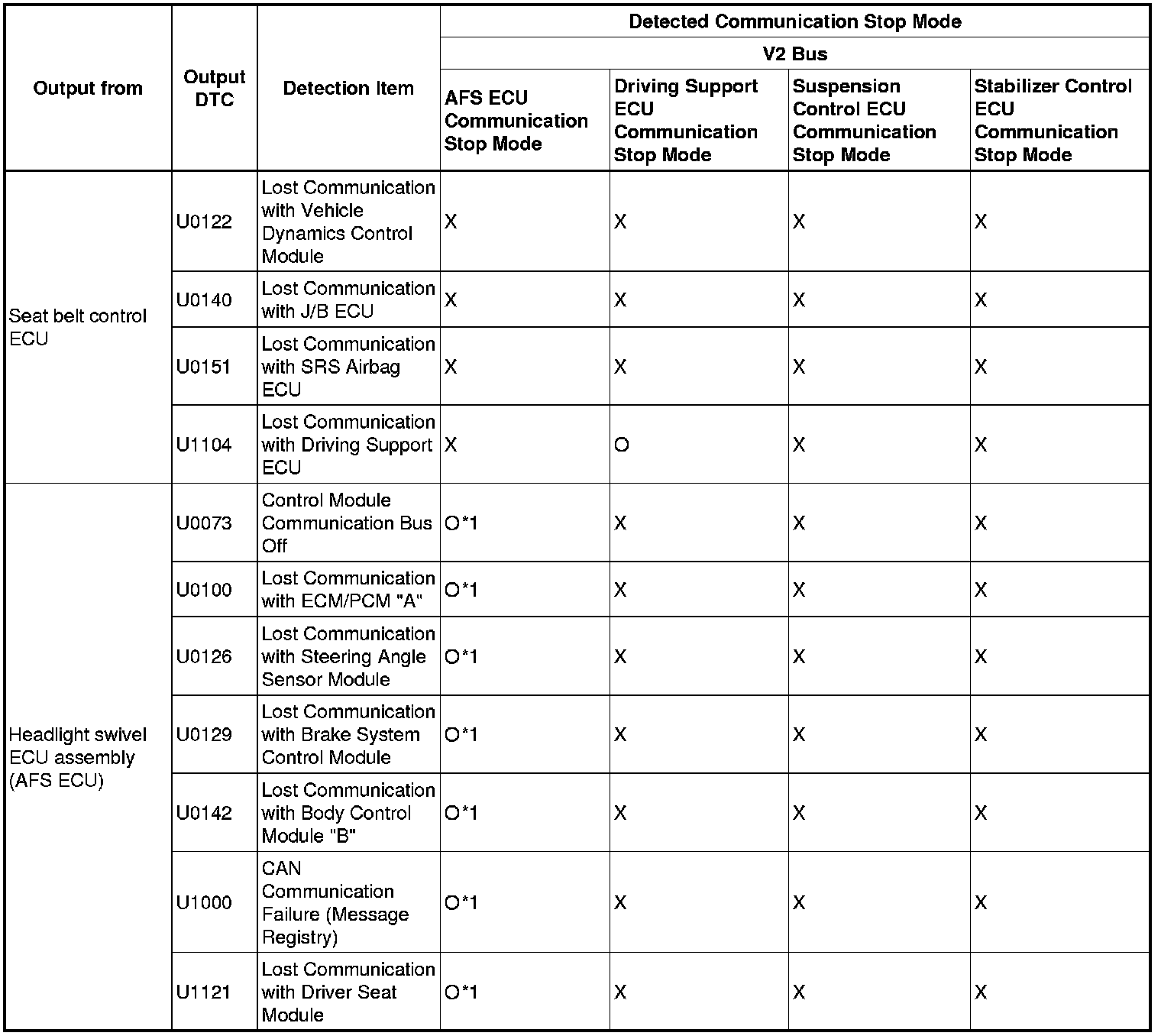

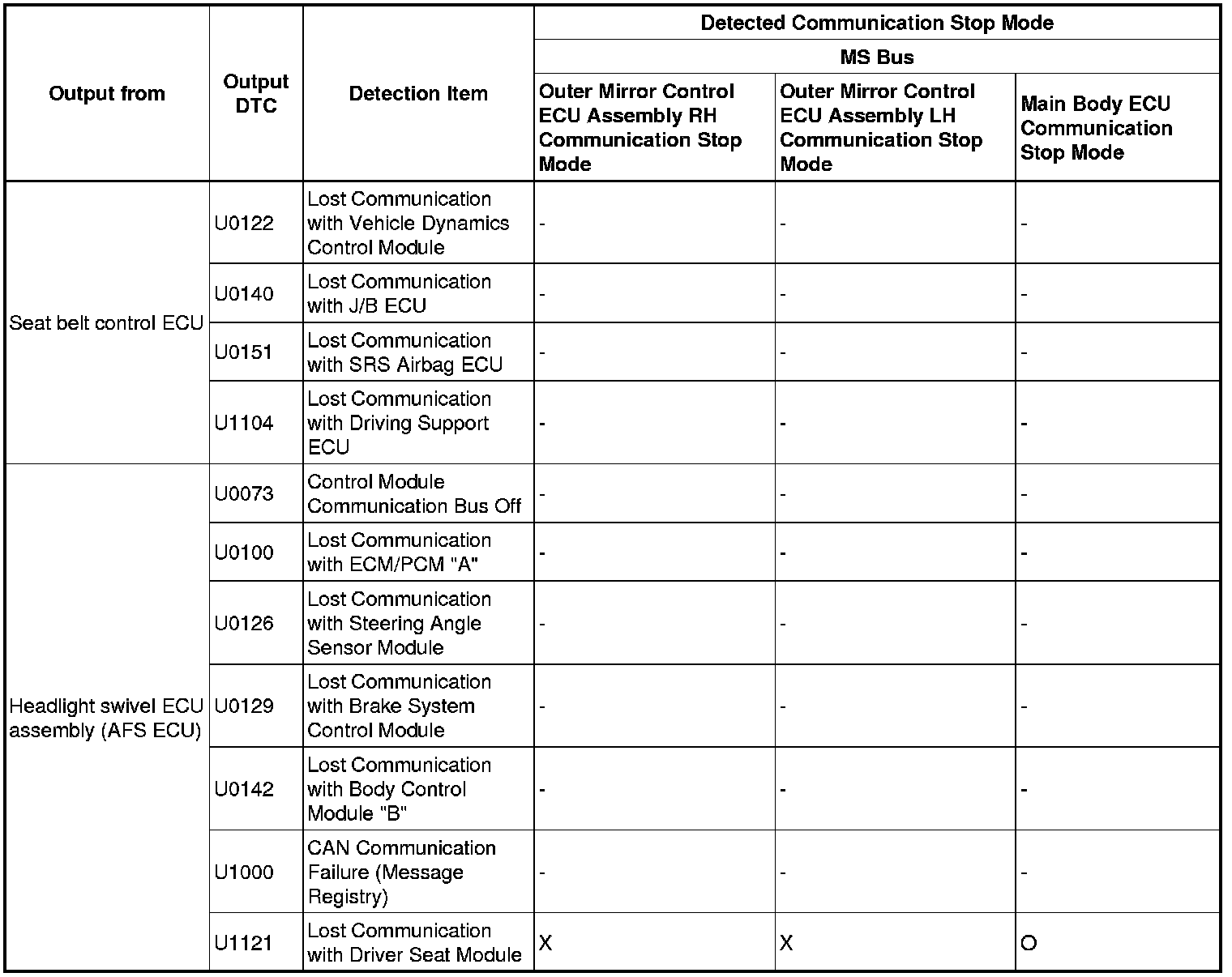

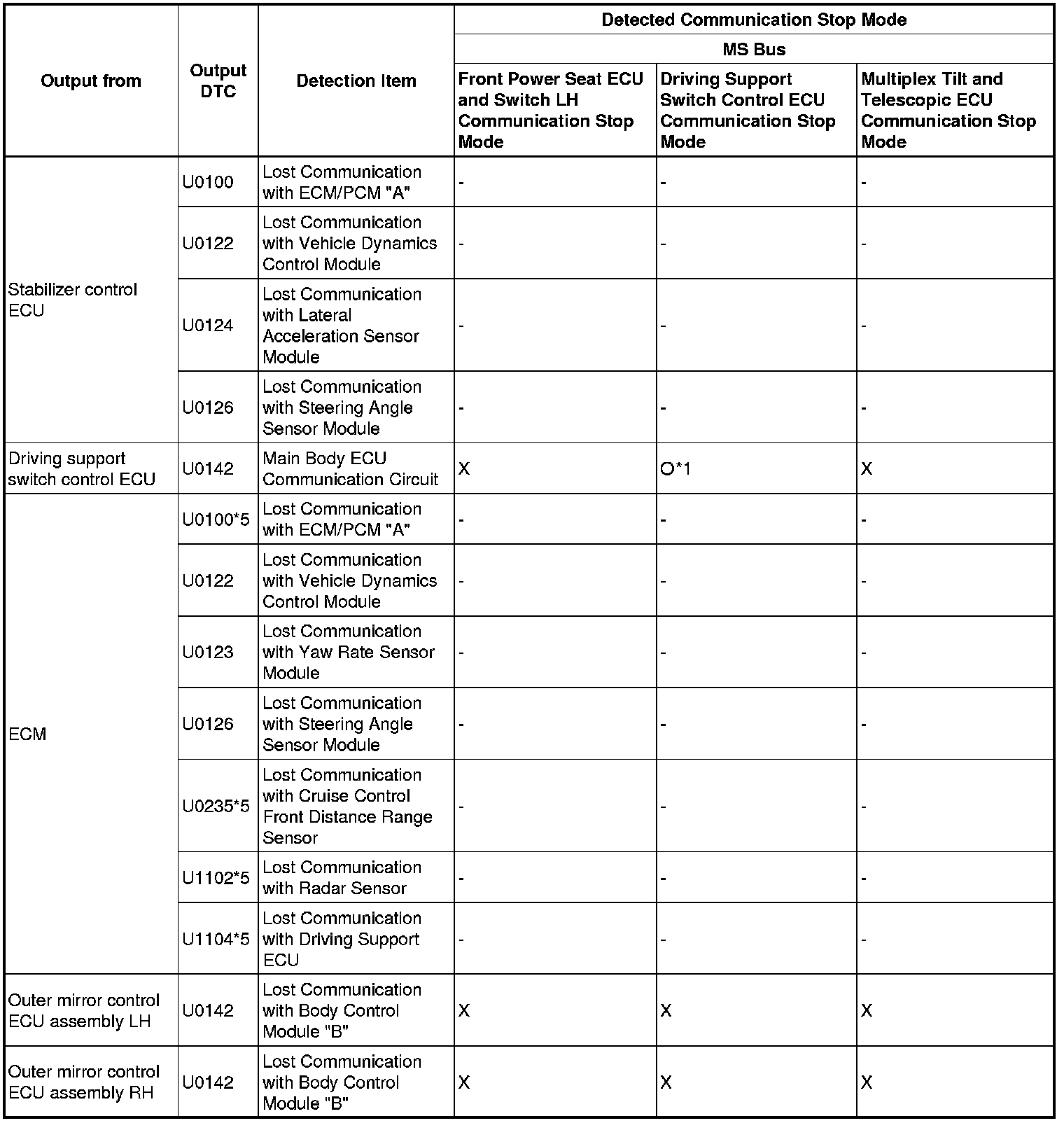

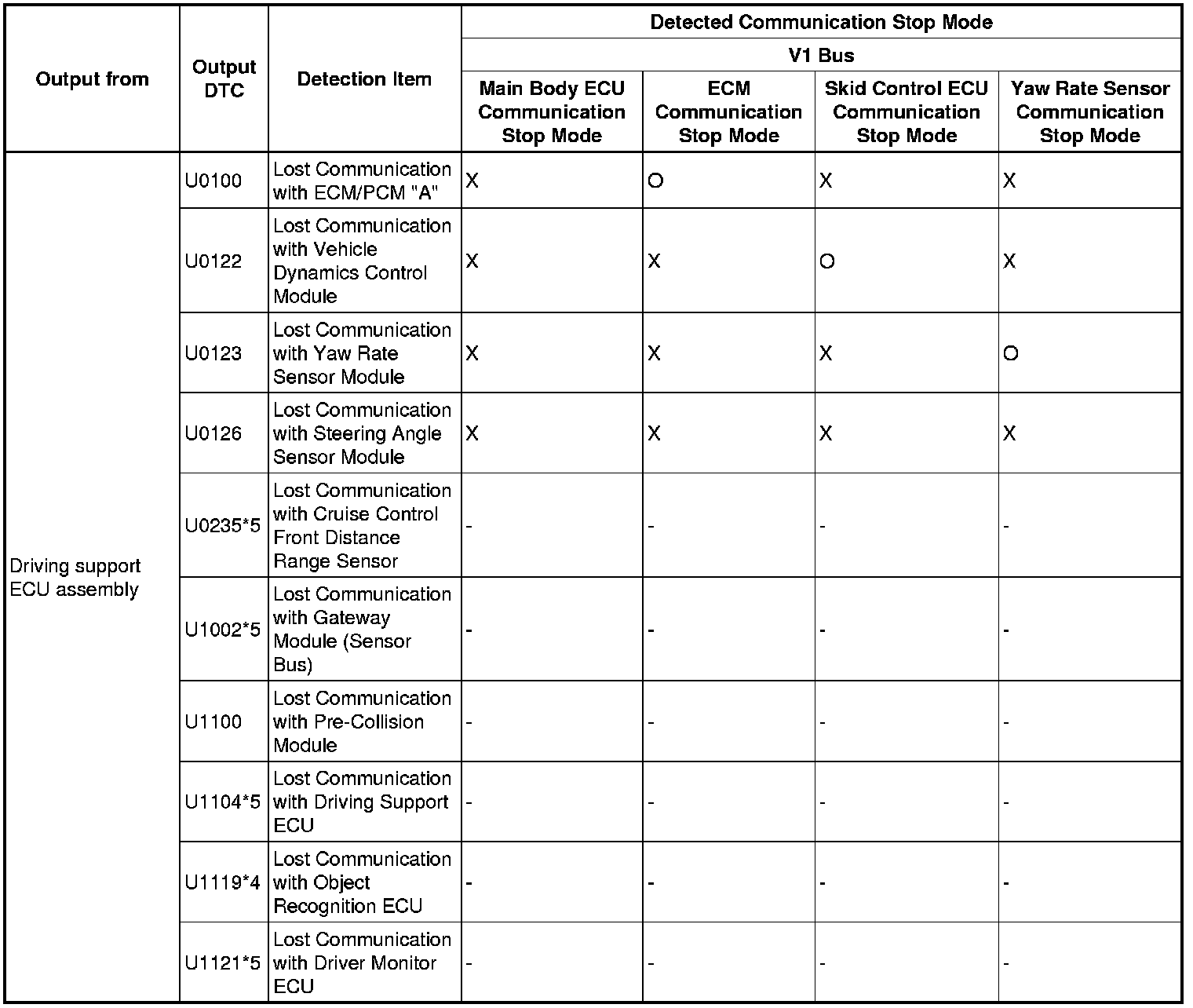

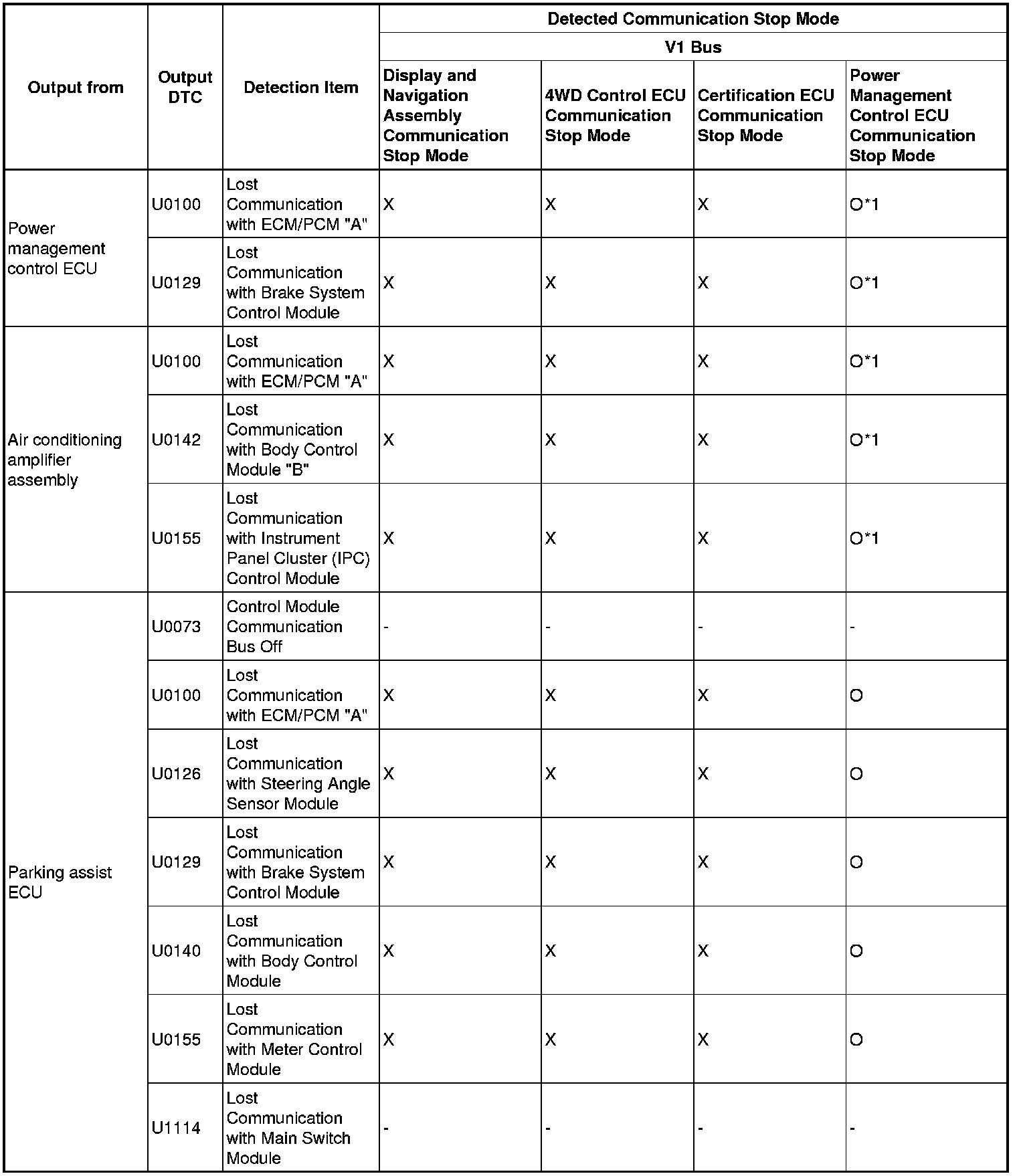

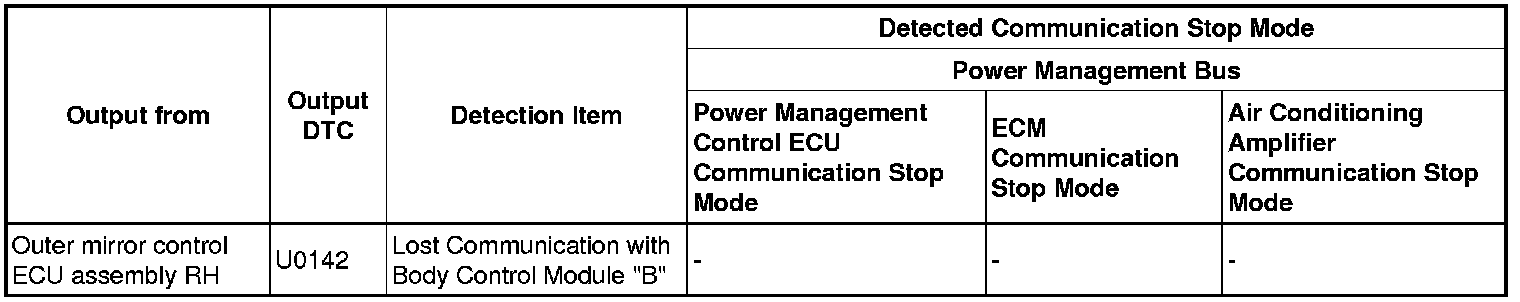

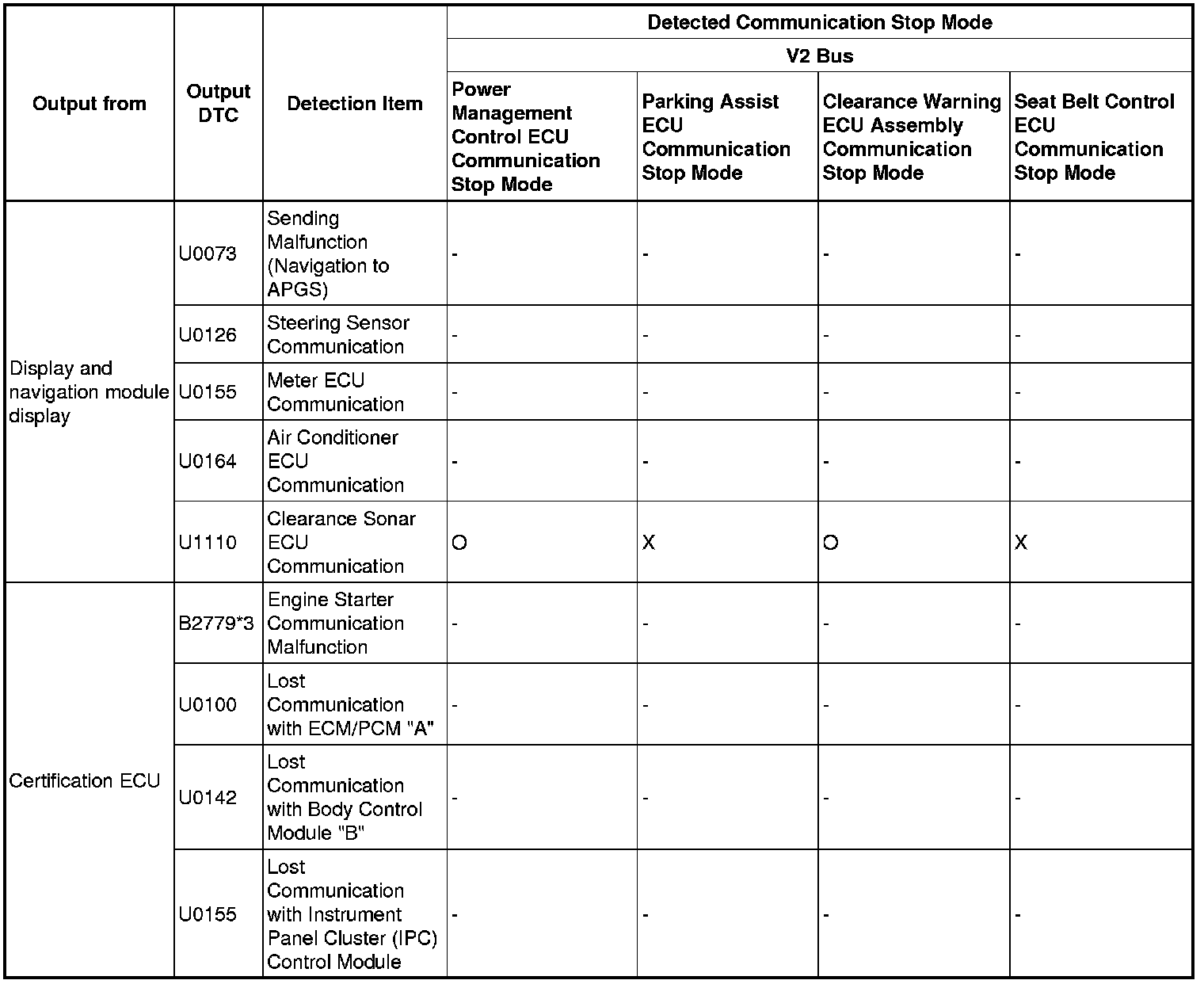

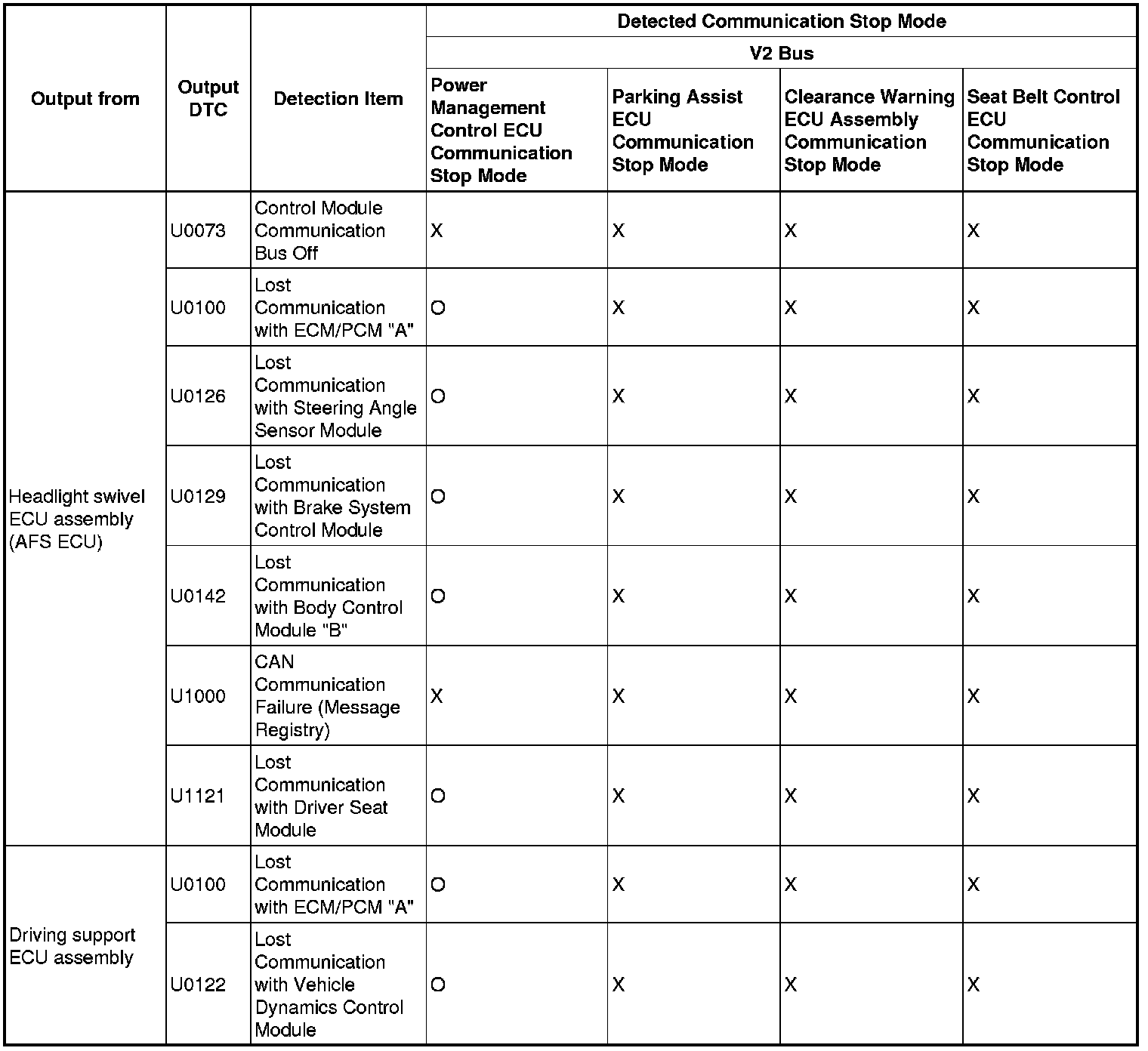

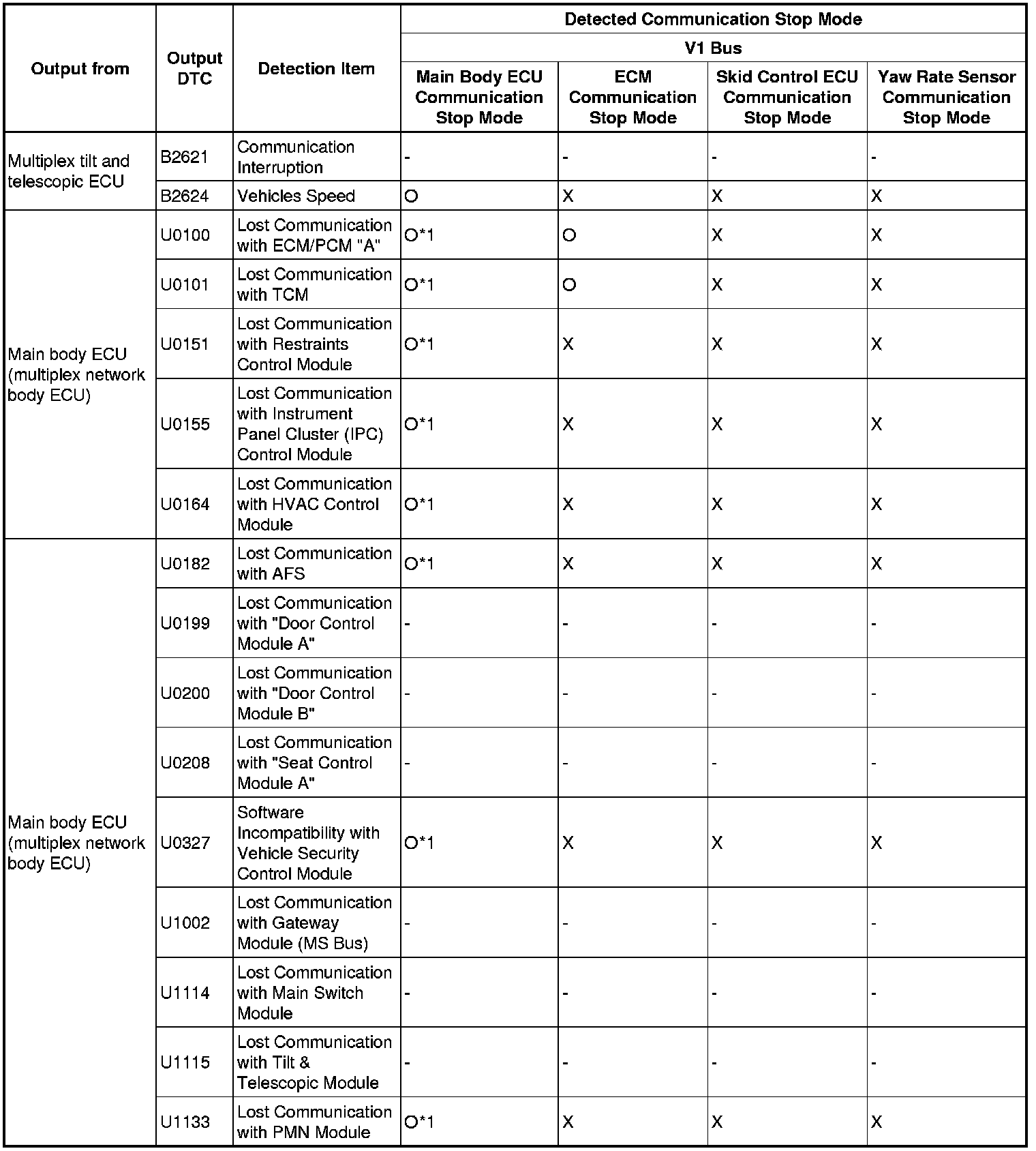

4. DTC COMBINATION TABLE
HINT
* o: Stored.
* X: When one side of branch wire is open, storage may occur.
* -: Not stored.
* *1: Only stored when communication recovery has occurred. During communication stop, cannot be stored.
* *2: Only output while a malfunction present and the engine switch is on (IG).
* *3: Only present DTCs output.
* *4: Refer to Pre-collision System Pre-Collision System.
* *5: Refer to Diagnostic Trouble Code Chart CAN Communication System.

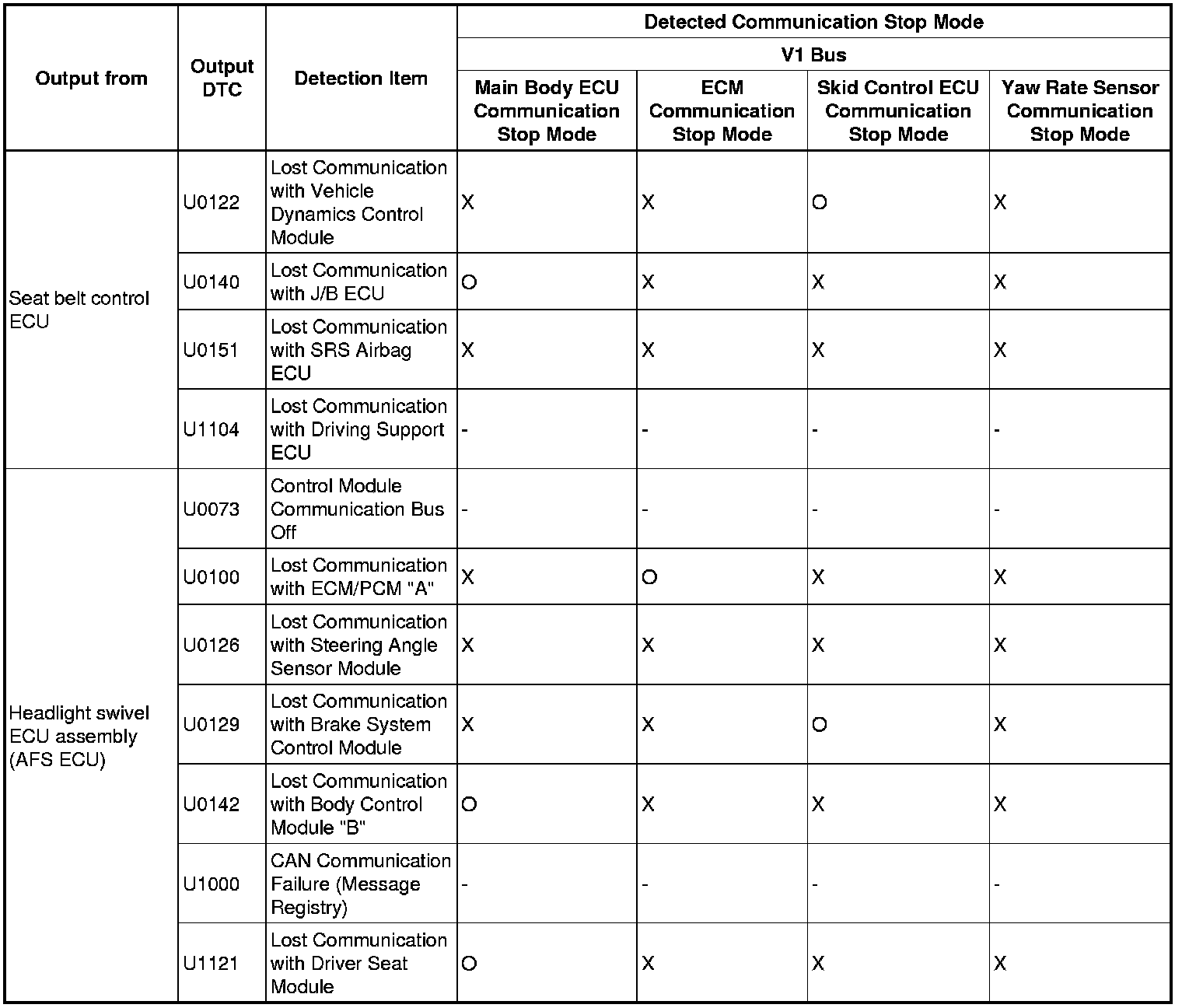

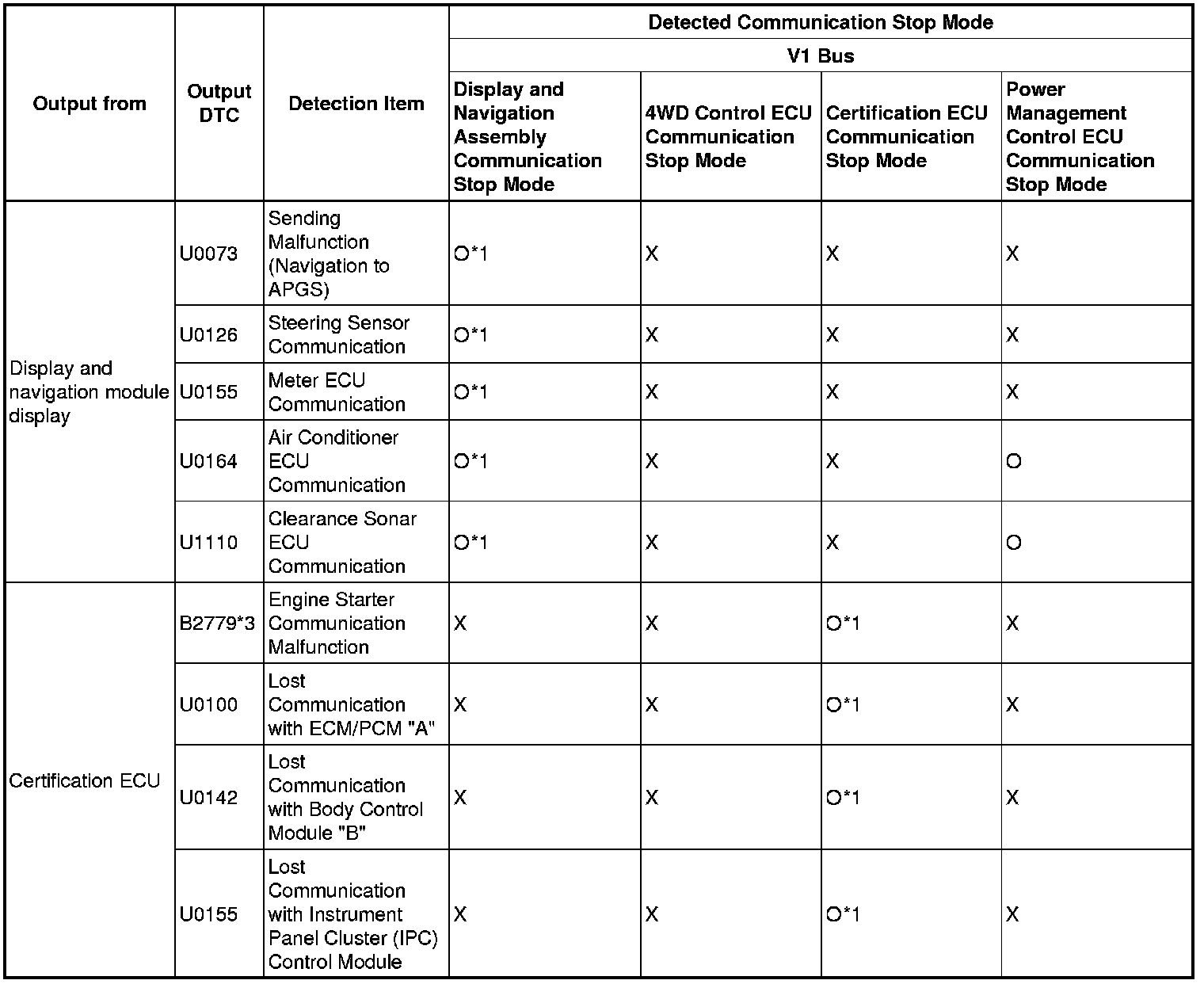

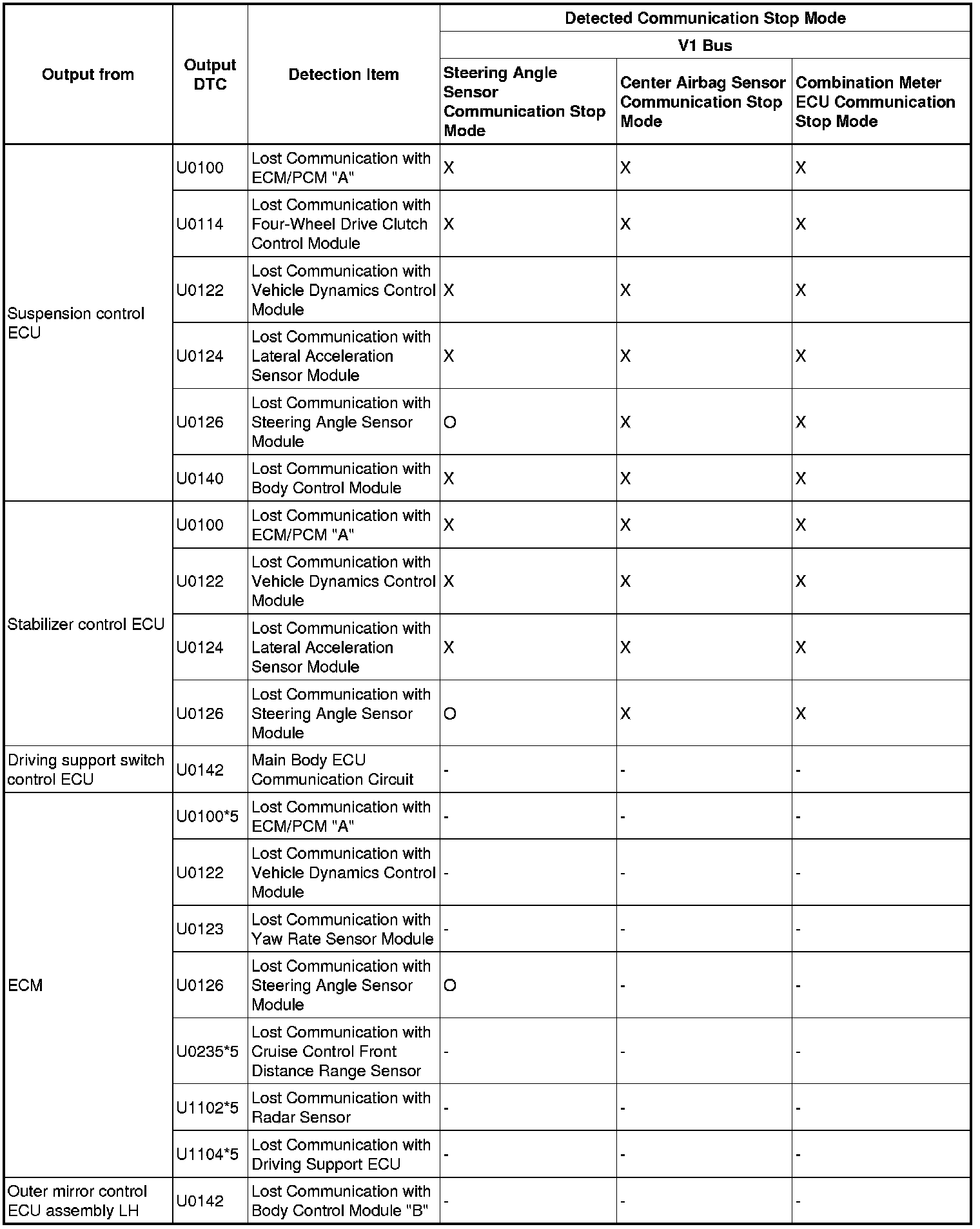

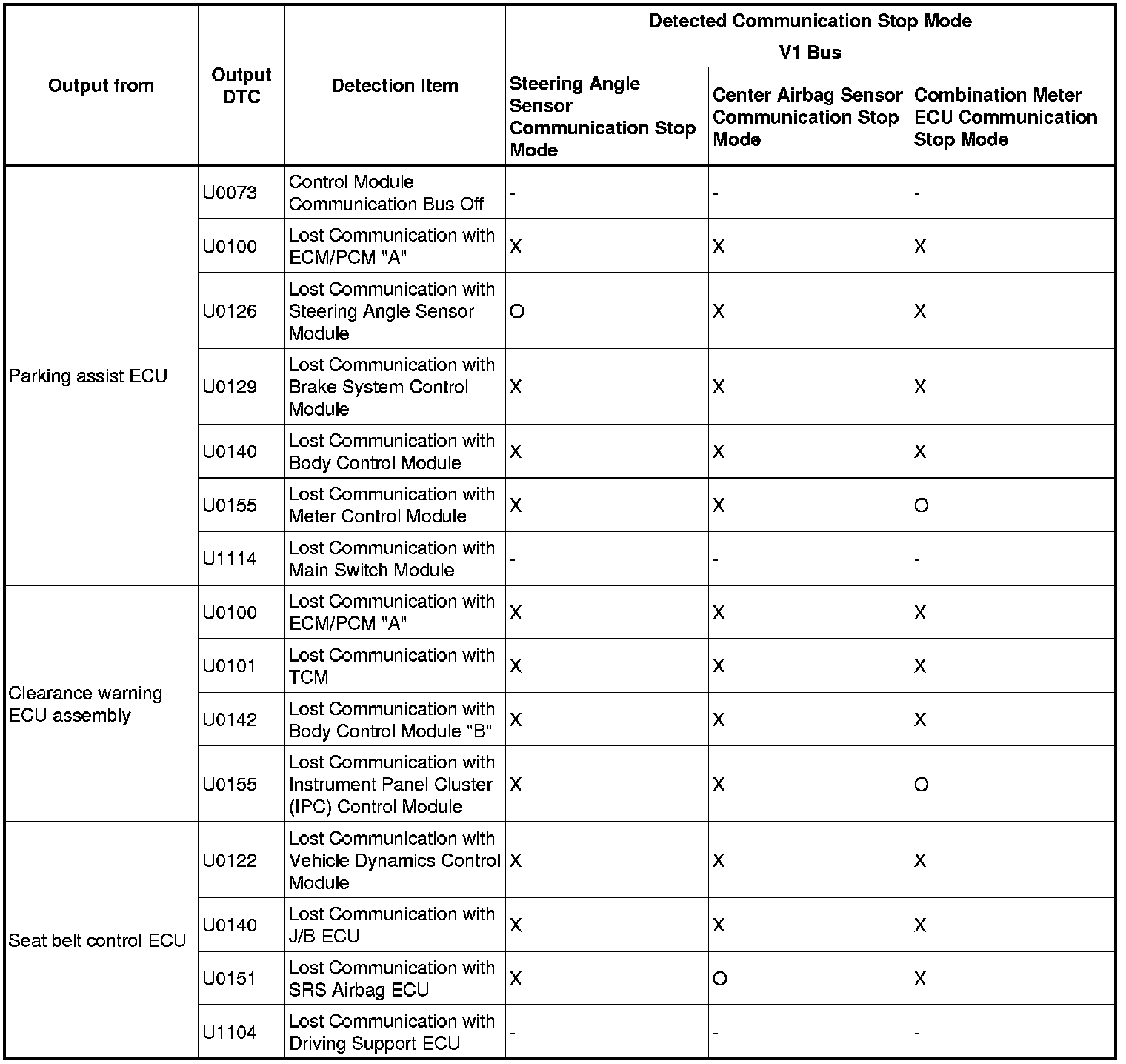

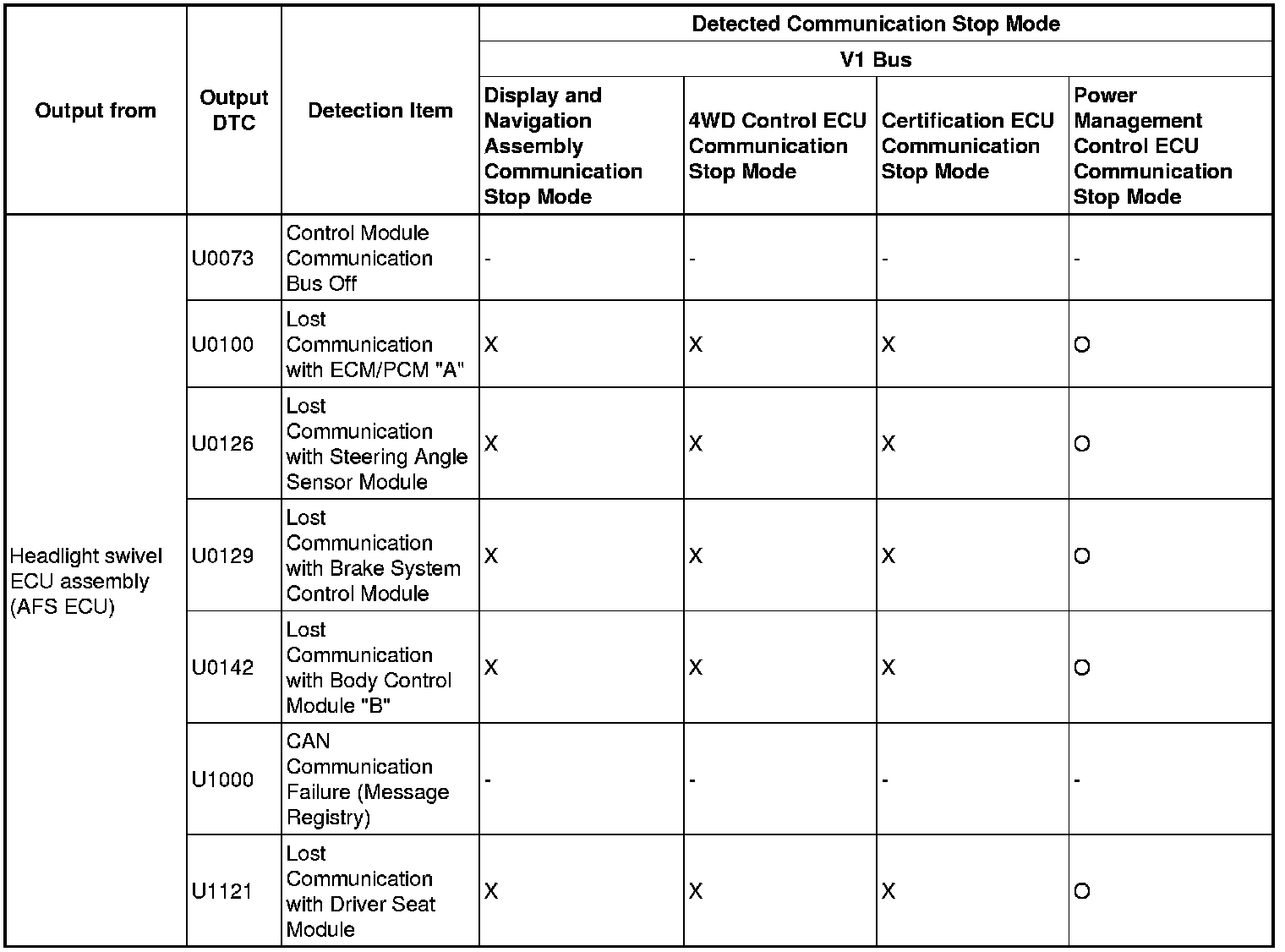

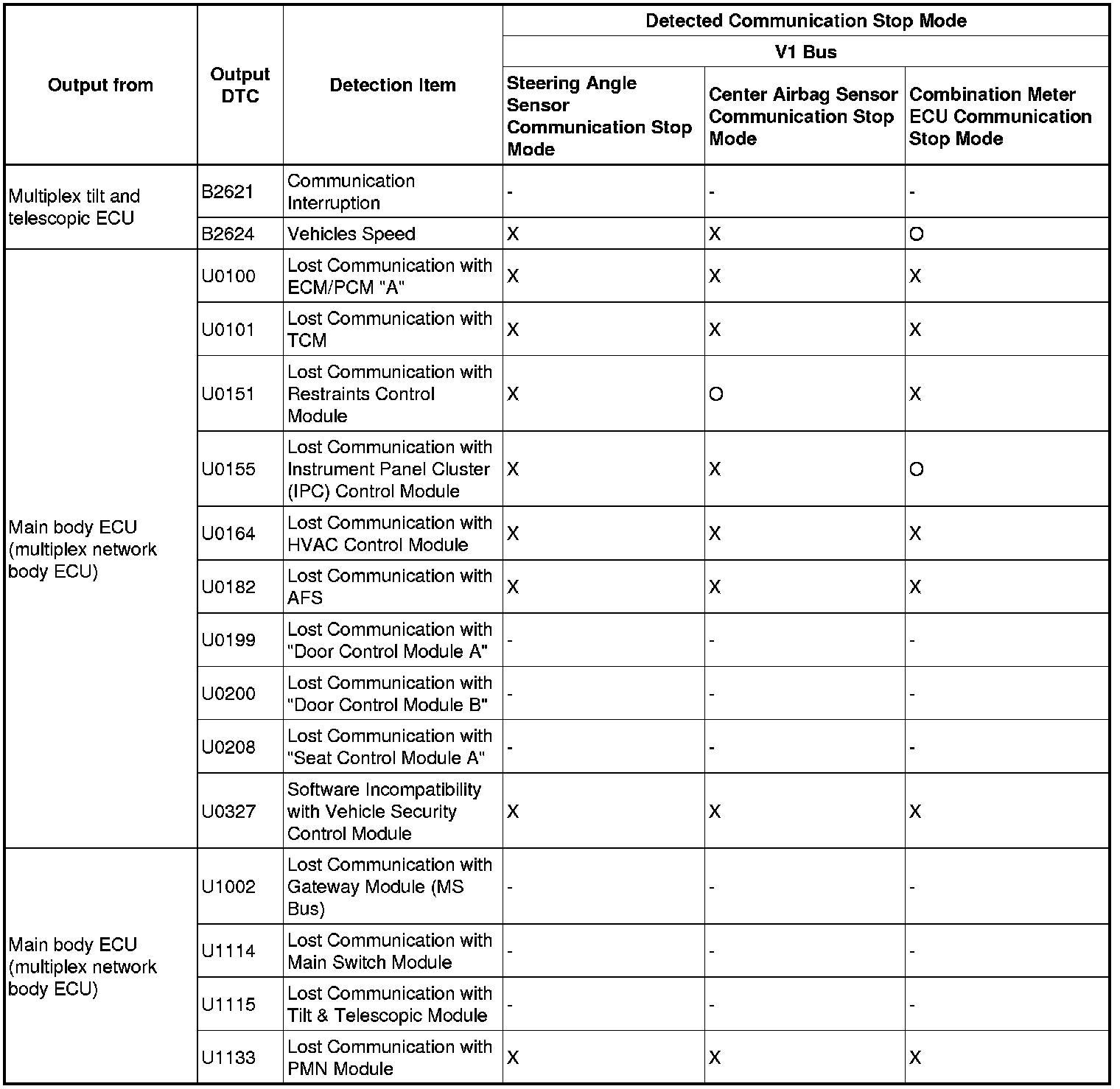

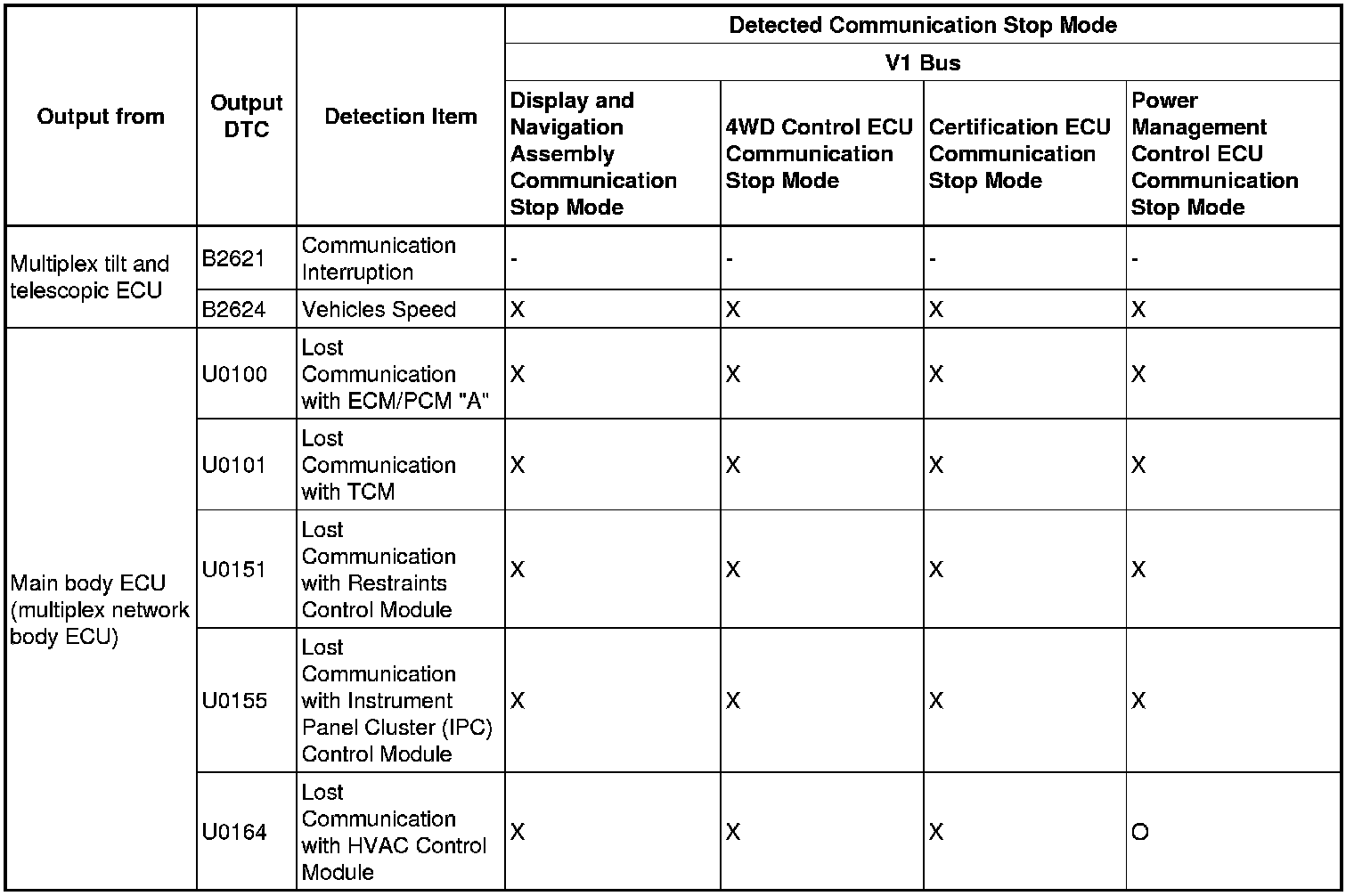

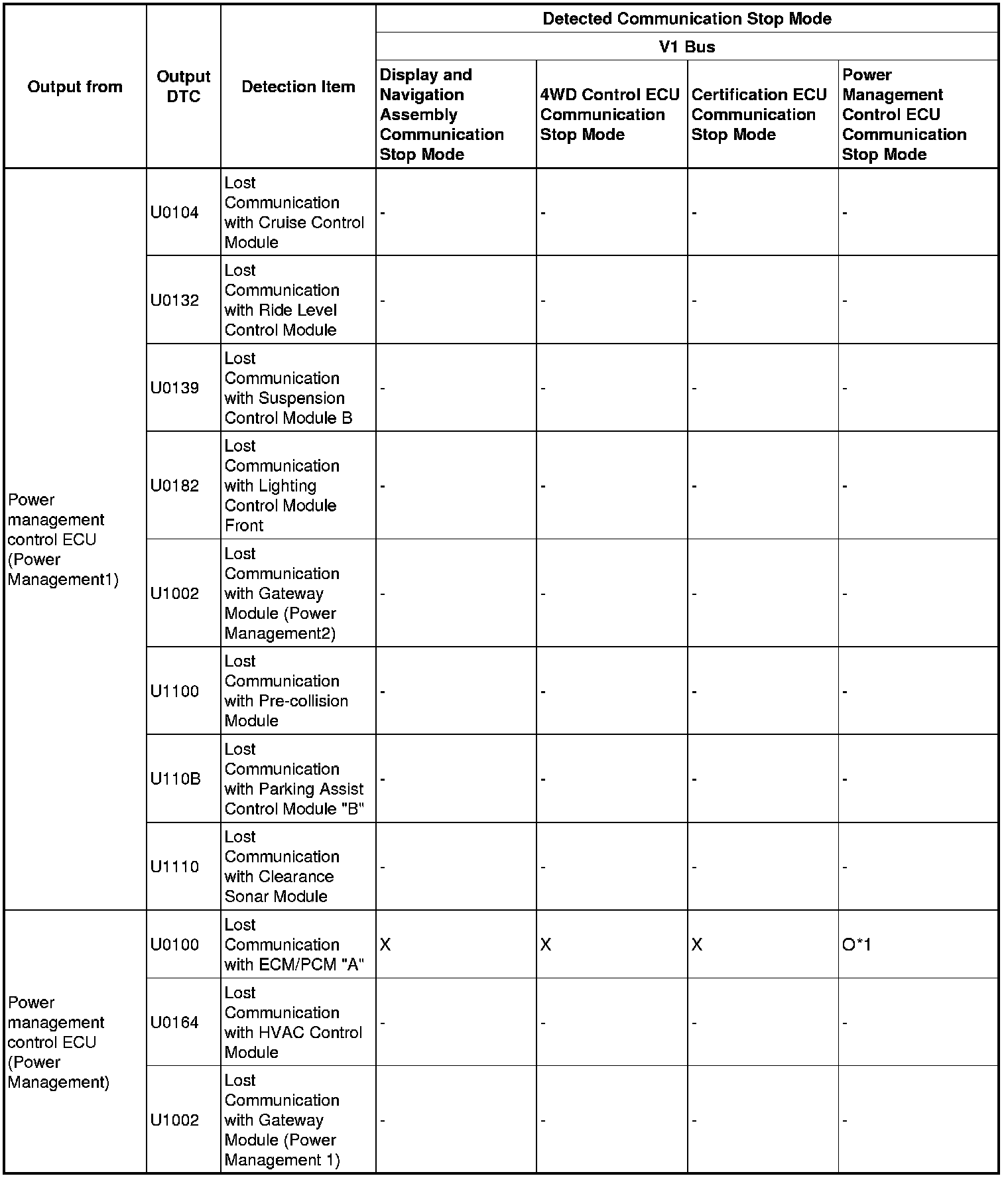

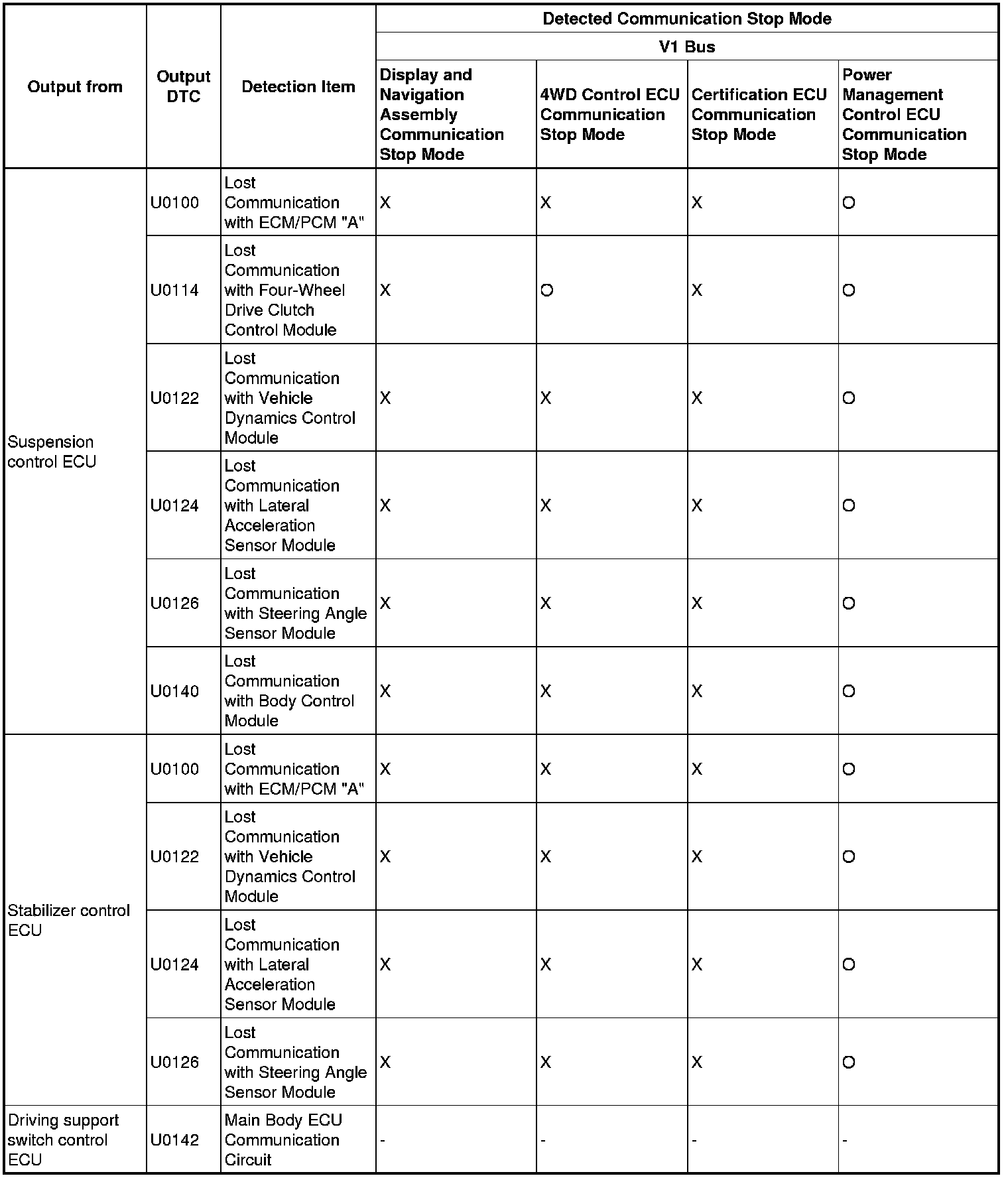

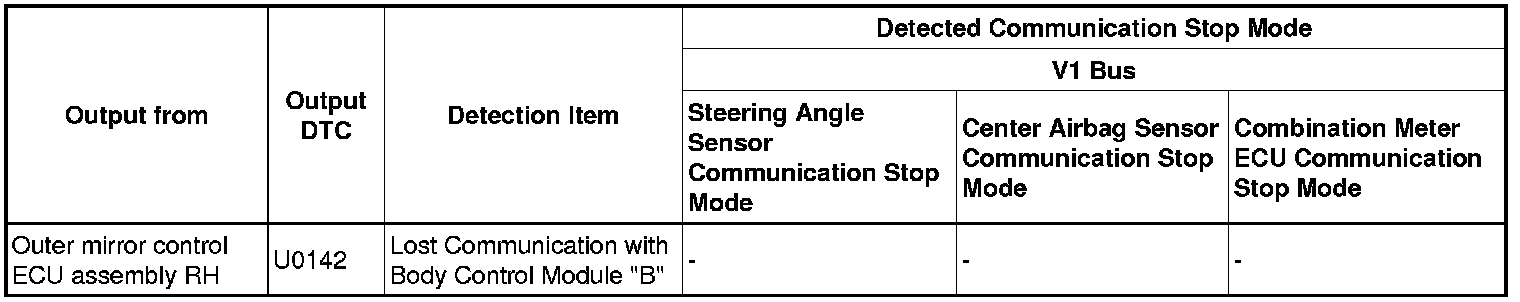

V1 Bus Vol. 1
V1 Bus Vol. 2
V1 Bus Vol. 3

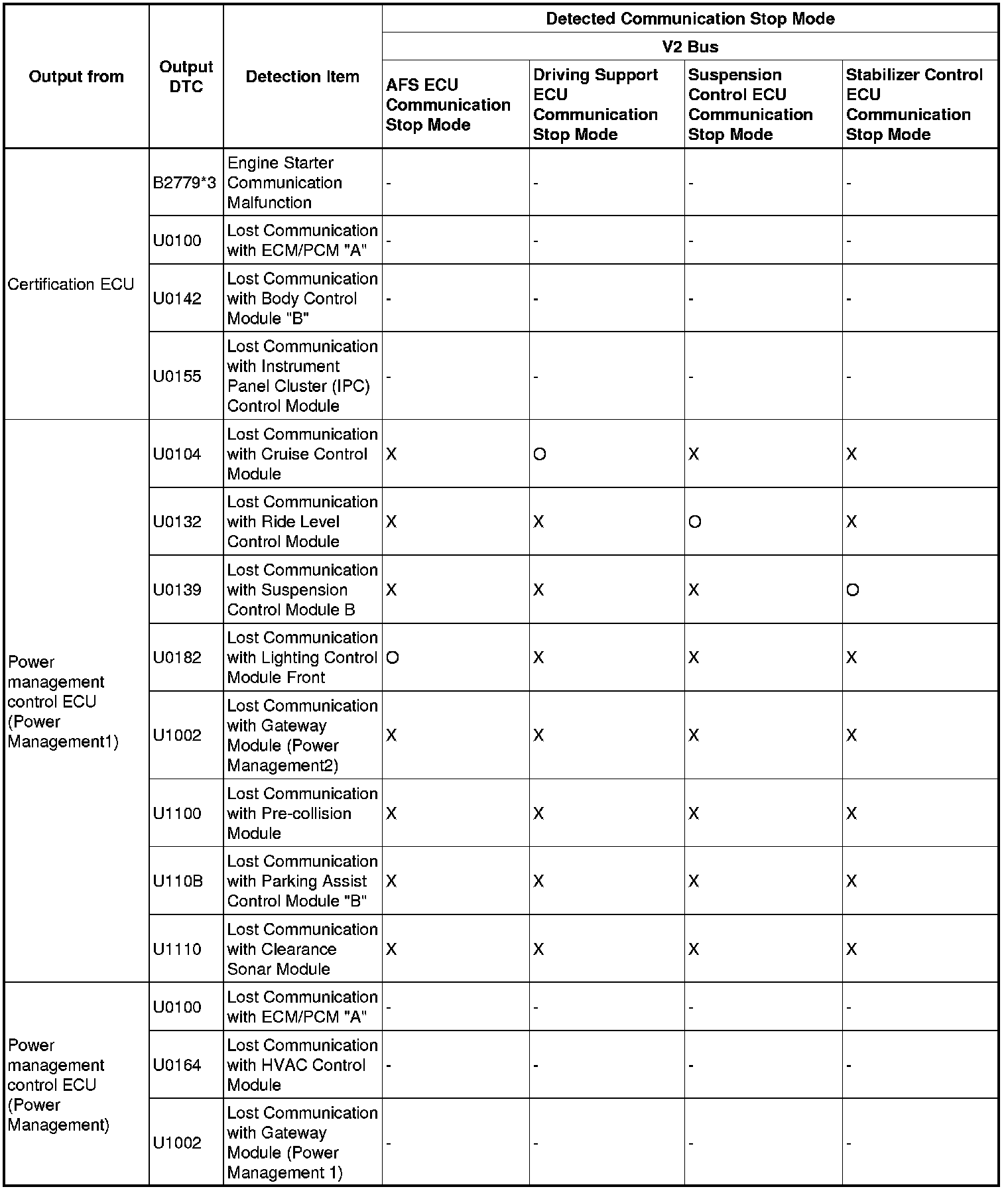

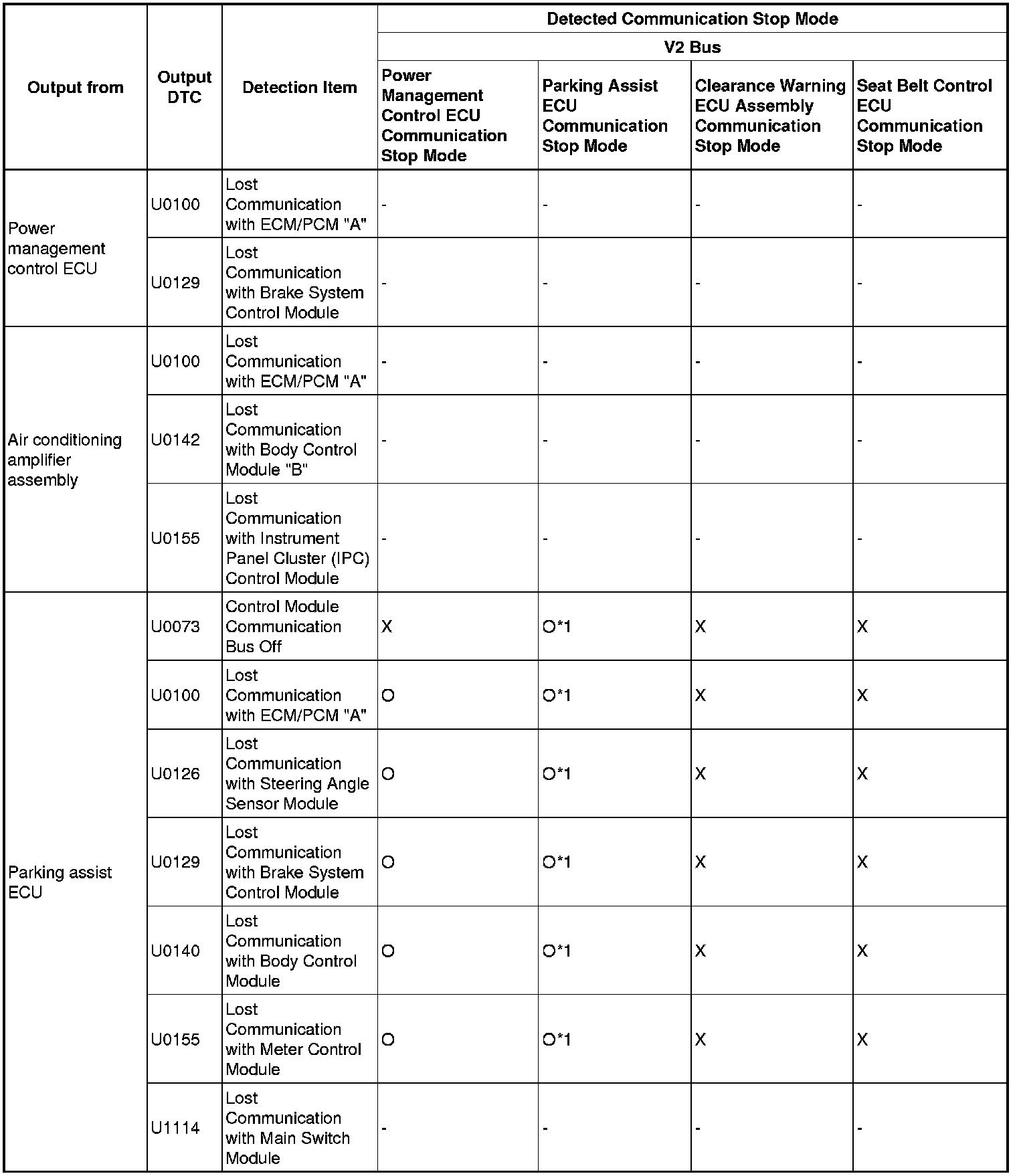

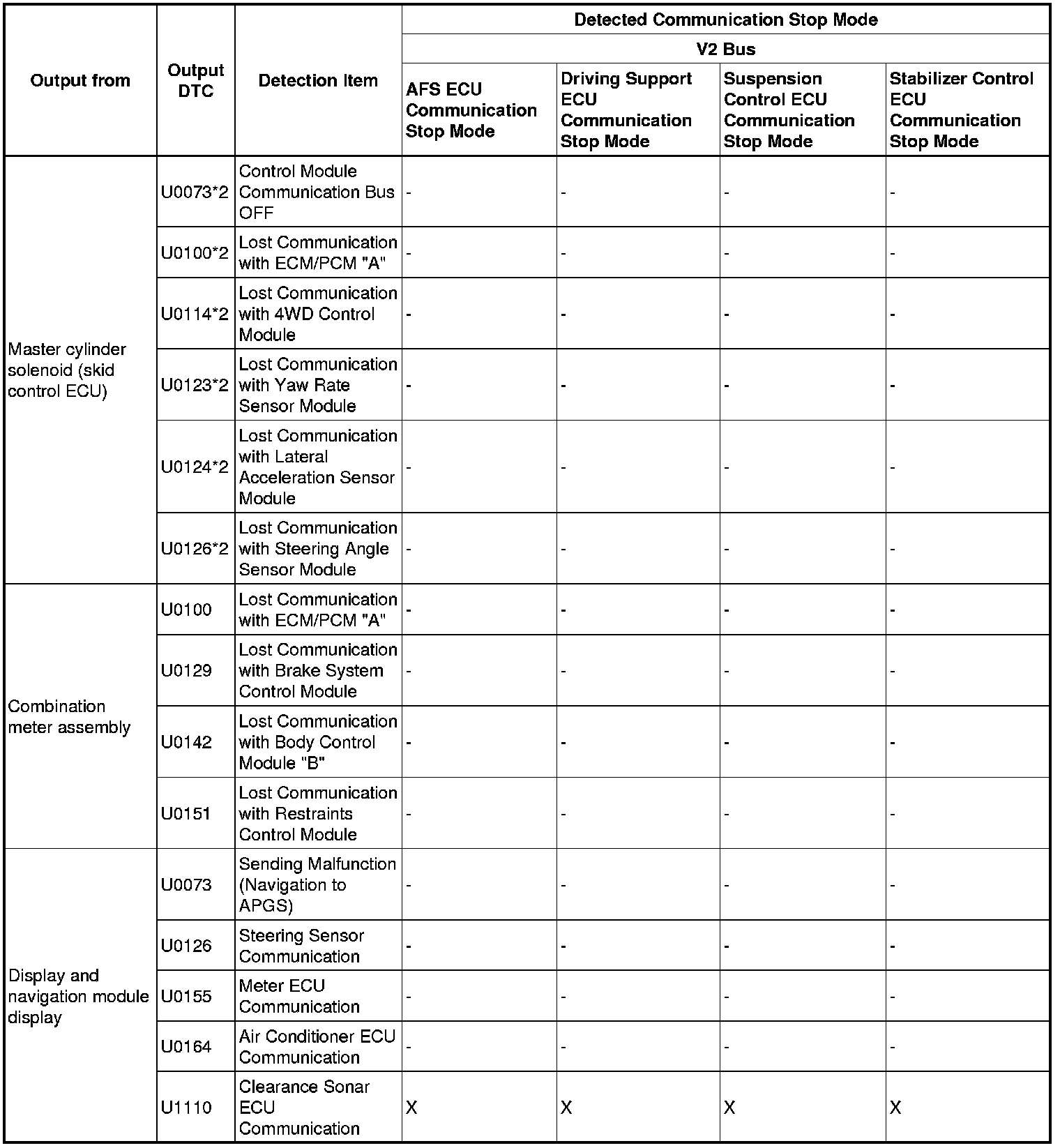

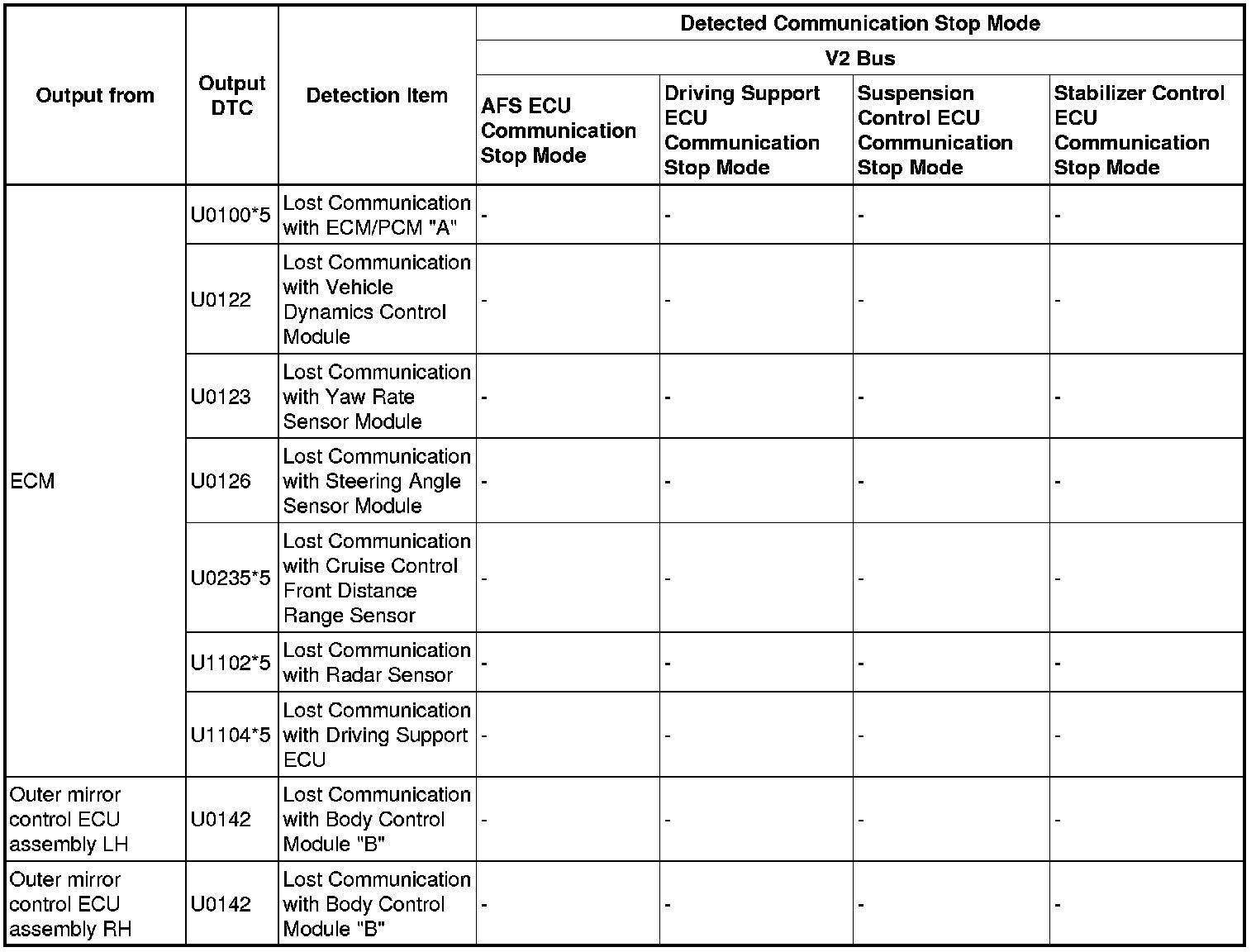

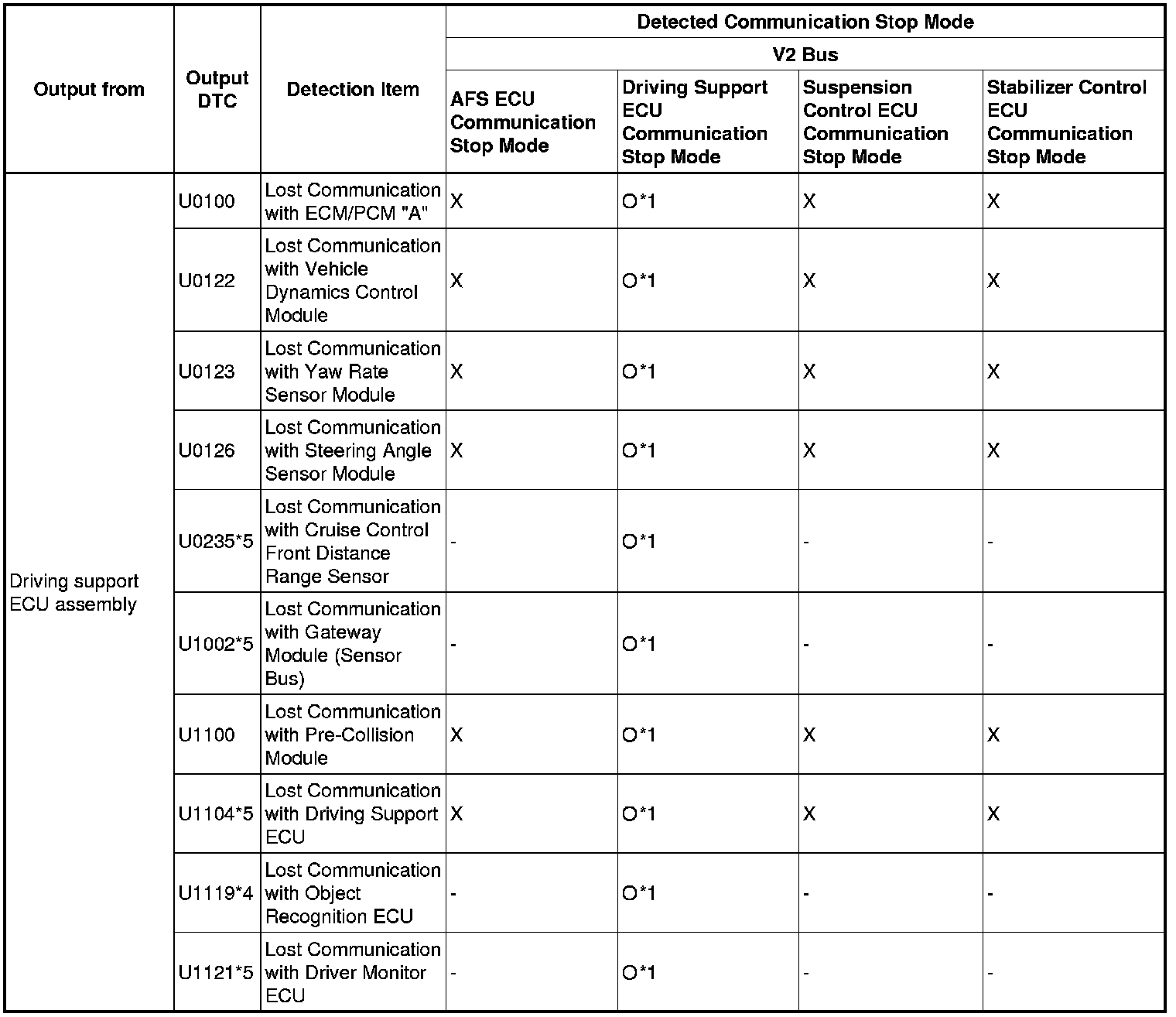

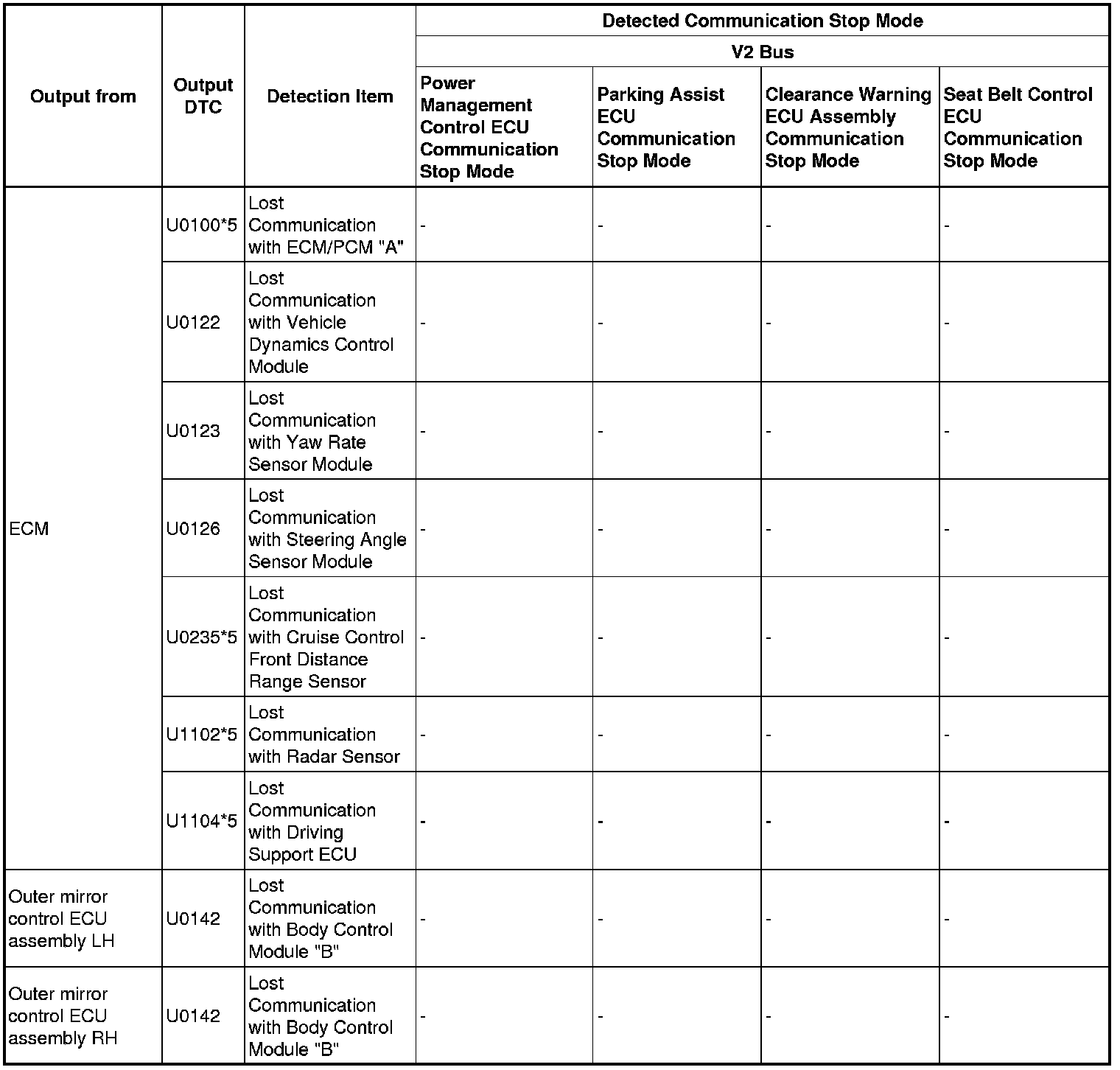

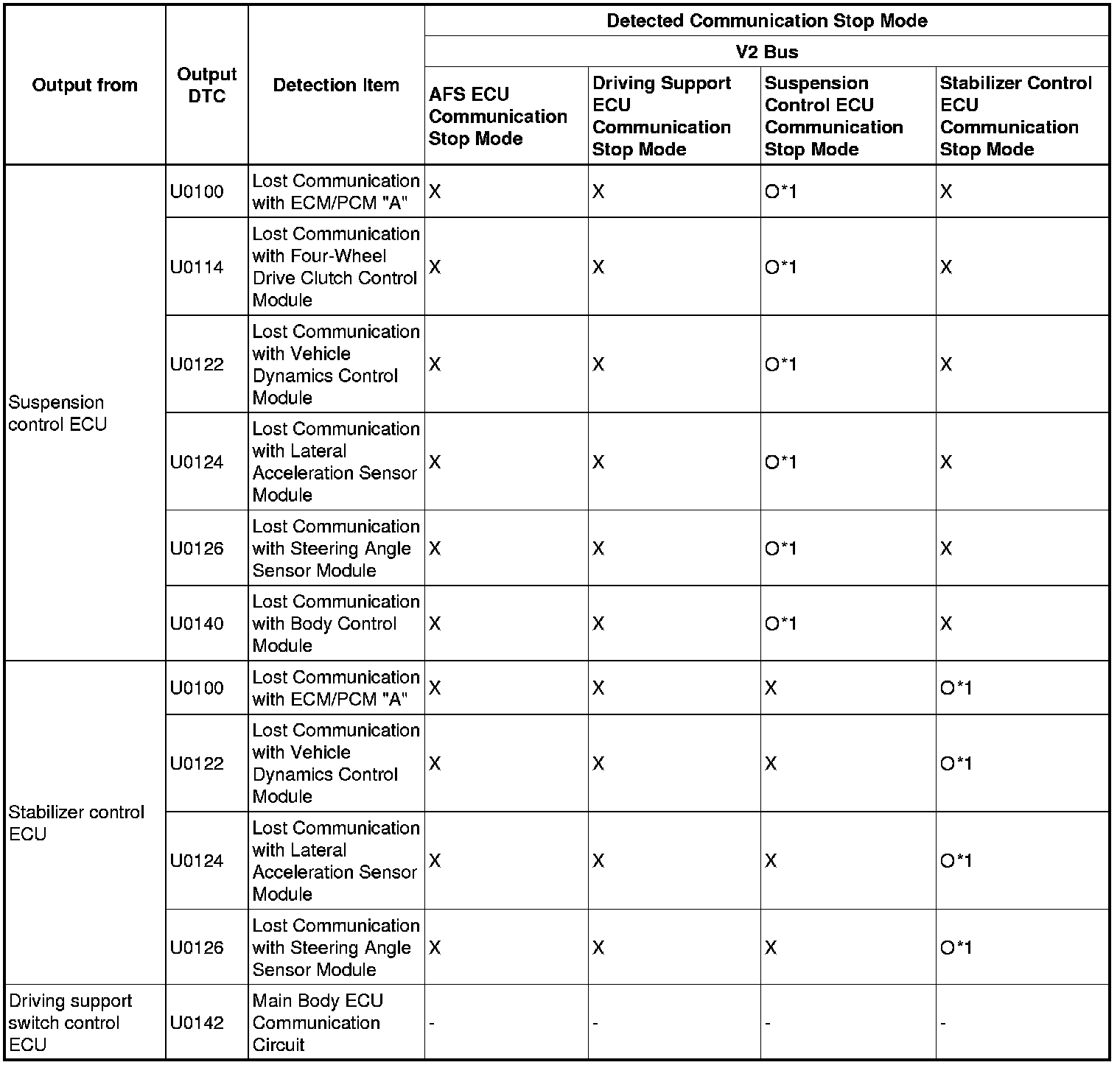

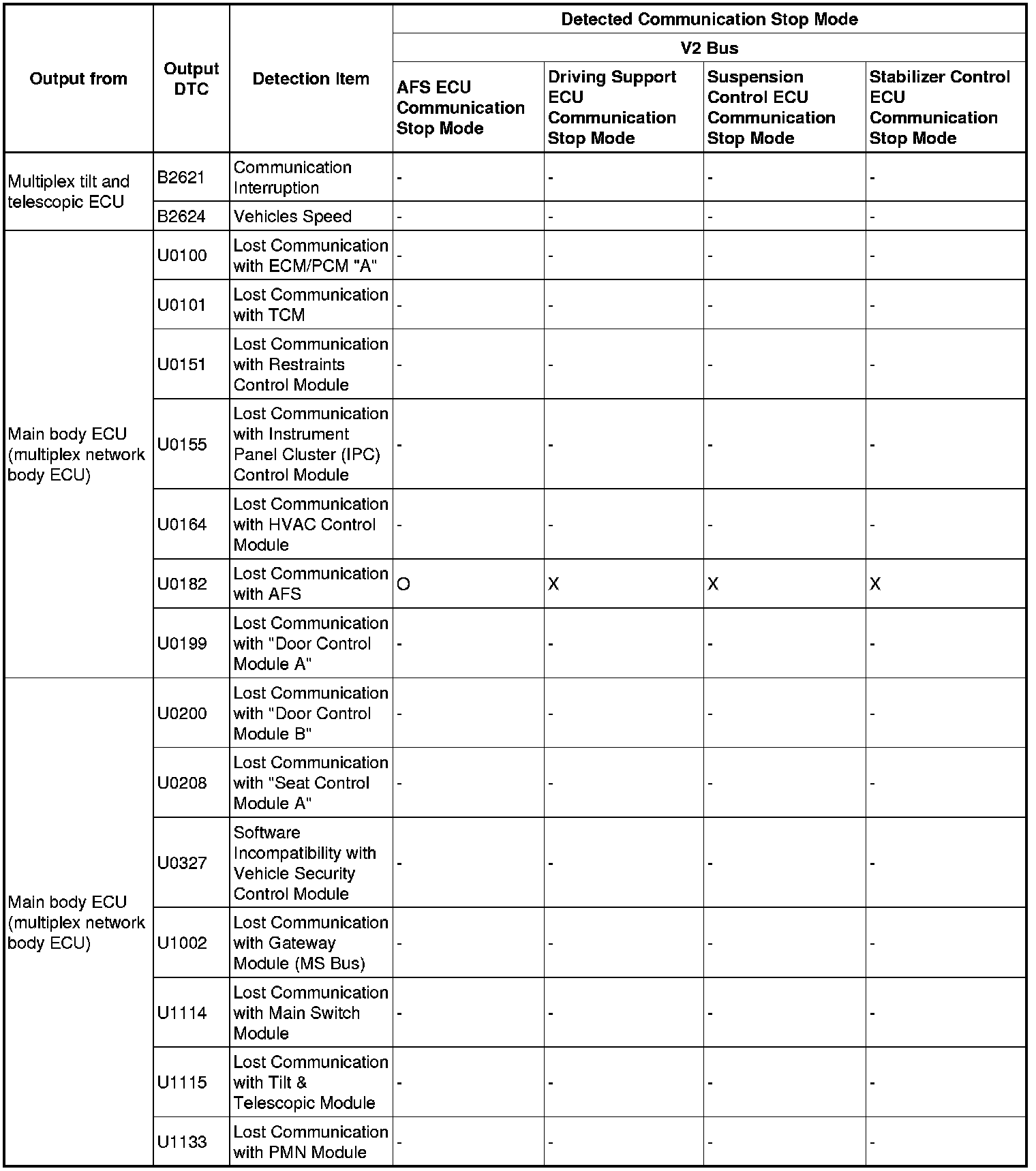

V2 Bus Vol. 1
V2 Bus Vol. 2

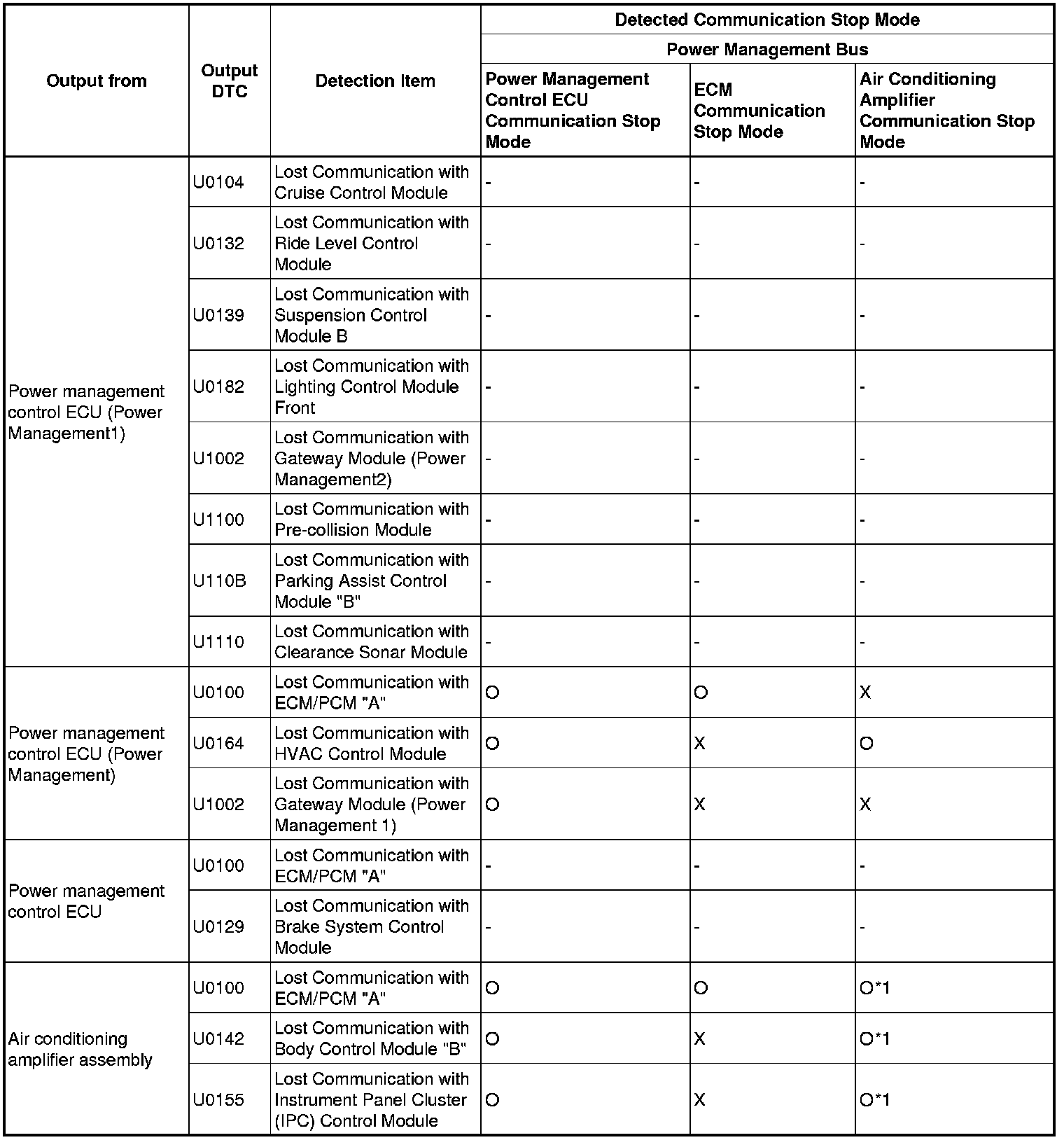

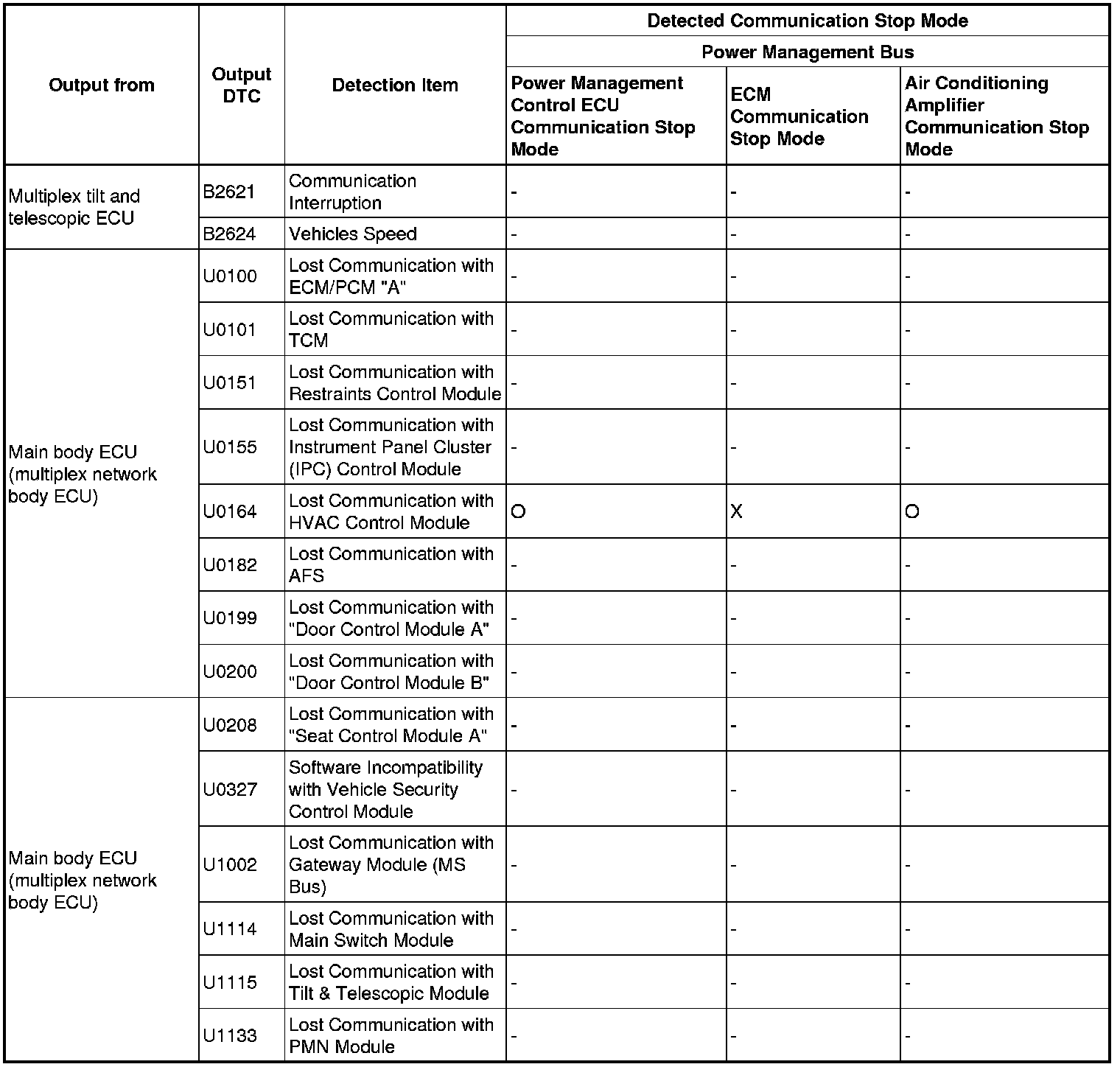

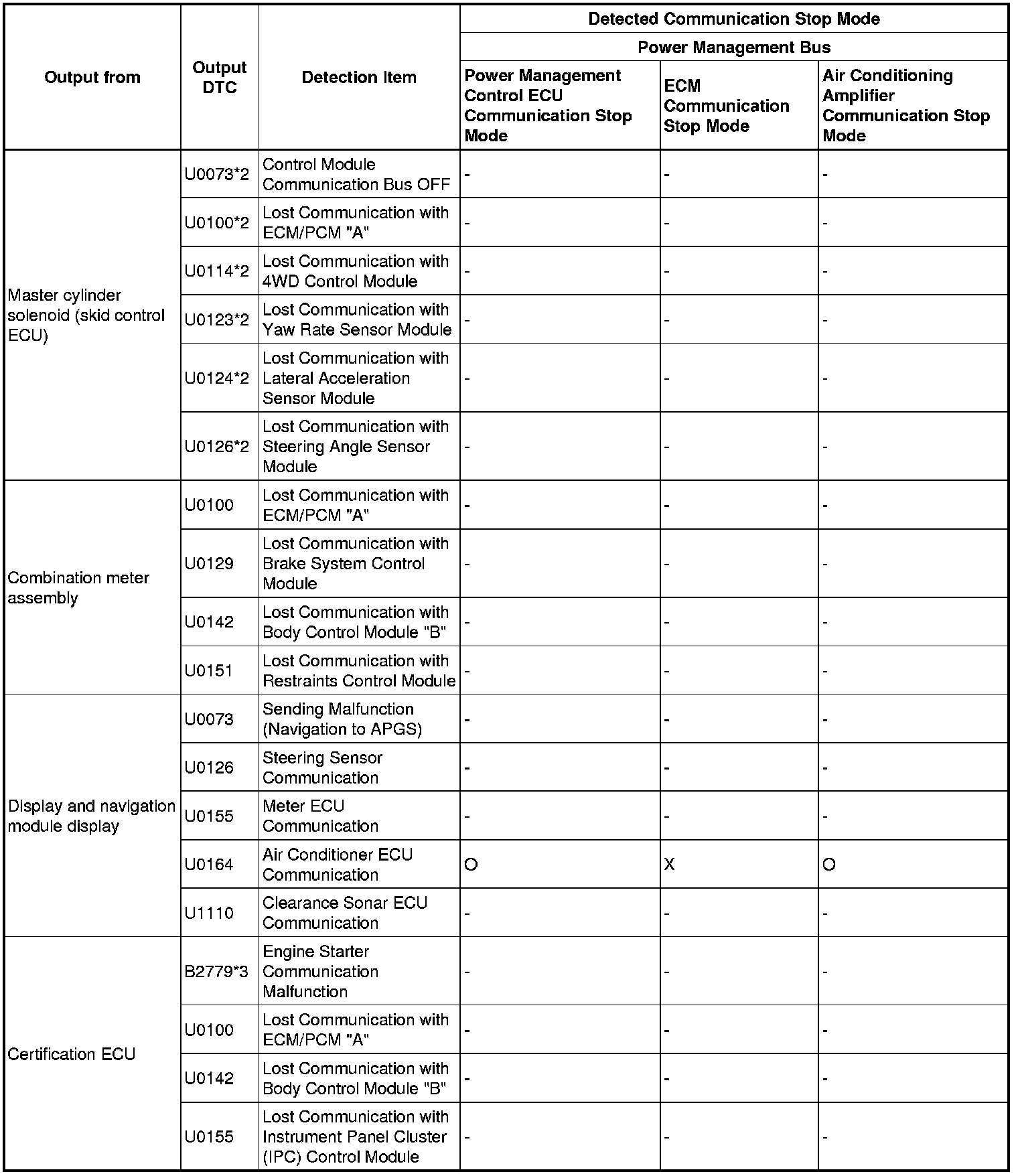

Power Management Bus

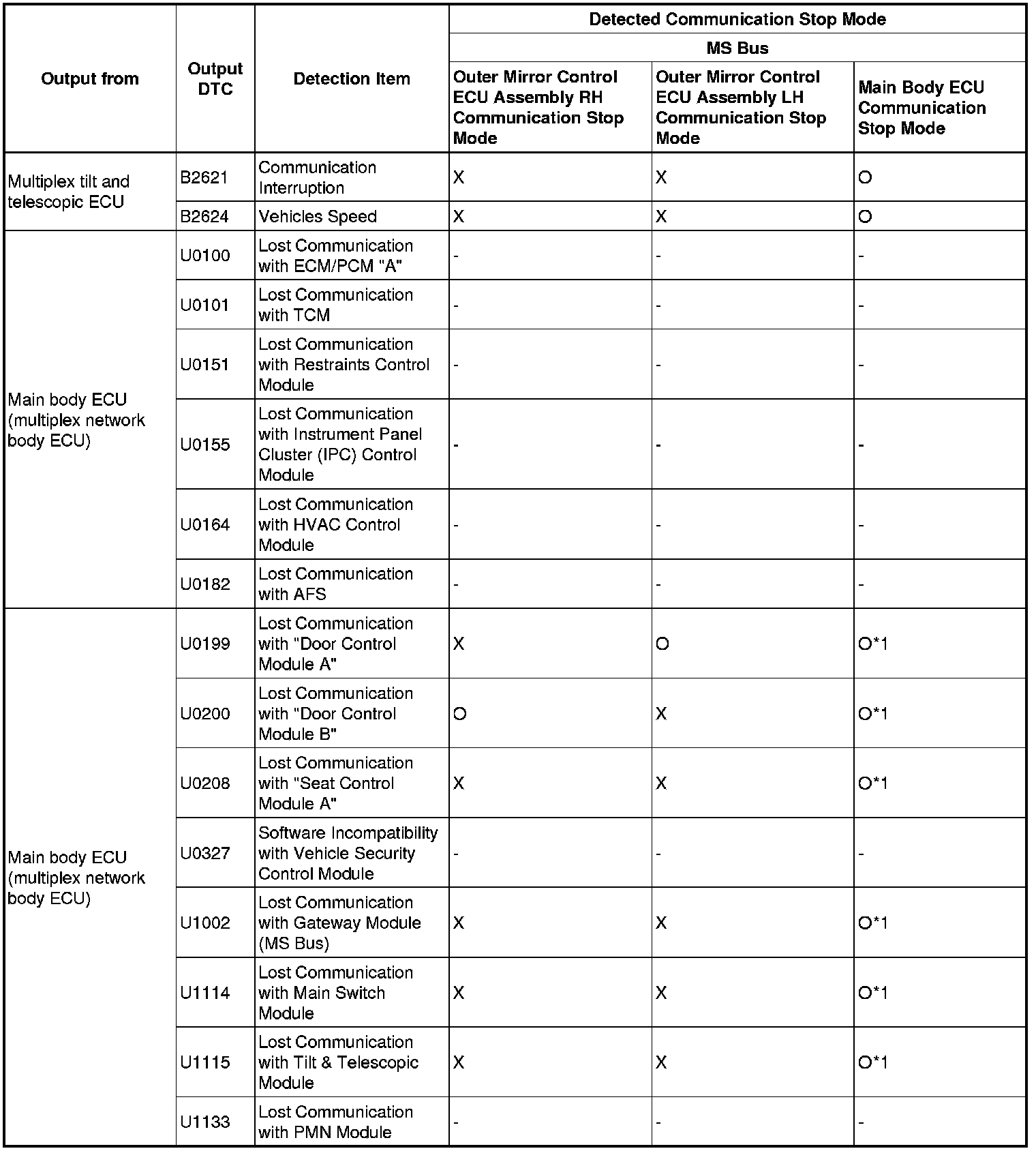

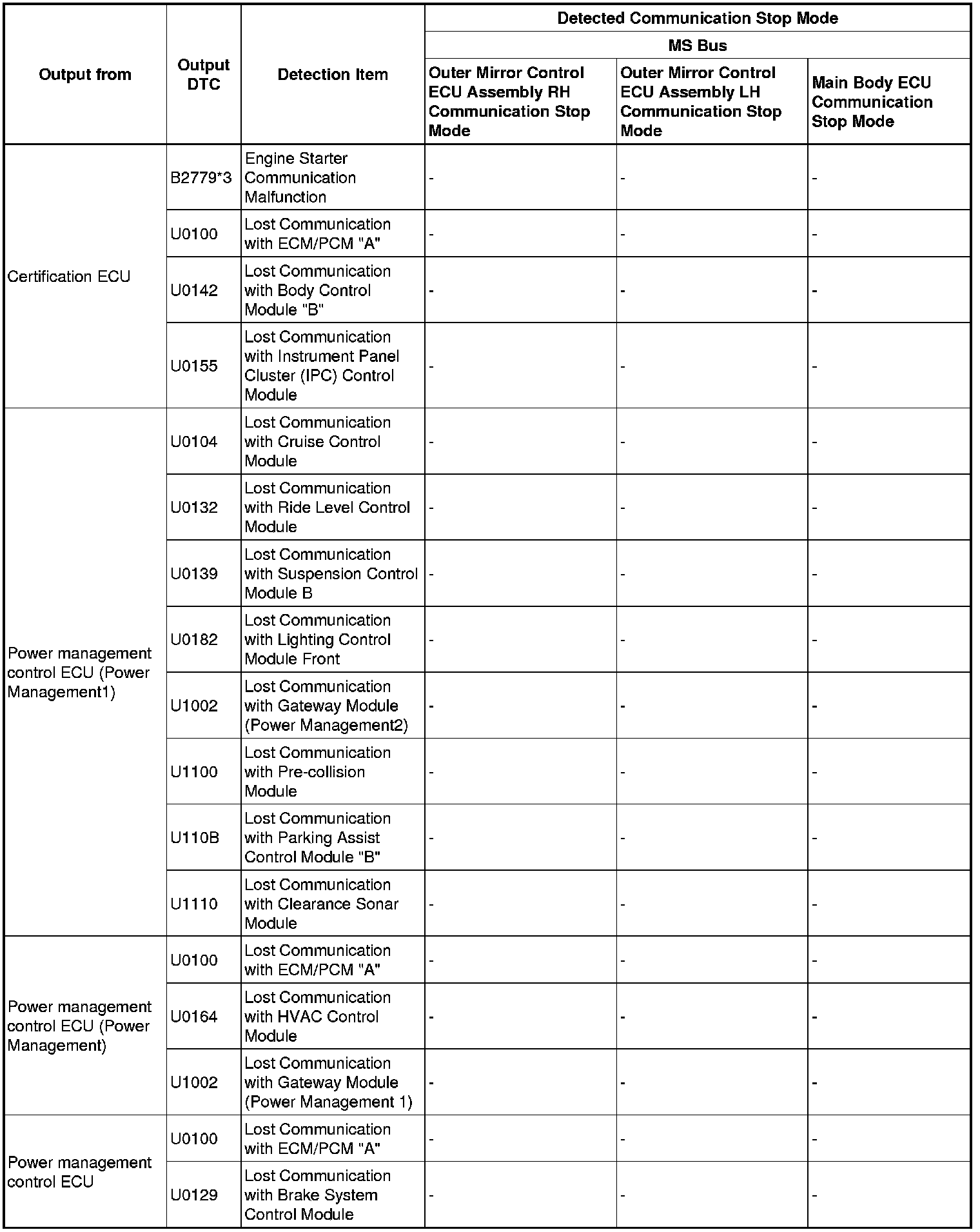

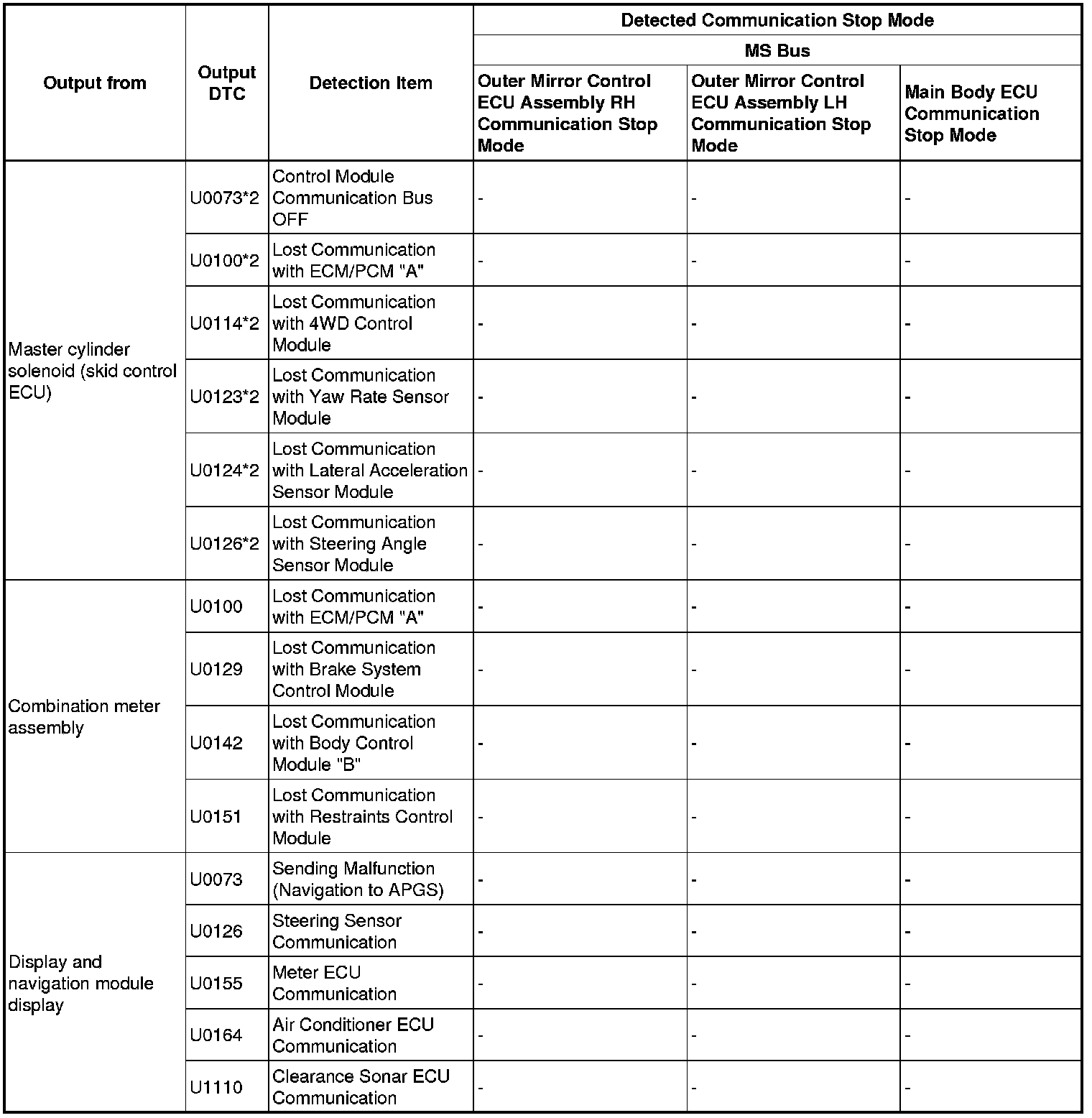

MS Bus Vol. 1
MS Bus Vol. 2
