1UR-FE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST - Continued

3. Throttle Control

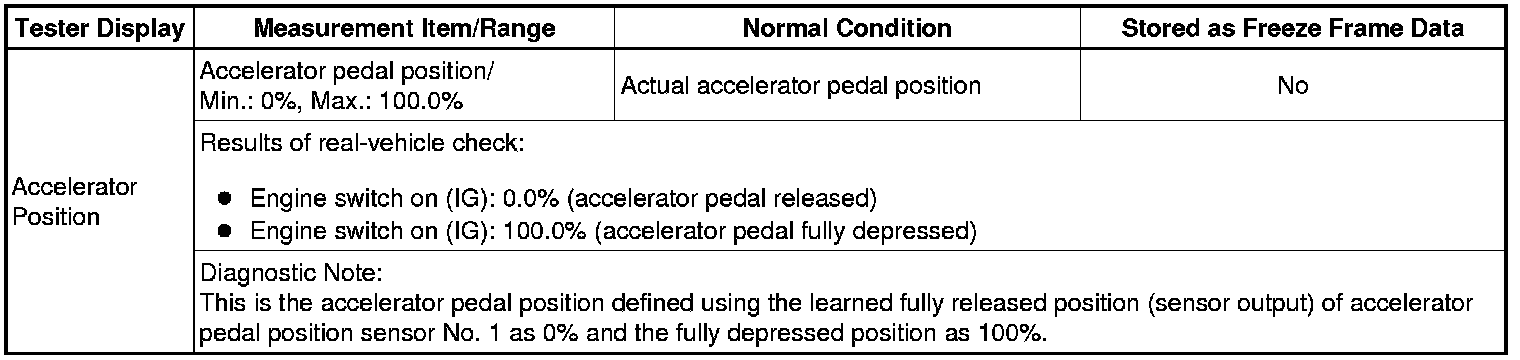

Accelerator Position

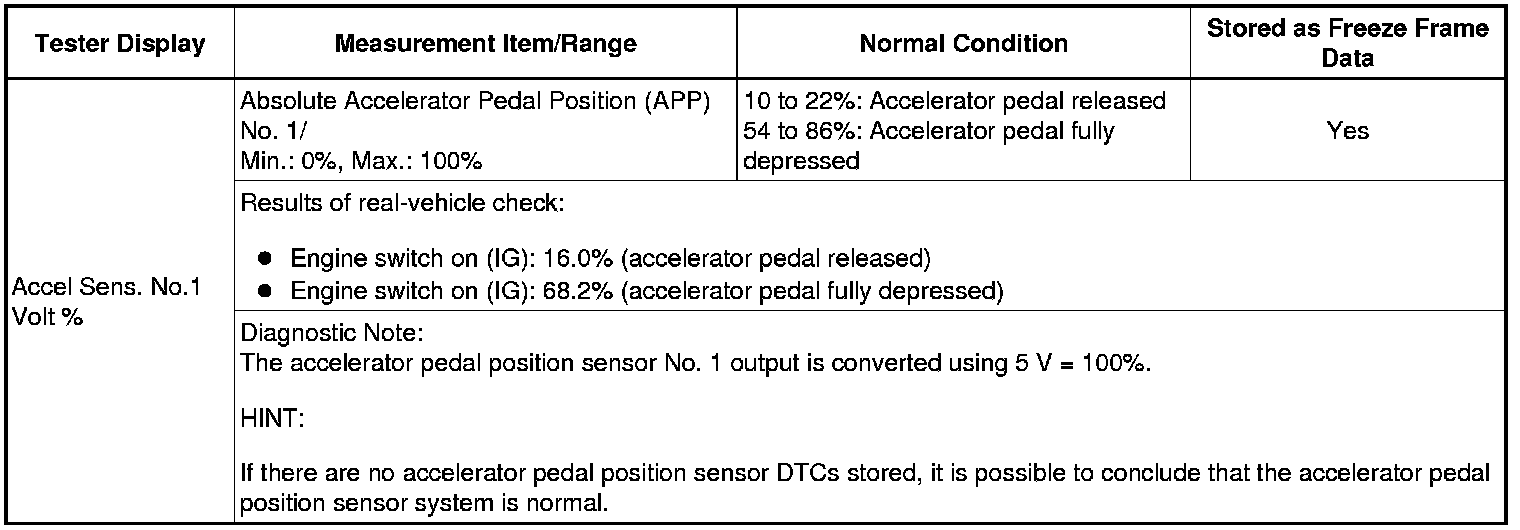

Accel Sens. No.1 Volt %

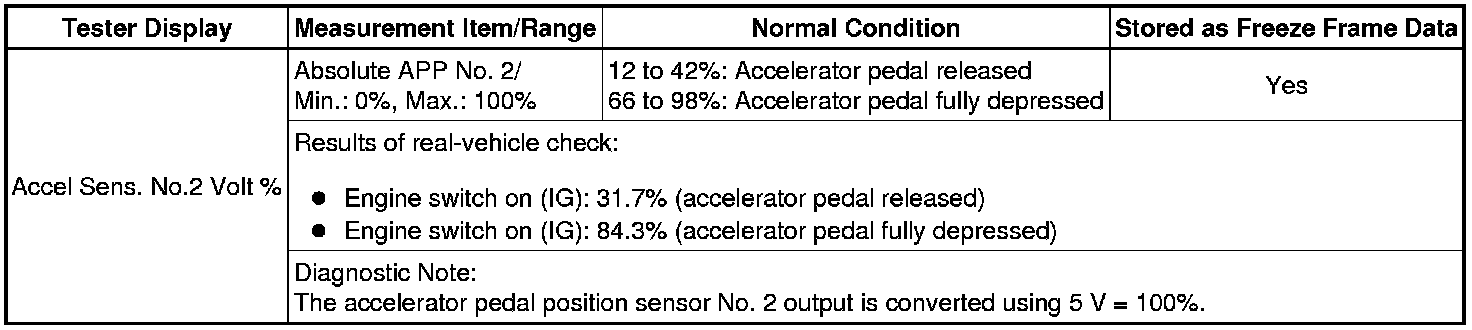

Accel Sens. No.2 Volt %

Accel Sensor Out No.1

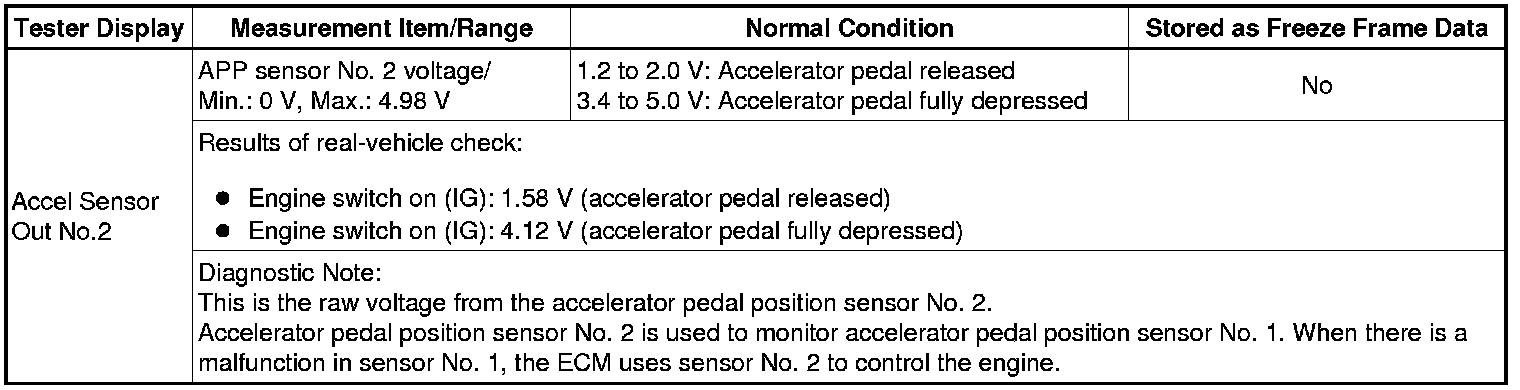

Accel Sensor Out No.2

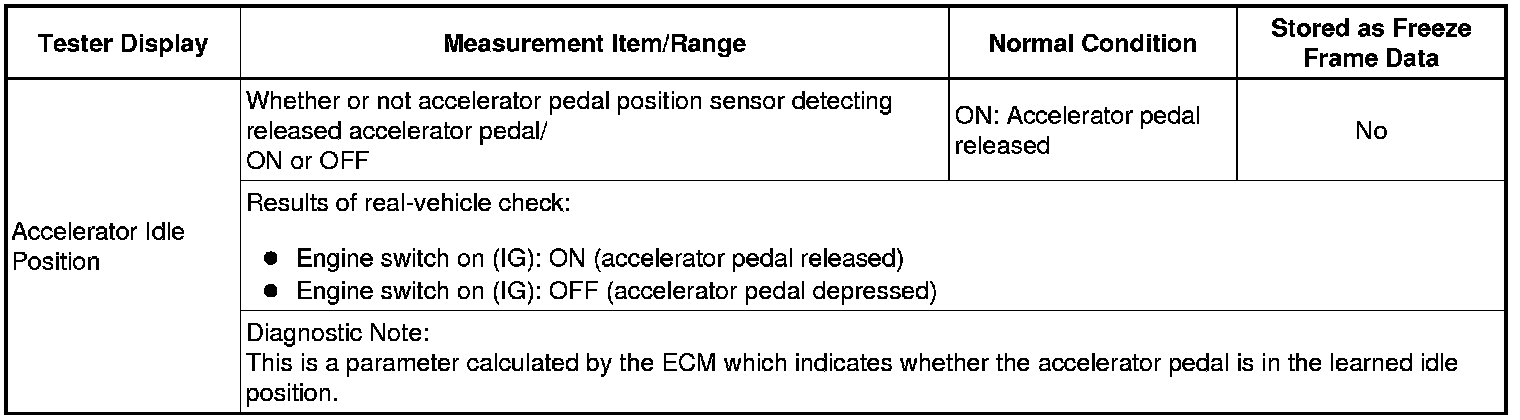

Accelerator Idle Position

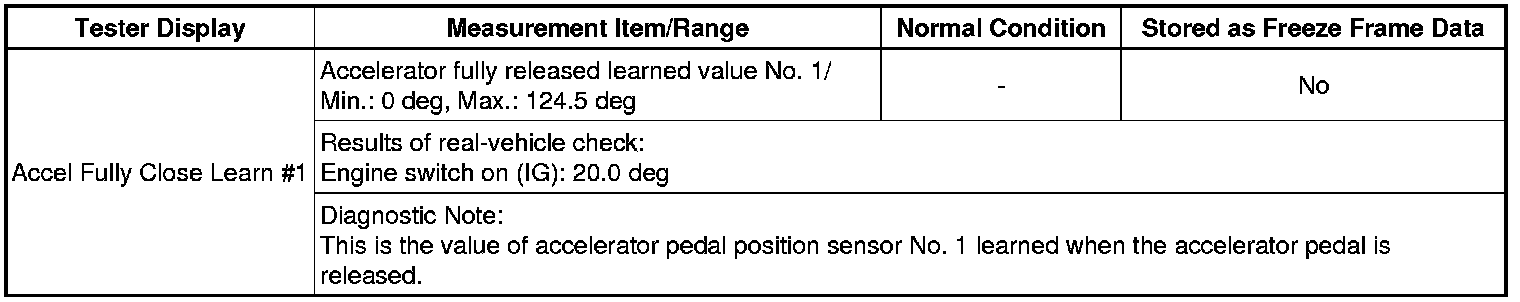

Accel Fully Close Learn #1

Accel Fully Close Learn #2

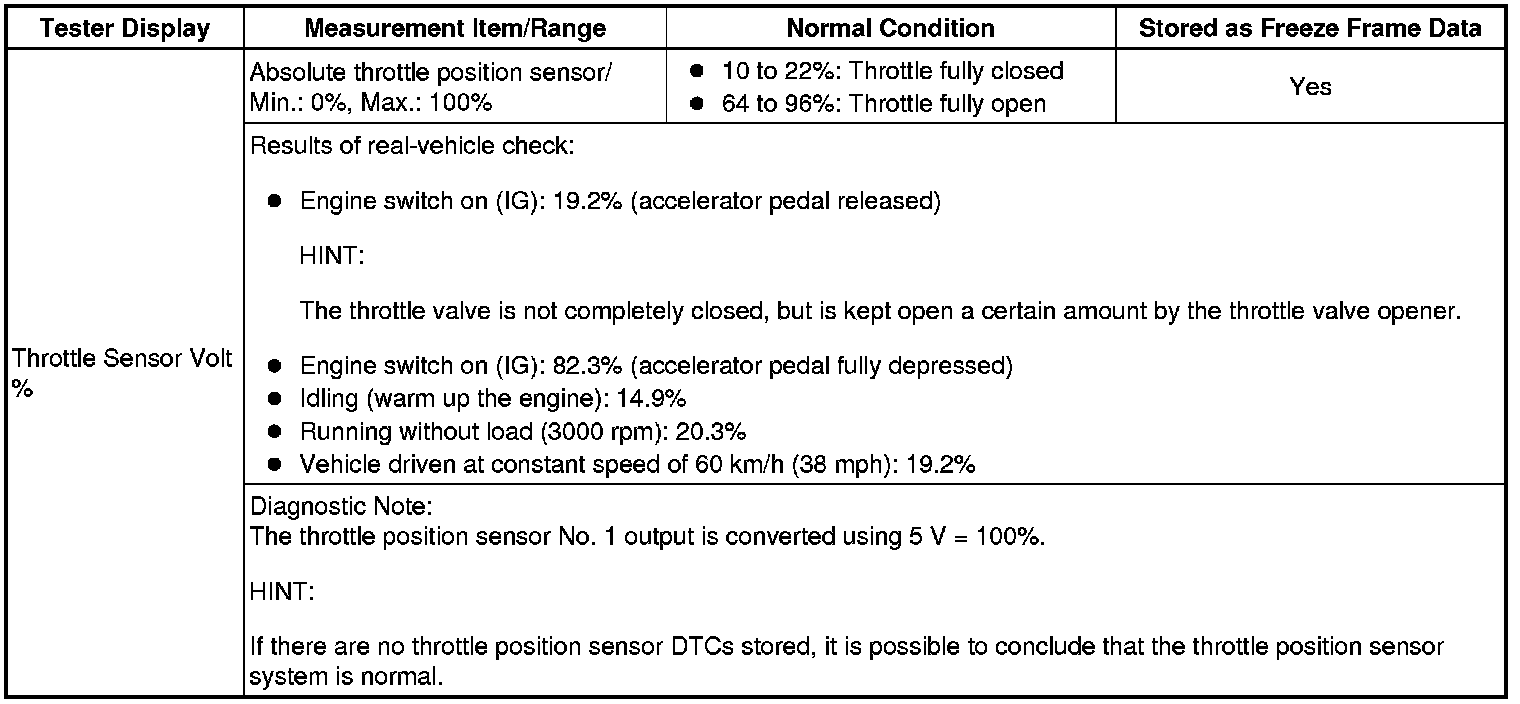

Throttle Sensor Volt %

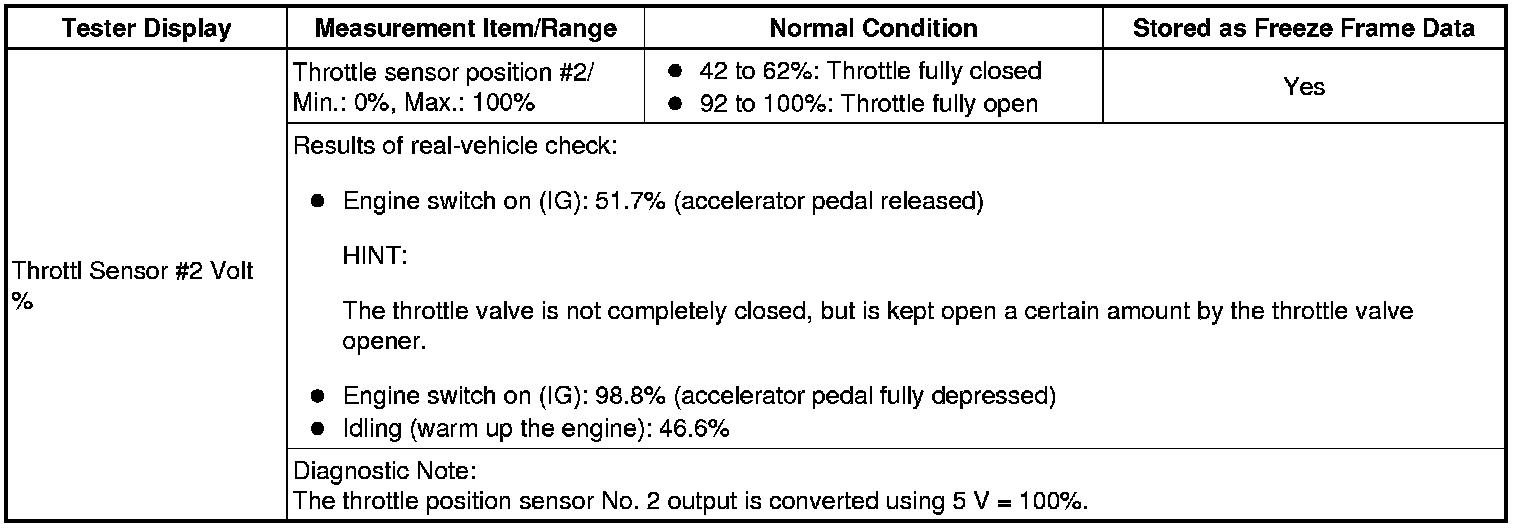

Throttle Sensor #2 Volt %

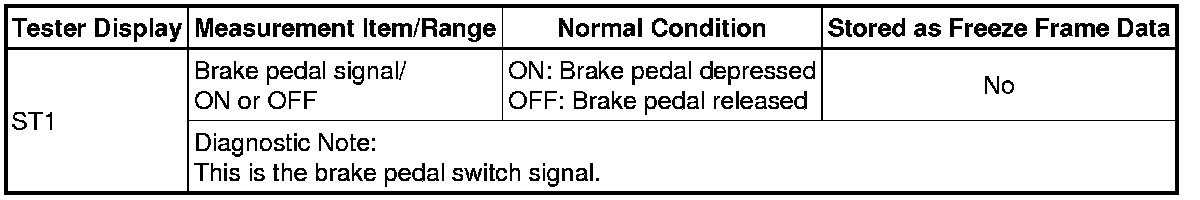

ST1

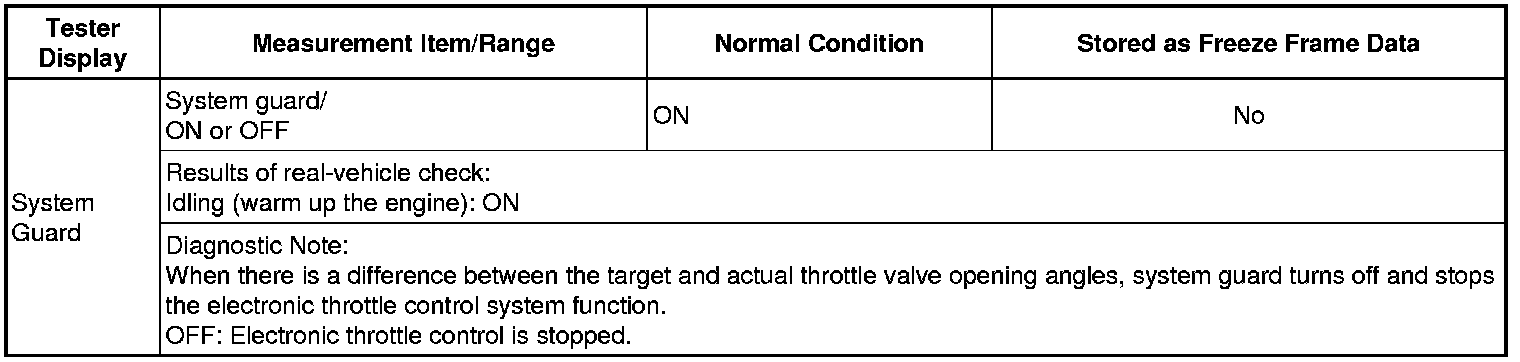

System Guard

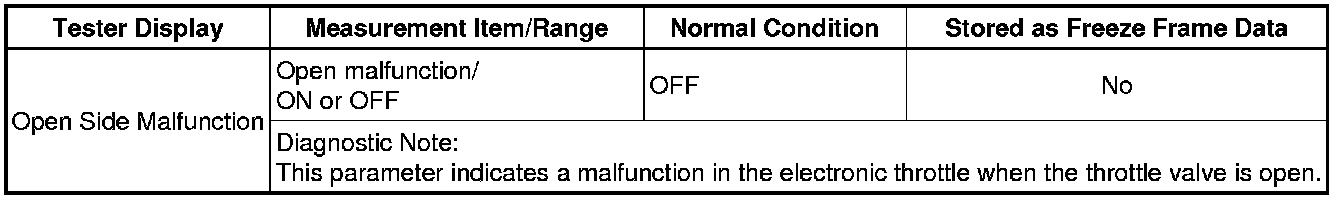

Open Side Malfunction

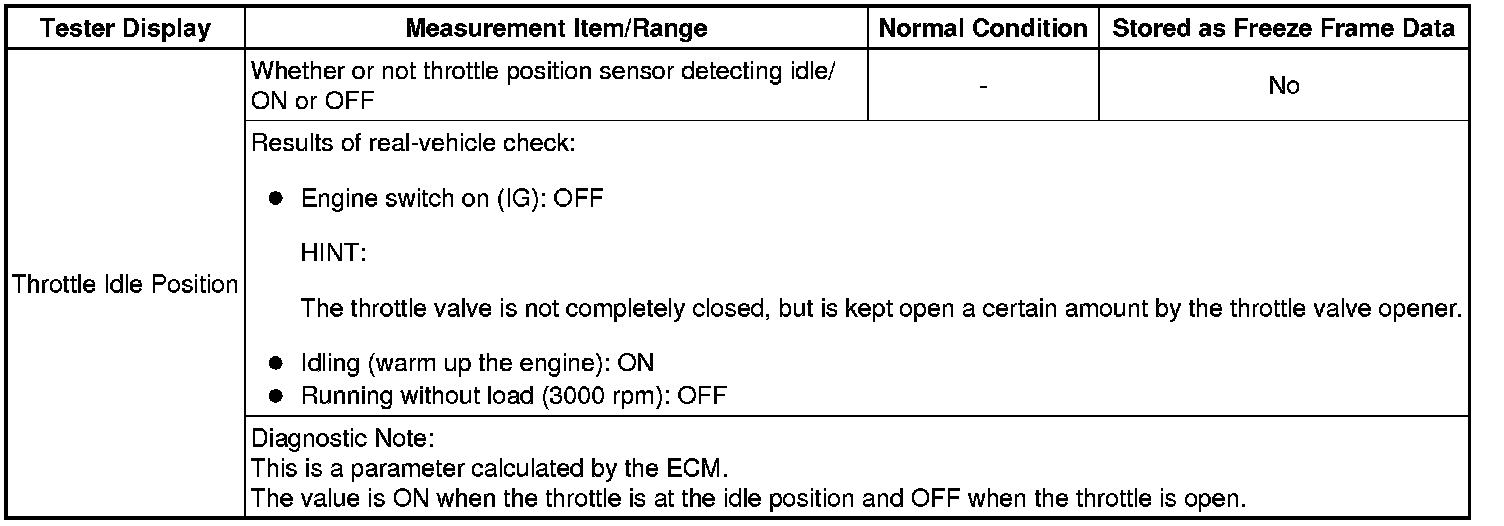

Throttle Idle Position

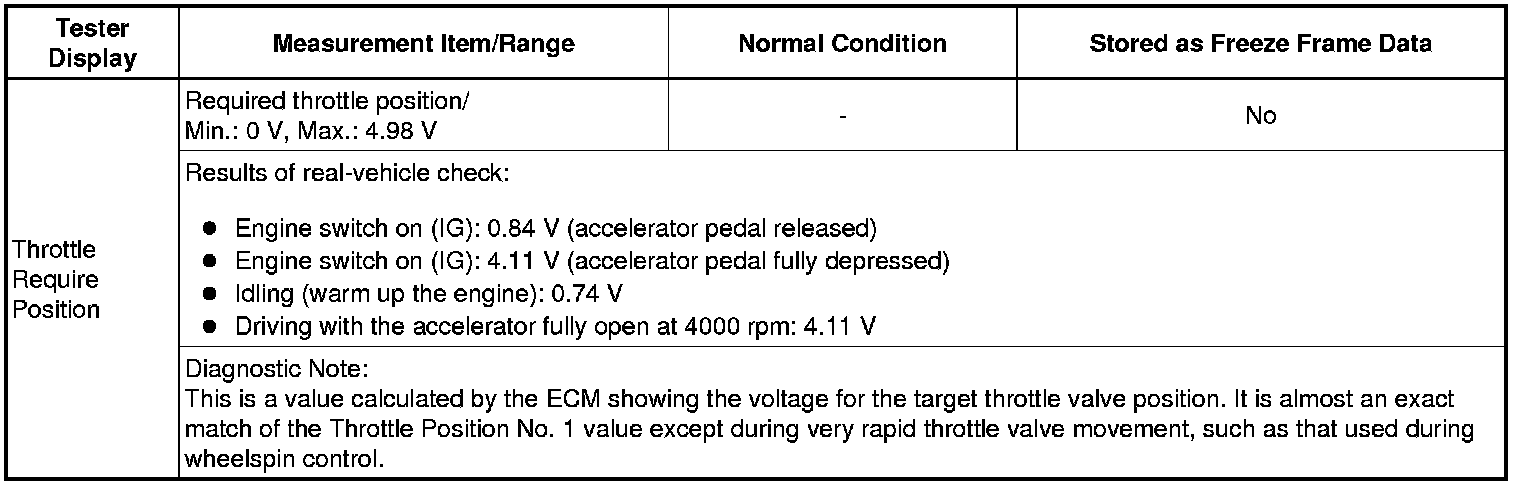

Throttle Require Position

Throttle Sensor Position

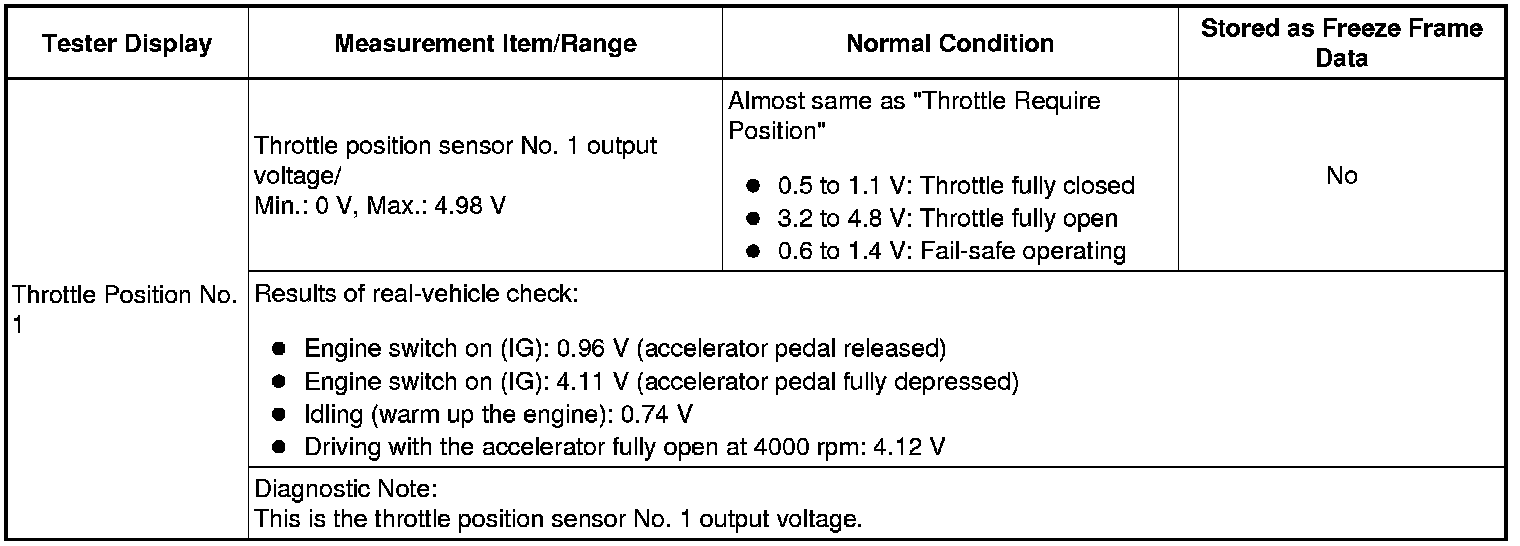

Throttle Position No. 1

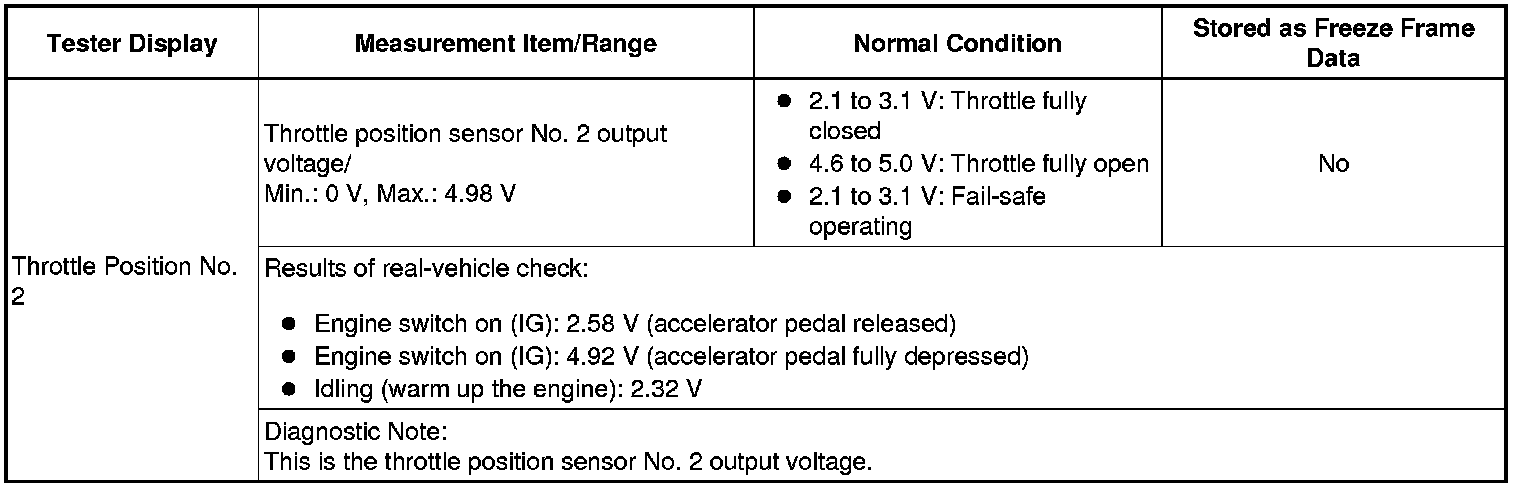

Throttle Position No. 2

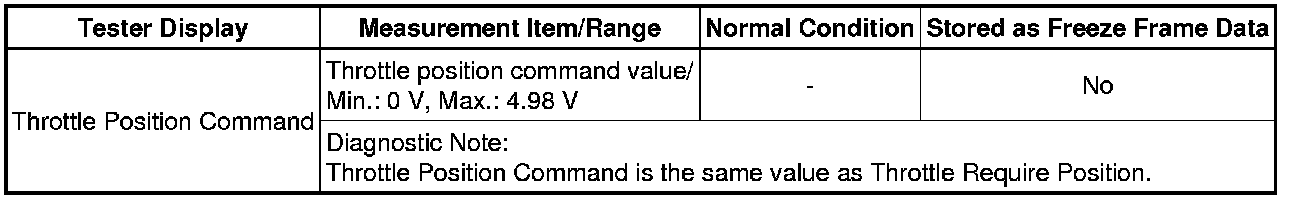

Throttle Position Command

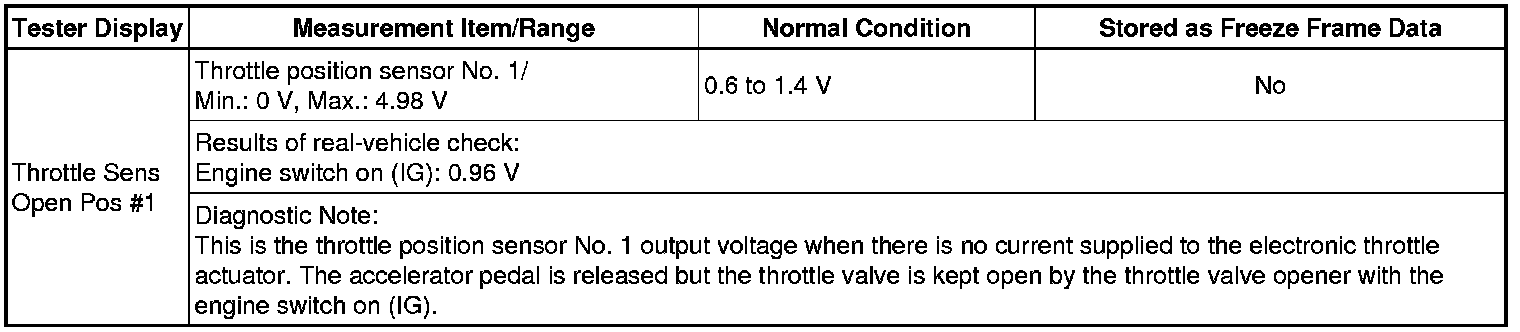

Throttle Sens Open Pos #1

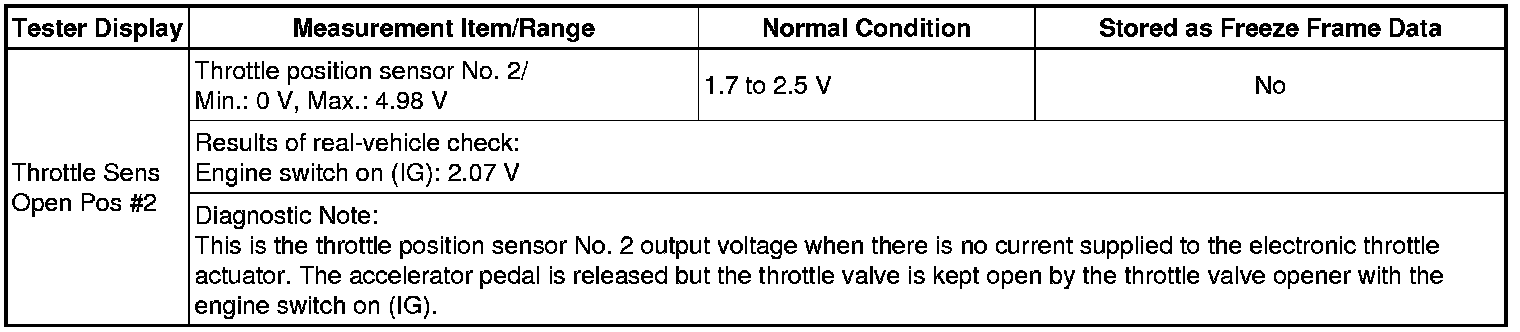

Throttle Sens Open Pos #2

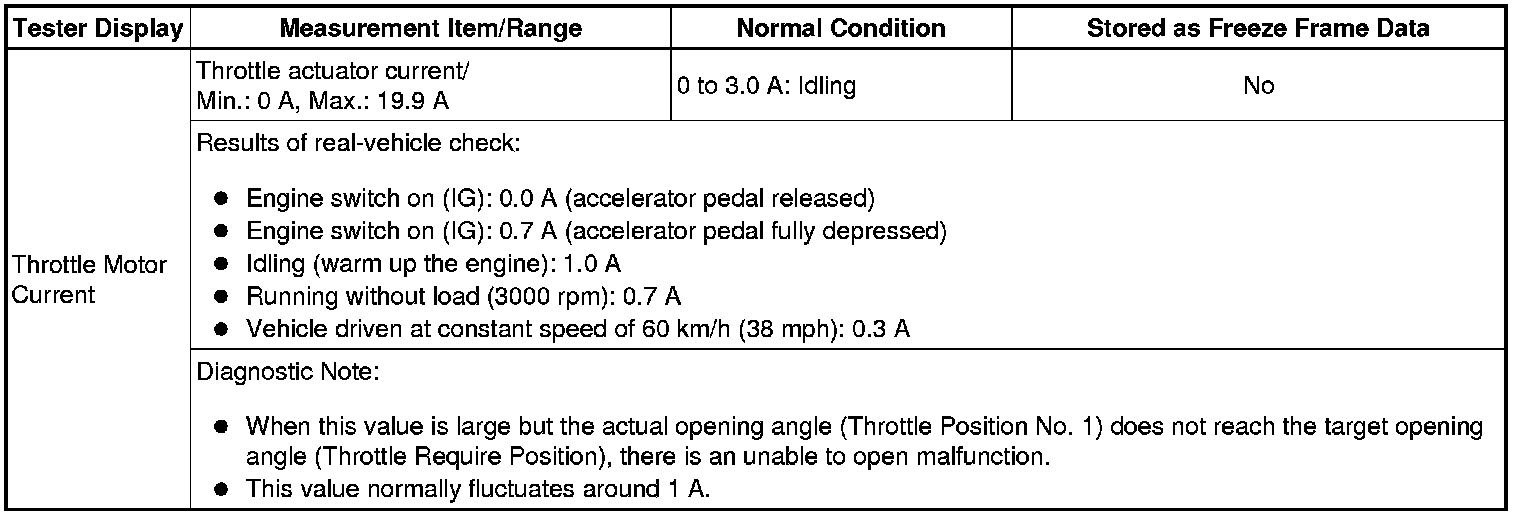

Throttle Motor Current

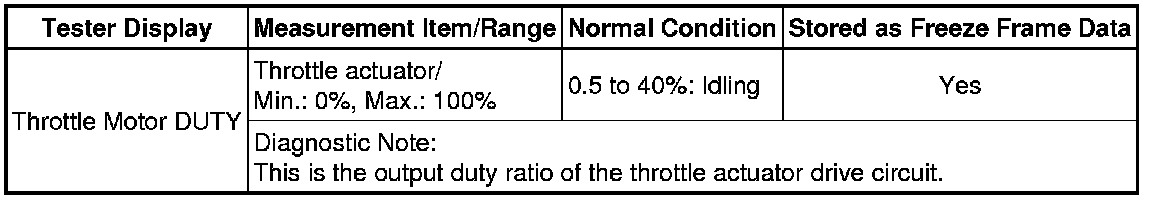

Throttle Motor DUTY

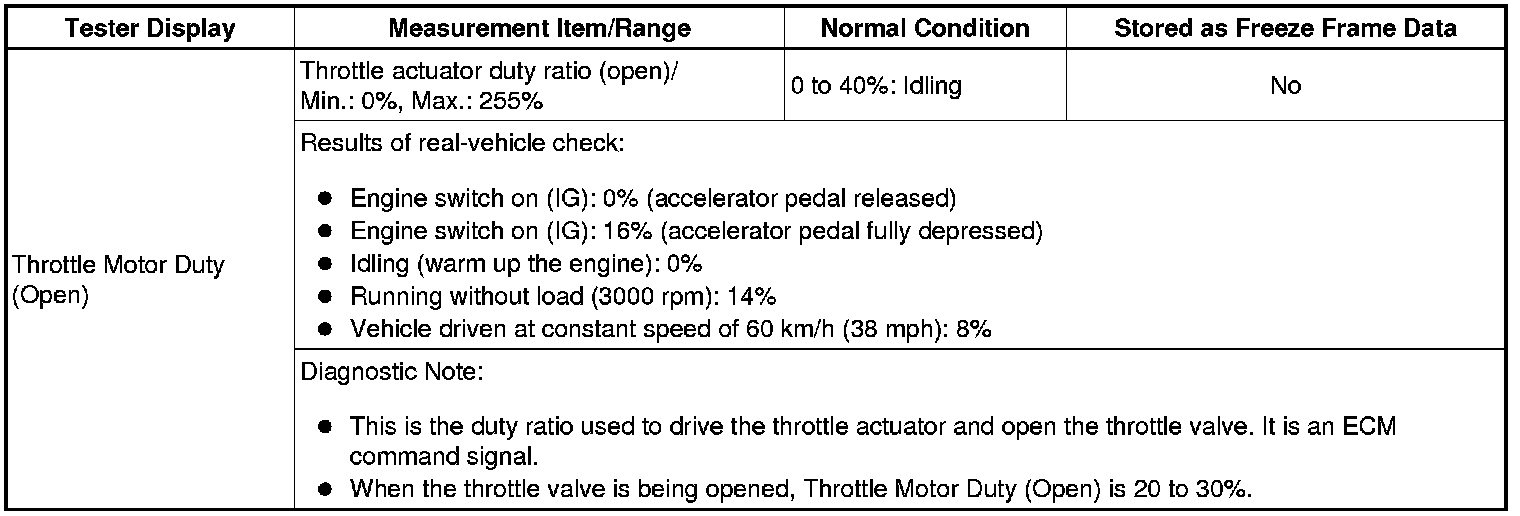

Throttle Motor Duty (Open)

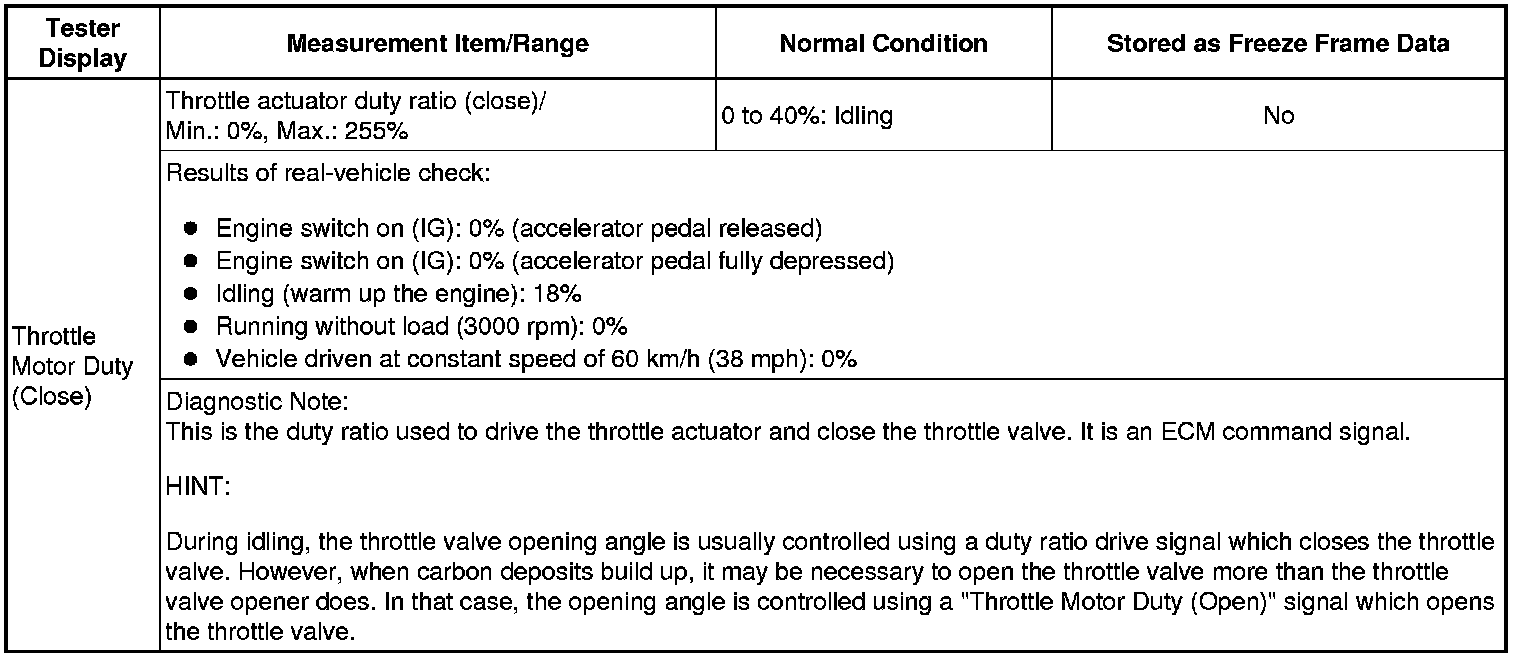

Throttle Motor Duty (Close)

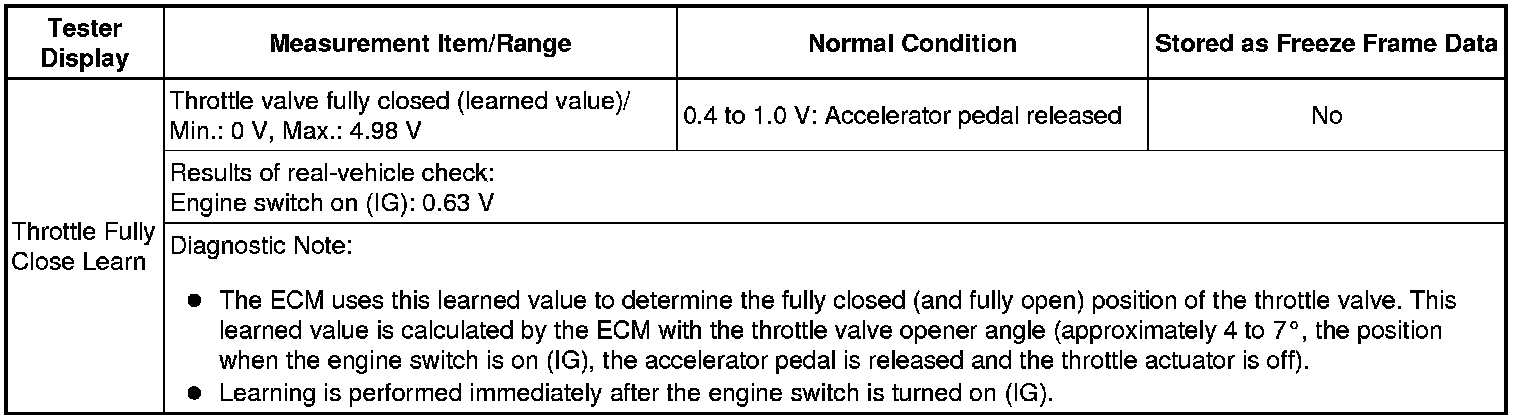

Throttle Fully Close Learn

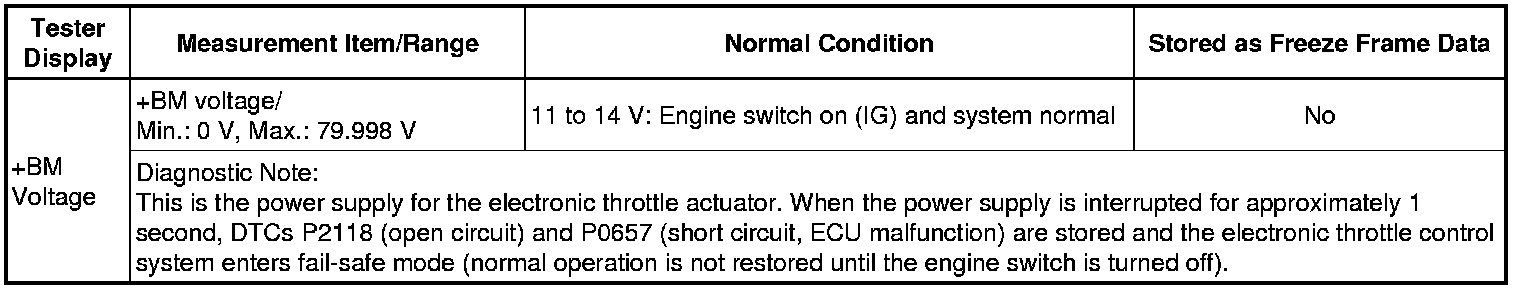

+BM Voltage

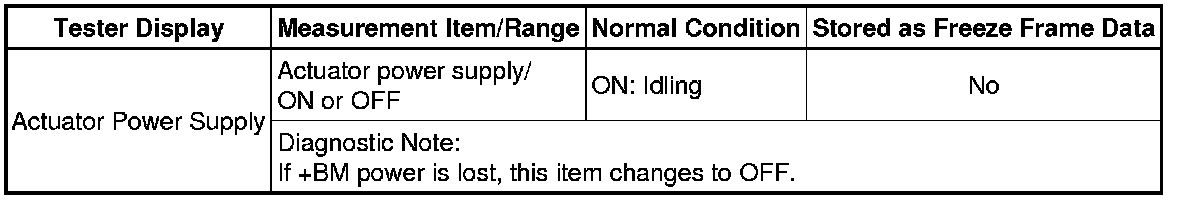

Actuator Power Supply

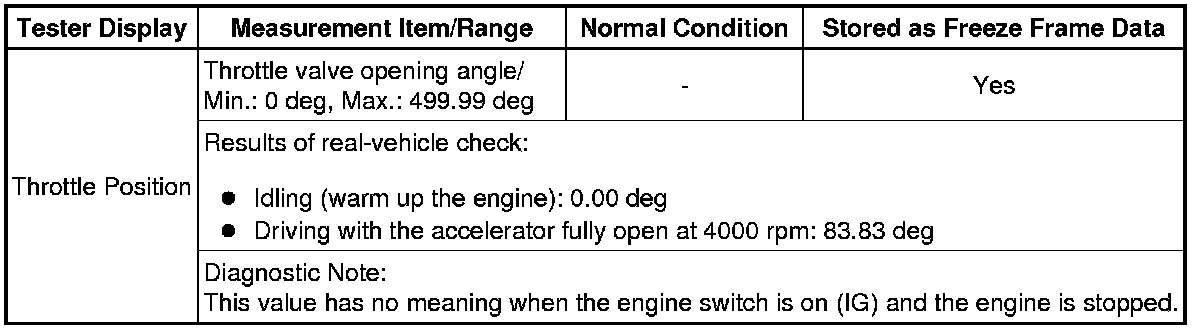

Throttle Position

4. Idle Speed Control

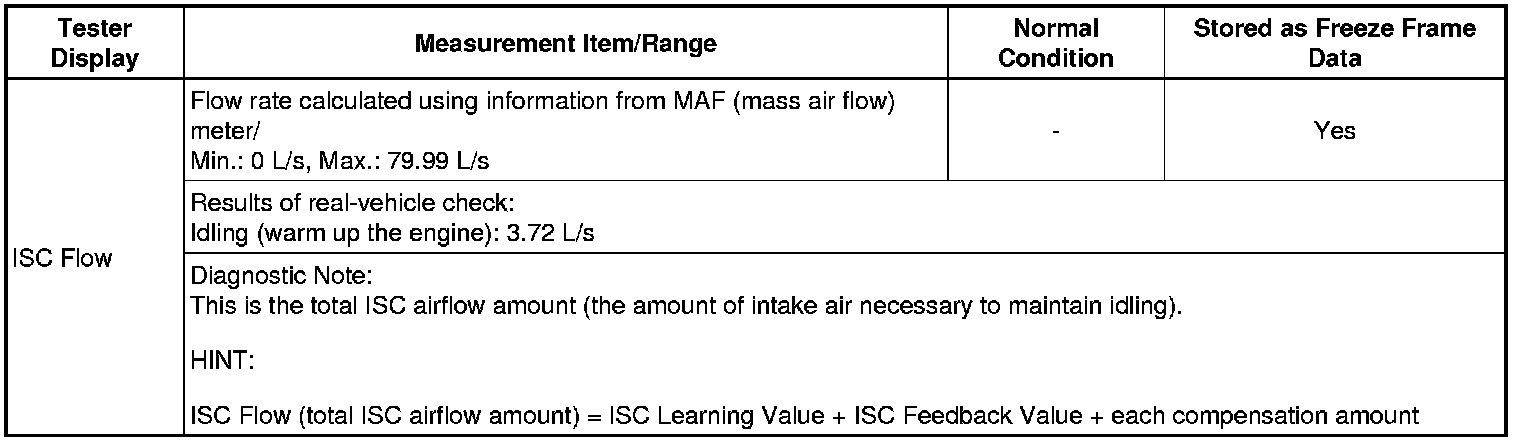

ISC Flow

ISC Position

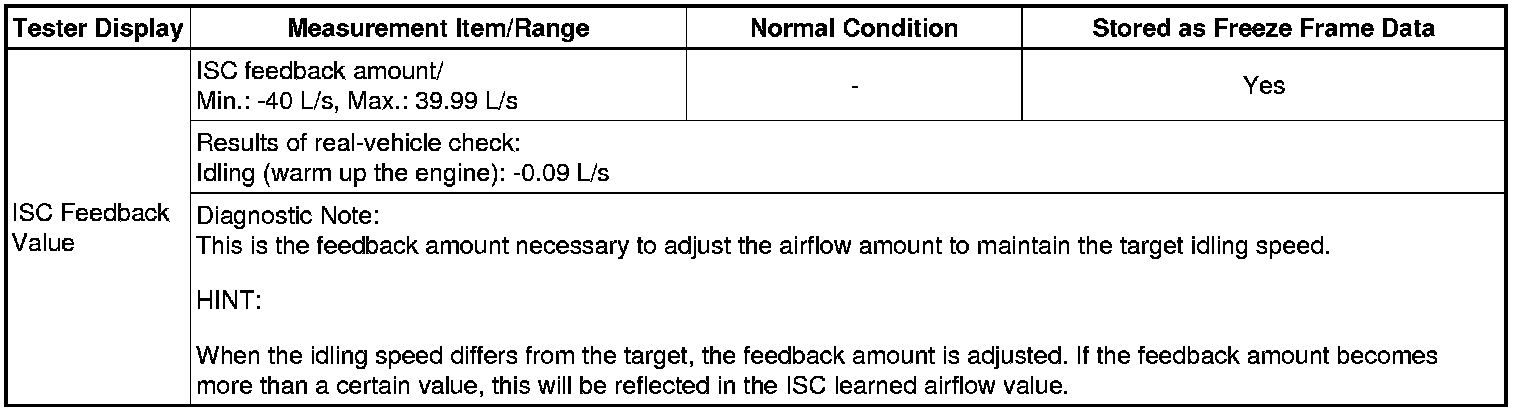

ISC Feedback Value

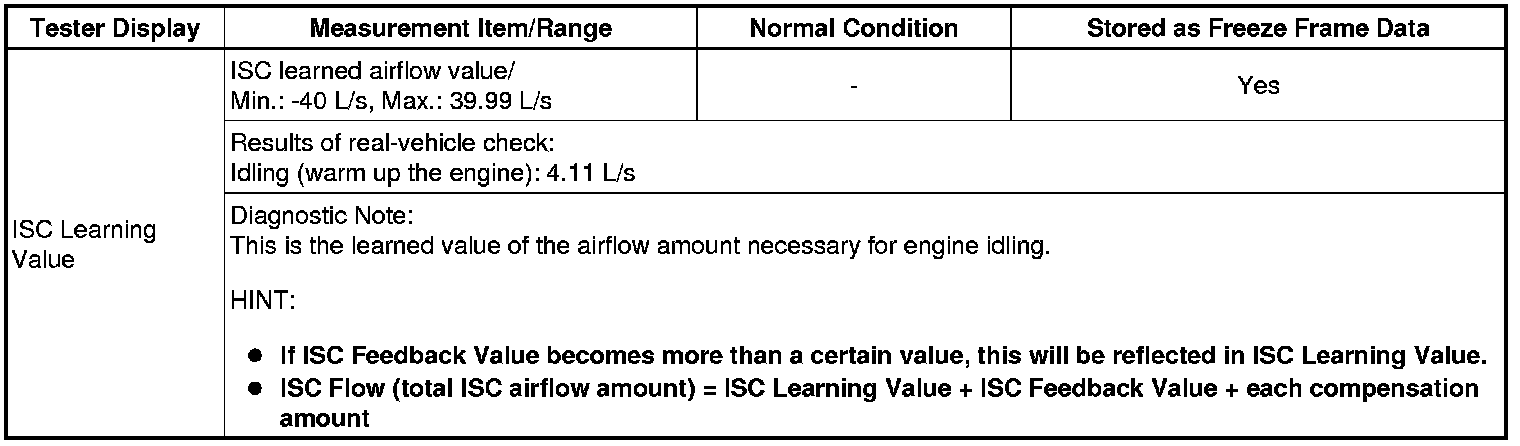

ISC Learning Value

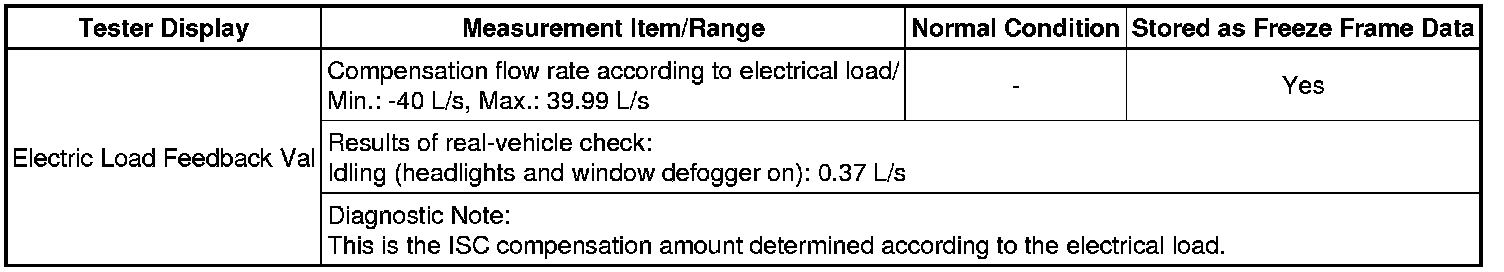

Electric Load Feedback Val

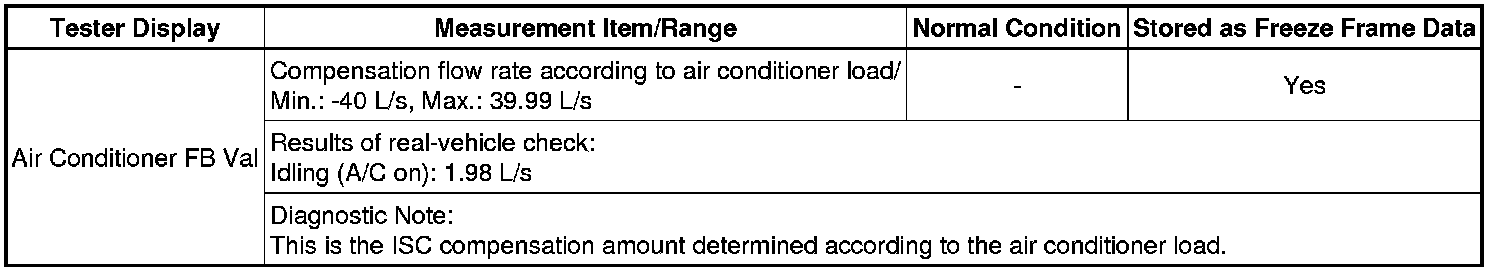

Air Conditioner FB Val

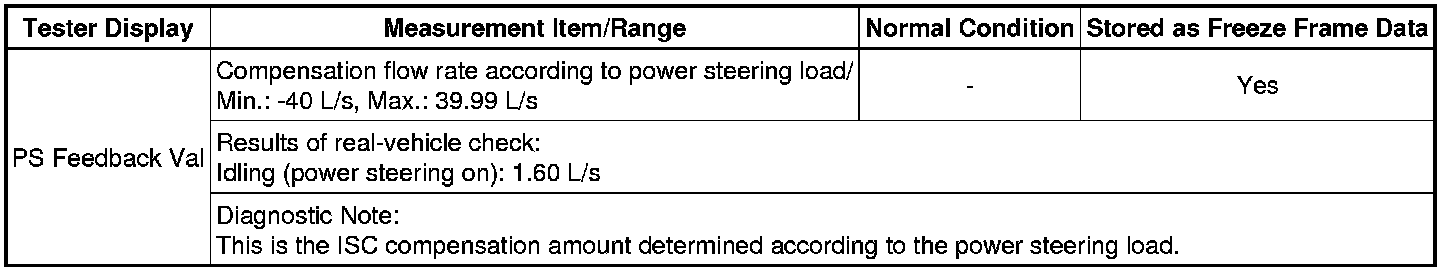

PS Feedback Val

Low Revolution Control

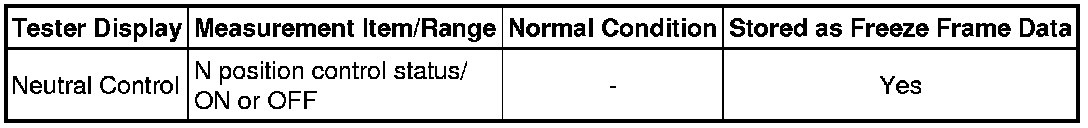

Neutral Control

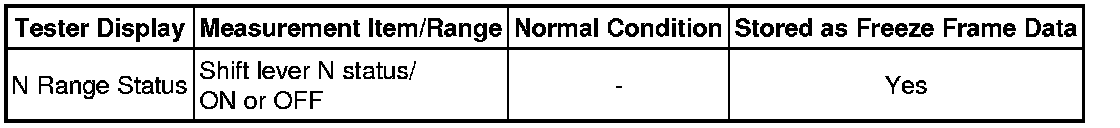

N Range Status

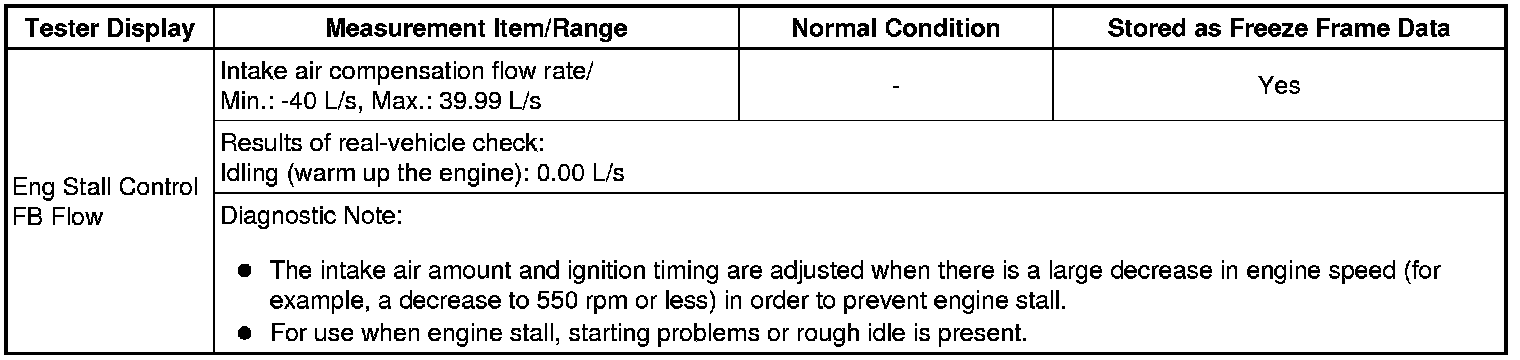

Eng Stall Control FB Flow

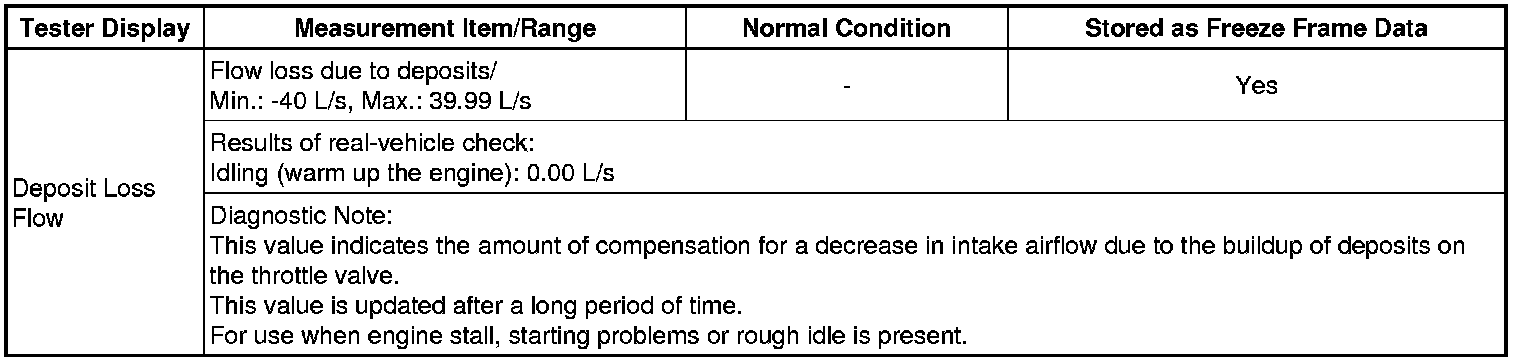

Deposit Loss Flow

5. Fuel System

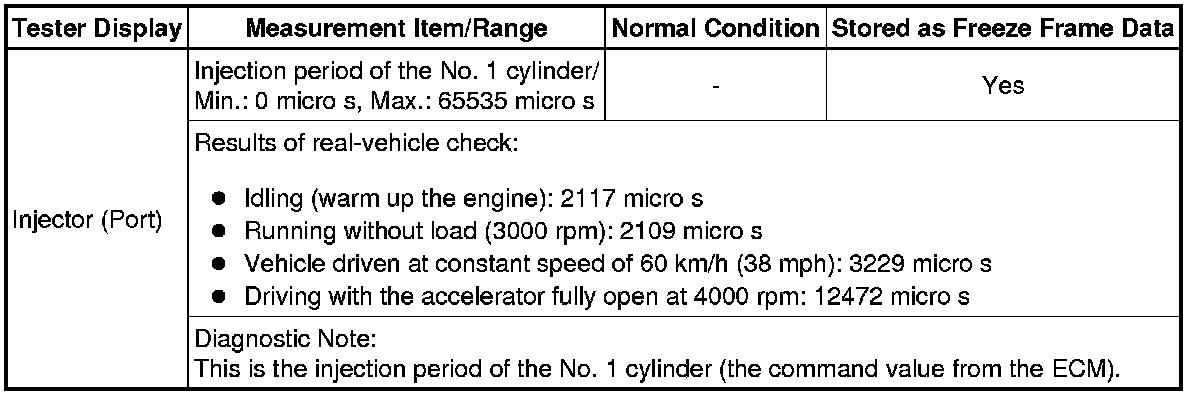

Injector (Port)

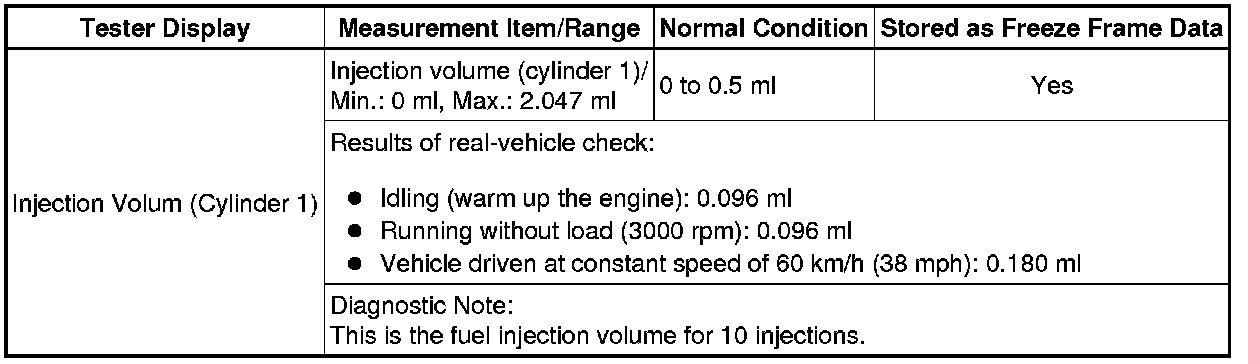

Injection Volume (Cylinder 1)

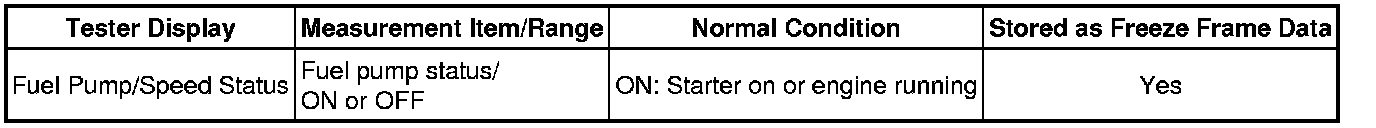

Fuel Pump/Speed Status
