Intake System

1UR-FE INTAKE / EXHAUST: INTAKE SYSTEM: ON-VEHICLE INSPECTION

1. INSPECT INTAKE AIR CONTROL VALVE

(a) Warm up the engine.

(b) Turn the engine switch off.

(c) Remove the V bank cover Removal.

(d) Connect the Techstream to the DLC3.

(e) Turn the engine switch on (IG).

(f) Turn the Techstream on.

(g) Enter the following menus: Powertrain / Engine and ECT / Active test / Active the VSV for Intake Control.

(h) Start the engine.

(i) Perform the Active Test and check that the actuator rod operates.





Text in Illustration





If the result is not as specified, inspect the ECM, intake manifold and VSV (for ACIS) for normal operation. Replace malfunctioning parts as necessary.

(j) Turn the engine switch off.

(k) Disconnect the Techstream from the DLC3.

(l) Install the V bank cover Installation.

2. INSPECT INTAKE AIR CONTROL VALVE

(a) Inspect the diaphragm.





(1) Using a vacuum pump, apply a vacuum of 60 kPa (450 mmHg, 17.7 in.Hg). Check that the lever moves.

Text in Illustration





If the result is not as specified, replace the intake air surge tank.

3. CHECK AIR INDUCTION SYSTEM

HINT

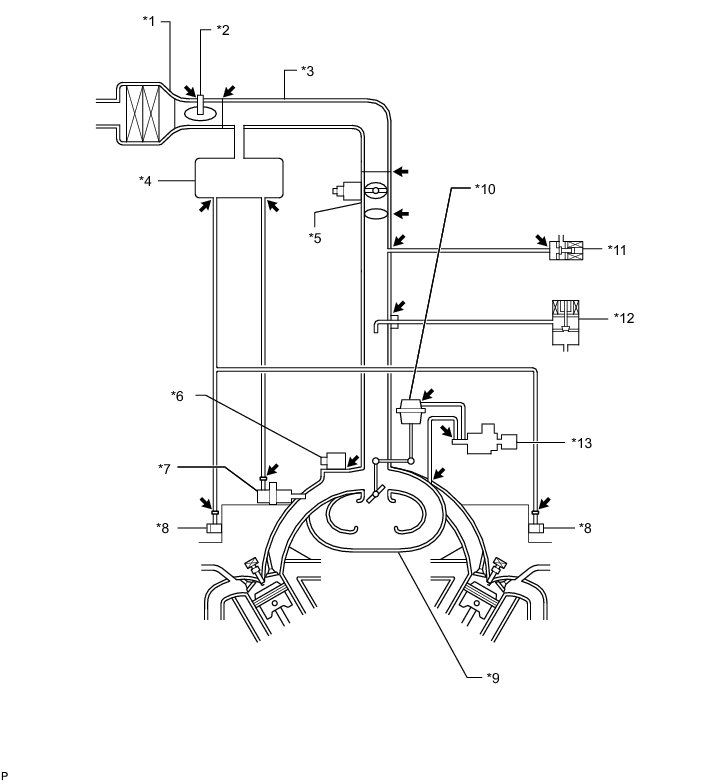

The illustration shows the areas that may draw in secondary air, which could lead to idling problems.

(a) Check that the hoses are installed correctly.

(b) Check for cracks, etc. in the hoses.





Text in Illustration
