Trunk / Liftgate Relay: Testing and Inspection





DOOR / HATCH: RELAY: ON-VEHICLE INSPECTION

1. REMOVE ENGINE ROOM COVER SIDE Removal

2. REMOVE FUEL LID OPENER RELAY

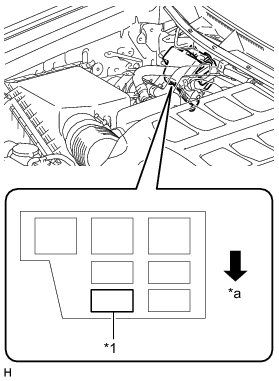

(a) Remove the fuel lid opener relay from the engine room relay block.

Text in Illustration





3. INSPECT FUEL LID OPENER RELAY





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the fuel lid opener relay.

4. INSTALL FUEL LID OPENER RELAY

(a) Install the fuel lid opener relay to the engine room relay block.

5. INSTALL ENGINE ROOM COVER SIDE Installation
