Removal

1UR-FE BATTERY / CHARGING: GENERATOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE RADIATOR ASSEMBLY

(a) Remove the radiator assembly Removal.

3. REMOVE AIR CLEANER CAP AND HOSE Removal

4. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

5. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal

6. REMOVE FRONT FENDER APRON SEAL RH Removal

7. DISCONNECT VANE PUMP ASSEMBLY

(a) Detach the clamp and disconnect the connector.

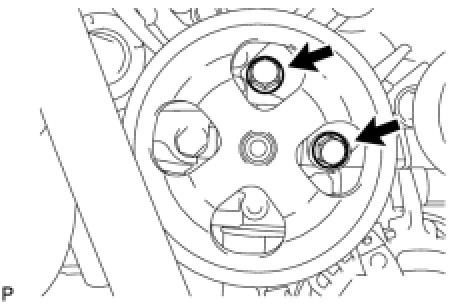

(b) Remove the 2 bolts and disconnect the vane pump.





8. REMOVE GENERATOR ASSEMBLY

(a) Remove the bolt and disconnect the No. 2 return tube bracket.





(b) Disconnect the generator connector.





(c) Remove the terminal cap.

(d) Remove the nut and disconnect the generator wire.

(e) Detach the generator wire.

(f) Remove the bolt and disconnect the wire harness bracket from the generator.





(g) Remove the 3 bolts, nut and generator.
