Reassembly

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: REASSEMBLY

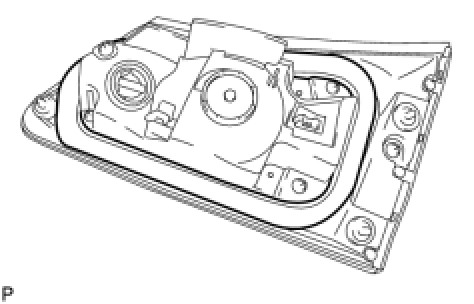

1. INSTALL REAR LIGHT GASKET

(a) Install a new rear light gasket to the rear light lens.





2. INSTALL REAR LIGHT SOCKET AND WIRE

(a) Engage the 2 clamps to install the rear light socket and wire.





(b) Connect the connector.

3. INSTALL BACK UP LIGHT BULB

(a) Install the back up light bulb to the rear light socket and wire.

(b) Turn the back up light bulb and the rear light socket and wire in the direction indicated by the arrow in the illustration and install them as a unit.

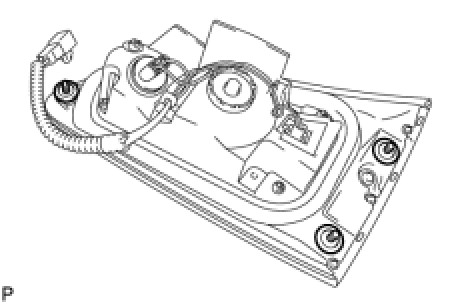

4. INSTALL REAR LIGHT GASKET

(a) Install 3 new rear light gaskets.

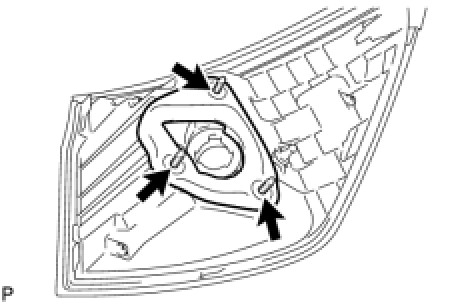

5. INSTALL REAR COMBINATION LIGHT BODY GASKET

(a) Remove the release paper from a new rear combination light body gasket.

(b) Align the gasket with the 3 stud bolts and install the rear combination light body gasket to the rear combination light lens and body.

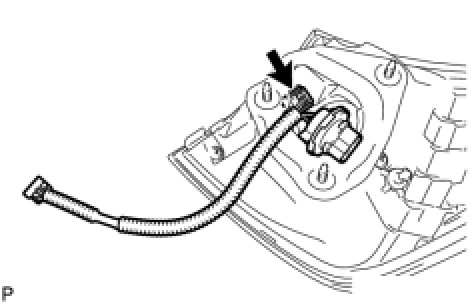

6. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE

(a) Connect the connector and install the rear combination light socket and wire.

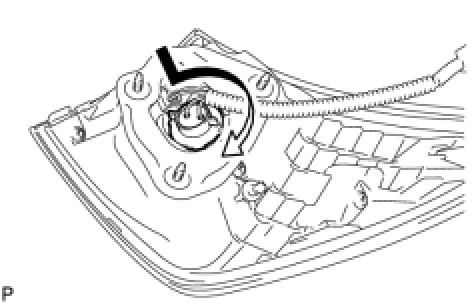

7. INSTALL REAR TURN SIGNAL LIGHT BULB

(a) Install the rear turn signal light bulb to the rear combination light socket and wire.

(b) Turn the rear turn signal light bulb and the rear combination light socket and wire in the direction indicated by the arrow in the illustration and install them as a unit.
