Installation

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

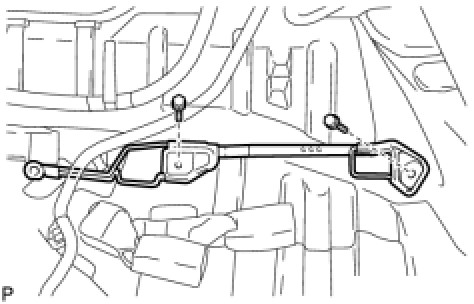

(a) Install the child restraint seat anchor bracket sub-assembly with the 2 bolts.

Torque : 31 Nm (316 kgf-cm, 23 ft-lbf)

2. INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY Installation

3. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

4. INSTALL REAR SEAT HEADREST ASSEMBLY

5. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY Installation
