Removal





WIPER AND WASHER: FRONT WIPER RUBBER: REMOVAL

1. REMOVE FRONT WIPER BLADE

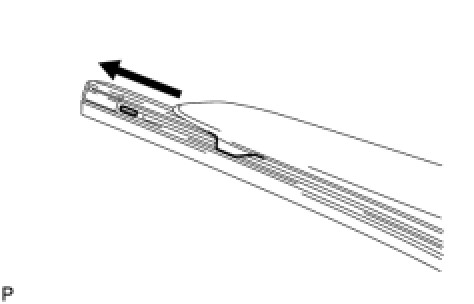

(a) Remove the holder of the front wiper blade.

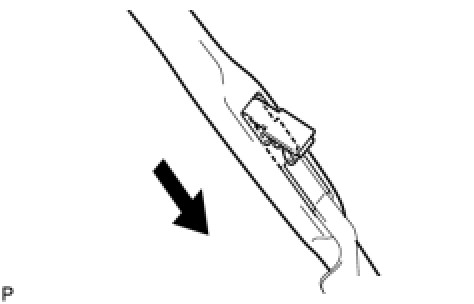

(b) Remove the front wiper blade from the front wiper arm as shown in the illustration.

NOTICE:
Do not bend the front wiper arm with the front wiper blade removed, as the arm tip could damage the windshield surface.

2. REMOVE WIPER RUBBER

(a) Remove the front wiper rubber with the wiper rubber backing plates from the front wiper blade.





(b) Remove the wiper rubber from the 2 wiper rubber backing plates.
