Fluid Pan, A/T






Automatic Transmission Oil Pan

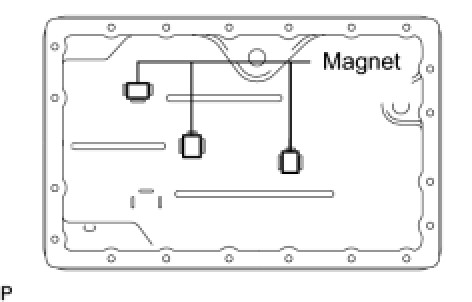

Install the 3 magnets in the oil pan.





Install a new gasket and the oil pan to the transmission case with the 20 bolts.





Torque 4.4 Nm (45 kgf-cm, 39 in-lbf)
