Map Disc Cannot be Inserted
NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM (for DVD): Map Disc cannot be Inserted
- Map Disc cannot be Inserted
INSPECTION PROCEDURE
PROCEDURE
1. CHECK NAVIGATION MODULE BOARD
(a) Display the "Map DVD" screen.
(b) Check if a disc is inserted into the map disc slot.
(1) Check if the map data version is displayed in the "Map Data" section.

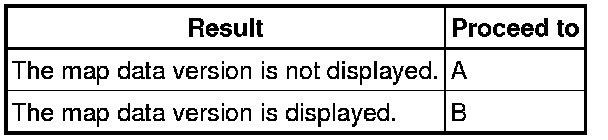

Result:
B -- EJECT MAP DISC
A -- Continue to next step.
2. CHECK MAP DISC
(a) Check that the map disc is not deformed or cracked.
OK:
No deformations or cracks on the map disc
NG -- REPLACE MAP DISC
OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
