Reassembly

INTERIOR PANELS / TRIM: FRONT CONSOLE BOX: REASSEMBLY

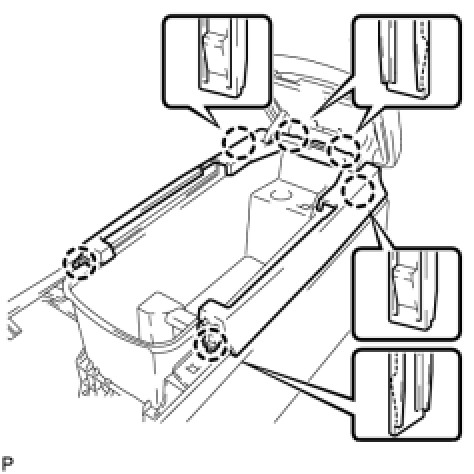

1. INSTALL RADIO WIRE

(a) Engage the clamp.





(b) Install the radio wire with adhesive tape.

2. INSTALL STEREO JACK ADAPTER ASSEMBLY Installation

3. INSTALL POWER POINT SOCKET COVER Installation

4. INSTALL POWER OUTLET SOCKET ASSEMBLY Installation

5. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY Installation

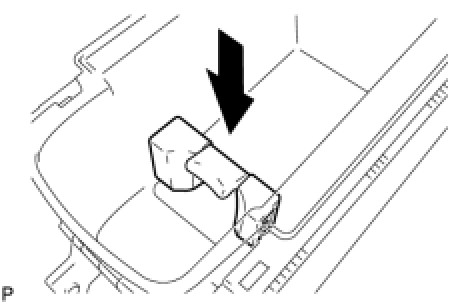

6. INSTALL CONSOLE COMPARTMENT DOOR CUSHION

(a) Install the 2 console compartment door cushions to the console box.

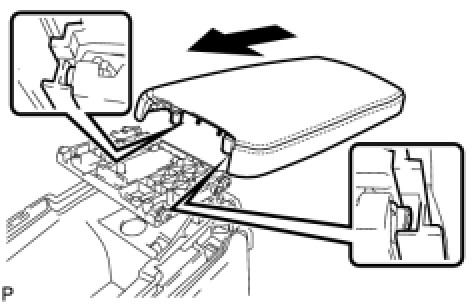

7. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

(a) Aligning the inside groove of the console compartment door with the console compartment door hinge, slide the console compartment door sub-assembly and install it.





8. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

(a) Install the console compartment door lock sub-assembly with the 2 screws.





9. INSTALL FRONT UPPER CONSOLE PANEL GARNISH

(a) Engage the 6 claws and install the front upper console panel garnish.





10. INSTALL CONSOLE BOX CUP HOLDER SUB-ASSEMBLY

(a) Install the console box cup holder sub-assembly.
