System Description





MIRROR (EXT): POWER MIRROR CONTROL SYSTEM (w/ Memory): SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION

(a) This system has the following functions: automatic glare-resistant electrochromic (EC) mirror function, auto electric retract function, reverse shift-linked function, electrical remote control function, memory function and mirror heater function.

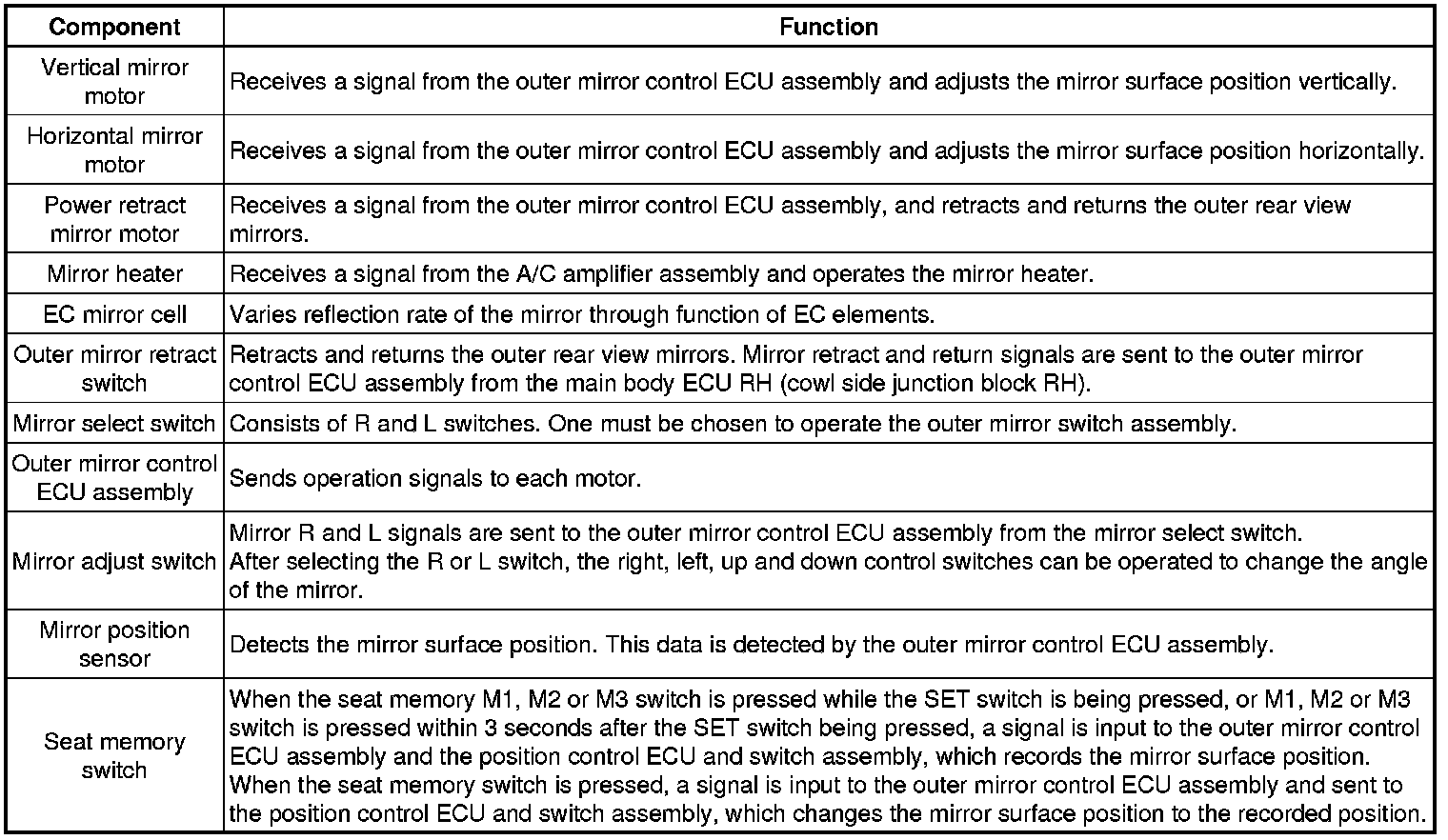

2. FUNCTION OF MAIN COMPONENT

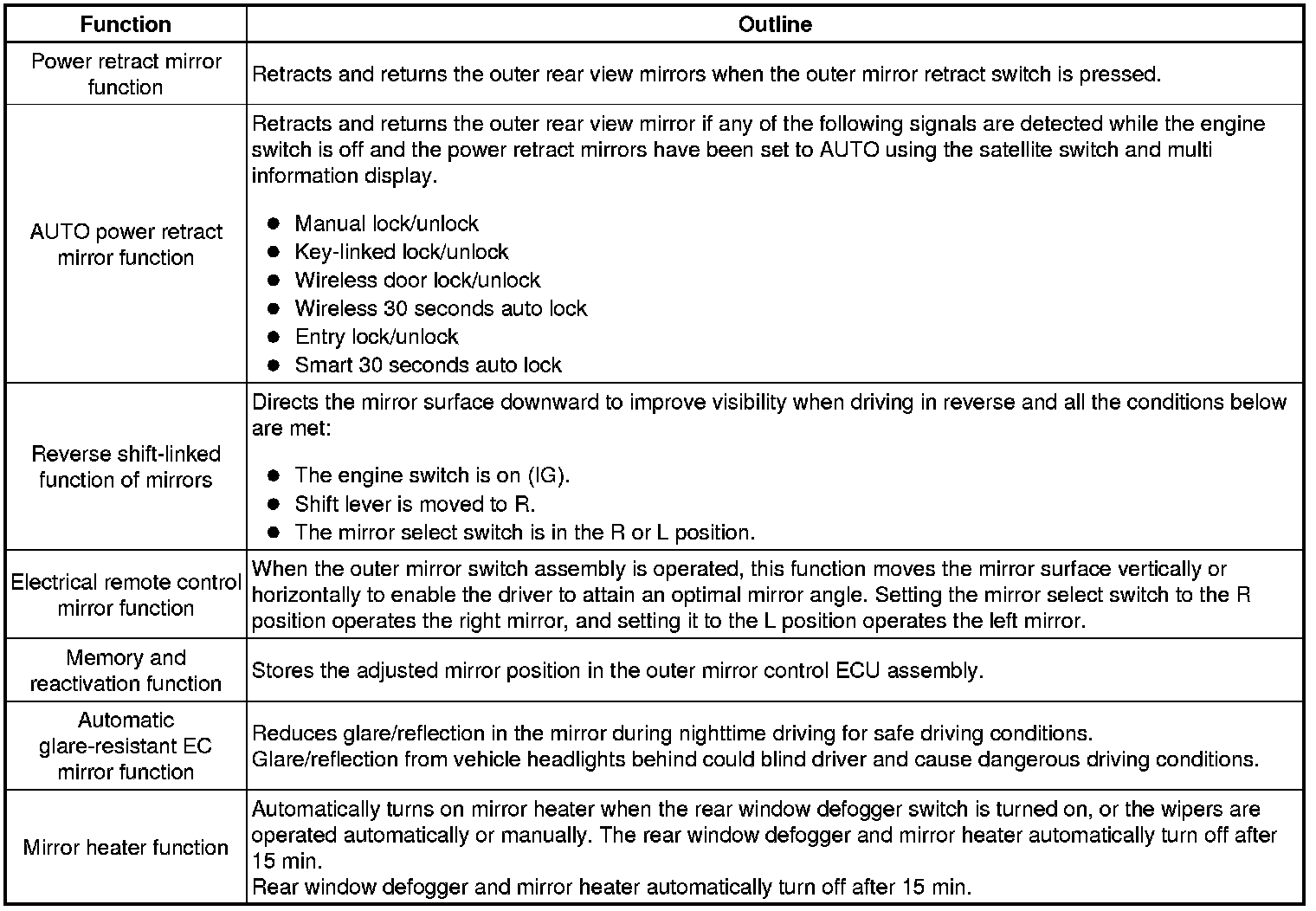

3. SYSTEM OPERATION

(a) The remote control mirror has the following features.
