Remote Control Mirror (W/ Seat Position Memory)

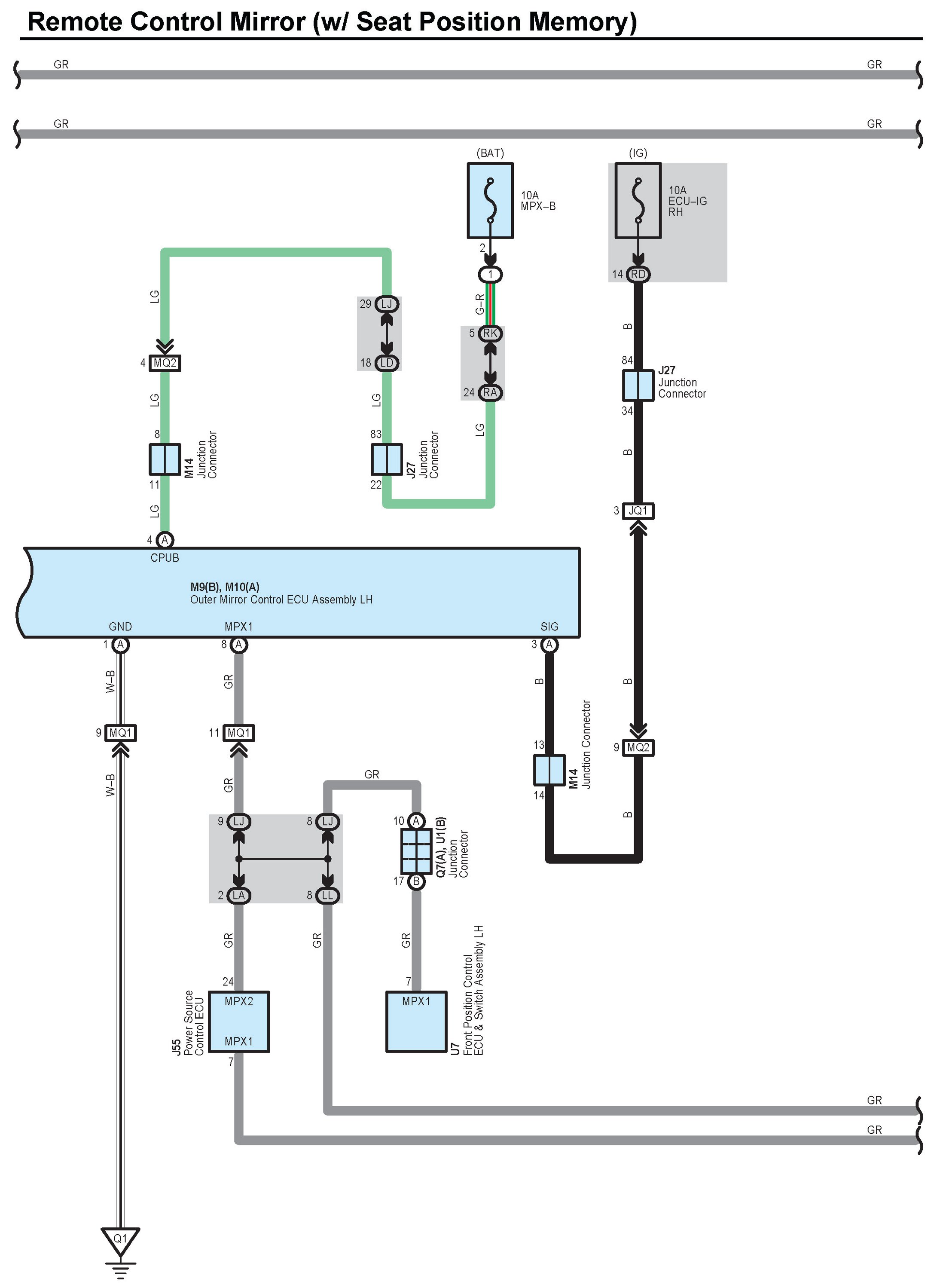

Remote Control Mirror (w/ Seat Position Memory) Part 1:

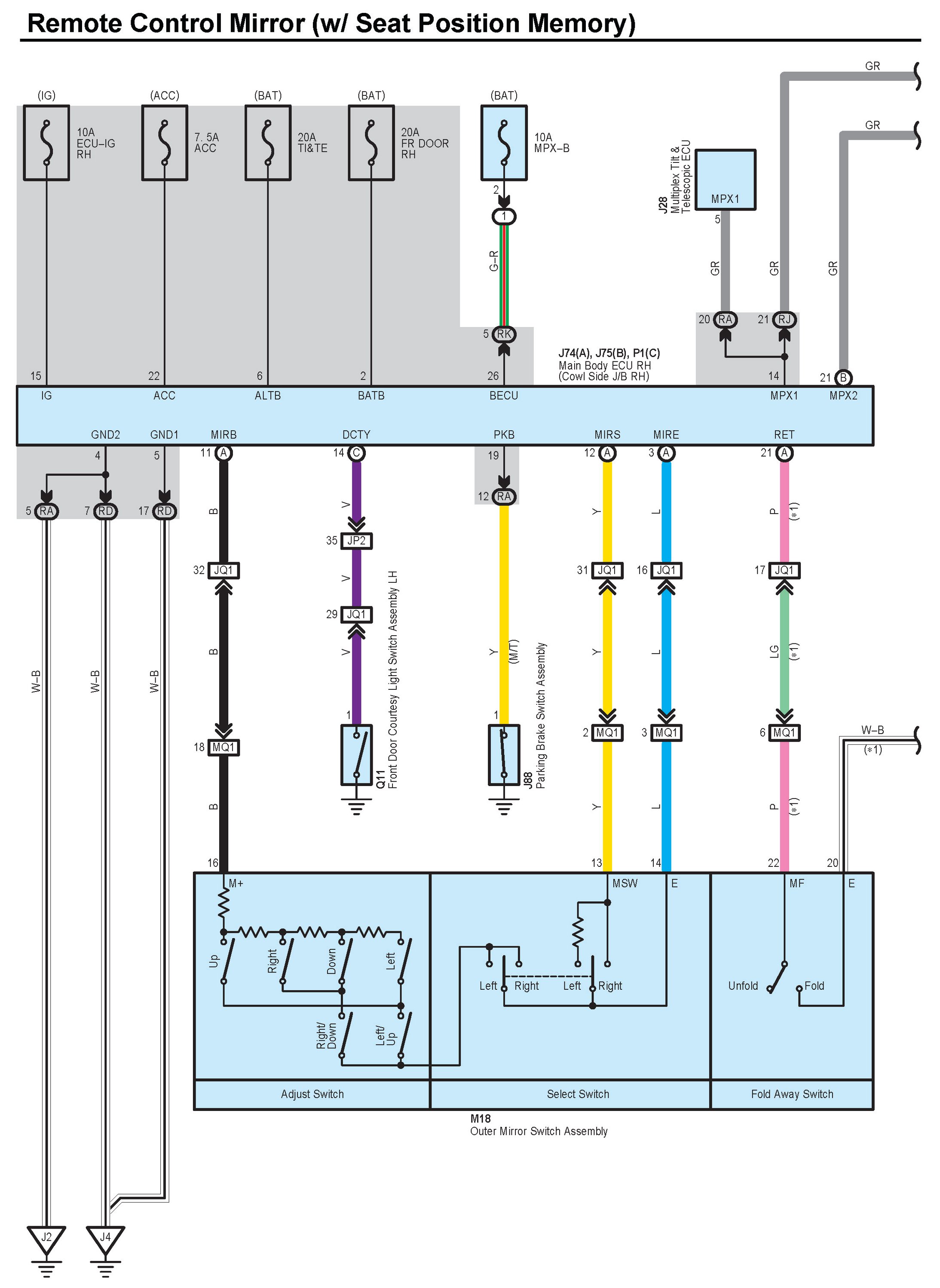

Remote Control Mirror (w/ Seat Position Memory) Part 2:

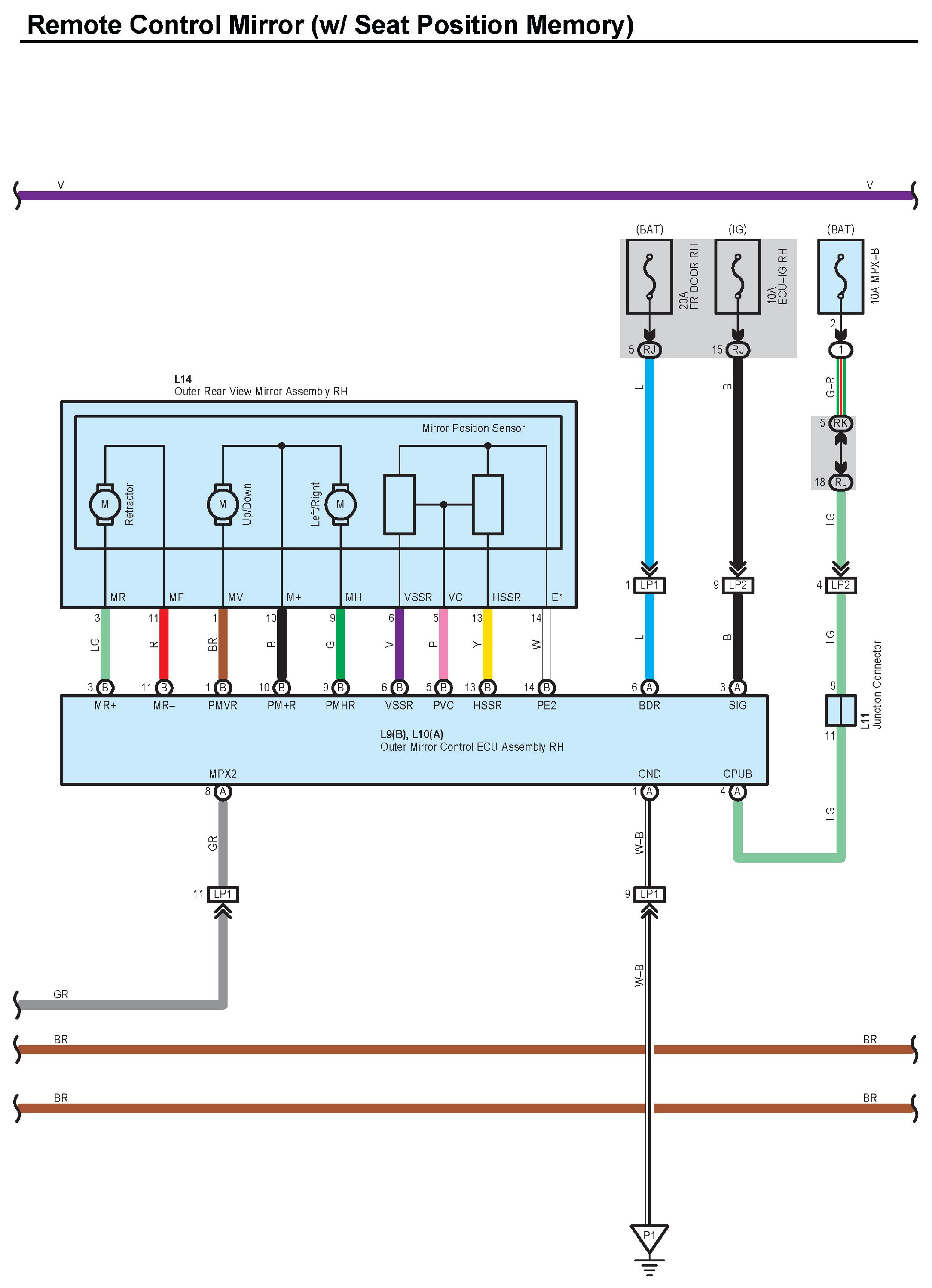

Remote Control Mirror (w/ Seat Position Memory) Part 3:

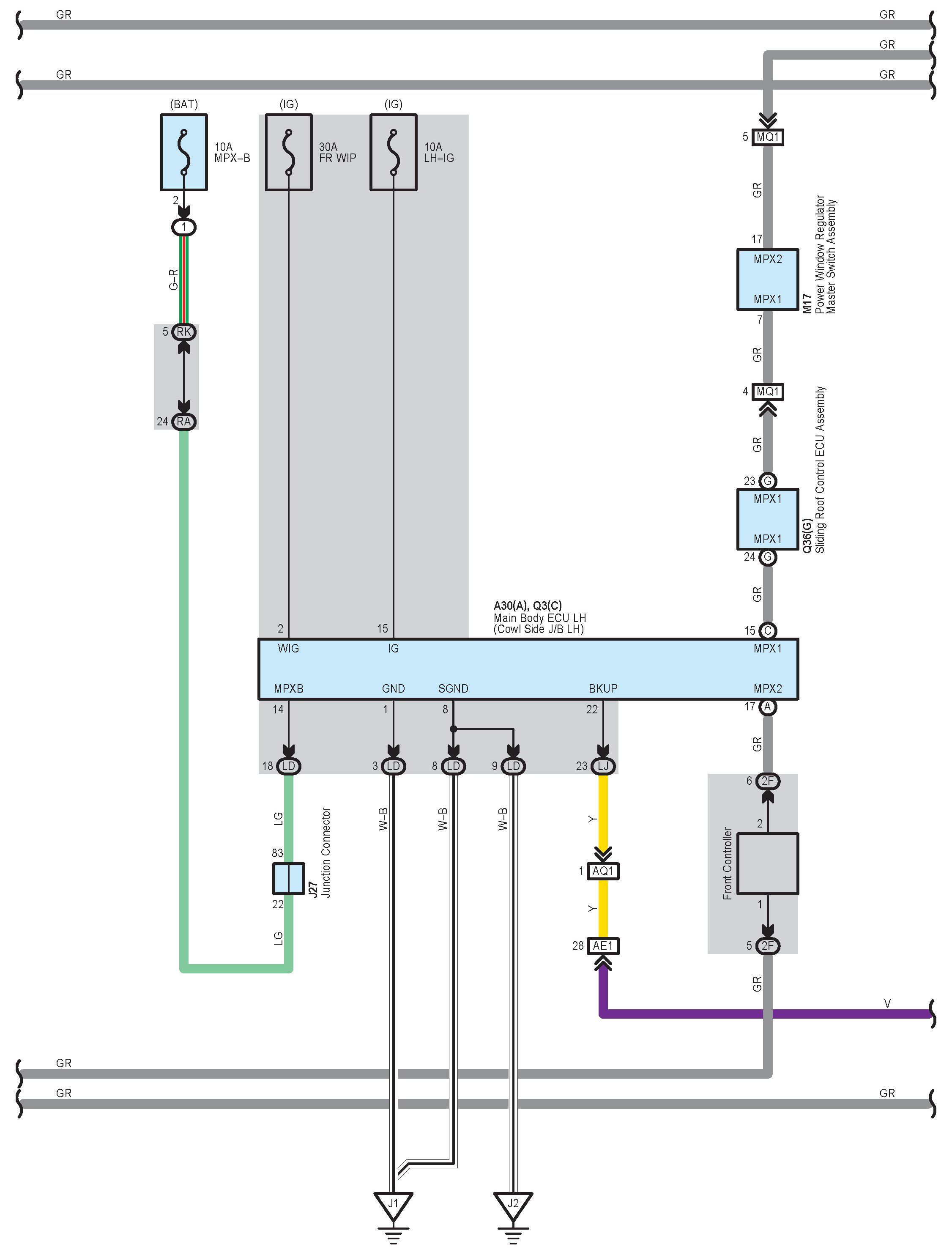

Remote Control Mirror (w/ Seat Position Memory) Part 4:

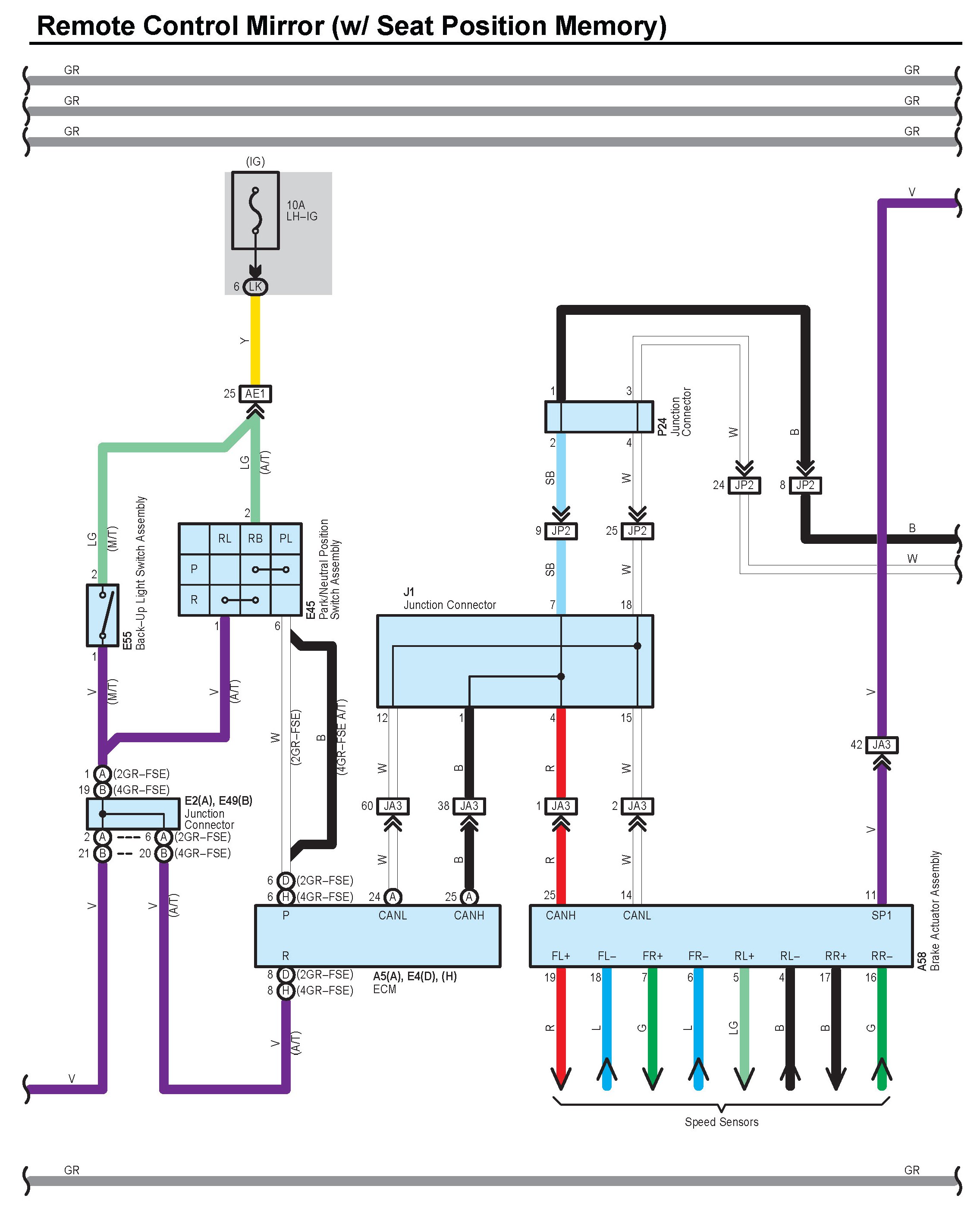

Remote Control Mirror (w/ Seat Position Memory) Part 5:

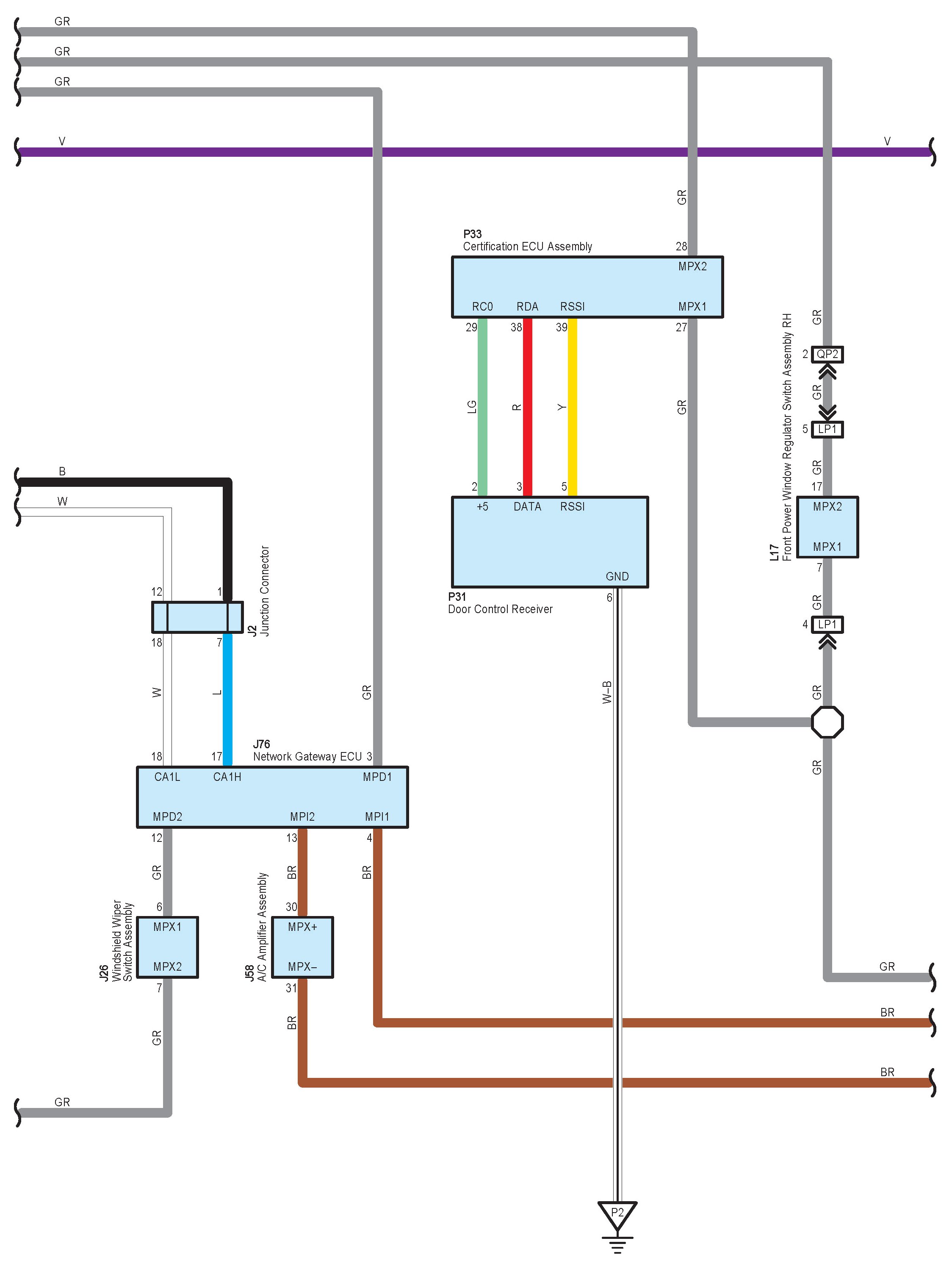

Remote Control Mirror (w/ Seat Position Memory) Part 6:




Remote Control Mirror (w/ Seat Position Memory) Part 7:




Remote Control Mirror (w/ Seat Position Memory) Part 8:

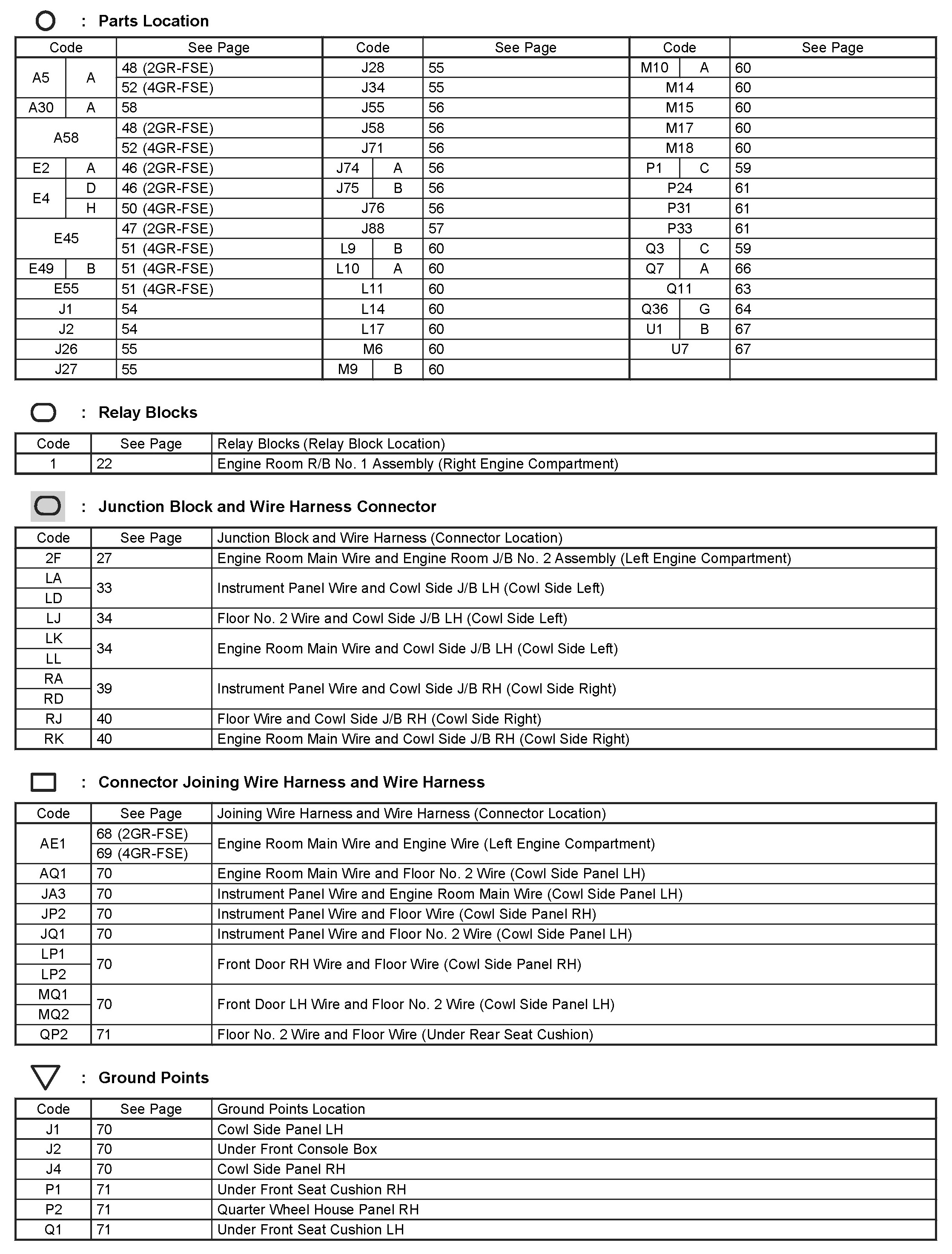

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Component Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
