Procedures
4GR-FSE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT 1.

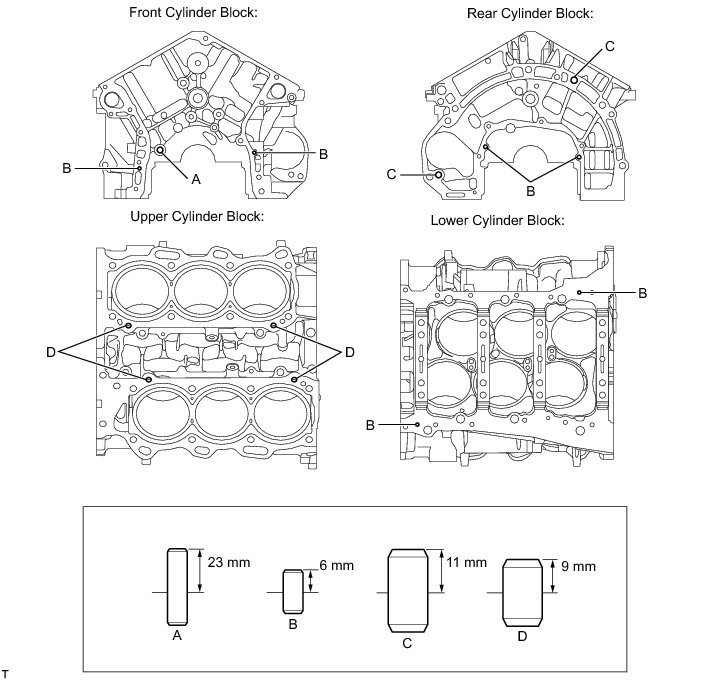

REPLACE STRAIGHT PIN
(a)
Using a plastic hammer, tap in new straight pins to the cylinder block.

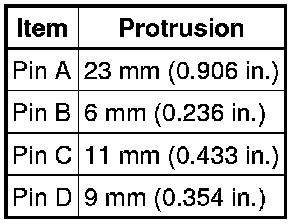

Standard Protrusion: 2.

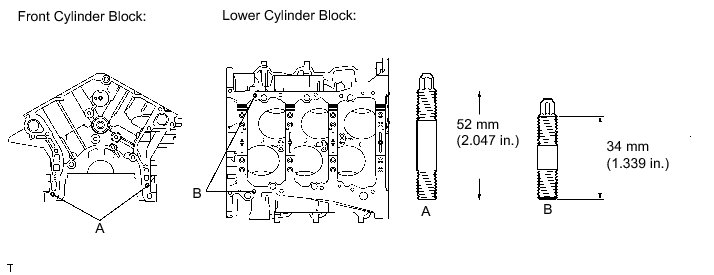

REPLACE STUD BOLT
(a)
Using an E8 "TORX" socket, install the stud bolts.
Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)
