System Description

LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DESCRIPTION

The system representations shown below are intended to show concept of operation, and may not precisely reflect the construction of the system on the vehicle.

1. ILLUMINATED ENTRY SYSTEM

(a) General

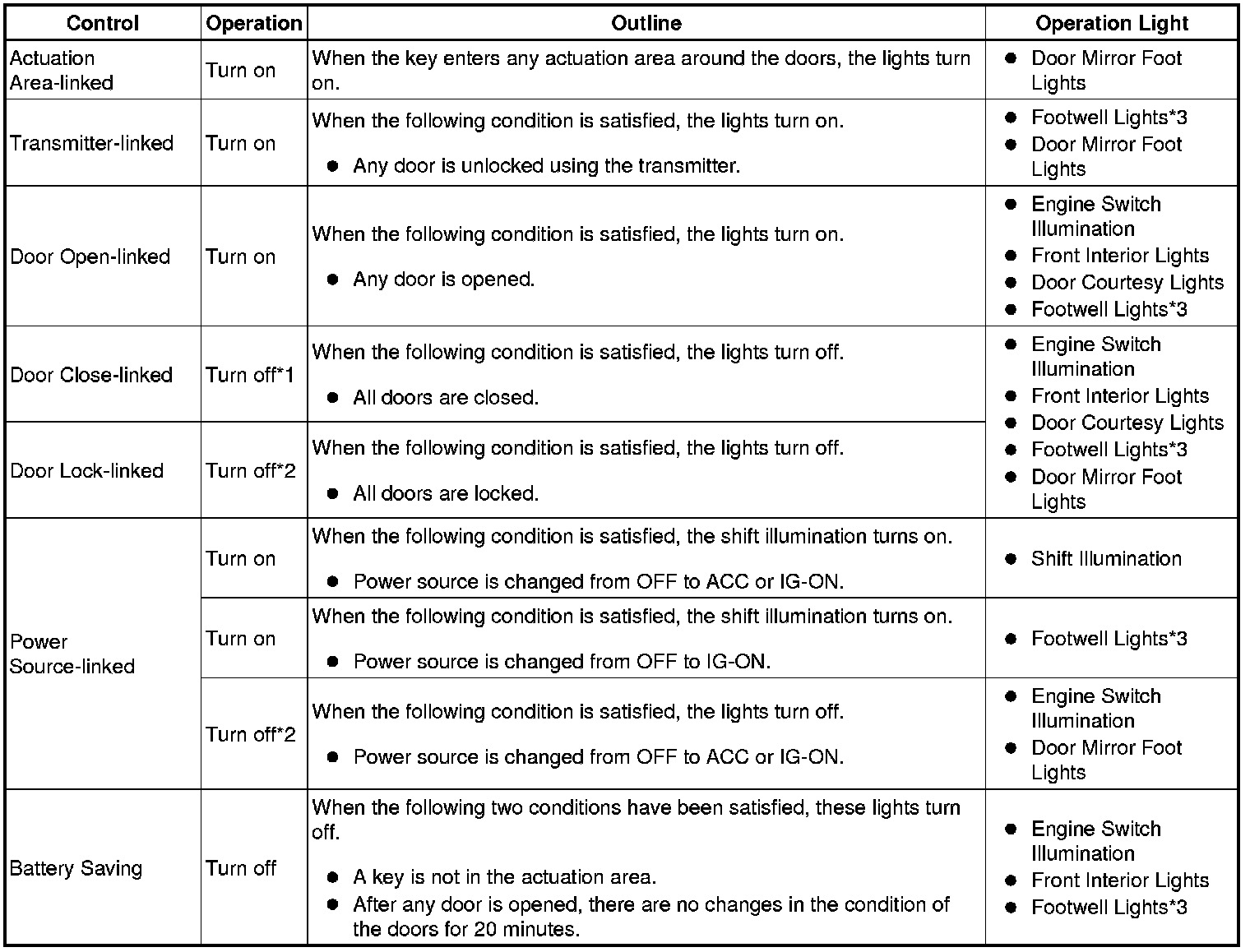

(1) The illuminated entry system has the seven control functions shown in the following chart:





*1: Illuminates for approximately 15 seconds, then fades out over three seconds.

*2: Stops the illumination immediately and starts to fade out over three seconds.

*3: Go off when the light control rheostat is adjusted to the minimum level.
