Connecting Rod, Engine

Connecting rod bolts
1st 25 Nm (255 kgf-cm, 18 ft-lbf)
2nd Turn 90°





Standard diameter 7.2 to 7.3 mm (0.284 to 0.287 in.)
Minimum diameter 7.0 mm (0.276 in.)

If the diameter is less than the minimum, replace the bolt.

Connecting Rod

Standard thrust clearance 0.25 to 0.40 mm (0.00984 to 0.0157 in.)
Maximum thrust clearance 0.50 mm (0.0197 in.)

Standard oil clearance 0.042 to 0.068 mm (0.00165 to 0.00268 in.)
Maximum oil clearance 0.070 mm (0.00276 in.)

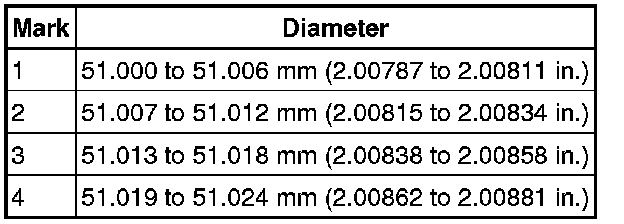

Connecting rod diameter





Connecting rod bearing center wall thickness
