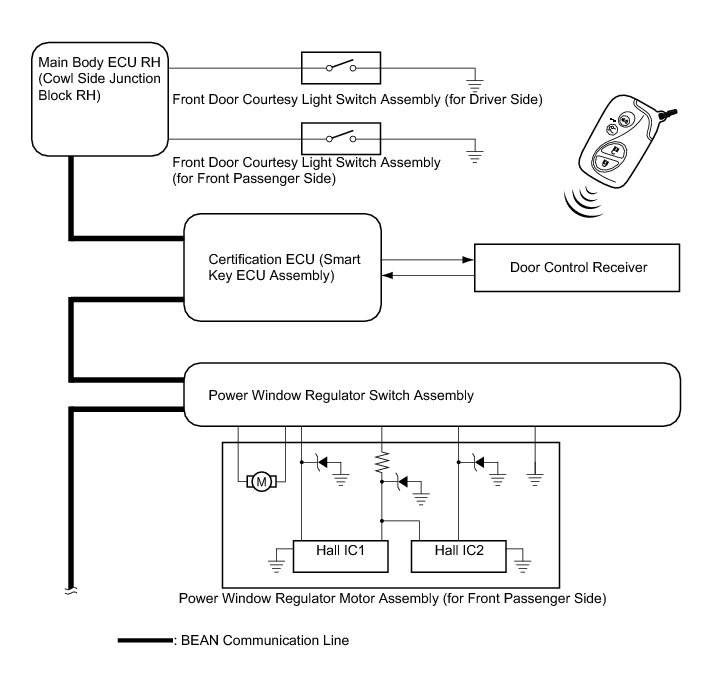

System Diagram

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: SYSTEM DIAGRAM

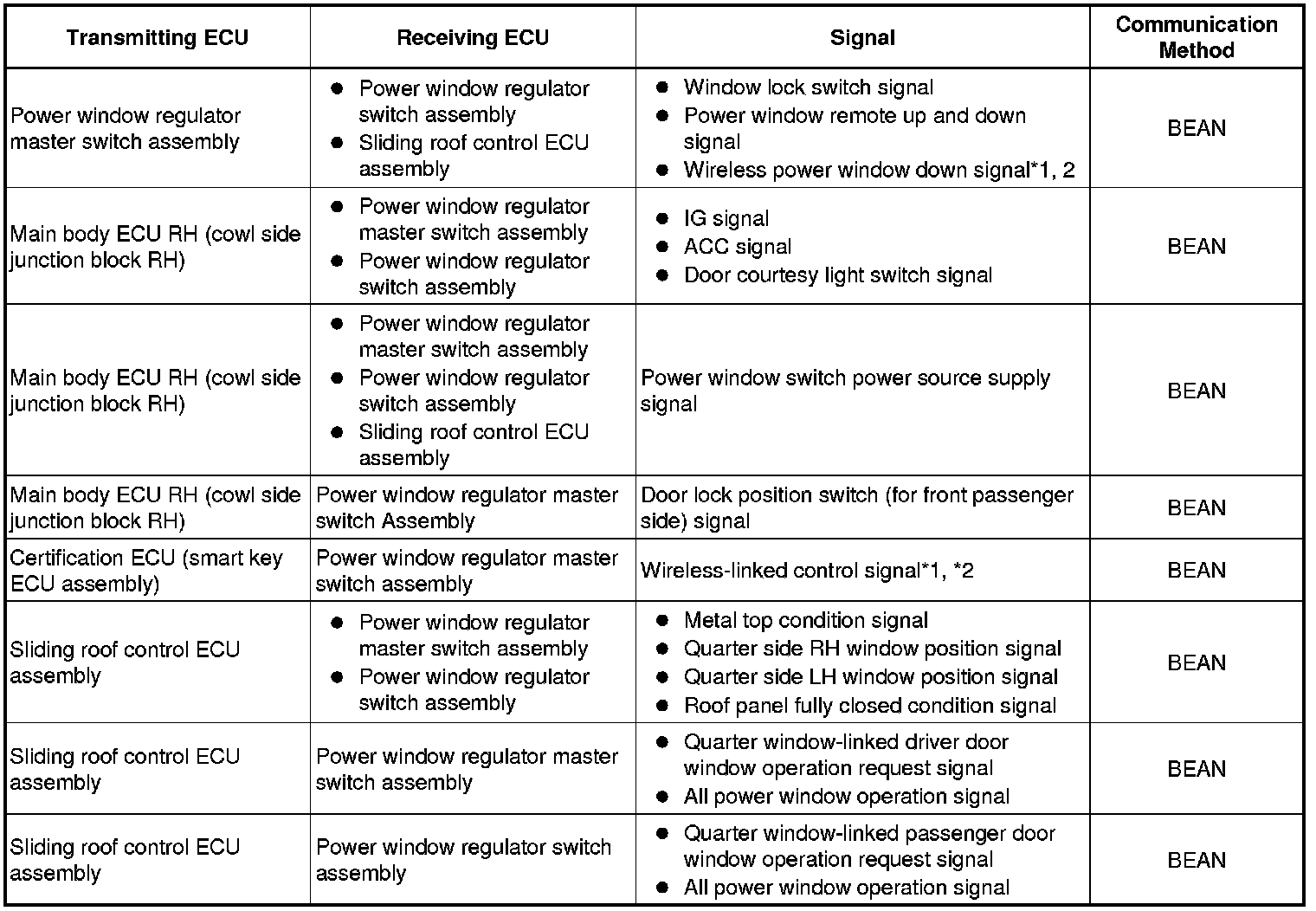

Communication Table

* *1: w/ Occupant Classification System

* *2: This function is set through the customize function, as it is off by default.
