Wiper Motor Power Source Circuit

WIPER / WASHER: WIPER AND WASHER SYSTEM: Wiper Motor Power Source Circuit
- Wiper Motor Power Source Circuit

DESCRIPTION

This circuit provides power to the front wiper motor and operates the main body ECU LH (cowl side junction block LH).

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

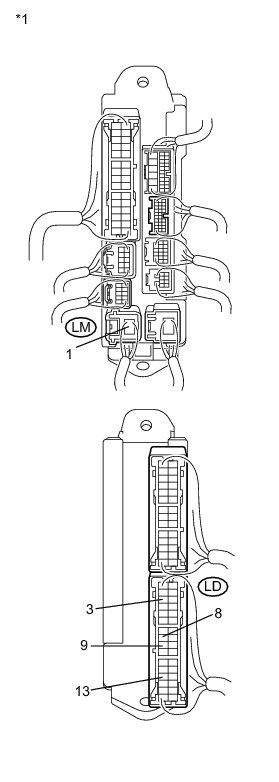

1. CHECK MAIN BODY ECU LH (COWL SIDE JUNCTION BLOCK LH)

(a) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU LH - BODY GROUND)

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

2. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU LH - BODY GROUND)

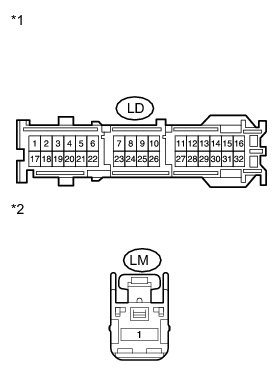

(a) Disconnect the LD connector from the main body ECU LH (cowl side junction block LH).





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU LH - BATTERY)

(a) Disconnect the LM connector from the main body ECU LH (cowl side junction block LH).





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
