Removal

2UR-GSE ENGINE CONTROL: ECM: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal

3. REMOVE ENGINE ROOM SIDE COVER LH Removal

4. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

5. REMOVE ENGINE ROOM ECU COVER

(a) Remove the 3 bolts and the ECM cover.





NOTICE:
* Remove all water from on and around the ECM cover.
* Perform the inspection indoors to avoid rain.
* Be sure to prevent water intrusion to the ECM (connectors and screw holes).

6. REMOVE ECM

(a) Disconnect the ECM connectors.

(1) Using a screwdriver, disconnect the connector holder.





(2) Disconnect the 6 ECM connectors.

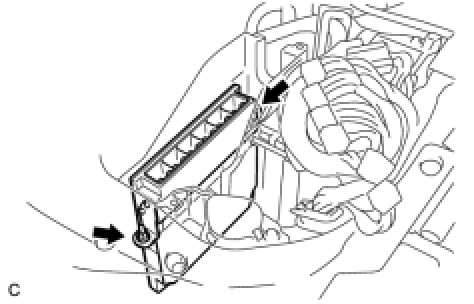

(b) Remove the 2 nuts and ECM from the ECM box.
