Disassembly
LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: DISASSEMBLY 1.

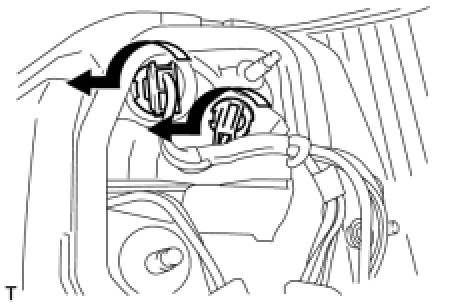

REMOVE REAR TURN SIGNAL LIGHT SOCKET AND WIRE LH
(a)
Turn the socket in the direction indicated by the arrow and remove them.
2.
REMOVE REAR TURN SIGNAL LIGHT BULB
(a)
Remove the bulb.
3.

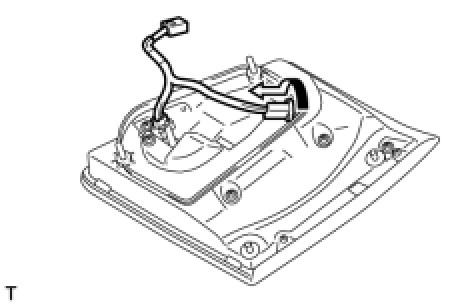

REMOVE REAR LIGHT SOCKET AND WIRE
(a)
Turn the socket in the direction indicated by the arrow and remove it.
4.
REMOVE BACK UP LIGHT BULB
(a)
Remove the bulb.
