Exhaust Manifold

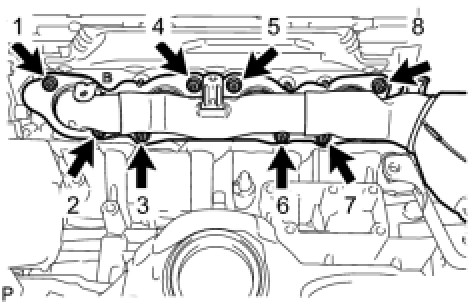

Install the
exhaust manifold with the new nuts by uniformly tightening the nuts in several steps, in the sequence shown in the illustration.
Exhaust Manifold LH
21 Nm (214 kgf-cm, 15 ft-lbf)
Install the
exhaust manifold with the new nuts by uniformly tightening the nuts in several steps, in the sequence shown in the illustration.
Exhaust manifold RH
21 Nm (214 kgf-cm, 15 ft-lbf)
